User modules for AnalogueMatrix

User modules connect workplaces with the KVM matrix system. CAT cables or optical fibres connect the user modules to the central module and provide the required ports for peripherals like monitor, keyboard and mouse.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม



รับประกัน 3 ปี

User modules for analogue matrix systems

User modules connect workplaces with the KVM matrix system.

CAT cables or optical fibres connect the user modules to the central module and provide the required ports for peripherals like monitor, keyboard and mouse.

UCON user modules are available in variants for direct (= 1:1 via CAT cable) or digital (= over IP) access.

UCON

Direct access over CAT cable

If the console to be installed is attached to a certain place and placed within a maximum distance of 300 metres away from the farthest computer, we recommend deploying direct access UCON.

  • Dedicated 1:1 connection
  • Large video bandwidth
  • High performance (1:1)
  • No latency

User modules transmit the following signals:

  • VGA Video
  • Keyboard/Mouse PS/2 + USB

Configuration and operation:

  • Select computers via OSD or hotkeys
  • Configuration via OSD (and web interface with CATCenter NEO)
  • Supports both TS and Push-Get function (see expansions)

A detailed description of features and additional functions is given below.

UCON-IP-NEO

Digital access over IP

If you need to access your computers from anywhere, we recommend deploying digital UCONs.

  • Servers can be accessed over network
  • Use of existing infrastructure (in-band)
  • No additional software at console
  • No soft- or hardware installations at target server
  • No configuration at target server, e.g. mouse settings
  • Comprehensive password protection

The following signals are transmitted:

  • VGA Video
  • Colour mode 8 Bit
  • Resolution over IP up to 1920 x 1200 @ 60Hz
  • Local resolution up to 1920 x 1440 @ 75Hz
  • Keyboard/Mouse PS/2

Operation:

  • IP session over native client for Windows or Linux or Java client (called up via web interface of UCON-IP-NEO)
  • Select computers via OSD or graphical interfacec
  • Configuration over web interface of the device
  • Supports Push-Get function (see expansions)

Are you interested in experiencing the performance of our KVM-over-IP solutions? Then please request your access data here.

Additional variants of the user modules

Suitable to the computer modules additional signals and functions are available for the user modules.

UCON-Audio

Transmits additional audio signals

Application

  • UCON for direct access
  • Console up to 300 metres away from computer module

Signals

  • VGA Video
  • Keyboard/Mouse PS/2 + USB
  • Audio (speakers)

Operation

  • Select computers via OSD or hotkeys
  • Configuration via OSD (and web interface with CATCenter NEO)
  • Supports both TS and Push-Get function (see expansions)

Design
Desktop or rackmount variant

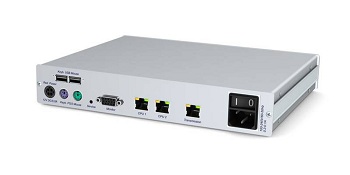

UCON-s

Connection of two console computers

Application

  • UCON for direct access
  • Console up to 300 m away from the computer module
  • Additional connection of two console computers

Signals

  • VGA Video
  • Keyboard/Mouse PS/2 + USB

Operation

  • Select computers via OSD or hotkeys
  • Select console computers or remote computers via button at the front
  • Configuration via OSD (and web interface with CATCenter NEO)
  • Supports Push-Get function (see expansions)

Design

  • Desktop or rackmount variant

UCON-Audio-s

Connection of two console computers with audio transmission

Application

  • UCON for direct access
  • Console up to 300 m away from the computer module
  • Additional connection of two console computers

Signals

  • VGA Video
  • Keyboard/Mouse PS/2 + USB
  • Audio (speakers)

Operation

  • Select computers via OSD or hotkeys
  • Select console computers or remote computers via button at the front
  • Configuration via OSD (and web interface with CATCenter NEO)
  • Supports TS and Push-Get function (see expansions)

Design

  • Desktop or rackmount variant

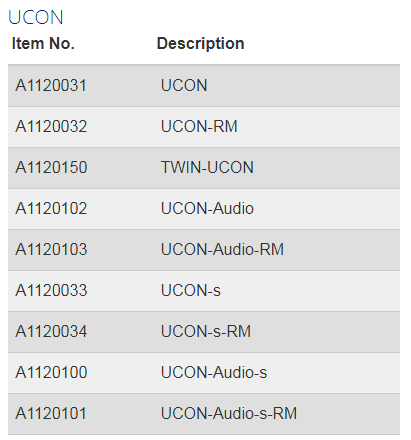

List of Item Numbers
