การติดตั้งจอ LCD-KVM แบบ Dual-Rail เข้า Rack server

Features

• Integrated KVM console with 19" LCD monitor in a Dual Rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Select either AC or DC power input models
• Dual Interface - Supports computers and KVM switches with PS/2 or USB connectors
• Supports an external console with either PS/2 or USB connectors
• Additional hot-pluggable USB mouse port on front panel
• Superior video quality - supports resolutions of up to 1280 x 1024 @75Hz, DDC2B
• 105-key keyboard; Sun keyboard emulation
• Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock - enables the console drawer to remain securely locked away in position when not in use
• Compatible with all ATEN KVM switches and most KVM switches in the market
• Adjustable depth to fit within the rack
• DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor
• Supports Microsoft Intellimouse (5 keys)
• Supports Logitech and Microsoft wireless mice
• Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
• Firmware upgradeable
• Multiplatform support: Windows 2000/XP/Vista, Linux, Unix, Novell, Sun, FreeBSD

* รับประกันตัวเครื่อง KVM 3 ปี , หน้าจอ LCD รับประกัน 1 ปี

For more information about KVMs which can connect to KL1100, see Compatible KVM Table

Rack Mount Kit	Depth (cm)
2X-010G (Long/Optional)	68 - 105
Short (Standard)	42 - 77
Easy Installation Rack Mount Kit	Depth (cm)
2X-012G (Long/Optional)	68 - 105
2X-011G(Short/Optional)	57 - 70

Package Content

1x KL1100 Dual Rail LCD PS/2 - USB Console with Standard Rack Mount Kit

1x Custom KVM Cable

1x Power Cord (AC power models only)

1x Firmware Upgrade Cable

1x User Manual

1x Quick Start Guide

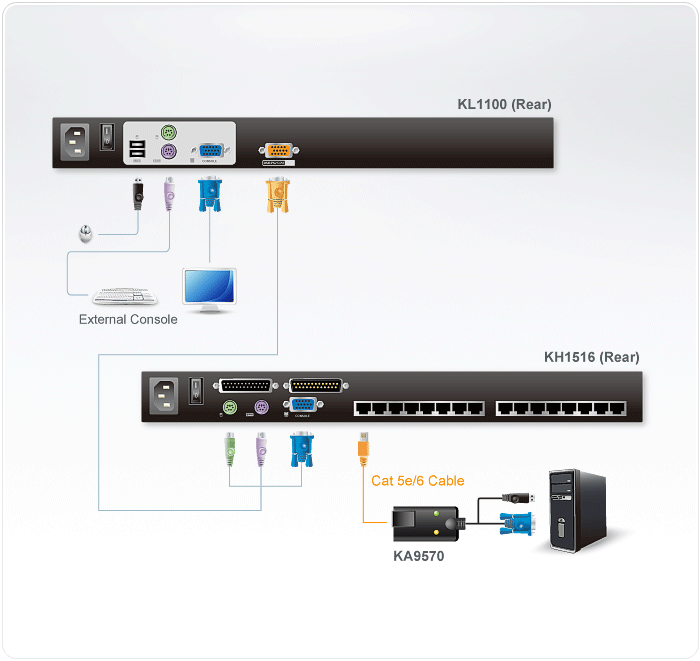

Diagram

Specification
