SuperSpeed USB3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard, USB3.0 Graphic adapter enhances better VGA performance effect and reduce CPU loading substantially.

SUNIX VGA2718 Super-Speed USB3.0 Graphics Adapter provides a unique solution to add extra displays to a computer without using traditional graphics cards. Users can instantly mirror or extend a desktop onto another display via standard VGA(D-sub), such as LCD, CRT, projector and plasma displays. With USB interface plug-n-play and bus power feature, this product brings multi-monitor applications into the mainstream.

คุณสมบัติ

• Add-on monitor, LCD or projector through USB3.0 Super-Speed connectivity.
• Supports widescreen aspect ratio of 16:9 Full HD 1080P video streaming.
• High performance USB Graphics Engine supports resolutions up to 2048 x 1152 @ 32bit.
• Low power consumption via USB Bus power supply (without Heat Sink).
• Supports desktop display mirror, extend mode, multi screen mode and screen rotation mode
• Up to six USB3.0 graphic adapters to work simultaneously.
• Automatic recognition of monitor type, resolution, and features.
• Hot-swapping / Plug-n-Play of monitors without reconfiguration.
• Movement of windows on the desktop is smooth, with no trail or shuddering.
• Compatible with Windows power management hibernate and suspend modes.
• Specialized for office using, home entertainment, and video playing.
• Supports Microsoft Windows operation system.
• Certified by CE, FCC, and RoHS approval.

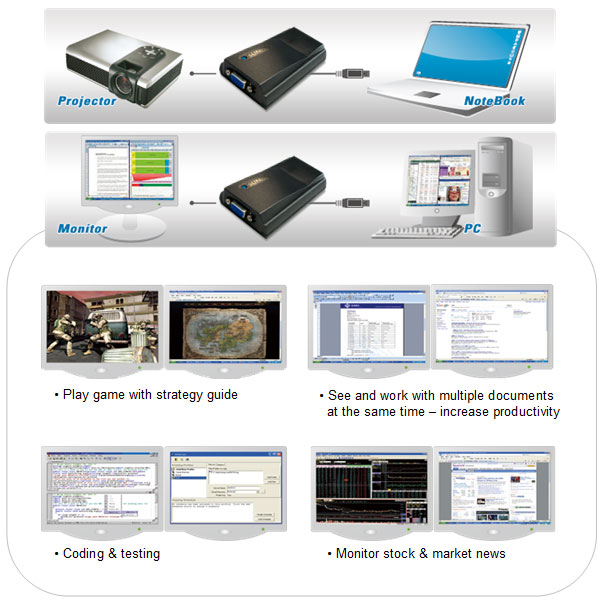

ผังการต่อ

Note: SUNIX recommends USB3.0 Graphics Adapter working over SuperSpeed USB3.0 connectivity to get best performance. But it’s also backward compatible with HighSpeed USB2.0 environment.

ข้อมูลจำเพาะ

Description
Product Description	USB3.0 to VGA(D-sub) Graphics Adapter
Specification
Video Interface	VGA D-sub
Bus Interface	USB3.0 (Back compatible with USB2.0)
Connector	D-sub 15pin Female Connector Host upstream link: USB3.0 Micro B Type Female Connector
Memory	16 MB DDR Synchronous DRAM (SDRAM)
Power Consumption	+ 5VDC / 400mA over USB bus power
Support Mode	Extend mode, Mirror mode, Multi Screen mode, Screen Rotation mode
Resolutions	640x480, 800x600, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 2048x1152
Regulatory Approvals	FCC Part 15 Class B, CE (EN55022, EN61000, EN55024) , VCCI, C-Tick, BDMI, RoHS
O.S. Support	Windows XP/Vista/7 (X86/X64)
Environment	Operation temp. 10 °C ～ 40 °C (50-104°F) Relative humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F)
Dimension	56 (W) x 87(L) x 22(H) mm
Case Material	ABS
USB Cable	USB3.0 A -Type Male to USB3.0 Micro B-Type Male

อุปกรณ์ในกล่อง

• USB3.0 Graphics Adapter    X  1
• Driver CD ROM    X  1
• Quick Installation Guide    X  1
• USB3.0 Cable (Optional)
