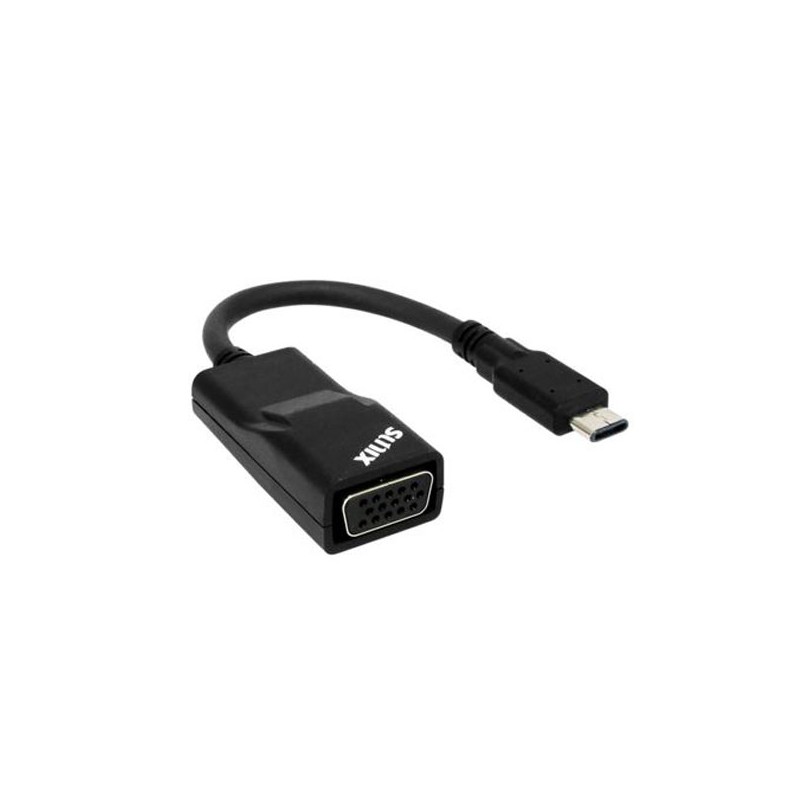

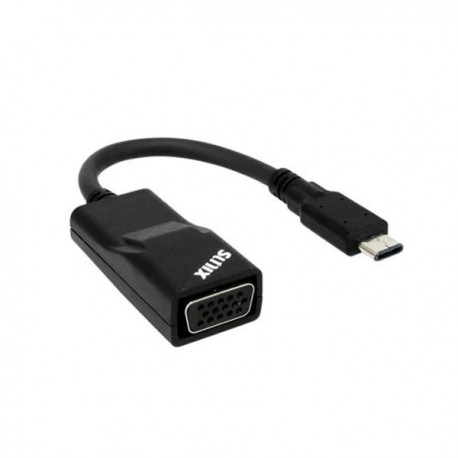

USB Type-C to VGA Adapter
C2VC7A0
USB type-C แปลงเป็น VGA รองรับความละเอียดสูงสุดถึง 2560x1600 ใช้ได้ทั้ง Windows, Mac และ Chrome book เสียบใช้งานได้ทันทีโดยไม่ต้องลง Driver
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX C2VC7A0, USB-C to video Adapter lets you connect your Apple MacBook, Google Chromebook, or Windows laptop with USB-C port to a VGA display. This slim design adapter allows you to mirror/extend your display to your VGA-enabled TV, display, projector or other compatible display in up to 1080p HD.
This high-resolution adapter offers plug and play functionality to provide an active digital to analog conversion without software or drivers. Simply attach SUNIX USB Type-C to VGA Adapter to the USB Type-C connector on your laptop and then to your TV or projector via a VGA cable. You can use an external display as your main workspace or to extend your desktop, or you can work in mirrored mode with a projector so you can view what your audience sees.
Features
- Adapts USB C-Type equipped laptops to work with VGA-enabled displays.
- Integrated chip to provide an active digital to analog conversion.
- Compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.
- VGA output is compliant with VESA VSIS version 1, Rev.2 specification.
- Easy plug and play allows seamless display of your laptop and tablet content to your display.
- Driver free under Apple MAC, Google Chromebook and Microsoft Windows operation systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, C-Tick, BSMI) and RoHS approval.
Specifications
| Model | C2VC7A0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USB Type-C to VGA Adapter | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Interface |
USB Type-C
USB Type-C Male, DisplayPort Alternate Mode
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Interface |
VGA RGB
VGA D-Sub 15-pin Female
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Power |
USB Bus Power
+5VDC @ 250mA
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Display Resolution |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Not Support | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Housing | ABS(Plastic) | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Driver Support | Driver free under Apple MAC, Google Chrome, and Microsoft Windows | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | Operation temp. 0 °C ～ 40 °C (32-140°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension | 47(L) x 22(W) x 13(H) mm USB-C Cable length 80mm | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 25(0.8oz) | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Regulatory Approvals | EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 AS/NZS: C-Tick: CISPR22 JAPAN: VCCI | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Green Environment | RoHS, CRoHS, WEEE | |||||||||||||||||||||||||||||||||||||||||||||||||||
Package Content
- C2VC7A0 - USB Type-C to VGA Adapter
- Manual
