DisplayPort to Dual DisplayPort Graphics Splitter

DisplayPort to Dual DisplayPort Graphics Splitter

DPD2001

DisplayPort to Dual DisplayPort Graphics Splitter

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


 Spec sheet

 Manual

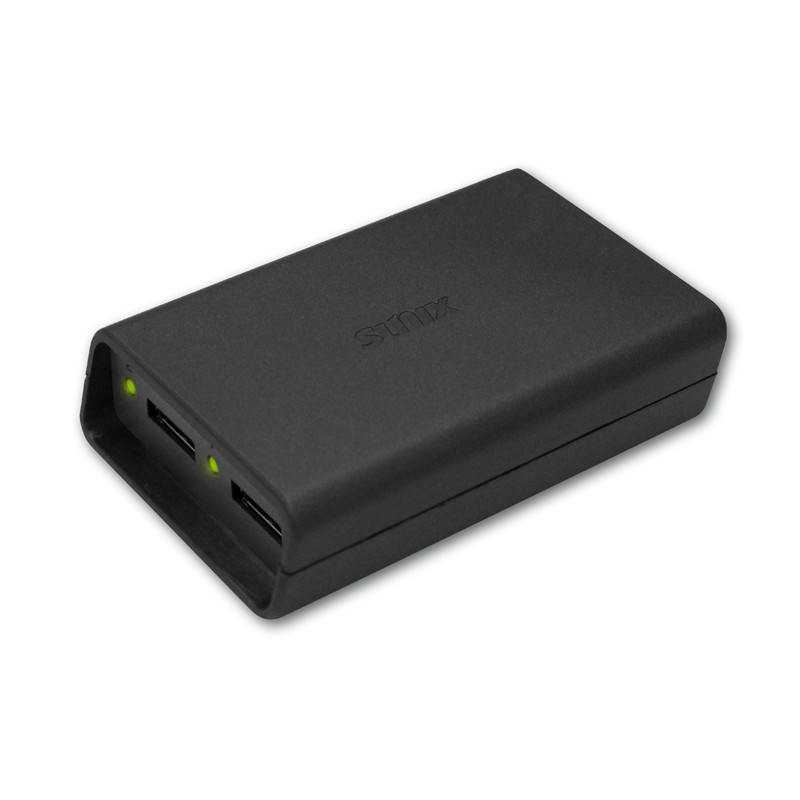

DisplayPort to Dual DisplayPort Graphics Splitter

Features

  • Ideal for multi-display and TV-Wall application.

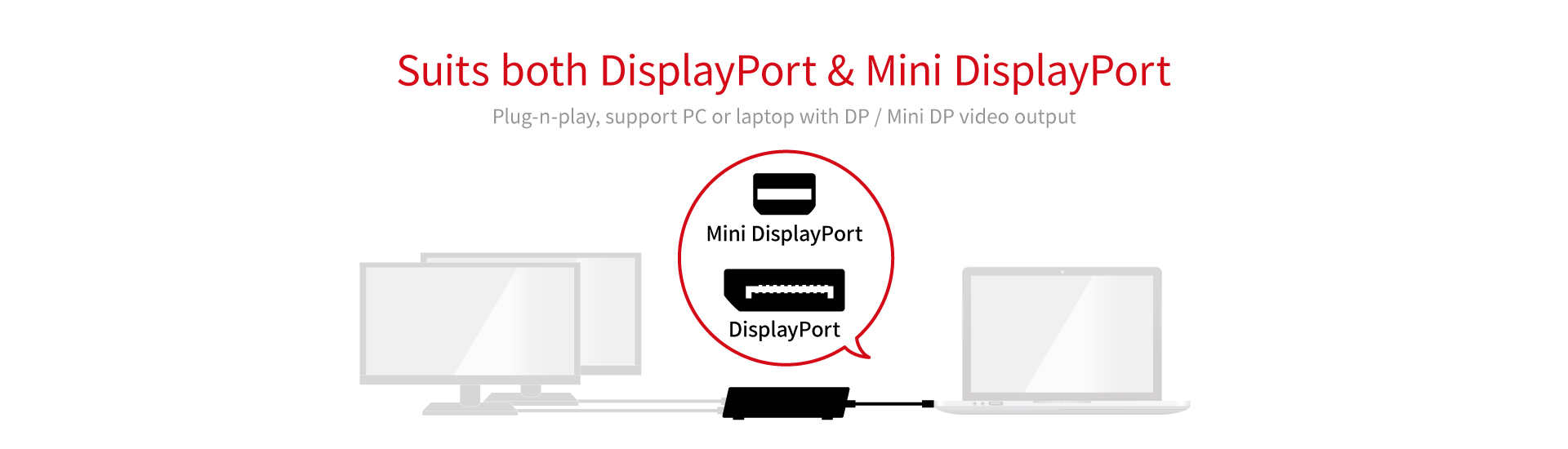

  • Works with any desktop or notebook computer which has DisplayPort output connectivity.

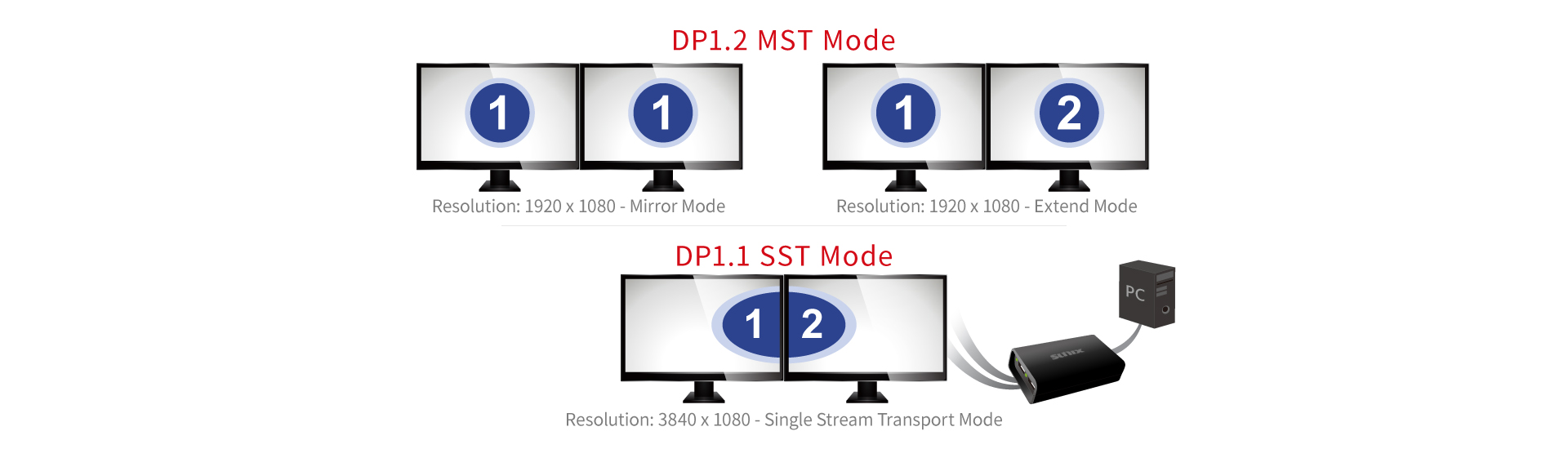

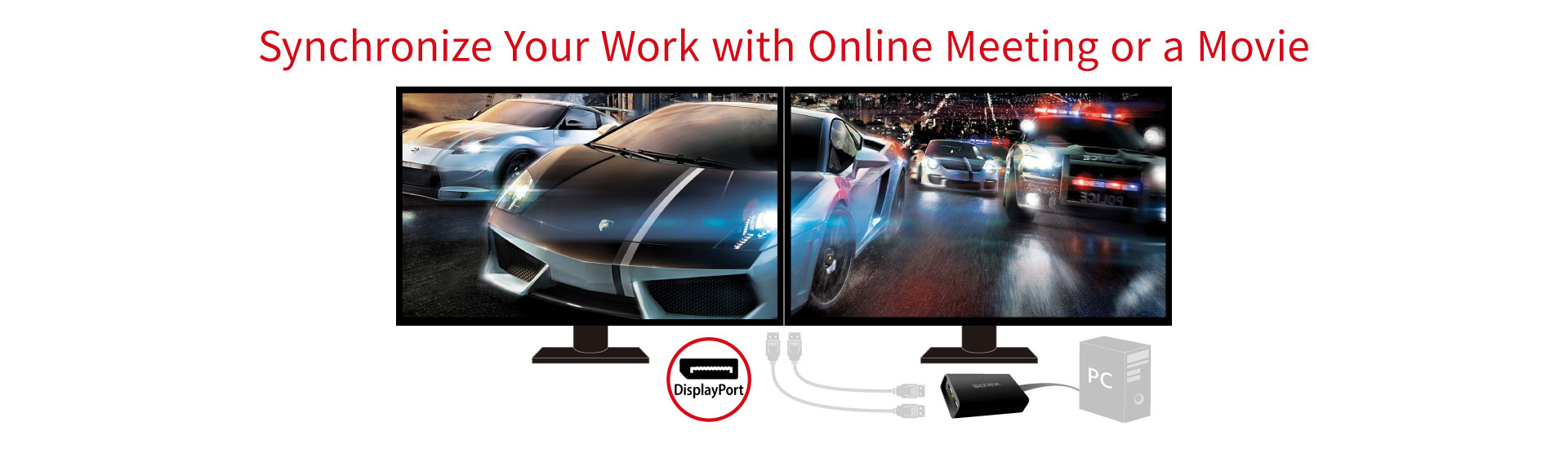

  • Enable 2 DisplayPort monitors working simultaneously with video mirror or extension mode.
  • Fully HD compatible and provides full display performance with virtually zero latency.
  • Compatible with DisplayPort™ v1.2 / 1.1a, VESA DDM, and EDID v1.4 Standards.
  • Supports exceptional Secured Content Protection with HDCP 1.3 for digital content.
  • DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
  • Supports kinds of DisplayPort video dongles converting to HDMI, DVI, or VGA output connectivity.
  • Driver Free, Plug & Play without configuration.
  • Certified by CE, FCC, VCCI, BSMI, and RoHS.

Specifications

Model DPD2001

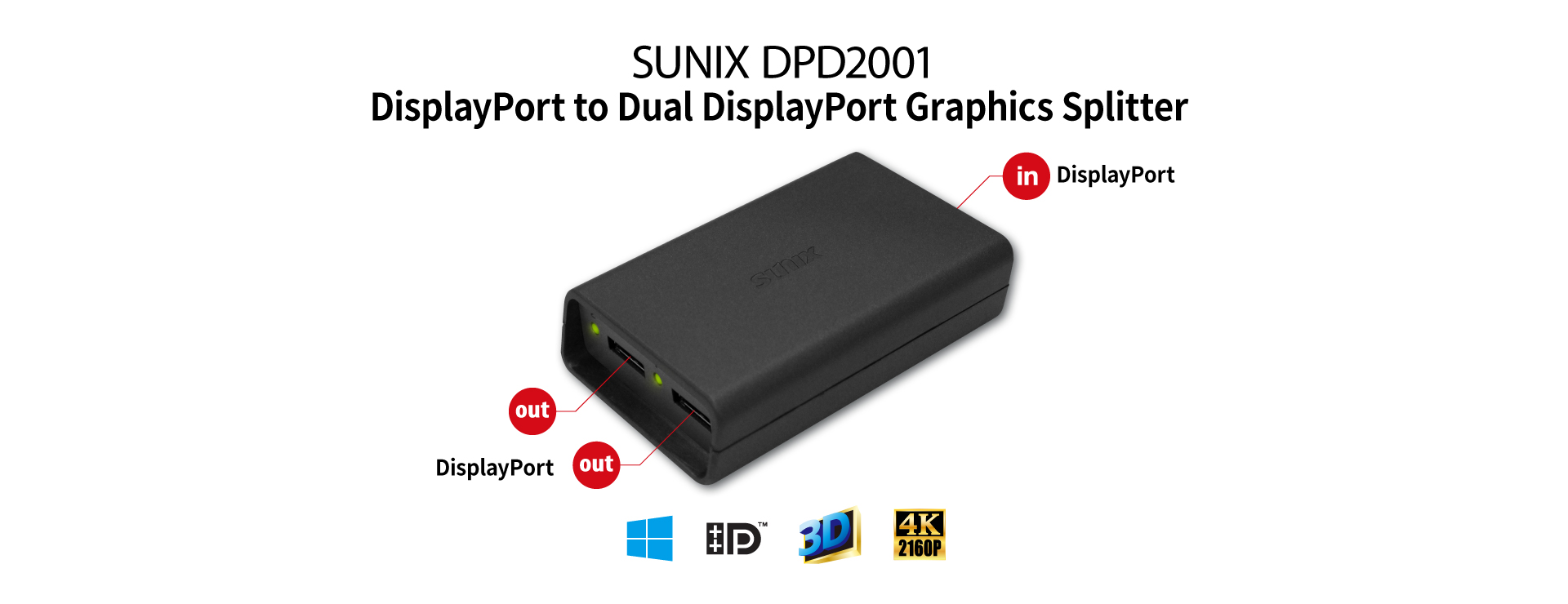

Description DisplayPort to Dual DisplayPort Graphics Splitter
Interface DisplayPort™ v1.2 / 1.1a

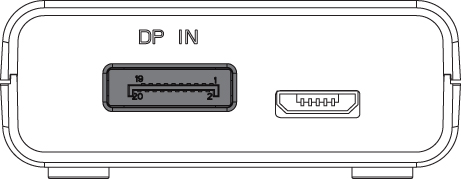

Video Input Connectivity DisplayPort™ v1.2 / 1.1a Female (Left Side)

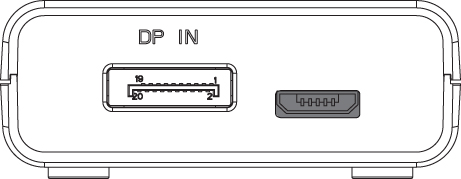

Reserve Power Input USB Micro B +5VDC@500mA (Right Side)

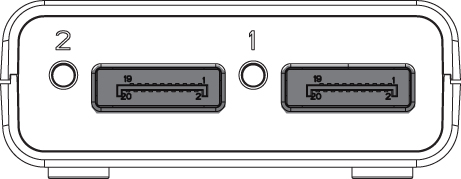

Video Output Connectivity DisplayPort™ v1.2 / 1.1a Female x 2
Audio Output Connectivity Digital Audio output over DisplayPort
(Audio channel selected over Windows Audio control panel)

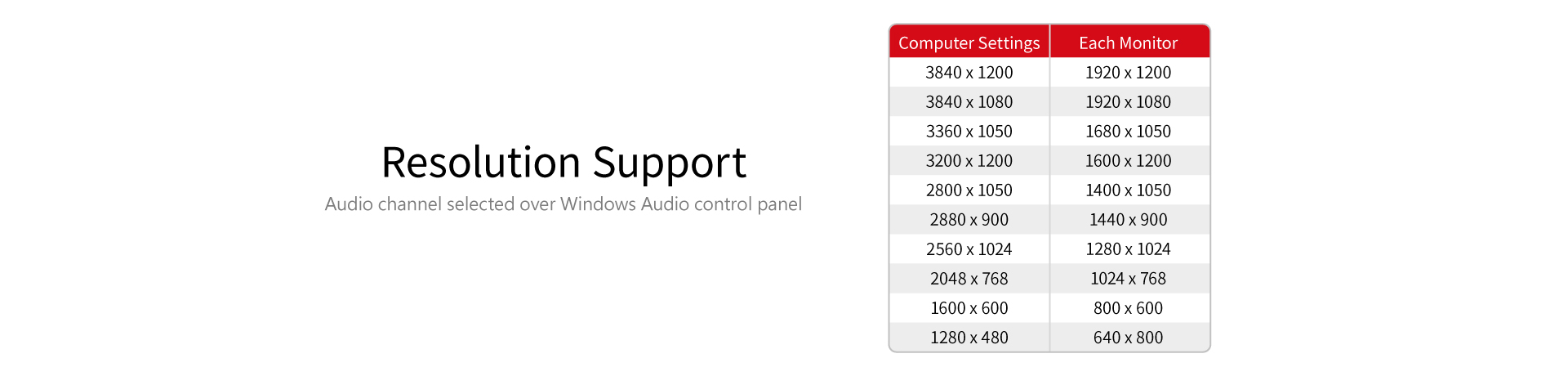

Resolution Support
Two Monitors
Computer Settings Each Monitor
3840 x 1200 1920 x 1200
3840 x 1080 1920 x 1080
3360 x 1050 1680 x 1050
3200 x 1200 1600 x 1200
2800 x 1050 1400 x 1050
2880 x 900 1440 x 900
2560 x 1024 1280 x 1024
2048 x 768 1024 x 768
1600 x 600 800 x 600
1280 x 480 640 x 800
* Notes
Power Consumption 1.45W
+3.3VDC DisplayPort Bus Power
Case Material ABS
Weight 65g ± 2g (2.3oz)
Dimensions 92.5x60.5x22.0mm

Regulatory Approvals

CE, FCC, VCCI, BSMI
O.S. support Windows XP/2003/Vista/7/2008/8/8.1 (32/64-bit)

Environment

Operation temp. 0 °C ~ 40 °C (32-104°F)
Operation humidity: < 85% non-condensing
Storage temp. -10 °C ~ 85 °C (14~176°F)

Note:

1: Based on a Vertical Refresh Rate of 60Hz.
2: GPU dependent. EDID (Extended Display Identification Data) maximum resolution capabilities may differ based on GPU capability.
3: Tiny Universal DisplayPort Graphics Splitter does not support MAC system without NV or AMD graphics card built-in.

System Requirements

  • Intel PC base computer with at least one available DisplayPort.
  • Graphics source minimum SPEC requirement:
    • Intel PC base computer with 3rd (IVYBRIDGE) or 4th (HASWELL) Generation Intel® Core™ i series processor and at least one available DisplayPort.
    • AMD Graphics card Radeon series HD7700, 7800, 7900, R7, R9 or later version.
    • NVIDIA Graphics card GTX series GTX660, 760, 770, 780 or later version.
  • Monitors with DisplayPort connections.

Disclaimer

Unit may need additional power to operate, which can be provided to the unit via Micro USB to USB cable within the package.

Note*:

This product requires power to operate. Generally, when connecting to one to two monitors, the power supplied from the computer should be enough to power the unit and to have a stable connection between the monitors and this unit. However; sometimes the unit may need more power in order to function properly, such as when connecting to more than two monitors, or when the monitors require too much power then what can be provided from the connection from your PC alone. In this regards, the unit has a reserve Micro-B USB +5VDC port for the power cable, such as those to power Android products.
