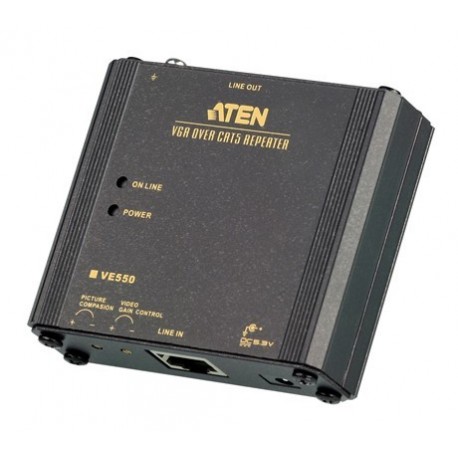

VGA Over Cat 5 Repeater

The VE550 VGA Over Cat 5 Repeater is a video signal extension device which is compatible with ATEN KVM Extenders, Video Extenders, and Cat 5 KVM Switches. The VE550 extends the video transmission range up to twice the original distance over Cat 5e cables. Moreover, using an additional repeater, VGA signals can be transmitted over even longer distances. Furthermore, in some long distance installations where video signals may degrade, the VE550 can be used in conjunction with the VE510 Video Synchronizer to compensate for video signal delay and video color bleeding.

Features

• VGA signal extension over Cat 5e Cable
• Extends the video transmission range up to twice the original distance
• Expandable Range-using an additional repeater to increase distance transmission
• Adjustable Gain Control-manually adjusts signal strength to compensate for distance
• Built-in 8KV ESD protection and 2KV surge protection
• LED display for easy status monitoring
• Compact Size-Din Rail and Wall mountable
• Compatible with ATEN KVM Extenders and Video Extenders

Note:

VE550 is compatible with ATEN KVM Extenders and Video Extenders.

It extends the video transmission range up to twice the original distance. The total extension range will depend on the installation.

Video Resolution depends on the Video Source and Receiving Devices.

For installations which include keyboard and mouse signals, the VE550 will relay these signals along with the video.

The VE510 is optional equipment. In some installations, video signals may degrade considerably or video color may be bleeding over large distances. The VE510 Video Synchronizer corrects color phase and timing errors that occur due to long distance transmission.

Package Content

• 1x VE550 VGA Over Cat 5 Repeater
• 1x Power Adapter
• 1x Mounting Kit
• 1x Grounding Wire
• 1x User Guide

Diagram

Specification
