Ultimate HDMI Extension and Distribution System

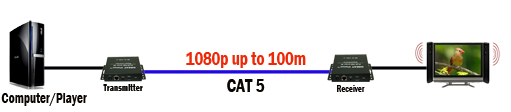

One-to-one Extension

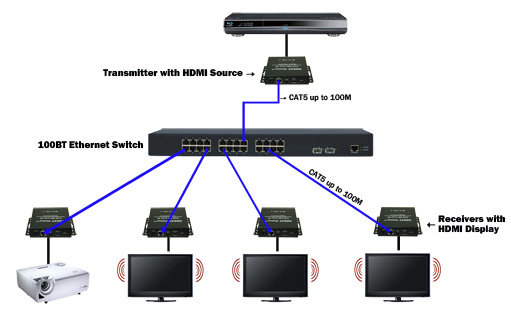

One-to-eight Distribution over 100BT Ethernet Switch

• The system consists of transmitter and receiver both built with HDMI connectors and is capable of supporting DVI with HDMI-to-DVI adaptor.
• Extend full HD 1080P plus digital audio up to 100 meters over a single CAT5 cable.
• Distribute the AV signals up to 8 remote HDMI displays through 100BT Ethernet Switch and sustain a consistent AV quality at each point on LAN.
• Auto adjustment of video compression rate ensures smooth video streaming under different networking conditions.
• Scalar allows different input and output resolutions.
• Support IR pass-through to remotely control the HDMI source device from the receiver as one-to-one extension.



• Model No.:
  • Transmitter: HCT001E-TX
  • Receiver: HCT001E-RX
• Ethernet Port: UTP/STP 1000Mbps
• Protocol: IP, UDP, TCP, ICMP, IGMP
• HDMI Port: 19 pin type A female
• DC Jack (Power): 2.0mm/DC5V, 1.5A
• IR Port: 3.5mm audio jack
• IR Rate: 38KHz
• Power LED: green light (power on)
• Data LED:
  • Transmitter:
    • green blinking: TX is connecting with LAN
    • green on: TX is connected with LAN
  • Receiver:
    • green blinking: RX is connecting with TX
    • green on: RX is connected with TX
• IP Address:
  • Transmitter: 192.168.168.21
  • Receiver: 192.168.168.27~30 & 192.168.169.43~46
• LAN Bandwidth: 50~60 Mbps
• Resolutions: auto-scalar supports from 640x480 to 1920x1080 @60~70Hz
• Compression Technology: JPEG 2000
• Audio Type: AC '97
• Certificate: CE/FCC
• Compliance: HDMI 1.3/HDCP1.2/RoHS
• Size: 14.8(w)x12.7(d)x3.1(h) cm, 480g
• Operating Temperature: 0~70°C
• Operating Humidity: 10~85% RH (no condensation)
• Storage Temperature: -10~80°C
• Storage Humidity: 5~95% RH (no condensation)
