• 8 outlets
• (UL derated 16A) / 16A
• Outlet Power Measurement
The PE8208 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.

 คุณสมบัติ

Power Distribution

• Space saving 1U rack mount design with rear mounting
• IEC or NEMA outlet models
• 3 digit 7-segment front panel LED shows Current / IP Address
• Remote users can monitor outlet status via web pages on their browsers
• Safe shutdown support
• Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Remote Access

• Remote power control via TCP/IP and a built in 10/100 Ethernet port
• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
• eco PDU Power Management software – eco Sensors
• Supports SNMP Manager V3

Operation

• Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
• Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
• Easy setup and operation via a browser-based user interface
• Multibrowser support (IE, Firefox, Chrome, Safari)
• RTC support to keep the timer running during times of no power.
• Supports up to 8 user and 1 administrator accounts

Management

• Power status measurement at the PDU or Outlet level
• LED indicators for current and IP address at Outlet level
• Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level
• Current and voltage threshold setting
• Naming support for outlets
• User outlet access assignment on an outlet-by-outlet basis.
• Event logging and syslog support
• Upgradeable firmware
• Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security

• Two-level password security
• Strong security features include password protection and advanced encryption technologies – 128 bit SSL
• Remote authentication support: RADIUS

eco Sensors Energy Management Software

• Automatic discovery of all PE devices within the same intranet
• Remote real-time power measurement and monitoring
• Remote real-time power outlet management*
• Remote real-time environment sensor monitoring
• Plotting/Monitoring of all PE devices
• Exceed threshold alert through SMTP and Syslog
• Power Analysis Report

:: กลับขึ้นบน ::

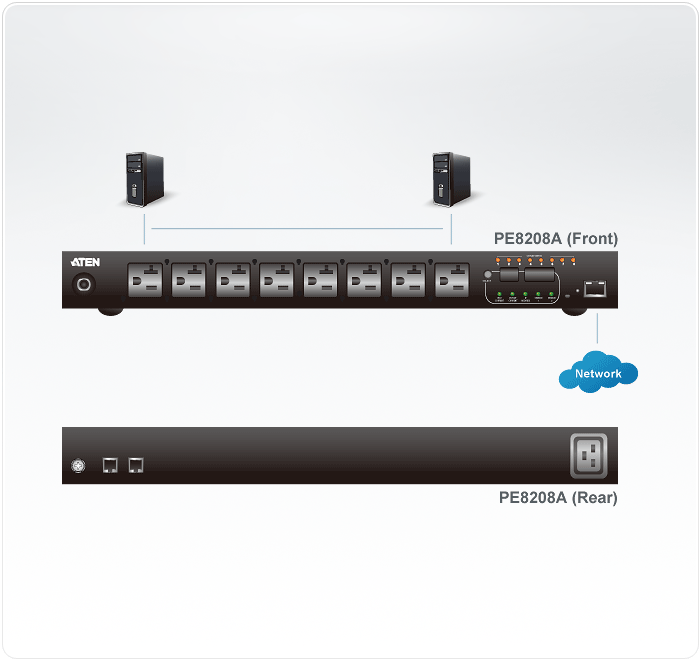

ผังการต่อ

:: กลับขึ้นบน ::

ข้อมูลจำเพาะ

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.

:: กลับขึ้นบน ::

อุปกรณ์ในกล่อง

• 1x PE8208 Power Distribution Unit
• 1x Power Cord
• 1x Rack Mount Kit
• 1x Grounding Wire
• 1x Software CD
• 1x Quick Start Guide
