Altusen Power on net
model : PN9108
คุณสมบัติ ผังการต่อ อุปกรณ์เสริม ข้อมูลจำเพาะ
อุปกรณ์ในกล่อง งานนำเสนอ เรื่องราวความสำเร็จ ผู้ใช้อ้างอิง
8-port Power Power Over the Net™
PN9108 Power over the NET™ is a control unit that provides remote power management for eight AC outlets via a TCP/IP connection, allowing administrators to control the power off, power on, and reboot status for each attached device from any computer connected to the Internet, whether down the hall, or half way around the world.The PN9108 is the most convenient, reliable and cost effective way to obtain access to your server room remotely.
คุณสมบัติ
- Remote power on / off / reboot control for eight outlets via TCP/IP and a built in 10/100 Ethernet port
- Local power on / off / reboot control via the PN9108’s RS-232 port to the computer’s RS-232 port
- Daisy chain up to 15 additional stations to control up to 128 outlets
- Manual switching between Local and Remote access for each port via front panel push button switches
- Individual control of each port - users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser interface
- Provides three configuration/management methods: Browser; Telnet; or Console Terminal
- Safe shutdown and rebooting for Windows systems*
- Overcurrent protection and recovery for each AC port (110 V model only) plus total port overcurrent protection (both models) - remote users can monitor the outlet status via the GUI interface on their browsers
- Separate circuits for the unit’s power and the power to the devices - the power control status menu is still accessible even when an overload condition trips the devices' circuit breaker
- Cumulative load measurement - remote users can view load information in amperes via the GUI on their browsers
- On/Off scheduling - allows everything from a one-time start/shutdown, to daily, weekly, etc. starts/shutdowns at user-specified times
- Port grouping - perform the same action on a specified group of ports
- Current Display for easy current status monitoring
- Out of Band (OOB) operation via terminal or dialup connection
- Two level (Administrator and User) security
- Detachable front panel for convenient rack mounting
- UL/TUV approved
- Multiplatform support: Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
- Network Interfaces: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, ARP, NTP, DNS, Telnet, 10Base-T/100Base-TX, auto sense, Ping
*Safe shutdown and rebooting is supported if the Power Monitor utility has been installed
For more information about KVMs which can connect to PN9108, see Compatible KVM Table

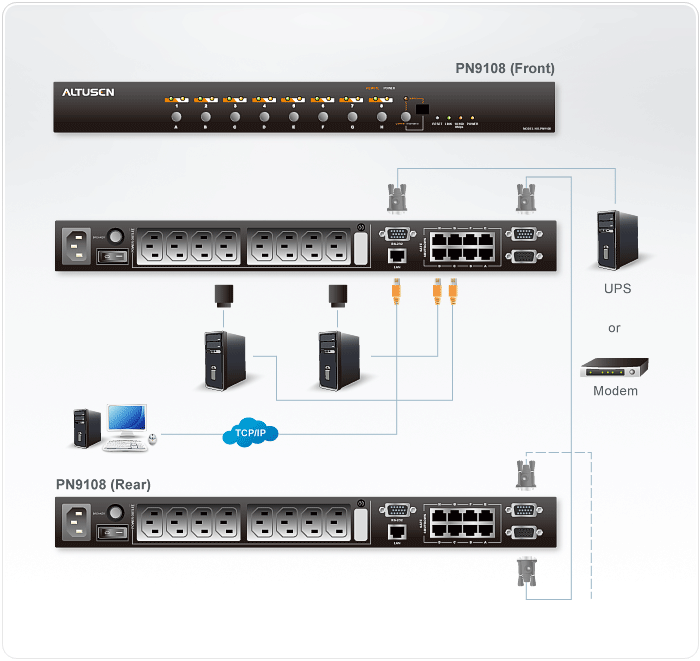

ผังการต่อ
ข้อมูลจำเพาะ
| Function | PN9108A | PN9108G | |
| Power Inlet | 1 x IEC 60320/C14 Male | ||
| Power Outlets | 8 x IEC 60320/C13 Female | ||
| Connectors | PON In | 1 x DB-9 Female (Black) | |
| PON Out | 1 x DB-9 Male (Black) | ||
| Safe Shutdown | 8 x 6-pin Safe Shutdown Jacks Female (Black) | ||
| LAN | 1 x RJ-45 Female (Black) | ||
| RS-232 | 1 x DB-9 Male (Black) | ||
| Switches | Reset | 1 x Semi-Recessed Pushbutton | |
| Power | 1 x Rocker | ||
| Station ID Display | 1 x Pushbutton | ||
| Outlet On/Off | 8 x Pushbutton | ||
| Remote On/Off | |||
| LEDs | Outlet Power | 8 (Orange) | |
| Remote Access | 8 (Green) | ||
| Link | 1 (Green) | ||
| 10/100 Mpbs | 1 (Orange/Green) | ||
| Power | 1 (Blue) | ||
| Current | 1 (Red) | ||
| Station ID | 2 x 7 segment (Orange) | ||
| I/P Rating (Total input) | 100-120 V AC; 50/60Hz; 12A | 220-240 V AC; 50/60Hz; 10A | |
| O/P Rating | Per Port | 100-120 V AC; 50/60Hz; 9A | 220-240 V AC; 50/60Hz; 9A |
| Total | 100-120 V AC; 50/60Hz; 11A | 220-240 V AC; 50/60Hz; 9A | |
| Power Consumption |
No Load | 120V; 60Hz; 16W | 230V; 50Hz; 16W |
| Max Load | 120V; 60Hz; 1440W | 230V; 50Hz; 2300W | |
| Environment | Operating Temp. | 0 ~ 40˚C | |
| Storage Temp. | -20 ~ 60˚C | ||
| Humidity | 0 ~ 80% RH ,Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 4.20 kg | ||
| Dimensions ( L x W x H ) | 43.24 x 25.42 x 4.40 cm(19"/1U) | ||
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
อุปกรณ์ในกล่อง
- 1x 8-Port Power Over the NET™
- 1x AC Source Power Cord
- 8x Power Outlet Power Cords
- 8x Safe Shutdown Cables
- 1x PON Cable (DB9 F to DB9 M)
- 1x Rack Mount Kit (Brackets and Phillips head hex M3 x 8 screws)
- 4x Foot Pads
- 1x Software CD
- 1x User Manual
- 1x Quick start guide
