3-port 12V Powered USB PCI Express Low Profile Add-On Card

3-port 12V Powered USB PCI Express Low Profile Add-On Card

PUB0300XL

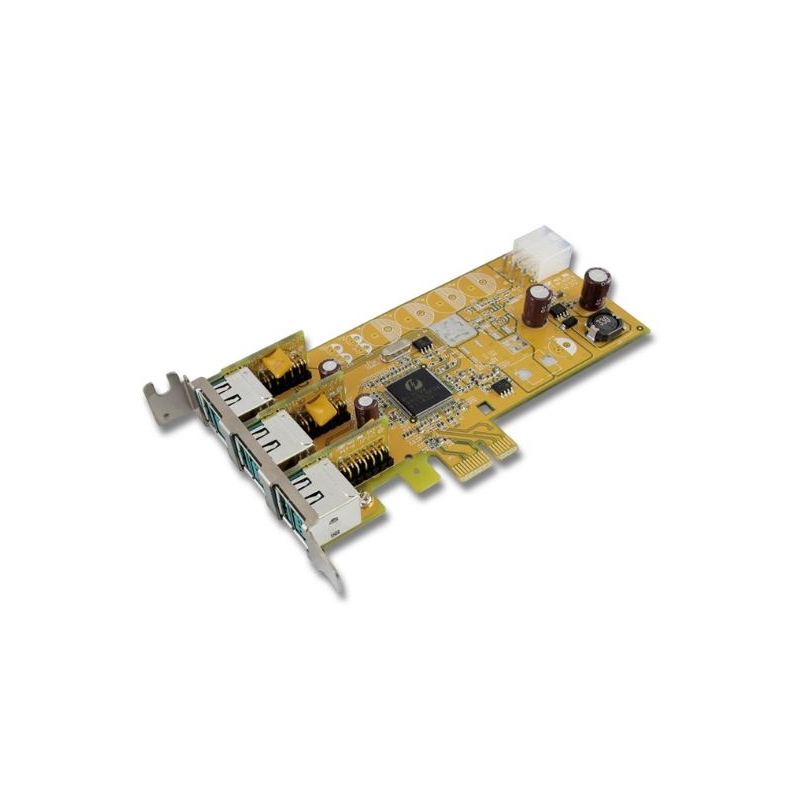

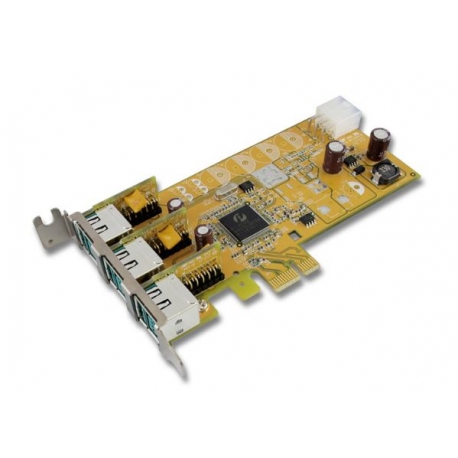

SUNIX PUB0300XL Powered USB PCI Express Add-On card, carrying the latest power switching technology provides +12VDC, through the PC power supply directly to its 3 Powered USB ports.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


 Spec sheet

 Manual

USB allows peripheral devices to exchange data with a PC and also to receive power over the USB bus. Unfortunately, the bus supplied power is limit to 2.5 Watts (0.5A @ +5V) per port, sufficient to provide enough power to input devices, web cameras among other low power devices. Other devices like printer, displays, pin pads, external DVD-ROM and hard drives still require an external power supply. Here comes Powered USB, it eliminates the need for additional power supplies. Powered USB provides the necessary power as well as the communication signals over a hot pluggable cable. In addition, the Powered USB solves the physical host side cable locking problem associated with the standard USB connector by providing a host cable locking mechanism.

The Powered USB PCI Express Add-On card provides a convenient and affordable way to add up to three Powered USB 2.0 ports to a PC. Devices which require more power than provided by the regular USB interface can be easily installed and used with no need for an additional power supply. SUNIX PUB0300XL Powered USB PCI Express Add-On card, carrying the latest power switching technology provides +12VDC, through the PC power supply directly to its 3 Powered USB ports. Powered USB PCI Express Add-On card is backward compatible to regular USB 1.1 and USB 2.0 devices.

POS systems become more and more stylish now days, with limited space for the terminal and all peripherals inside. Safe your valuable space and get rid of the peripherals’ power supplies using the Powered USB PCI Express Add-On card. This Add-On card is the ideal solution for today’s point of service systems, especially allowing the board to be installed in any slim size PC-based system with low profile bracket structure.

Features

  • Compliance with PCI Express Base Specification Reversion 1.1.
  • Compliant with the Universal Serial Bus (USB) Specification Revision 2.0
  • High performance USB 2.0 PCI Express host controller on board.
  • Support 3 external Powered USB ports.
  • Powered USB port supports +12VDC power output with maximum 3A / per port.
  • Each Powered USB ports built-in over current protection.
  • Built-in ESD protection for all serial signals meets IEC61000-4-2 and DELL M6403_A08 standard.
  • Plug-n-Play, I/O address and IRQ assigned by operating system.
  • Support USB device Hot-Swapping and Plug-n-Play function.
  • Low profile bracket design idea for slim or portable PC.
  • Certified by RoHS CE, FCC ClassB approval. ( ข้อมูลเพิ่มเติม)
  • Support Linux, Microsoft 2000, XP, 2003 Vista, 2008, 7, 8.x and 10 (X86/X64) operation system.

Specifications

Hardware

BUS PCI Express Spec 1.1, Single-Lane (x1)
Controller PCI Express USB 2.0 Host controller, PI7C9X440SL
USB Standard Enhanced Host Controller Interface (EHCI) and Open Host Controller Interface (OHCI)
IRQ & IO Assigned by System

Serial Communication

Interface Universal Serial Bus 2.0
Speed High-Speed (HS), Full-Speed(FS) and Low-Speed(LS)
Data Transfer rate of 1.5, 12, and 480Mbps
No. of Port 3-port
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge
DELL M6403_A09 Direct Pin Injection
PCB Connector Powered USB Connector

Power

Source +12VDC / PCIe GFx power connector 2x3 Type
Output Capacity Standard USB 2.0 Port:
   +5VDC / Maximum 0.5A / each port
Powered USB Port:
   +12VDC / Maximum 3.0A / each port
Note: Total power output capacity will be limited by system power supply.
Over Current Protection Standard USB 2.0 Port:
   +5VDC / Share Maximum 2.0A / 3-port total
Powered USB Port:
   +12VDC / 3.0A@16V PTC fuse / each port
Power Consumption 1.1W @ 3.3V (board only without power output to device)

Driver Support

Microsoft Client XP / Vista / 7 / 8.x /10 (X86/X64)
Microsoft Server 2003 / 2008 / 2012 / 2016 (X64)
Microsoft Embedded XP Embedded / POS Ready 2009 / Embedded System
Linux Linux 2.4.x / 2.6.x /3.x

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 70°C (-4 to 158°F)

Standards and Certifications

Safety UL, cUL, TÜV, CB
EMC CE, FCC, VCCI, BSMI, KCC   Class B Standard
Green RoHS, CRoHS, WEEE

Physical Characteristics

PCB Dimension 130 x 68 mm
Bracket Low Profile 80 mm
Bracket Space 1

Download Driver

Driver USB2.0 Windows Inbox Driver
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 64-bit
