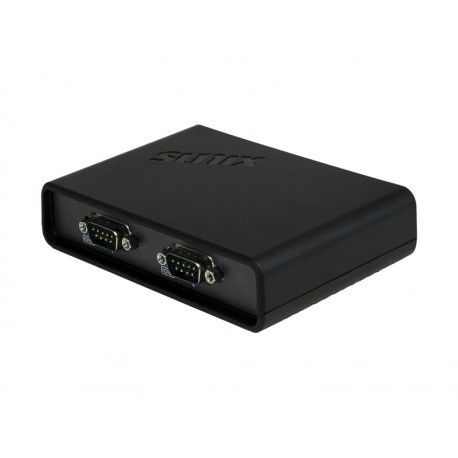

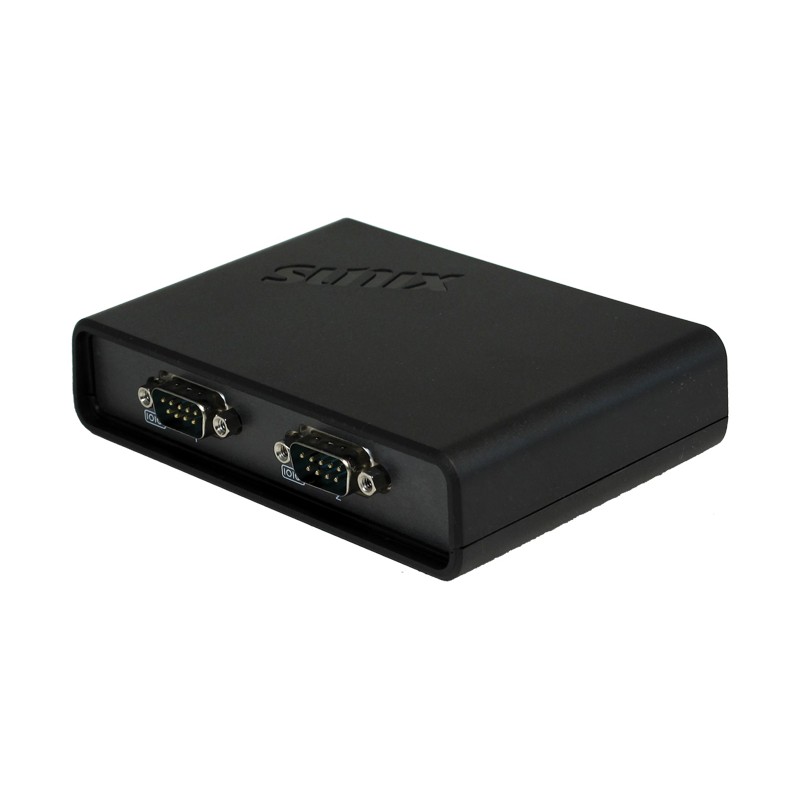

iDevicePort for iOS Ethernet enabled 2-port RS-232 Port Replicator
iDP200D00
SUNIX iDP200D00 is a network-attached dual channel RS-232 COM hub that connects traditional serial peripheral devices to an Apple iOS device over a Local Area Network.
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX iDevicePort® series is designed for Apple iOS devices, allowing users to expand traditional I/O connectives on Apple iPad or iPhone devices over a Local Area Network. It built-in SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology. SUNIX iDevicePort® creates remoted COM channel that supports real time data communication, device sharing, Smart COM on/off-line deployment features. With SUNIX API (Application Programming Interface) and SDK (software development kit), software application designer can easily control and access I/O port without complicated programming under Apple iOS operation system.
SUNIX iDP200D00 is a network-attached dual channel RS-232 COM hub that connects traditional serial peripheral devices to an Apple iOS device over a Local Area Network. By connecting to standard Wi-Fi router, Apple iOS devices can access remoted RS-232 devices wirelessly. It’s the best and creative solution for commercial automation and retail POS applications.
Features
- Extend dual RS-232 serial port over Local Area Network.
- Built-in SUNIX DevicePort DPL2000Q High-Performance Ethernet-UART controller.
- ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
- Provide a complete SDK for iOS & Android software developers.
- Support for iOS & Android operating systems.
Connect your POS Accessory to iOS Device
SUNIX iDP extends Serial and USB connectivity over Ethernet Networking on iOS.
Supports current POS Accessory (Printer, Cash Drawer, Scanner)
iDP Device Sharing
˙ Enable iDP's connected peripheral to be shared.
˙ Share Serial/USB devices between multiple hosts.
˙ Support SDK for further customized design.
Specifications
Serial Communication
| Interface | RS-232 | Baud rate | 50bps ~115.2Kbps |
| Controller | SUNIX DPL2000Q | Stop bit | 1, 1.5, 2 |
| BUS | Ethernet | Parity | even, odd, none, mark, space |
| No. of Port | 2-port | Flow Control | Xon/Xoff (software) |
| FIFO | 1Kbyte Hardware / per port | Connector | DB9 Male |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | ||
Ethernet Communication
| Number of Ports | 1-port, Ethernet Switch Port |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | RJ45 |
| Magnetic Isolation Protection | 1.0K Built-in |
Power Requirements
| Input Power Voltage | 5 VDC |
| Power Consumption | 2.5W @ 5VDC |
| Connector | DC-Jack |
Driver Support
| iOS | 8.x or later |
| Android | 4.x or later |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Physical Characteristics
| Housing | ABS, PC, Metal |
| Weight | 145 g |
| Dimensions | 121x81.93x27(mm), 4.7x3.2x1.0(inch) |
Including Accessories
- Power Adapter 5VDC@1A (US / EU)
- Power Jack to USB TyepA Male Cable
Download Driver
| Driver | aDP_SDK_v1.3.1 |  |
| Version | Ver 1.3.1 | |
| Update | 2019-06-12 16:54:56 | |
| Size | 26MB | |
| OS |
Android 4.x above
|
| API | iDP_SDK_v4.1 | |
| Version | Ver4.1 | |
| Update | 2020-12-17 17:34:40 | |
| Size | 122.1MB | |
| OS |
iOS 8.x above
|
