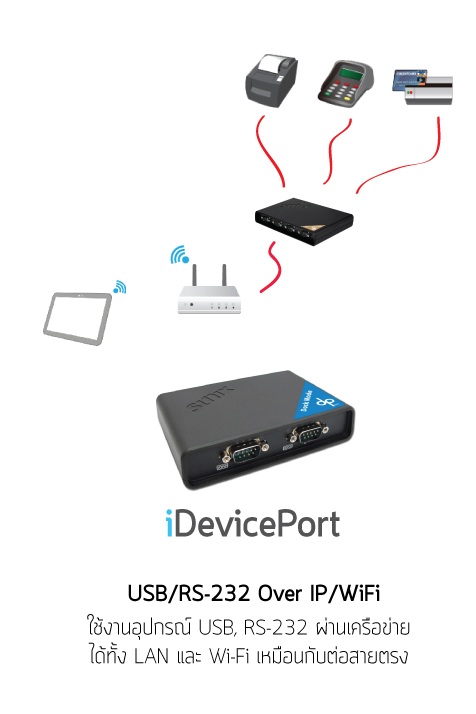

SUNIX iDevicePort® series is designed for Apple iOS devices, allowing users to expand traditional I/O connectives on Apple iPad or iPhone devices over a Local Area Network. It built-in SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology. SUNIX iDevicePort® creates remoted COM channel that supports real time data communication, device sharing, Smart COM on/off-line deployment features. With SUNIX API (Application Programming Interface) and SDK (software development kit), software application designer can easily control and access I/O port without complicated programming under Apple iOS operation system.

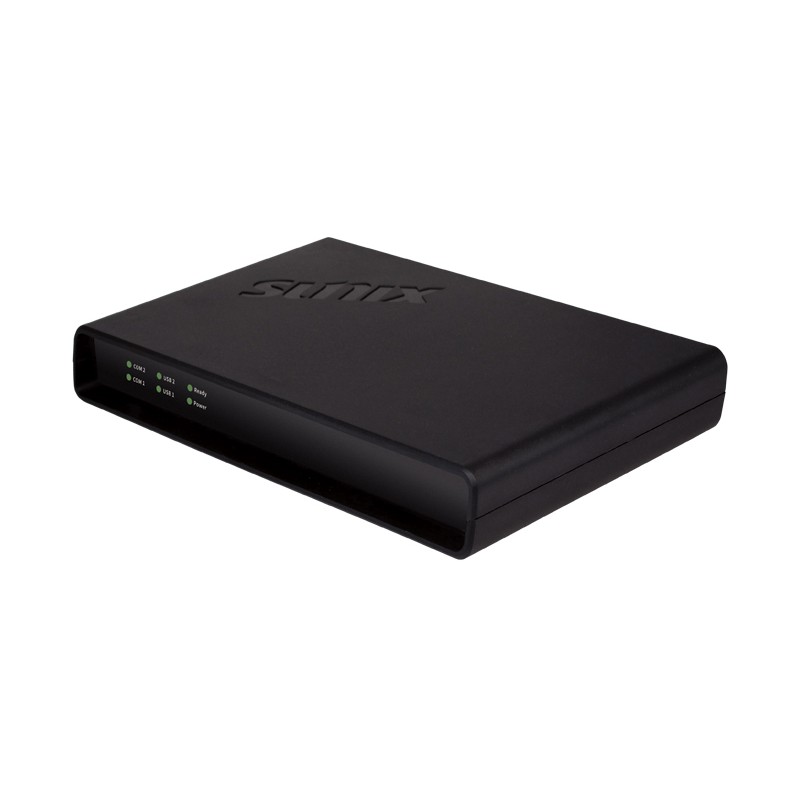

SUNIX 2S+2U is a network-attached USB & RS-232 bub that connects USB & serial peripheral devices to an Apple iOS device over a Local Area Network. It adds dual USB2.0 and RS-232 ports, enabling the mixing of USB and serial ports over the same network connection. By connecting to standard Wi-Fi router, Apple iOS devices can access remoted USB & RS-232 devices wirelessly. It’s the best and creative solution for commercial automation and retail POS applications.
Note: SUNIX iDevicePort® USB channel is compatible with bulk or interrupt type USB devices such as bar-code scanners, printers, fingerprint scanners, pole displays, card readers, and more. Isochronous USB devices are not supported.
Features
- Extend dual USB2.0 and dual RS-232 ports over Local Area Network.
- Built-in SUNIX DevicePort DPL2000Q High-Performance Ethernet-UART controller.
- ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
- Provide a complete SDK for iOS & Android software developers.
- Support for iOS & Android operating systems.
Specifications
Serial Communication
| Interface |
RS-232 |
Baud Rate |
50bps ~115.2Kbps |
| Controller |
SUNIX DPL2000Q |
Stop Bit |
1, 1.5, 2 |
| BUS |
Ethernet |
Parity |
even, odd, none, mark, space |
| No. of Port |
2-port |
Flow Control |
Xon/Xoff (software) |
| FIFO |
1Kbyte Hardware / per port |
Connector |
DB9 Male |
| Signal |
DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
USB Communication
| Interface |
USB 2.0 |
| No. of Port |
2 |
| Speed |
Data Transfer rate of 1.5, 12, and 480Mbps |
| Signal |
USB 2.0 / 1.1 |
| Connector |
USB 2.0 Female |
Ethernet Communication
| No. of Port |
1-port, Ethernet Switch Port |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector |
RJ45 |
| Magnetic Isolation Protection |
1.0K Built-in |
Power Requirements
| Input Voltage |
5 VDC |
| Power Consumption |
15W @ 5VDC |
| Connector |
DC-Jack |
Driver Support
| iOS |
8.x or later |
| Android |
4.x or later |
Environment
| Operation Temperature |
0 to 60°C (32 to 140°F) |
| Operation Humidity |
5 to 95% RH (non-condensing) |
| Storage Temperature |
-20 to 85°C (-4 to 185°F) |
Physical Characteristics
| Housing |
ABS, PC, Metal |
| Weight |
283 g |
| Dimensions |
190 x 119.58 x 27 (mm)，7.5 x 4.8 x 1.0 (inch) |
Including Accessories
AC/DC Power Adapter 5VDC@3A
US Type or EU Type x 1 pcs
Download Driver
| Driver |
aDP_SDK_v1.3.1 |
 |
| Version |
Ver 1.3.1 |
| Update |
2019-06-12 16:54:56 |
| Size |
26MB |
| OS |
Android 4.x above |
| API |
iDP_SDK_v4.1 |
|
| Version |
Ver4.1 |
| Update |
2020-12-17 17:34:40 |
| Size |
122.1MB |
| OS |
iOS 8.x above |
