สินค้าสั่งจองล่วงหน้า

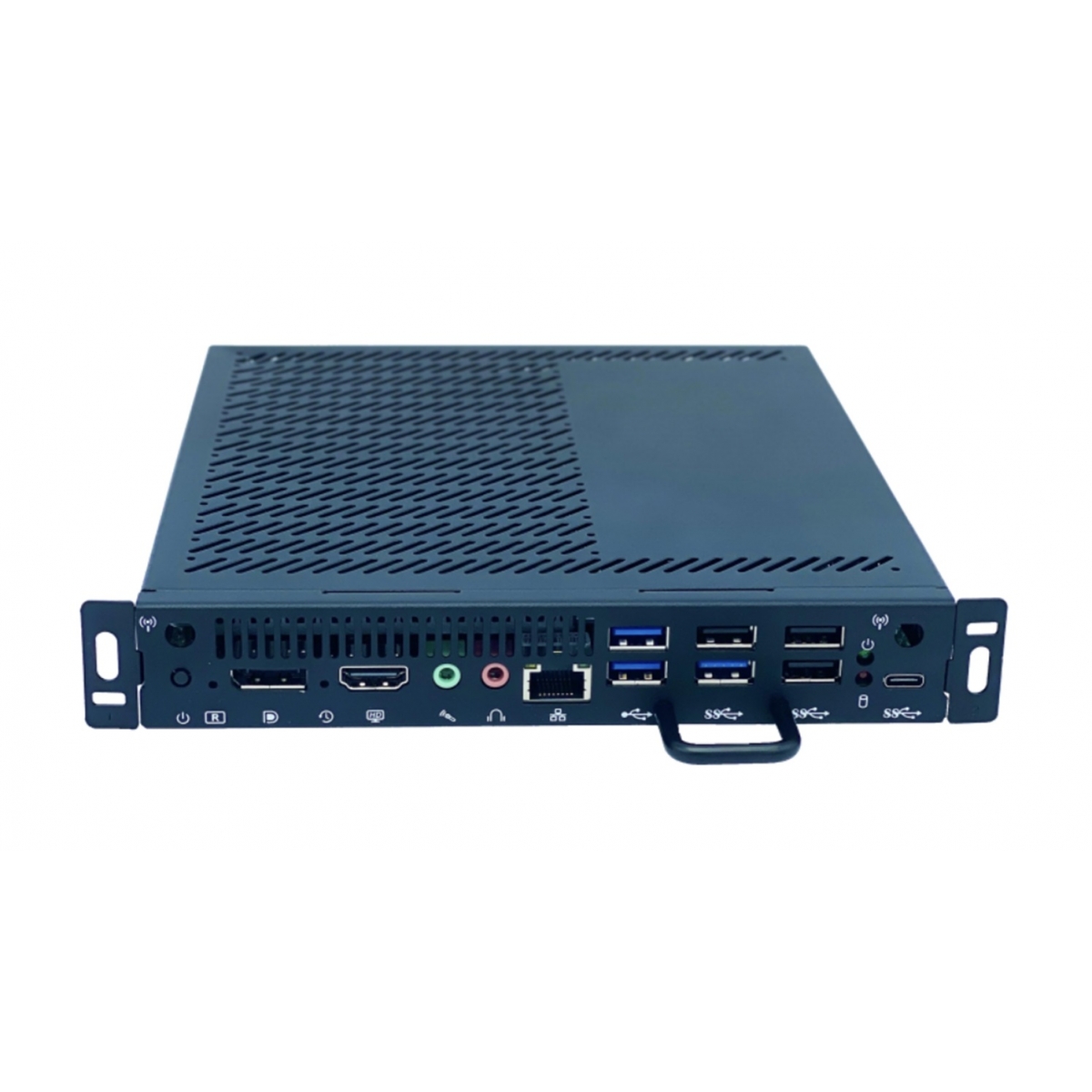

OPS PC Intel Core i5 Gen 11th RAM 8GB HDD 265GB for NEXIS Interactive display
OPS5
- OPS PC สำหรับติดตั้งเข้ากับจอ NEXIS interactive display
- CPU Intel Core i5 11th Gen
- RAM 8 GB
- HDD SSD 256GB
ควรใช้สาย CAT6 600MHz ขึ้นไป ไม่รองรับการใช้ร่วมกับสาย CAT5/CAT5e
Spec SheetFeatures
- Supports intel 11th generation processors
- OPS interface supports up to (3840 × 2160@60HZ) outputs
- Support one-click system restore
- TPM2.0 function as standard.

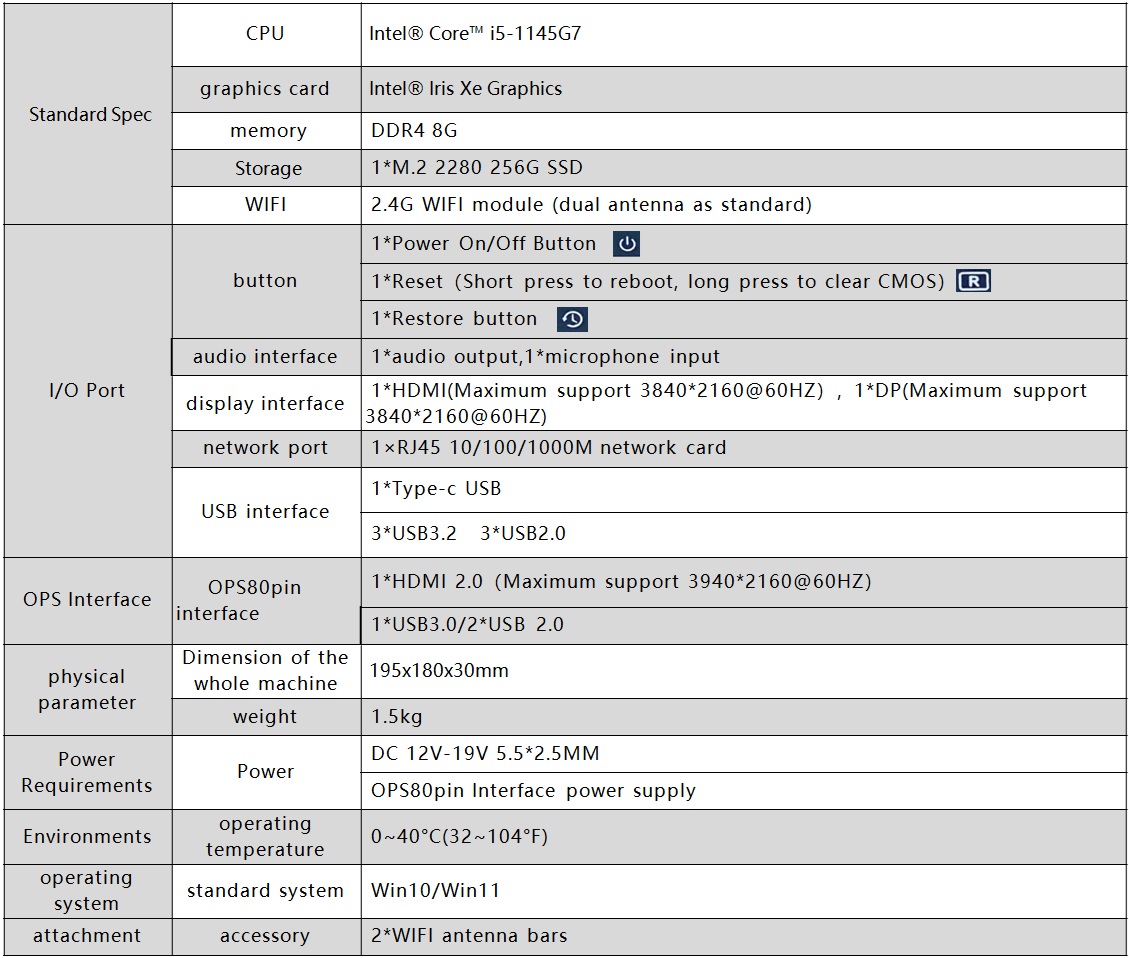

Specification
| Standard Spec | CPU | Intel® Core™ i5-1135G7 |
| graphics card | Intel® Iris Xe Graphics | |
| memory | DDR4 8G | |
| Storage | 1*M.2 2280 256G SSD | |
| WIFI | 2.4G WIFI module (dual antenna as standard) | |
| I/O Port | button | 1*Power On/Off Button |
| 1*Reset (Short press to reboot, long press to clear CMOS) | ||
| 1*Restore button | ||
| audio interface | 1*audio output, 1*microphone input | |
| display interface | 1*HDMI (Maximum support 3840*2160@60HZ), 1*DP (Maximum support 3840*2160@60HZ) | |
| network port | 1*RJ45 10/100/1000M network card | |
| USB interface | 1*Type-c USB | |
| 3*USB3.2 3*USB2.0 | ||
| OPS Interface | OPS80pin interface | 1*HDMI 2.0 (Maximum support 3940*2160@60HZ) |
| 1*USB3.0 / 2*USB 2.0 | ||
| physical parameter | Dimension of the whole machine | 195x180x30mm |
| weight | 1.5kg | |
| Power Requirements | Power | DC 12V-19V 5.5*2.5MM |
| OPS80pin Interface power supply | ||
| Environments | operating temperature | 0~40°C (32~104°F) |
| operating system | standard system | Win10/Win11 |
| attachment | accessory | 2*WIFI antenna bars |
ถามหาอุปกรณ์, ออกแบบโซลูชัน , แก้ปัญหาเทคนิคติดต่อผ่านไลน์ @macrocare สะดวกสุดนะคะ
