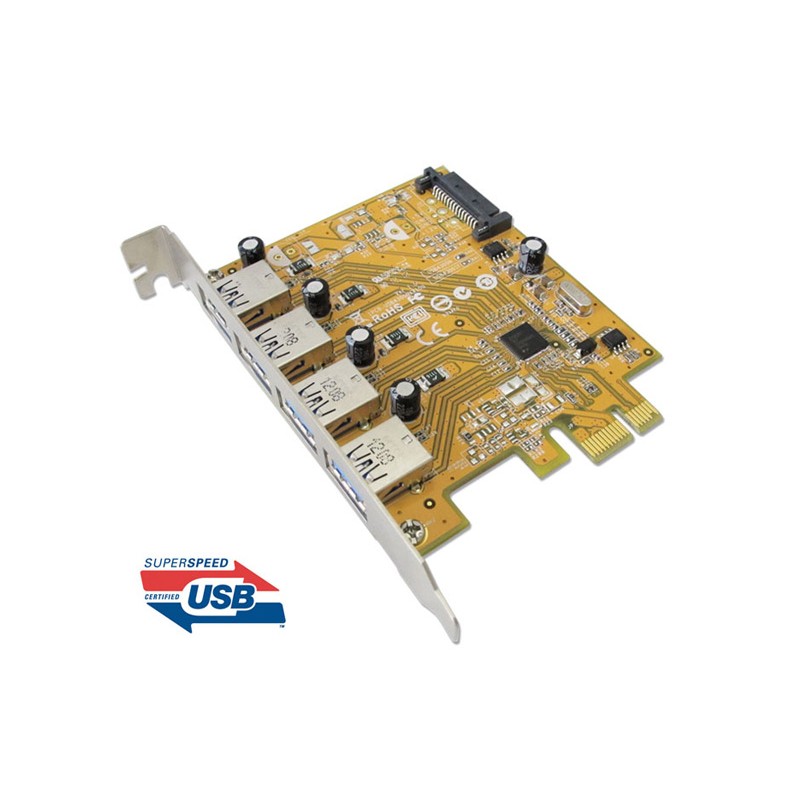

USB 3.0 4-port PCI Express Host Controller
USB4300NS
การ์ดเพิ่มพอร์ต USB 3.0 จำนวน 4 พอร์ต ที่มีใบรับรอง USBIF TID 350000211
รับประกัน 3 ปีเต็ม
Spec sheetFeatures
- USBIF certificated USB 3.0 host card TID 350000211
- Supports PCI Express Base Specification Revision 2.0.
- Single-lane (x1) PCI Express throughput rates up to 5 Gbps.
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
- Supports USB data transfer rate of 1.5/12/480/5000 Mbps.
- Expands four external USB 3.0 Super-Speed ports on the system.
- Each USB port supplies +5V / 900mA power output to USB device.
- Hot-swapping feature allows to connect / disconnect devices without powering down the system.
- Driver supports for Microsoft Windows XP, Vista, 7, 2008, 8, 8.1 and 10 operation systems.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Specifications
| Interface | Single-Lane (x1) PCI Express Gen2 |
| Mode | USB 3.0 |
| Controller | Renesas uPD720201 |
| USBIF TID | 350000211 |
| Port | 4 external USB 3.0 ports |
| Speed | Data Transfer rate of 1.5/12/480/5000 Mbps. Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), SuperSpeed(5Gbps) |
| Power Input | SATA Type Power Connector |
| Power Output | +5V / 900mA (each port) |
| PCB Dimension | 78 (W) x 99(L)mm |
| Bracket | Standard 121mm |
| Certified | CE, FCC, VCCI, BSMI |
| O.S. Support |
Windows XP/2003/Vista/7/2008/8/8.1/10 (32/64-bit)
Windows Server 2008 R2 SP1/2012/2012 R2/2016/2019(64-bit)
Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)
|
Environment |
Operation temp. 0 °C ～ 57 °C Operation humidity: 5 ～ 95% RH Storage temp.-20 °C ～ 85 °C |
Download Driver
| Driver | USB3.0 Windows Inbox Driver |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
|
