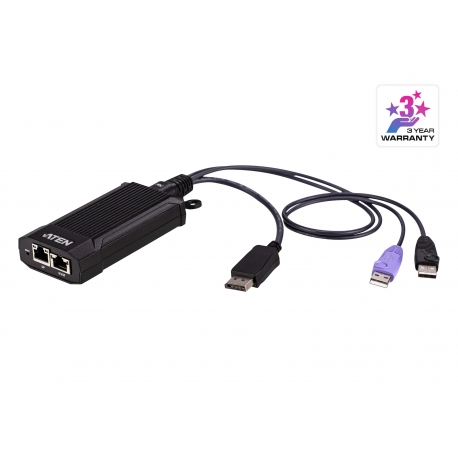

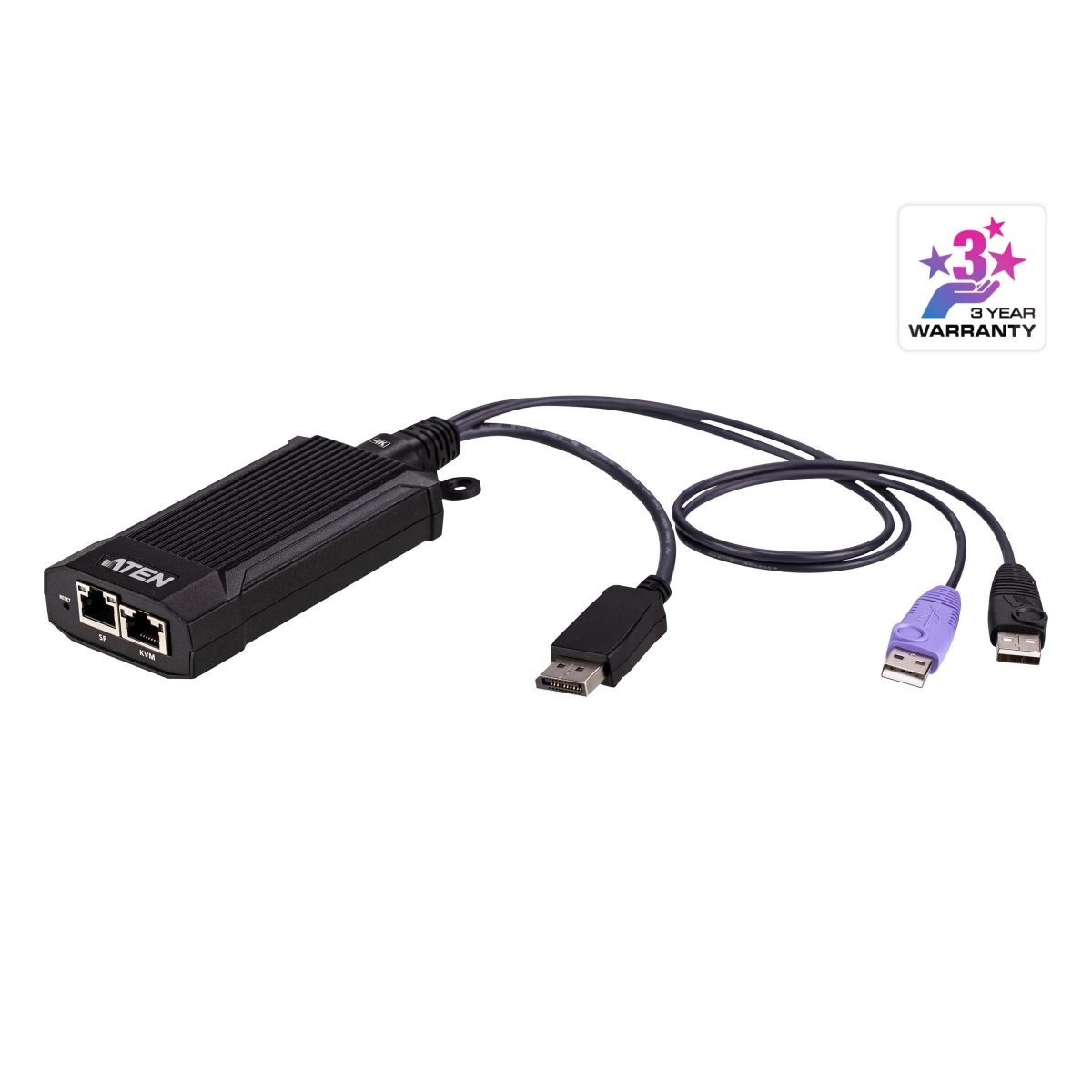

KG9950T

| Connectors | |
| Link | 1 x RJ-45 Female (KVM) 1 x RJ-45 Female (SP) (Reserved for future expansion) |
| Computer | 2 x USB Type A Male 1 x DisplayPort Male |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| LEDs | |
| Link | 1 (Green)- On: Active / Blinking: Transmit/Receive) |
| 10/100/1000 Mbps | 1 (Off / Orange / Green) |
| Power | 1 (Green) |
| Power Consumption | DC5V:3.83W:18BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–95% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum Die-casting Housing |
| Weight | 0.28 kg ( 0.62 lb ) |
| Dimensions (L x W x H) | 12.20 x 5.80 x 2.58 cm (4.8 x 2.28 x 1.02 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
