2A-245G

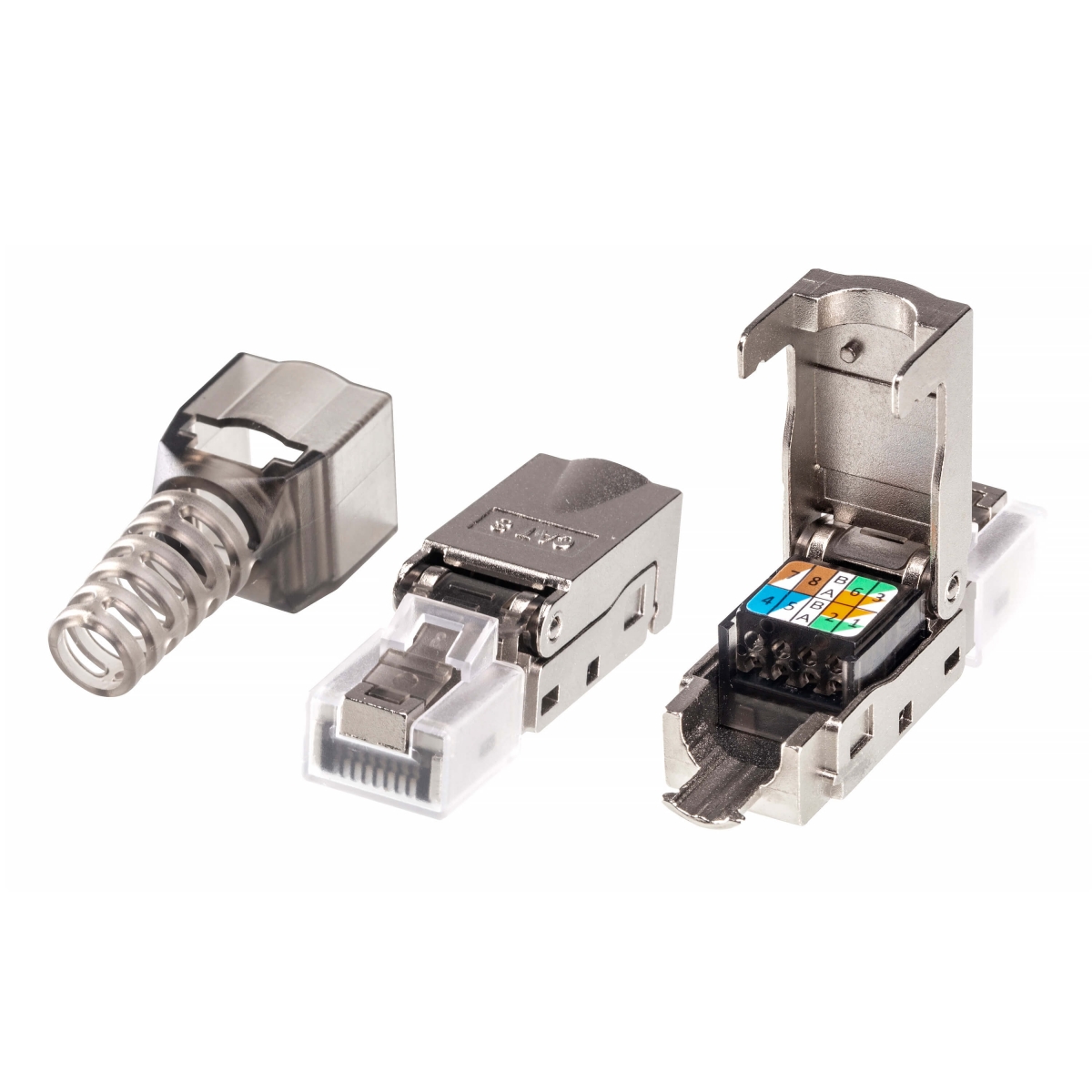

The ATEN 2A-245G Cat 6A RJ-45 connector shielded crystal head offers excellent electromagnetic interference protection, supports over 10G data transfer, and meets FCC Part 68 standards. Its reinstallable metal shielding and die-cast RJ-45 design ensure stable transmission and durability with over 750 mating cycles. It’s compatible with PoE / POH and works well with various cable types, especially 2L-29330 Cat 6A cables.
This connector allows quick, tool-less installation with color-coded holders and a screw-on metal strain relief boot to prevent bending. Supporting cable gauges from 22 to 26 AWG, it’s versatile for different networks. It complies with RoHS / REACH standards and includes an IP20 dust cover for added protection.
| Cable Type | RJ45 complies with FCC part 68 standard, provides termination for 22 ~ 26 AWG wire |
| Electrical | |
| DC Resistance | Max. 0.1Ω |
| Insulation resistance | 500 MΩ |
| Contact resistance | 20 mΩ |
| DC Current rating | 1.5Amps |
| Dielectric strength | Dielectric withstanding voltage 1000V |
| Environmental | |
| Operating Temperature | -40°C- +60°C |
| Physical Properties | |
| Material | Housing: ABS + PC, UL94V-0 Contact: 0.35mm Thickness Phosphor Bronze Gold Plated over Nickel |
| Type | Gun shield: Zinc Alloy, nickel plated |
| Weight | 0.01 kg ( 0.04 lb ) |
| Dimensions (L x W x H) | 4.56 x 1.38 x 1.25 cm (1.8 x 0.54 x 0.49 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
