2-port RS-232 & Cash Drawer interface Universal PCI Serial Board
CDK1037A

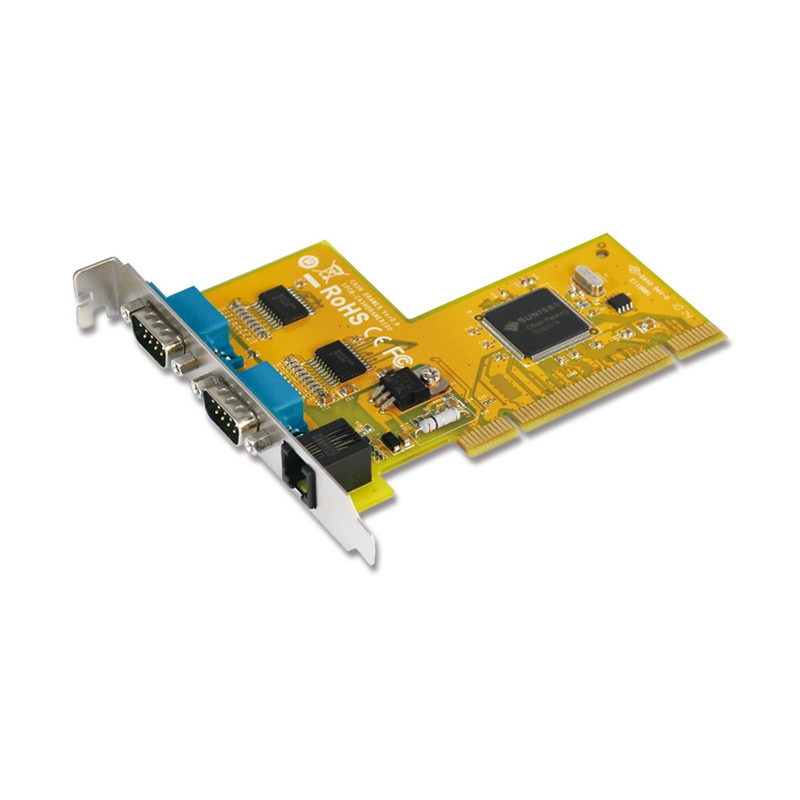

SUNIX CDK1037A, Universal PCI serial communication board, allows users to expand two standard RS-232 DB9M ports and one Cash Drawer 6-pin RJ-11/12 socket on PC-based system.
รับประกัน 3 ปีเต็ม
Spec sheetA cash drawer is generally a compartment underneath a cash register in which the cash from transactions is kept. When a transaction that involves cash is completed, the register sends an electrical impulse to a solenoid to release the catch and open the drawer.
Recently, due to heavier computing demands and the falling price of computer-like architectures, Point of sale (POS) systems have moved away from custom hardware architectures adopting of a personal computer and use common personal computer operating systems. The crux of a problem is that standard PC does not equip any cash drawer interface. Supplier needs using a particular thermal printer with additional cash drawer IO connectivity. From now on, SUNIX provides cost-efficient solutions to expand cash drawer interface to drive the cash drawer by installing standard PCI add-on card.
SUNIX CDK1037A, Universal PCI serial communication board, allows users to expand two standard RS-232 DB9M ports and one Cash Drawer 6-pin RJ-11/12 socket on PC-based system. The board is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. This card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. For the cash drawer interface, user can operate +12 and +24 Voltage cash drawers by implemented SUNIX Windows based API (Application Programming Interface). Both RS-232 and Cash Drawer interface are designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial retail automation applications.
Features
- Expands two independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- Expands single 6-pin RJ11/12 Type Cash Drawer interface to drive +12 VDC Cash Drawer.
- High speed SUN1989 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 2KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- SUNIX Windows based APIs for user easily implement Cash Drawer operation.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
Description |
|
| Product Description | 2-port RS-232 & Cash Drawer interface Universal PCI Serial Board |
Serial Communication |
|
| Interface | RS-232 |
| Controller | SUNIX SUN1989 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 2-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50bps ~115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| PCB connector | DB9 Male |
Cash Drawer Communication |
|
| Interface | RJ11/12 (6-pin) EPSON Printer Compatible |
| Output | +12VDC |
Driver Support |
|
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals |
|
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment |
|
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
| PCB Dimension | 120 x 91 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
