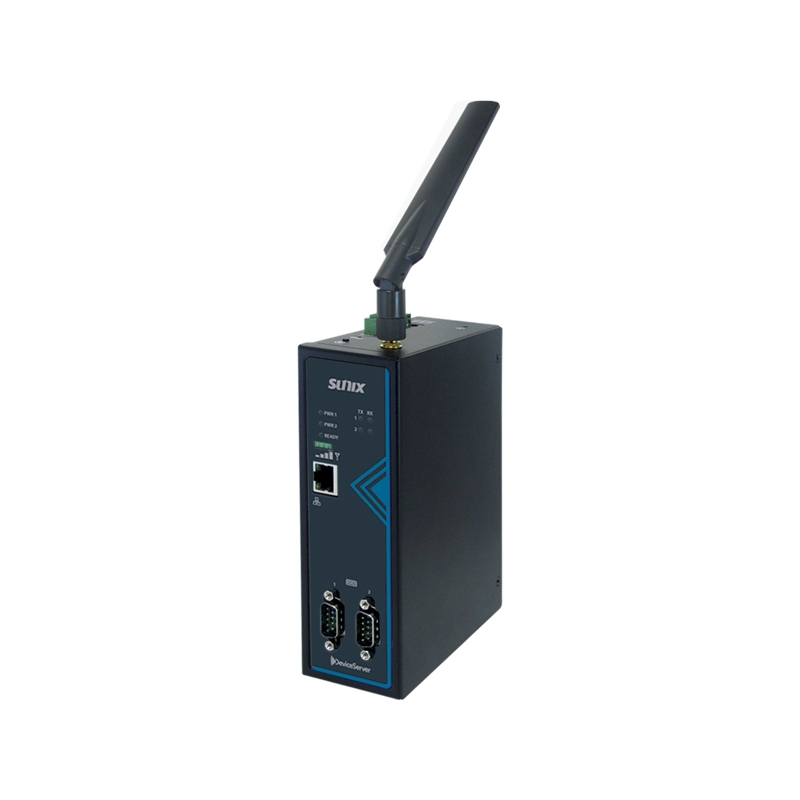

2-port RS-422/485 Industrial Serial Device Server

2-port RS-422/485 Industrial Serial Device Server

IDSD02DW0

IDSD02DW0 allows users to expand 2 RS-422/485 ports over Ethernet connection, With SUNIX DPL2000Q High-Performance Ethernet-UART controller, allowing you to network your existing serial devices with only basic configuration.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


 Spec sheet

 Manual

IDSD02DW0 allows users to expand 2 RS-422/485 ports over Ethernet connection, With SUNIX DPL2000Q High-Performance Ethernet-UART controller, allowing you to network your existing serial devices with only basic configuration.  SUNIX Device Server improves solution deployment efficiency to achieve greater reliability in industrial automation applications.

SUNIX Device Server series in order to keep system stable, it supports 2 ways 12~48VDC redundant power input. In addition, software enabled terminators, RS-422/485 interface selection are the best user experience, and as well built with many of SUNIX advanced features and technologies, making it the best solution for industrial and harsh automation applications.

Features

  • Multi-serial ports supporting RS-422/485.
  • Optional 10/100M Ethernet and 802.11 b/g/n WiFi.
  • Support Real COM, TCP, and UDP socket mode.
  • Configure via Telnet/Web/Windows utility.
  • 15KV ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
  • Support two ways 12~48VDC redundant power input.
  • Support Wall Mounting & DIN-rail Mounting Installation.
  • Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.


Specifications

Serial Communication

Interface RS-422/485 Baud rate 50bps ~921.6Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 2-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line

Software

Network Protocols ICMP, IPv4, TCP, UDP, Telnet, ARP/RARP, HTTP, DHCP
Configuration Options Web Console、Windows Utility、Telnet Console
Windows COM Drivers Microsoft Client: Windows Vista / 7 / 8.1 / 10 (x86/x64)
Microsoft Server: Windows Server 2008 / 2012R2 (X64)

Ethernet Communication

Number of Ports 1-port, Ethernet Switch Port
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in

Wireless Communication

Standard Compliance 802.11 b/g/n
ISM Band 2.4GHz
Network Modes Infrastructure, Ad-Hoc
Transmit Power 802.11n: 13.5dBm ± 1.5dBm
Receive Sensitivity 150M:-68dBm@10% PER; 130M:-68dBm@10% PER
108M:-68dBm@10% PER; 54M:-72dBm@10% PER
11M:-85dBm@10% PER; 6M:-88dBm@10% PER
Wireless Security • OpenWEP、SharedWEP
• WEPAuto、WPA、 WPA2、 WPA2-PSK
• WPAPSKWPA2PSK
• WPA1WPA2 ( WPA and WPA2 hybrid mode )
• 802.1x
Antenna Connector RP SMA Jack
Antenna Frequency:2.4G ~ 2.5GMHz
Peak gain: 4 dBi
Impedance:50 Ω
Connector :RP SMA PLUG
Length :163 (mm)

Power Requirements

Input Voltage 12V ~ 48VDC
Power Consumption 12W @ 12VDC
Connector
T3-pin Terminal Block
ψ2.0mm DC-Jack

Regulatory Approvals

Hardware EMC CE, FCC, VCCI, BSMI

Environment

Operation Temperature 0 to 80°C (32 to 176°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -10 to 85°C (-14 to 185°F)

Physical Characteristics

Housing Metal IP30 Standard
Weight 800 g
Installation Wall mount (Default)
Din rail (Optional)
Dimensions 54 x168 x112(mm), 2.1 x 6.6 x 4.4 (inch)

Download Driver

Driver DeviceServer Driver V1.0.15.0 icon_download.jpg
Version Ver 1.0.15.0
Update 2018-11-06 15:41:41
Size 4.8MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
