2-port RS-232 PCI Express Powered Serial Board
DEL2S00PL

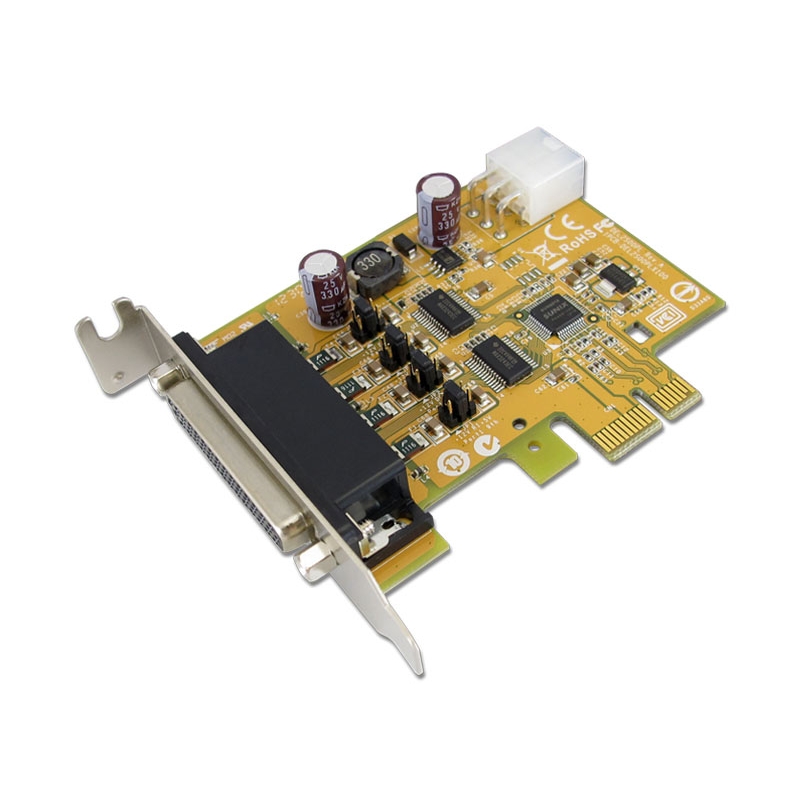

SUNIX DEL2S00PL, PCI Express serial communication board, allows users to add or expand two RS-232 COM ports on PC-based system to use serial devices further.
รับประกัน 3 ปีเต็ม
Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด
Spec sheetSUNIX DEL2S00PL, PCI Express serial communication board, allows users to add or expand two RS-232 COM ports on PC-based system to use serial devices further. This board supports +5 or +12VDC of power from each serial port via COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.
SUNIX DEL2S00PL meets the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any slim size PC-based system with low profile bracket structure. This serial board has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX native PCI Express UART controller, SUN2212 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features
- Expands two RS-232 serial ports with communication speeds up to 115.2Kbps.
- High reliable SUN2212 16C950 compatible native PCI Express UART controller on-board.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ESD protection for all serial signals meets IEC1000-4-2 and DELL M6403_A08 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, UNIX, QNX, and DOS operation system.
Specifications
Hardware
| Interface | RS-232 |
| Controller | SUNIX SUN2212 (16C950 UART Compatible) |
| BUS | PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO | Assigned by System |
Serial Communication
| Interface | RS-232 |
| No. of Port | 2-port |
| FIFO | 128byte Hardware |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate | 50bps ~ 115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge DELL M6403_A09 Direct Pin Injection |
| PCB Connector | DB44 Female |
Power
| Source | +12VDC / PCIe GFx power connector 2x3 Type |
| Output Capacity | +5VDC / Maximum 1A / each port or +12VDC / Maximum 1A / each port |
| Over Current Protection | 1.1A PTC fuse for each power signal |
| Power Consumption | 1.0W @ 3.3V (board only without power output to device) |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Standards and Certifications
| EMC | CE, FCC, VCCI, BSMI |
| Green | RoHS, CRoHS, WEEE |
Physical Characteristics
| PCB Dimension | 84 x 69 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
|
