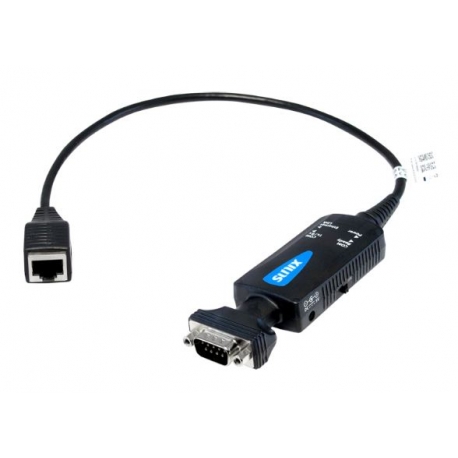

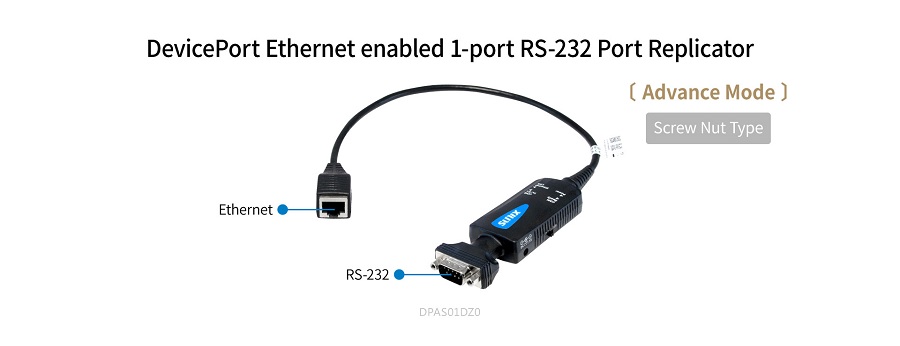

DevicePort Advanced Mode Ethernet enabled 1-port RS-232 Port Replicator (Screw Nut Type)

DevicePort Advanced Mode Ethernet enabled 1-port RS-232 Port Replicator (Screw Nut Type)

DPAS01DZ0

DPAS01DZ0 allows users to expand 1 RS-232 port over Ethernet connection, and it works on any windows based desktop, thin client, laptop, All-in-one, and tablet PC computers.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


 Spec sheet

 Manual

DPAS01DZ0 allows users to expand 1 RS-232 port over Ethernet connection, and it works on any windows based desktop, thin client, laptop, All-in-one, and tablet PC computers. With SUNIX DPL2000Q High-Performance Ethernet-UARTcontroller and exclusive I/O Redirection Technology, DevicePort creates physical COM ports that support real time data communication, Smart COM on/off-line deployment, and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration. SUNIX DevicePort improves solution deployment efficiency to achieve greater reliability in commercial and industrial automation applications.

Features

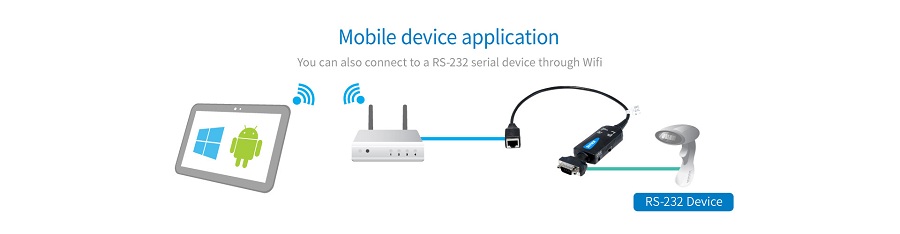

  • Expands 1 RS-232 serial ports over Ethernet or WiFi.
  • Communication speeds up to 115.2Kbps.

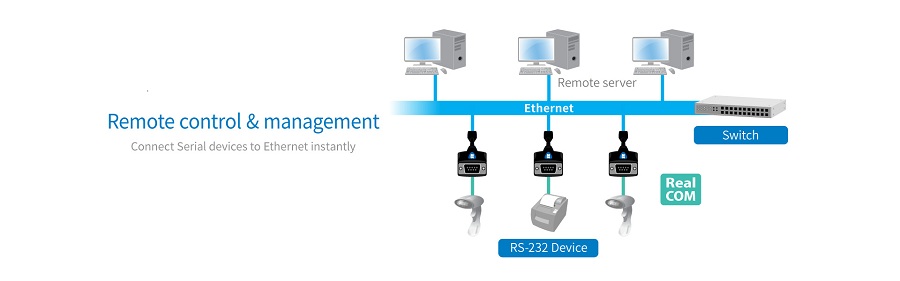

  • Real-Time data transmitting (Real COM) without complicated IP setup.

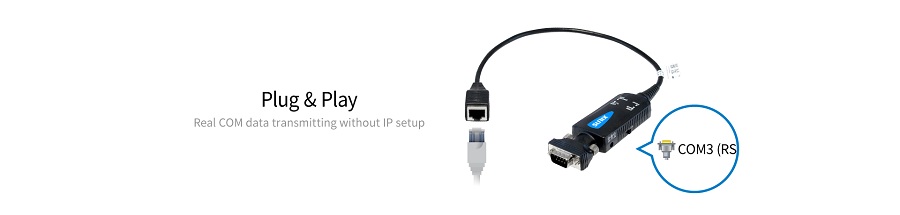

  • COM Port Auto-Detect and Port-Mapping supports Plug-N-Play.
  • Built-in with SUNIX DPL2000Q High-Performance Ethernet-UART controller.
  • Compatible with existing software and AP.
  • To make wiring simple, fast, and more space efficient.

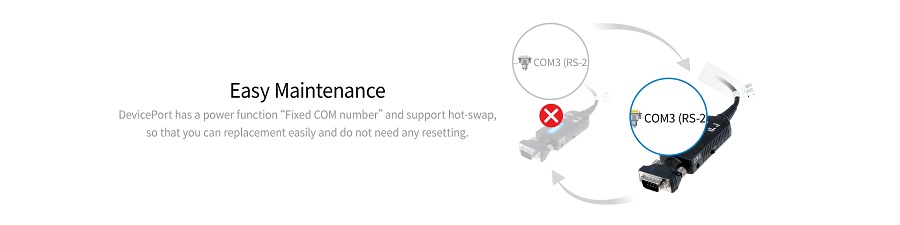

  • Easy maintenance with Fixed COM number and Hot-Swap.

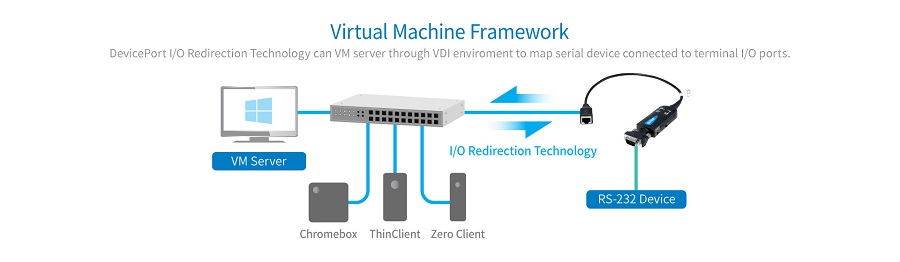

  • SUNIX DevicePort proprietary Ethernet I/O Redirection Technology.

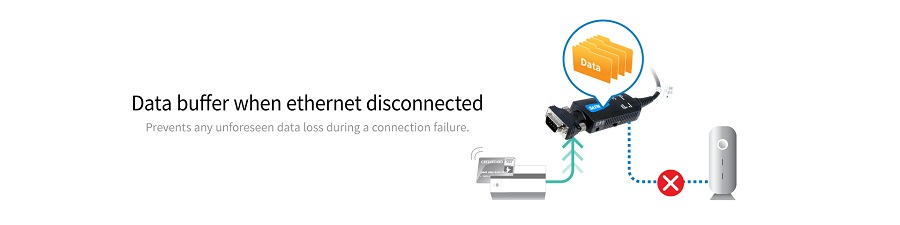

  • Data buffer prevents any unforeseen data loss during a connection failure.
  • Flexible port configuration with DevicePort on/off-line smart COM deployment.(Note 2)
  • 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
  • Low power consumption design of 2.5W for meeting Green Environmental movement.
  • Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

Specification

Serial Communication
Interface RS-232 Baud rate 50bps ~115.2Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 1-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per port Connector DB9 Male
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection ±15KV ESD IEC-61000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line
Ethernet Communication
Number of Ports 1-port, Ethernet Switch Port
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.0K Built-in
Power Requirements
Input Voltage 5 VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack
Driver Support
Windows Client XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012R2 (X64)
Regulatory Approvals
Hardware • EUR: CE EN55022 Class B, EN55024
• US: FCC Part 15 Class B
• TAIWAN: BSMI: CNS13438
• JAPAN: VCCI
Software Microsoft WHQL Windows
• Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64)
• Microsoft Server: 2003/2008/2012R2 (X64)
Environment
Operation Temperature 0 to 60°C (32 to 113°F)
Operation Humidity 5 to 95% RH  (non-condensing)
Storage Temperature -20 to 85°C (-4 to 185°F)
Physical Characteristics
Housing PC
Weight 67 g
Power Cable Length Power Jack to USB Type A Male Cable  ψ3.5*ψ1.35,120 cm
Lan Cable Length 315mm±30mm
Dimensions 480 x 34 x 18 (cm), 18.9 x 1.3 x 0.7 (inch)
Note:
1.DevicePort Advance Mode limits specific Ethernet port connection, and it does not works on router operation.
2.DevicePort on/off-line smart COM deployment.
   - Auto connection and mapping with MAC address bound.
   - Keeps physical COM port in system when DevicePort under off-line mode.
   - Serial signal staging until DevicePort recovery back to on-line mode.

Download Driver

Driver DevicePortAdvanced V4.0.3.0 icon_download.jpg
Version Ver 4.0.3.0
Update 2021-02-08 14:22:48
Size 5.5MB
OS
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
