SUNIX SATA1414

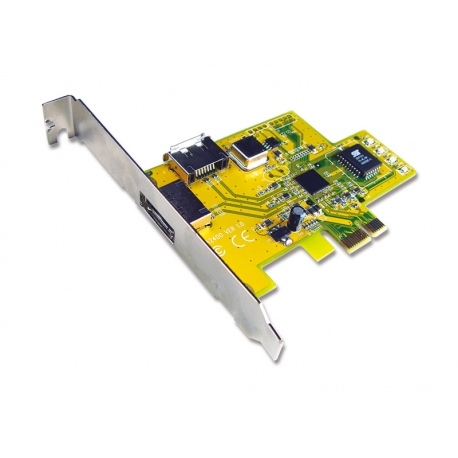

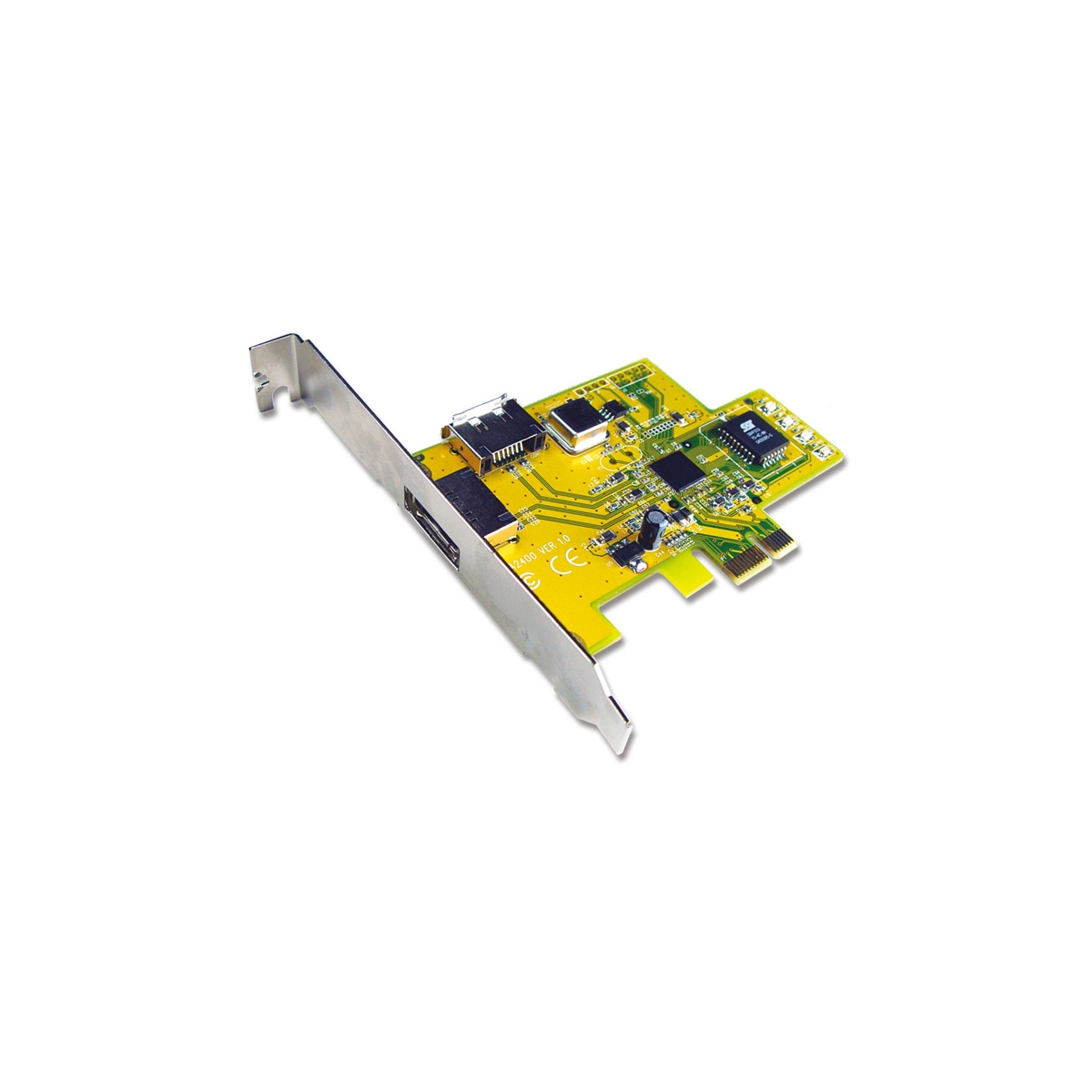

SUNIX SATA PCI Express Card

SATA1414

PCI Express Serial ATA Ⅱ 1+1 channels Card (Raid 0/1)

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด


จำนวนจำกัด

 Spec sheet

SATA1414  PCI Express Serial ATA Ⅱ 1+1 channels Card

Sunix's SATA1414 PCI Express Card offers user the ability to add hardware features into their PC in a very painless and simple way. PCI Express scalable bandwidth of 16 gigabytes per second at its initial signaling rate of 2.5GHz with much higher transfer rates in the future using higher frequency signaling technologies, and architecture is a cost-effective, low-pin count interface offering maximum bandwidth per pin, reducing cost and design complexity and enabling smaller form factors. Sunix PCI Express also offers user other advantages such as better integration into the OS, lower cost to use, and robust designed for ease of handling, plugged in and removed from systems.



FEATURES

  • Fully compliant with one-lane 2.5Gb/s PCI Express specification
  • Expand one eSATA and one SATA port
  • Compliant with Serial ATA 1.0 specifications
  • Serial ATA Generation 2 transfer rate of 3.0 Gbps
  • Supports two independent Serial ATA channels
  • Hot plug for extend Serial ATA port
  • Supports RAID 0 (Striping) and RAID 1 (Mirroring)
  • Supports Serial ATA II Port-Multiplier specifications
  • Supports Windows and Linux O.S.

    HARDWARE

    Interface One-lane PCI Express
    Type Serial ATA Generation 2
    Chipset Silicon Images Sil3132
    Mode RAID 0 (Striping) and RAID 1 (Mirroring)
    Port 1 external + 1 internal Serial ATA II Ports
    Independent Link, transport, and data FIFO
    Independent command fetch, svatter/gather, and command exevution Hard coded state machines - no code space or download
    Supports Lagacy Command Queuing(LCQ)
    Supports Native Command Queuing(NCQ)
    Supports Non-zero offsets NCQ
    Supports Out of order data delivery NCQ
    Supports FIS-based switching with Port Multipliers
    OS Support Windows 2000/ XP/ 2003/ Vista/ 7, Linux
