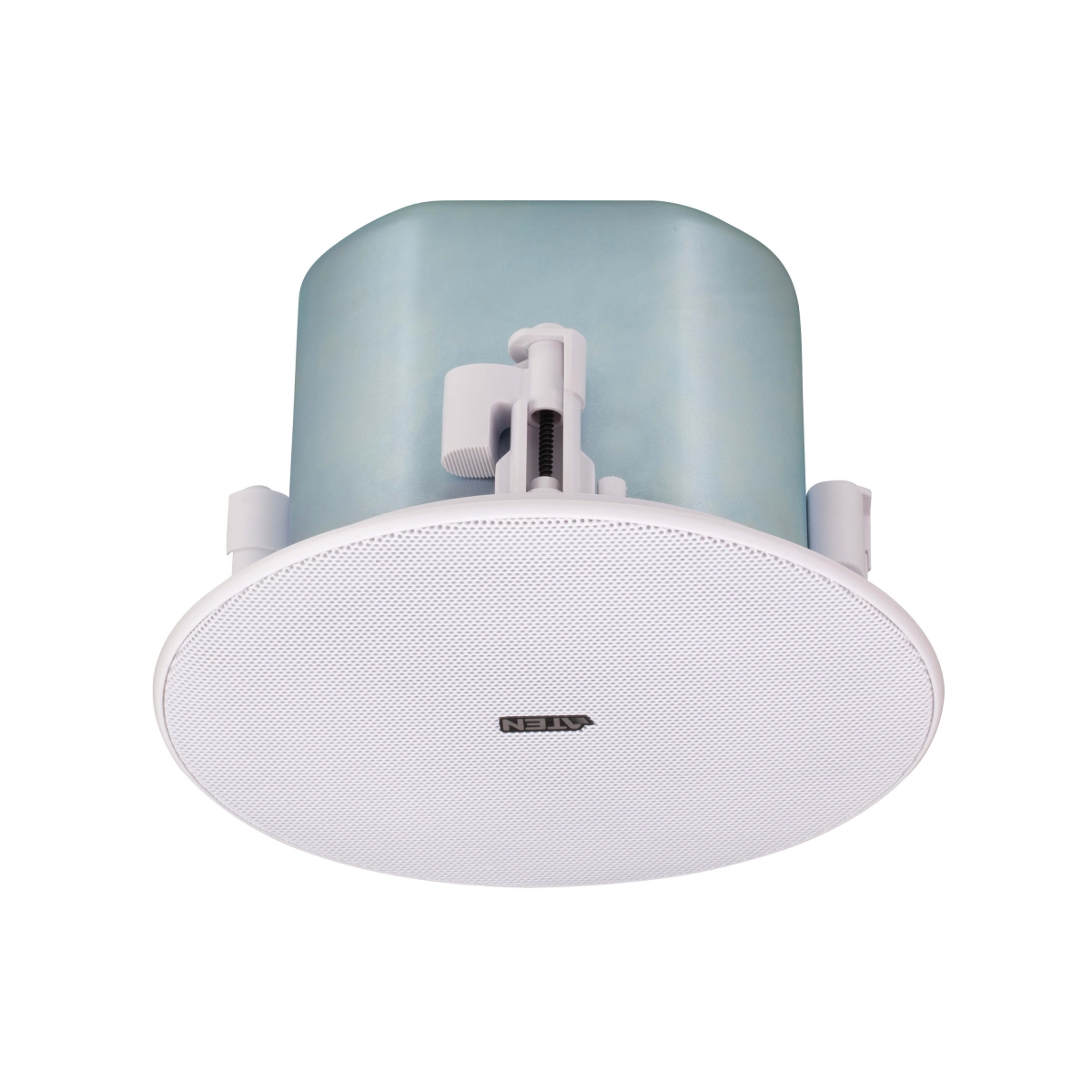

4" Coaxial Ceiling Loudspeaker
AS104
- Coaxial design with premium components:
– 4” high output driver with rubber surround and heavy-duty voice coil
– 20 mm dome tweeter - 100 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
- Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
รับประกัน 3 ปีเต็ม
ManualFeature
- Please note the AS104s are sold in pairs.
- Coaxial design with premium components:
– 4” high output driver with rubber surround and heavy-duty voice coil
– 20 mm dome tweeter - 100 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
- Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
- UL94-V0 compliance for life safety applications

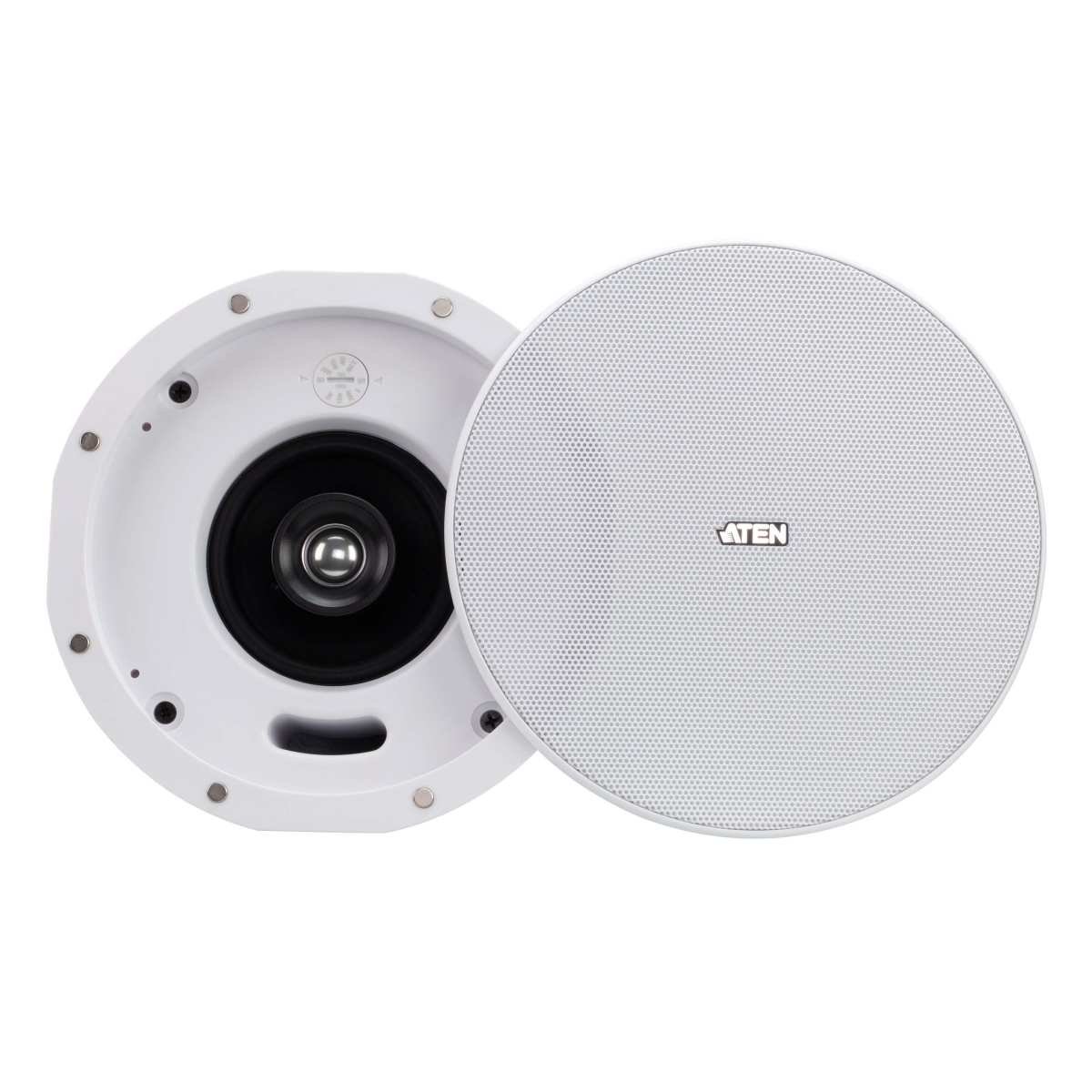

- Paintable magnetic grille for blending into any room decor
- Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template
- Coaxial design with premium components:

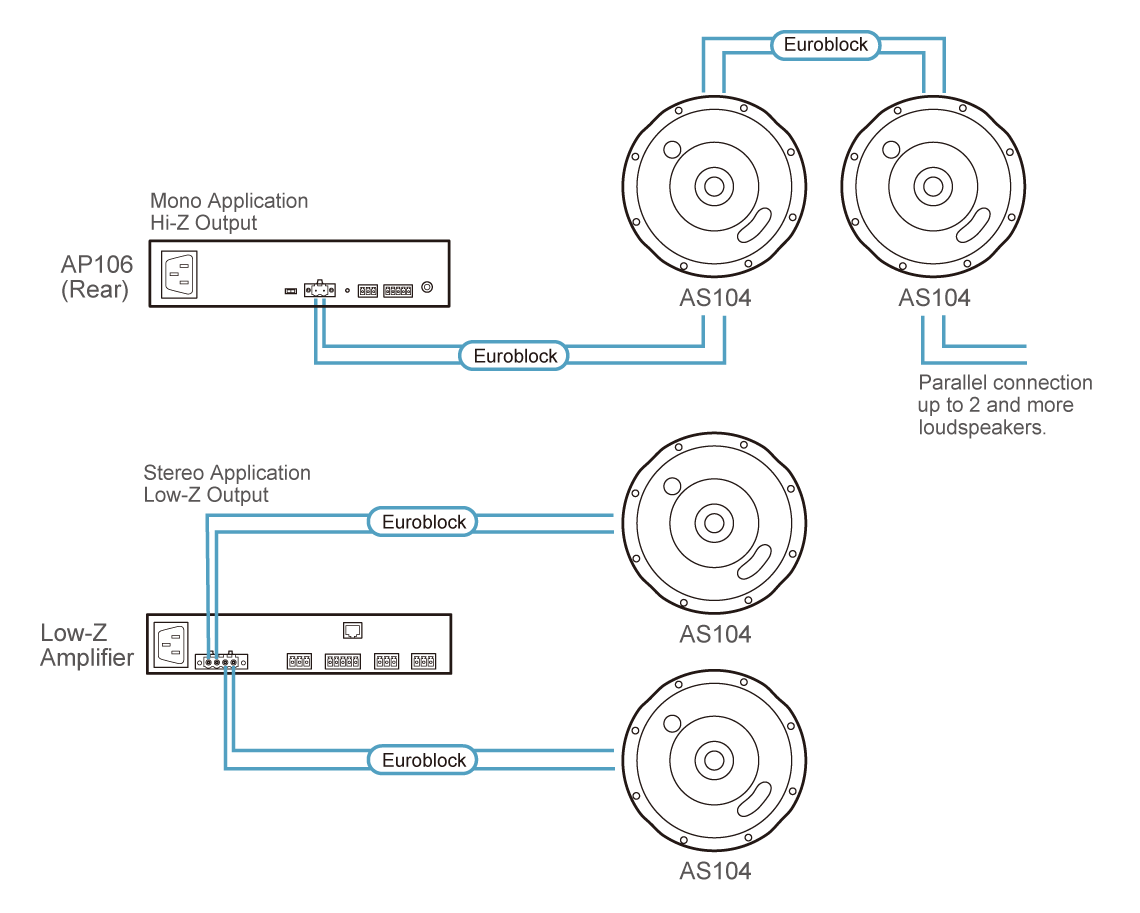

Diagram
Specifications
| System Specification | |
| LF Driver | 4" Paper Cone with Rubber Suspension |
| HF Driver | 20mm PEI Dome Tweeter |
| Frequency Response | 100~20kHz (-10dB) |
| Distortion | <=5% |
| Rated Power | 30Wrms/60Wpeak |
| Sensitivity | 86dBSPL, @1m, 1W, 1kHz |
| Transformer Taps | 70V(2.5W, 5W, 10W, 20W) 100V(*, 5W, 10W, 20W) |
| Compliance | |
| Certification | CE, WEEE, RoHs |
| Connectors | |
| Audio Inputs | 5.08mm Euroblock Connector |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Storage Temperature | -20 - 60°C |
| Physical Properties | |
| Weight | 2.20 kg ( 4.85 lb ) |
| Housing | UL94-V0 ABS Plastic Baffle Zinc-Coated Steel Backcan |
| Dimensions (L x W x H) | 21.80 x 21.80 x 13.00 cm (8.58 x 8.58 x 5.12 in.) |
| Color | White Speaker Grille (Paintable) White Speaker Baffle |
| Cut-out Diameter | 182mm |
| In-ceiling Clearance Height | 125mm |
| Carton Lot | 2 Pcs/Carton |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 2 x AS104 4” Coaxial Ceiling Loudspeakers
- 2 x Euroblock connectors
- 2 x ceiling reinforcement kits
- 2 x cutout templates
- 2 x speaker grilles
- 1 x user instructions
