CL3108NX
รับประกัน 3 ปีเต็ม
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

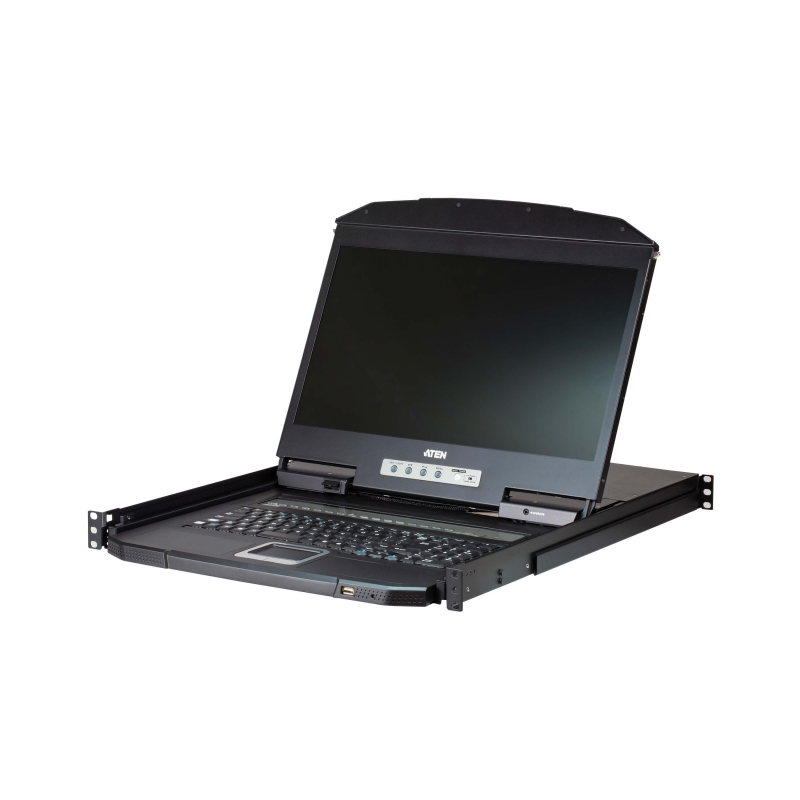

8-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch
18.5" LCD KVM Switch สำหรับสลับควบคุมใช้งานเซิร์ฟเวอร์ VGA และ Keyboard/Mouse แบบ USB 8 เครื่อง หน้าจอ Wide Screen ความละเอียด 1366x768@60Hz รองรับความละเอียดขาเข้าถึง 1920x1200@60Hzผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Function | CL3108NX |
Computer Connections | |
Direct | 8 |
Maximum | 128 (via Cascade) |
Port Selection | OSD, Hotkey, Pushbutton |
Connectors | |
KVM Ports | 8 x SPHD Female (Yellow) |
Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) |
Power | 1 x IEC 60320/C14 |
External Mouse Port | 1 x USB Type A Female (Front) |
Switches | |
Port Selection | 8 x Pushbutton |
Reset | 1 x Semi-recessed Pushbutton |
Firmware Upgrade | 1 x Slide Switch |
Power | 1 x Rocker Switch |
LCD Control | 4 x Pushbutton |
LCD Power | 1 x LED Pushbutton |
LEDs | |
Online | 8 (Orange) |
Selected | 8 (Green) |
Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
LED Illumination Light | 1 x LED Illumination Light |
Panel Spec | |
LCD Module | 18.5" TFT-LCD |
Resolution | 1366 x 768 @ 60 Hz |
Response time | 5 ms |
Viewing Angle | 170° (H), 160° (V) |
Pixel Pitch | 0.3 mm x 0.3 mm |
Support Color | 16.77M colors |
Contrast Ratio | 1000 : 1 |
Luminance | 250 cd/m² |
Video | |
Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1366 × 768 @ 60 Hz, DDC2B |
Scan Interval | 1-255 seconds |
Emulation | |
Keyboard / Mouse | PS/2, USB |
Maximum Input Power Rating | 100–240 V AC, 50-60 Hz, 1 A |
Power Consumption | AC110V:14.1W:70BTU AC220V:14.9W:74BTU |
Environmental | |
Operating Temperature | 0-40°C |
Storage Temperature | -20-60°C |
Humidity | 0 - 80% RH, Non-condensing |
Physical Properties | |
Housing | Metal + Plastic |
Rail Type | Single Rail |
Weight | 10.50 kg ( 23.13 lb ) |
Dimensions (L x W x H) | 48.06 x 63.17 x 4.28 cm (18.92 x 24.87 x 1.69 in.) |
Body Dimensions(L x W x H) | 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.) |
Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
