CL1000N
Slideaway™ LCD Rack monitor console 19" Rackmount 1U
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
ATEN 19" LCD Console Slideaway Rack monitor
Slideaway™ LCD Rack monitor console 19" Rackmount 1U
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
| Rack Mount Kit | ความลึกของตู้ Rack |
| Short (Standard - มาพร้อม package) | 52 - 85 cm |
| 2X-023G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 70 - 105 cm |
ช่วยให้ติดตั้งได้ด้วยคนเพียงคนเดียว



| Easy Installation Rack Mount Kit |
ความลึกของตู้ Rack |
| 2X-024G (Short - อุปกรณ์เสริม ไม่รวมใน package) | 57 - 70 cm |
| 2X-025G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 68 - 105 cm |

| Function | CL1000N |
| Computer Connections | |
| Direct | 1 |
| Connectors | |
| KVM Ports | 1 x SPHD Female (Yellow) |
| Power | 1 x IEC 60320/C14 |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | N/A |
| LCD Control | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton |
| LEDs | |
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |

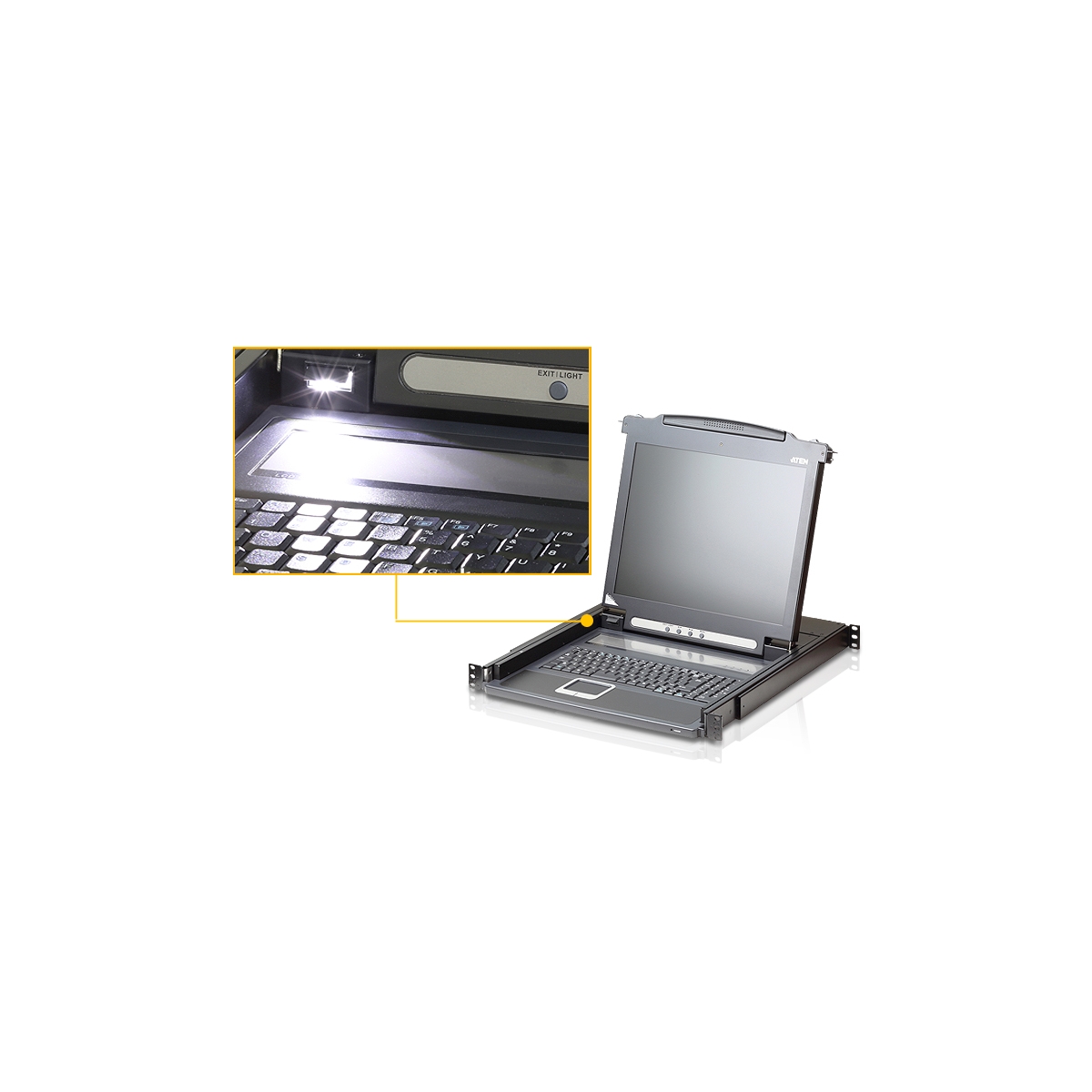

| LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | |
| LCD Module | 19" TFT-LCD |
| Resolution | 1280 x 1024 @ 75 Hz |
| Response time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Pixel Pitch | 0.294 mm x 0.294 mm |
| Support Color | 16.7M colors |
| Contrast Ratio | 1000:1 |
| Luminance | 250 cd/m² |
| Video | |
| Input Video Resolution | up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B |
| Emulation | |
| Keyboard / Mouse | PS/2, USB(via 2L-520xUP cables) |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1A |
| Power Consumption | AC110V:29.2W:137BTU AC220V:29.3W:137BTU |
| Environmental | |
| Operating Temperature | 0-50˚C |
| Storage Temperature | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal+Plastic |
| Rail Type | Single Rail |
| Weight | 11.06 kg ( 24.36 lb ) |
| Dimensions (L x W x H) | 48.30 x 58.52 x 4.40 cm (19.02 x 23.04 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
