CL5808N
Slideaway™ Dual Rail LCD KVM Switch with Rack Mount Monitor
8-Port Dual Rail LCD KVM Switch
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
ATEN LCD Rack Mount Monitor 8-Port KVM Switch
Slideaway™ Dual Rail LCD KVM Switch with Rack Mount Monitor
8-Port Dual Rail LCD KVM Switch
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
*KVM Switches รุ่นที่รองรับการต่อพ่วงกับ CL5808 : CS1208A, CS1216A, CS1708A, CS1716A
Rack Mounting Kit | Depth (cm) |
2X-010G (Long/Optional) | 70 - 105 |
Short (Standard) | 52 - 85 |
![]() |
|
Easy Installation Rack Mounting Kit |
Depth (cm) |
2X-012G (Long/Optional) | 68 - 105 |
2X-011G (Short/Optional) | 57 - 70 |

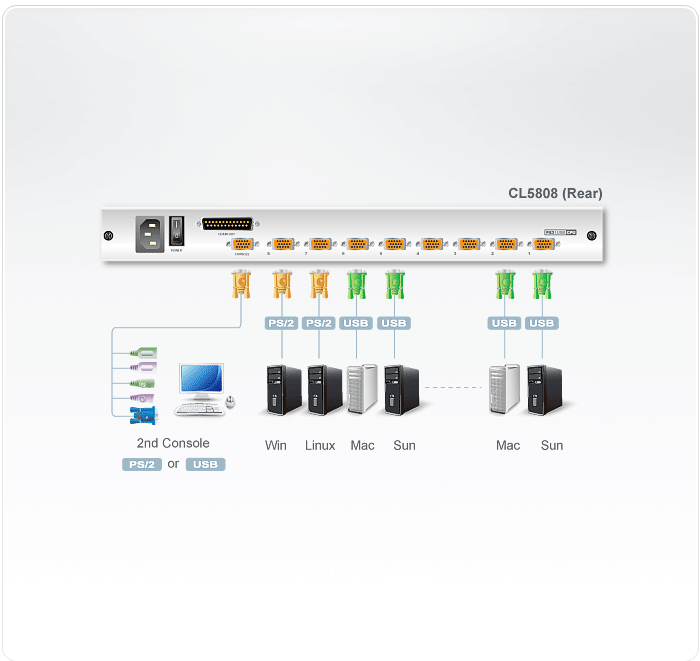

Computer Connections | Direct | 8 | |
Max. | 256 (via Daisy-chain) | ||
Port Selection | OSD, Hotkeys, Pushbuttons | ||
Connectors | External Console Port | 1 x SPHD-18 Male (Yellow) | |
External Mouse Port | 1 x USB Type-A Female (White) | ||
KVM Ports | 8 x SPHD-17/18 Female (Yellow) | ||
Daisy-chain Port | 1 x DB-25 Male (Black) | ||
FW Upgrade | 1 x RJ-11 Female (Black) | ||
Power | 1 x 3-prong AC Socket | ||
USB Port | 1 x USB Type-A Female | ||
Switches | Reset | 1 x Semi-recessed Pushbutton | |
Power | 1 x Rocker | ||
F/W Upgrade | 1 x Slide | ||
LCD Adjust | 4 x Pushbutton | ||
LCD On/Off | 1 x LED Pushbutton (Orange) | ||
Port Selection | 2 x Pushbutton (LCD); 8 x Pushbutton (Keyboard) |
||
Station Selection | 2 x Pushbutton | ||
LEDs | On Line | 8 (Orange) | |
Selected | 8 (Green) | ||
Station ID | 2 x 7-segment LED Display (Orange) | ||
Power | 1 (Dark Green) | ||
Lock | Num | 1 (Green) | |
Caps | 1 (Green) | ||
Scroll | 1 (Green) | ||
Emulation | Keyboard / Mouse | PS/2, USB | |
Video | 1280 x 1024 @ 75 Hz; DDC2B | ||
Scan Interval (OSD Select) | 1–255 sec. | ||
I/P Rating | 100–240 V AC, 50/60 Hz, 1 A | ||
Power Consumption | 120V, 30.1W ; 230V, 30.7W | ||
Environment | Operating Temp. | 0–50°C | |
Storage Temp. | -20–60°C | ||
Humidity | 0–80% RH, Non-condensing | ||
Physical Properties |
Housing | Metal + Plastic | |
Weight |
14.83 kg |
||
Dimensions ( D x W x H ) |
68.04 x 48.00 x |
Slideaway™ LCD KVM Rack monitor console 17" PS/2,USB KVM switch 8-port / expansion upto 256 (daisy chain) Support Win, Linux, FreeBSD *Optional Finger scan
19 นิ้ว LCD KVM Switch รองรับการต่อ Server 8 เครื่องทั้ง USB และ PS/2 พับจอ slide เก็บเข้าตู้ Rack 1U ได้ สะดวก ประหยัดพื้นที่ในตู้ rack สนับสนุนทั้ง Windows, Linux, Mac และ Sun
