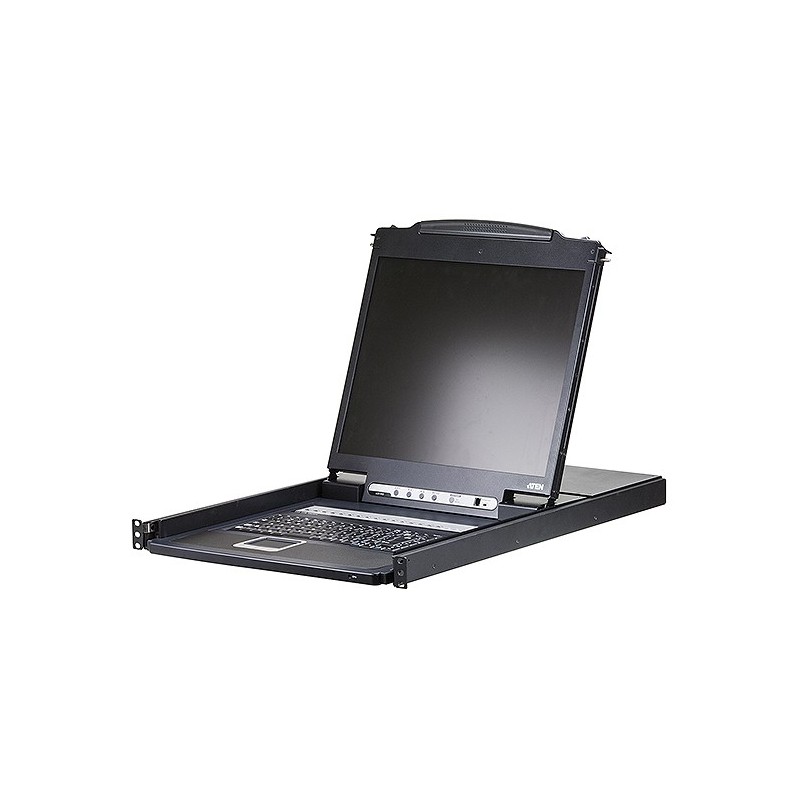

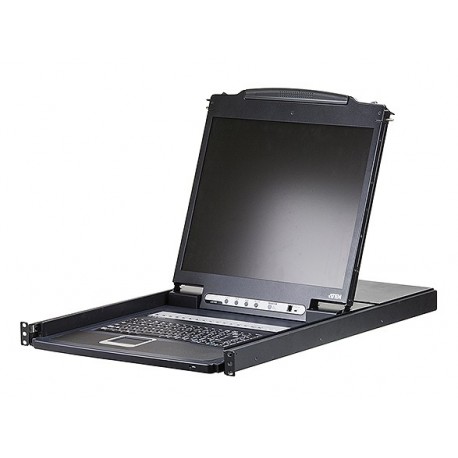

ATEN 19'' LCD KVM Switch
CL1316N
19 นิ้ว LCD KVM Switch รองรับการต่อ Server 16 เครื่องทั้ง USB และ PS/2 พับจอ slide เก็บเข้าตู้ Rack 1U ได้ สะดวก ประหยัดพื้นที่ในตู้ rack รองรับทั้ง Windows, Linux, Mac และ Sun
รับประกัน 3 ปีเต็ม
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
The CL1316N LCD KVM Switch features an integrated 19" LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1316N intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from thekeyboard, or via a menu driven multilingual on-screen display (OSD) system.
Features
- A single console controls up to 256 computers by cascade to 2 levels and connect up to 16 switches.
- Integrated KVM console with 19” LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
Advantages
- Reduce space and cost requirements with streamlined, space saving design.
- Provides an easy and fl exibility for expanding servers installation.
- Enhanced security with two level password access for authorized personnel.
- Improved server maintenance quality and reduce maintenance time.
- Supports wide range OS platforms and I/O peripherals.
Standard Installation Rack Mount Kit
| Rack Mount Kit | ความลึกของตู้ Rack |
| Short (Standard - มาพร้อม package) | 52 - 85 cm |
| 2X-023G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 70 - 105 cm |
Easy Installation Rack Mount Kit
ช่วยให้ติดตั้งได้ด้วยคนเพียงคนเดียว
| Easy Installation Rack Mount Kit |
ความลึกของตู้ Rack |
| 2X-024G (Short - อุปกรณ์เสริม ไม่รวมใน package) | 57 - 70 cm |
| 2X-025G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 68 - 105 cm |

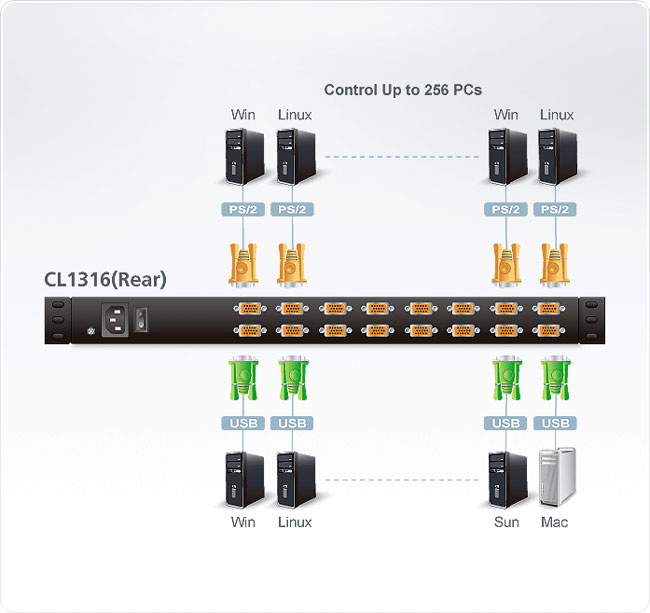

Diagram
Specifications
| Function | CL1316N | ||
| Computer Connections | Direct | 16 | |
| Maximum | 256 (via Cascade) | ||
| Port Selection | OSD, Hotkeys, Pushbuttons | ||

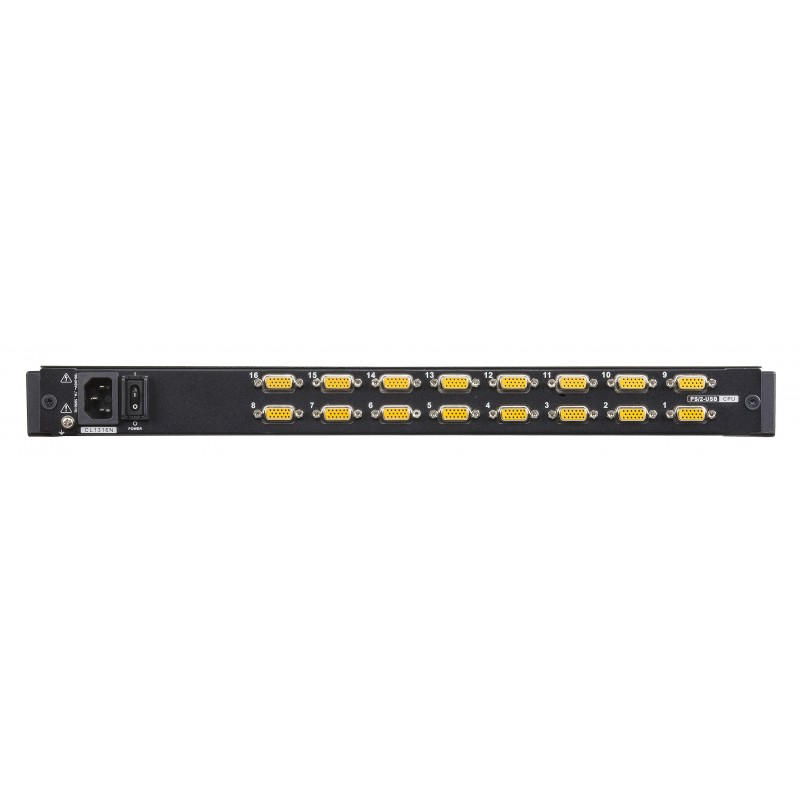

| Connectors | KVM Ports | 16 x SPHD-17 Female (Yellow) |
|
| FW Upgrade | 1 x RJ-11 Female (Black) | ||
| Power | 1 x 3-prong AC Socket (IEC60320/C14) | ||
| Switches | Reset | 1 x Semi-recessed Pushbutton | |
| Power | 1x Rocker | ||
| FW Upgrade | 1 x Slide | ||
| LCD Control | 4 x Pushbutton | ||
| LCD On/Off | 1 x Pushbutton | ||
| Port | 16 x Pushbutton | ||
| LEDs | Online | 16 (Orange) | |
| Selected | 16 (Green) | ||
| Power | KVM | 1 (Dark Green) | |
| LCD | 1 (Orange) | ||
| Lock | Num | 1 (Green) | |
| Caps | 1 (Green) | ||
| Scroll | 1 (Green) | ||
| Emulation | Keyboard/ Mouse | PS/2, USB | |
| Video | 19-Inch LCD | 1280×1024 @ 75 Hz； DDC2B | |
| Scan Interval | 1-255 seconds | ||
| I/P Rating | 100-240 VAC; 50/60 Hz; 1A | ||
| Power Consumption | 19-Inch LCD | 120V, 22 W / 230V, 22.9 W | |
| Environment | Operating Temperature | 0-50˚C | |
| Storage Temperature | -20-60˚C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal + Plastic | |
| Weight | 12.58 kg | ||
| Dimensions (L×W×H) | 68.90 x 48.30 x 4.40 cm | ||
Package Contents
- 1x CL1316 LCD KVM Switch with Rack Mount Kit
- 2x Custom KVM Cable Cables
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
