CE980

CE980 คืออุปกรณ์ขยายสัญญาณ KVM แบบใช้สายไฟเบอร์ออปติก (Optical KVM Extender) ที่รองรับการเชื่อมต่อแบบ USB, DisplayPort และ HDMI สามารถขยายสัญญาณ KVM ผ่านสายไฟเบอร์ออปติกได้ไกลถึง 300 เมตร พร้อมให้คุณภาพวิดีโอระดับ True 4K ที่รองรับมาตรฐาน HDCP 2.3

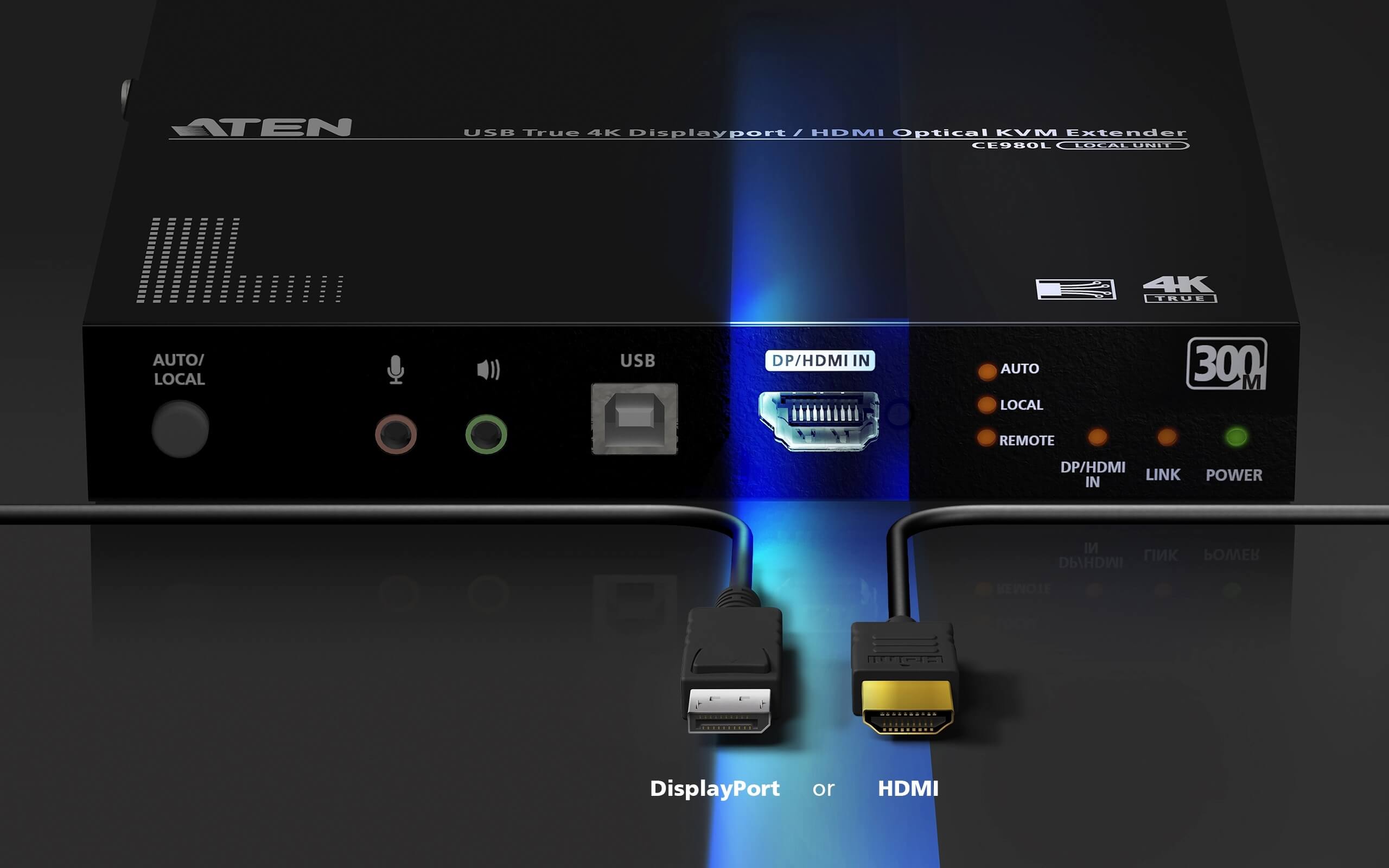

CE980 มาพร้อมพอร์ตเชื่อมต่อแบบคอมโบที่สามารถเชื่อมต่อกับจอภาพได้ทั้งแบบ DisplayPort หรือ HDMI ทำให้การติดตั้ง KVM ทั้งที่ฝั่งต้นทาง (local) และปลายทาง (remote) มีความยืดหยุ่นสูง การออกแบบที่หลากหลายนี้ช่วยให้คุณสามารถผสมผสานการใช้งานจอภาพได้ตามต้องการ โดยใช้เอาต์พุตคนละประเภทกันระหว่างเครื่องควบคุมฝั่งต้นทางและปลายทางได้
สัมผัสประสบการณ์ความคมชัดของภาพที่เหนือกว่าด้วยระดับ True 4K (3840 x 2160 และ 4096 x 2160 @60 Hz, 4:4:4) และรองรับ HDR10 ซึ่งช่วยให้ภาพมีความแม่นยำสูงสุด มีคอนทราสต์ที่โดดเด่น และสีสันที่สมบูรณ์ เพื่อการรับชมวิดีโอที่คมชัดเป็นพิเศษ

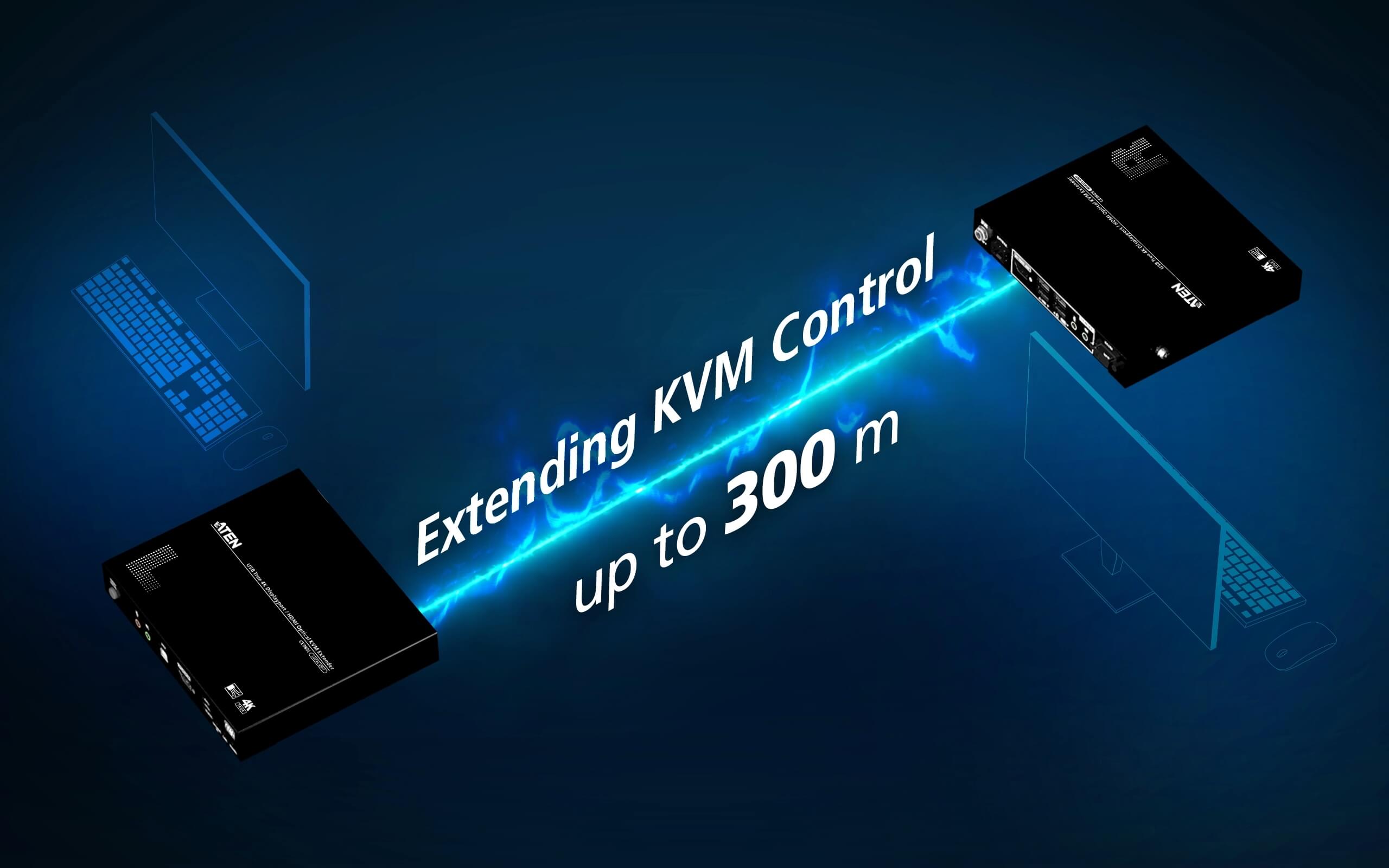

การใช้งาน CE980 ช่วยให้สามารถขยายสัญญาณ KVM ได้ในระยะทางไกลสูงสุดถึง 300 เมตรผ่านการเชื่อมต่อด้วยสายไฟเบอร์ออปติก ซึ่งรับประกันการส่งสัญญาณที่เสถียร ไร้การรบกวน และทนทานต่อคลื่นแม่เหล็กไฟฟ้า (EMI) ทำให้มั่นใจได้ว่าอุปกรณ์จะทำงานได้อย่างมีประสิทธิภาพและเชื่อถือได้
CE980 ช่วยให้คุณเข้าถึงและควบคุมคอมพิวเตอร์ได้จากทั้งเครื่องควบคุมฝั่งต้นทาง (local console) และปลายทาง (remote console) ทำให้การทำงานร่วมกันเป็นไปอย่างมีประสิทธิภาพมากขึ้น

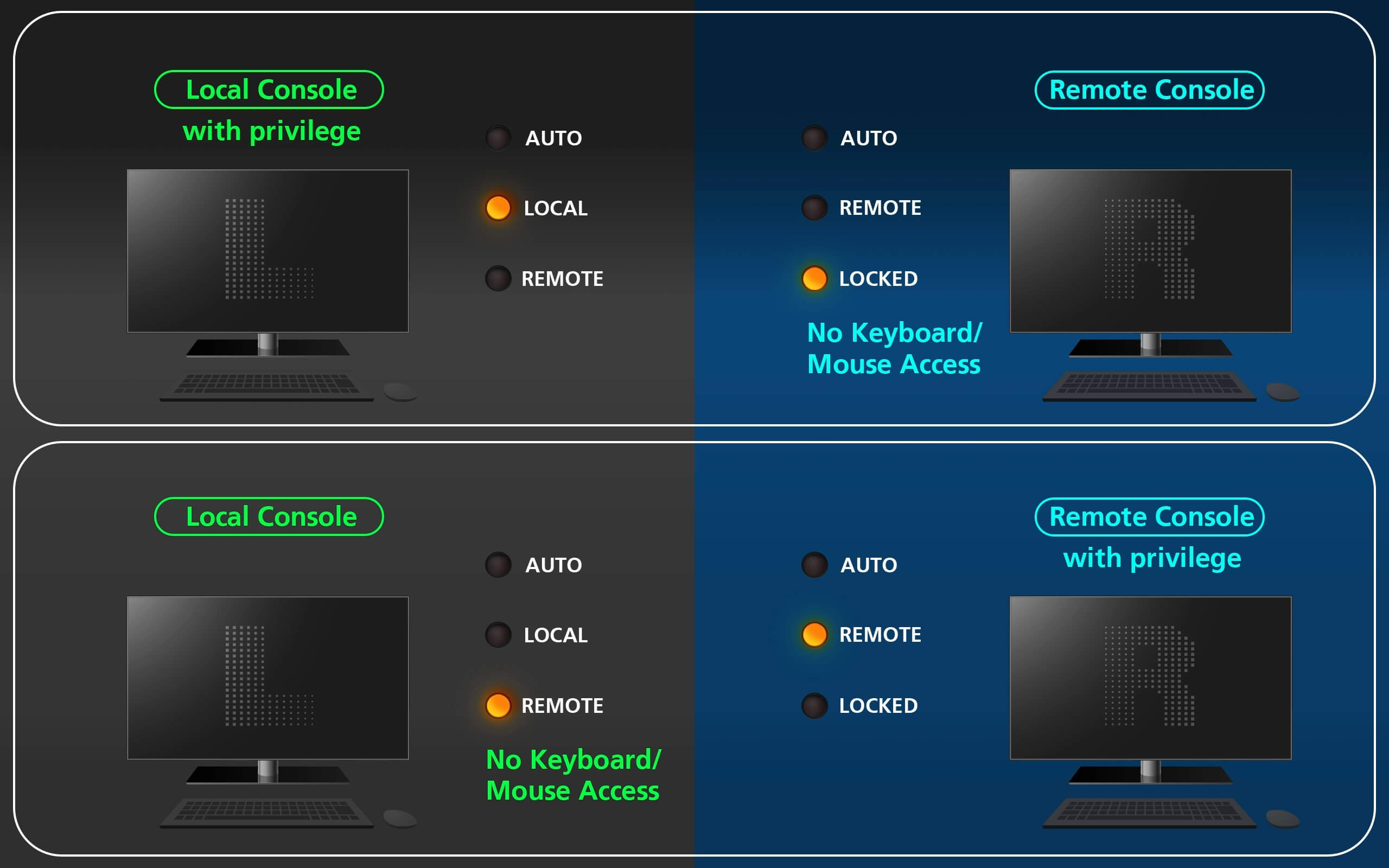

คุณสามารถใช้ปุ่ม Auto/Local หรือ Auto/Remote เพื่อสลับระหว่างโหมดการทำงานต่างๆ ได้แก่
โหมด Auto (อัตโนมัติ): สามารถเข้าถึงคอมพิวเตอร์ได้จากทั้งสองจุด
โหมด Local/Remote: กำหนดสิทธิ์ให้เครื่องใดเครื่องหนึ่งเท่านั้น (ไม่ว่าจะเป็นฝั่งต้นทางหรือปลายทาง) สามารถควบคุมคอมพิวเตอร์ได้แต่เพียงผู้เดียว


| Function | CE980L | CE980R |
| Connectors | ||
| Console Ports | 4 x USB Type A Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
4 x USB Type A Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x USB Type B Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Unit To Unit | 1 x bi-directional SFP+ (LC) | 1 x bi-directional SFP+ (LC) |
| Video | ||
| Max. Resolution | Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4) | Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4) |
| LEDs | ||
| Video Input | 1 (Orange) | N/A |
| Console Status | 3 (Orange) | 3 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Link | 1 (Orange) | 1 (Orange) |
| Power | 1 (Green) | 1 (Green) |
| Switches | ||
| Operation Mode Selection | 1 x Pushbutton | 1 x Pushbutton |
| Wakeup PC | N/A | 1 x Pushbutton |
| Fiber Optics | ||
| Operating Distance | 300 m with Multi Mode (MM) fiber (*Note) | 300 m with Multi Mode (MM) fiber (*Note) |
| Data Rate | Single fiber: 10 Gbps | Single fiber: 10 Gbps |
| Power Consumption | DC12V:11.89W:86BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
DC12V:9.49W:81BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.85 kg ( 1.87 lb ) | 0.84 kg ( 1.85 lb ) |
| Dimensions (L x W x H) | 17.82 x 15.62 x 2.88 cm (7.02 x 6.15 x 1.13 in.) |
17.82 x 15.62 x 2.88 cm (7.02 x 6.15 x 1.13 in.) |
| Note | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| True 4K HDMI | Local | Remote |
| 640 x 480 @ 60/67/72/75 Hz | 640 x 480 @ 60/67/72/75 Hz | |
| 640 x 480 60 Hz (4:3) | 720 x 400 @ 70 Hz | |
| 720 x 400 @ 70 Hz | 800 x 600 @ 56/60/72/75 Hz | |
| 800 x 600 @ 56/60/72/75 Hz | 1024 x 768 @ 60/70/75 Hz | |
| 1024 x 768 @ 60/70/75 Hz | 1280 x 800 @ 60 Hz | |
| 1280 x 800 @ 60 Hz | 1280 x 1024 @ 60/75 Hz | |
| 1280 x 1024 @ 60/75 Hz | 1400 x 1050 @ 60 Hz | |
| 1400 x 1050 @ 60 Hz | 1440 x 900 @ 60 Hz | |
| 1440 x 900 @ 60 Hz | 1600 x 1200 @ 60 Hz | |
| 1600 x 1200 @ 60 Hz | 1680 x 1050 @ 60 Hz | |
| 1680 x 1050 @ 60 Hz | 1920 x 1080 @ 60/120/144/240 Hz | |
| 1920 x 1080 @ 60/120/144/240 Hz | 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | |
| 1920 x 1200 @ 60 Hz | 1080p @ 24/25/30/50/60 Hz | |
| 1920 x 1200 @ 60 Hz (Reduced Blanking) | 1080i @ 50/60 Hz | |
| 1080p @ 24/25/30/50/60 Hz | 720p @ 50/60 Hz | |
| 1080i @ 50/60 Hz | 576p @ 50 Hz (4:3/16:9) | |
| 720p @ 50/60 Hz | 480p @ 60 Hz (4:3/16:9) | |
| 576p @ 50 Hz (4:3, 16:9) | 640 x 480 @ 60 Hz (4:3) | |
| 480p @ 60 Hz (4:3, 16:9) | 3840 x 2160p @ 24/25/30/50/60 Hz | |
| 3840 x 2160p @ 24/25/30/50/60 Hz | 3840 x 2160p @ 50/60 Hz (4:2:0) | |
| 3840 x 2160p @ 50/60 Hz (4:2:0) | 4096 x 2160p @ 24/25/30/50/60 Hz | |
| 4096 x 2160p @ 24/25/30/50/60 Hz | 4096 x 2160p @ 50/60 Hz (4:2:0) | |
| 4096 x 2160p @ 50/60 Hz (4:2:0) | ||
| True 4K DP | 640 x 480 @ 60/75 Hz | 640 x 480 @ 60/75 Hz |
| 800 x 600 @ 60/75 Hz | 800 x 600 @ 60/75 Hz | |
| 1024 x 768 @ 60/75 Hz | 1024 x 768 @ 60/75 Hz | |
| 1280 x 800 @ 60 Hz | 1280 x 800 @ 60 Hz | |
| 1280 x 1024 @ 60/75 Hz | 1280 x 1024 @ 60/75 Hz | |
| 1400 x 1050 @ 60 Hz | 1400 x 1050 @ 60 Hz | |
| 1440 x 900 @ 60 Hz | 1440 x 900 @ 60 Hz | |
| 1600 x 1200 @ 60 Hz | 1600 x 1200 @ 60 Hz | |
| 1680 x 1050 @ 60 Hz | 1680 x 1050 @ 60 Hz | |
| 1920 x 1080 @ 60 Hz | 1920 x 1080 @ 60 Hz | |
| 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | |
| 1080p @ 50/60/120/144 Hz | 1080p @ 50/60/120/144 Hz | |
| 480p @ 60 Hz | 480p @ 60 Hz | |
| 720p @ 50/60 Hz | 720p @ 50/60 Hz | |
| 3840 x 2160p @ 24/25/30/50/60 Hz | 3840 x 2160p @ 24/25/30/50/60 Hz | |
| 4096 x 2160p @ 24/25/30/50/60 Hz | 4096 x 2160p @ 24/25/30/50/60 Hz |
