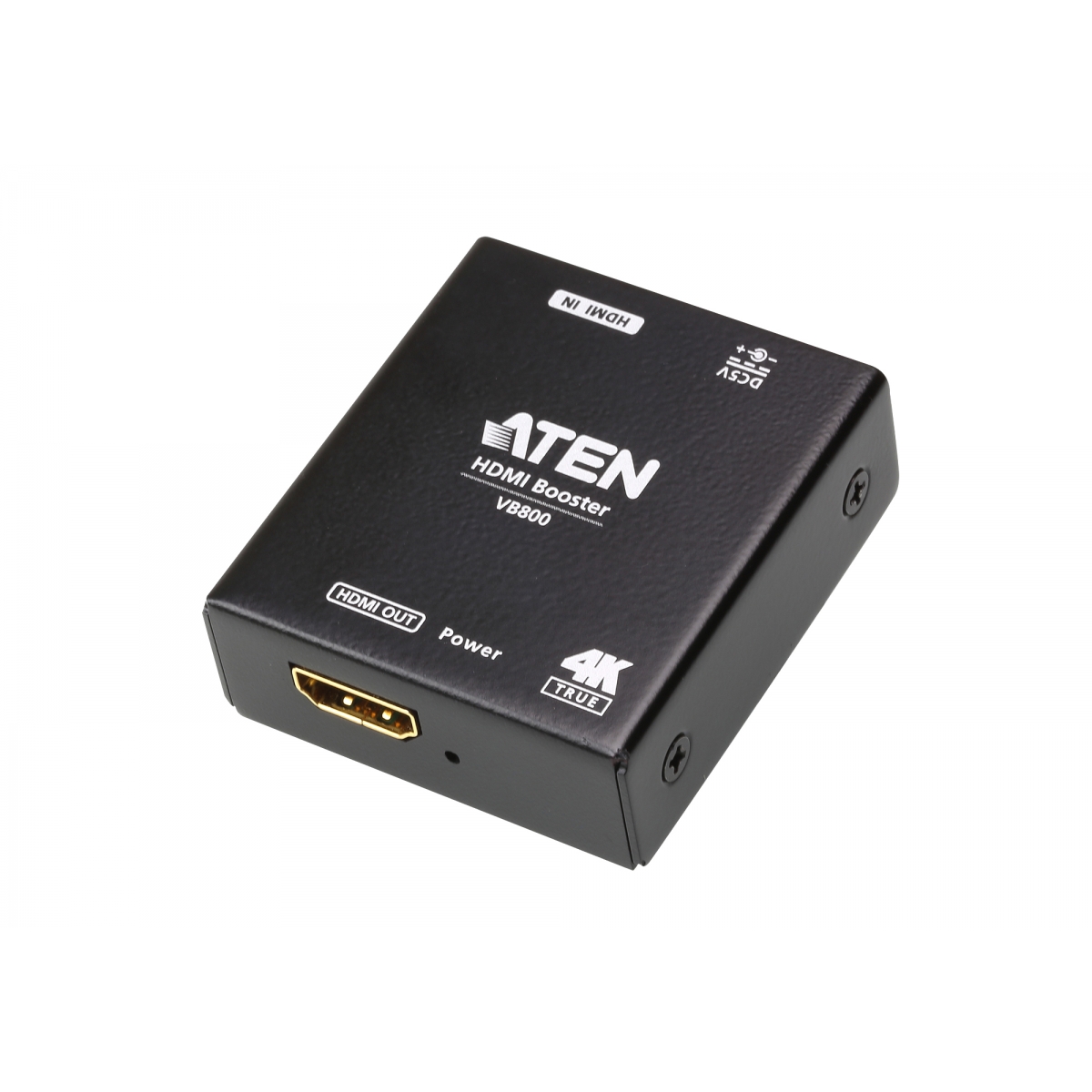

VB800

| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Max. Distance | 5M at 4096x2160@60Hz (4:4:4) |
| Video Output | |

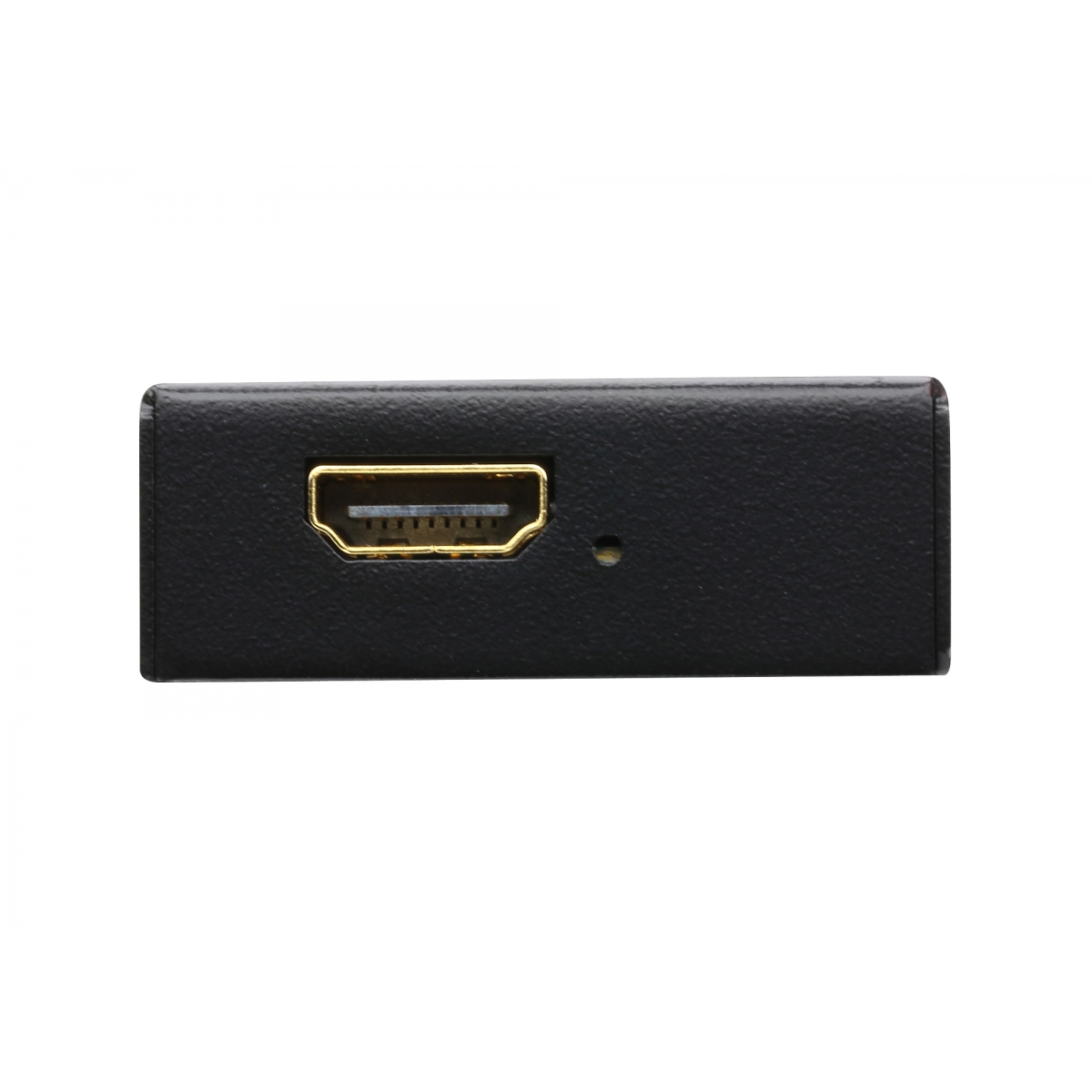

| Interfaces | 1 x HDMI Type A Female (Black) |
| Max. Distance | 5M at 4096x2160@60Hz (4:4:4) |
| Video | |
| Max. Bandwidth | 600 MHz |
| Max. Resolutions / Distance | Up to 10M at 4K@60 Hz (4:4:4); Up to 20M at 1080p@60Hz |
| Max. Data Rate | 18Gpbs(6 Gbps Per Lane) |
| Compliance | HDMI, HDCP 2.2 Compatible |
| Connectors | |

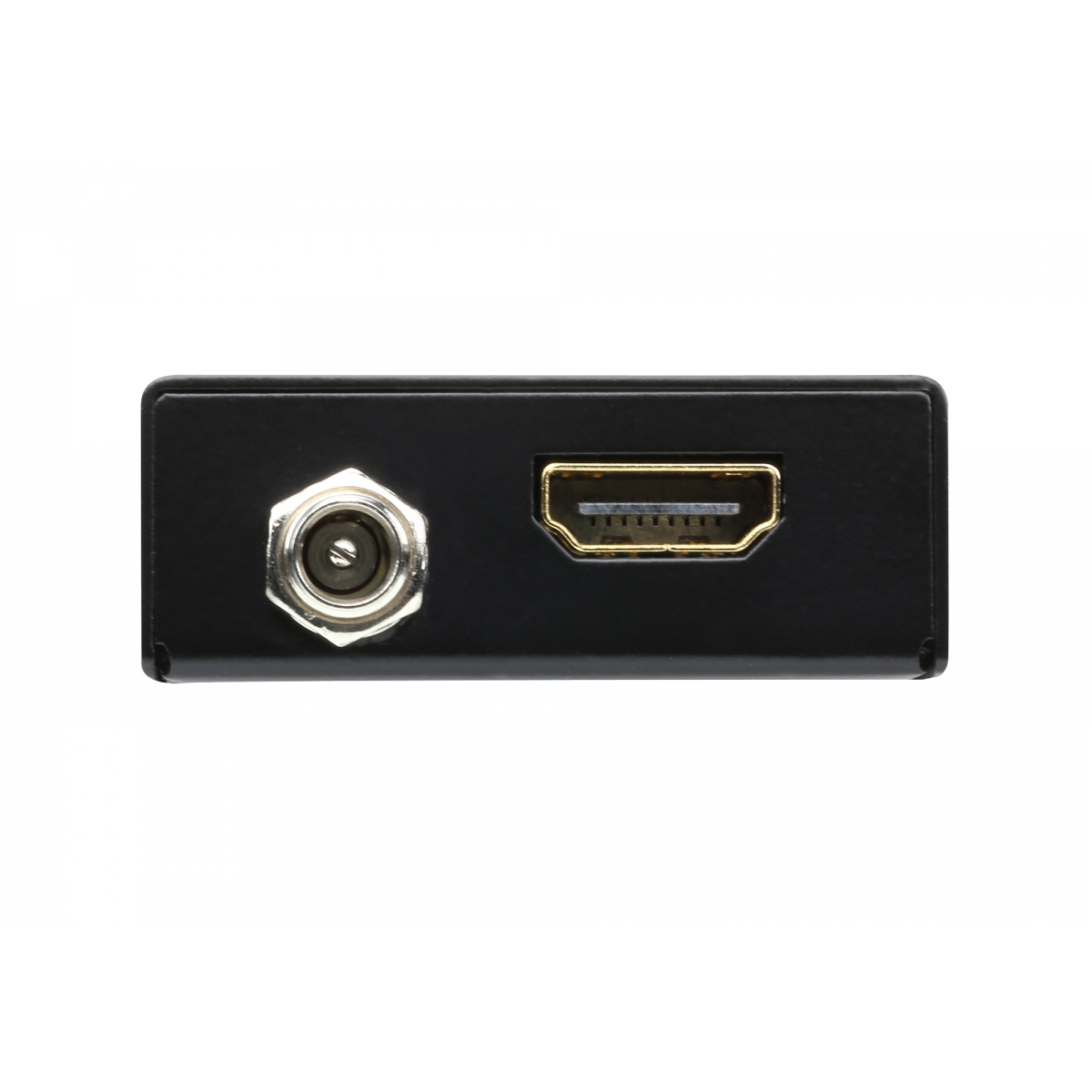

| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.99W:5BTU |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.09 kg ( 0.21 lb ) |
| Dimensions (L x W x H) | 4.90 x 5.60 x 1.70 cm (1.93 x 2.2 x 0.67 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
