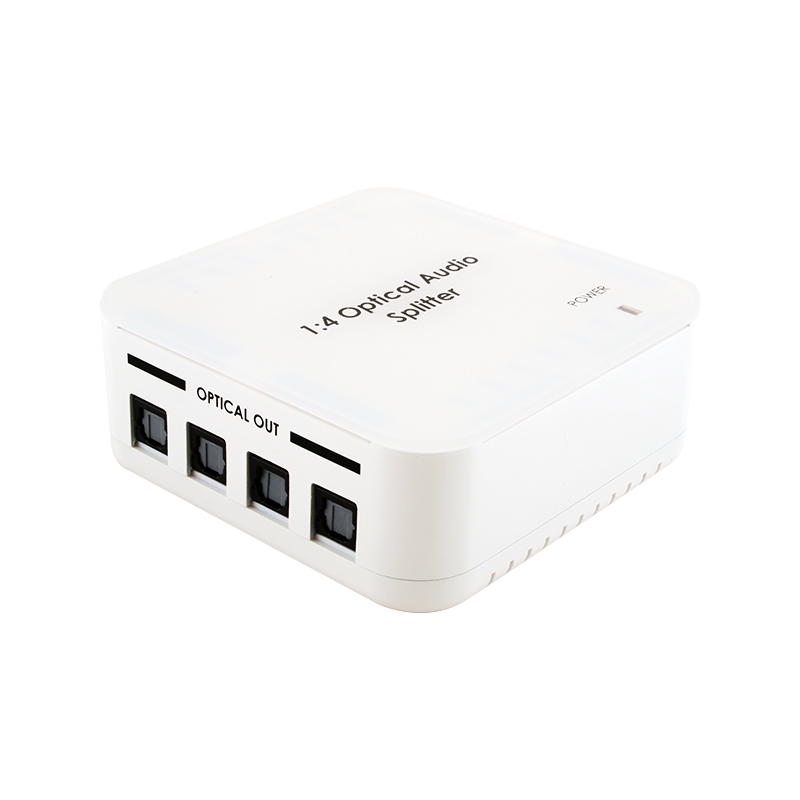

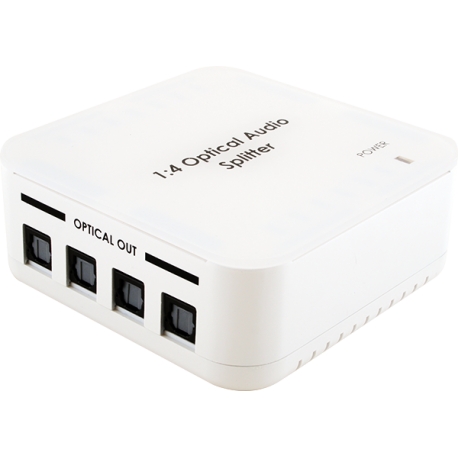

1×4 Optical Audio Splitter
DO14
1 by 4 Optical Audio Splitter can split and distribute a single optical digital audio input to up to four simultaneous optical digital outputs, allowing users to share one optical source to up to four optical sound systems.
รับประกัน 1 ปีเต็ม
ManualThe 1 by 4 Optical Audio Splitter can split and distribute a single optical digital audio input to up to four simultaneous optical digital outputs, allowing users to share one optical source to up to four optical sound systems. A simple and easy to use tool for distributing a single optical signal to multiple areas or devices.
Features
- Supports one optical input and four optical outputs
- Supports LPCM 2CH audio signal and sampling rates up to 192kHz
- Supports Dolby Digital and DTS 2/5.1CH audio signals bypass
- Supports S/PDIF sampling rates of 32 kHz to 192kHz
- Low power consumption

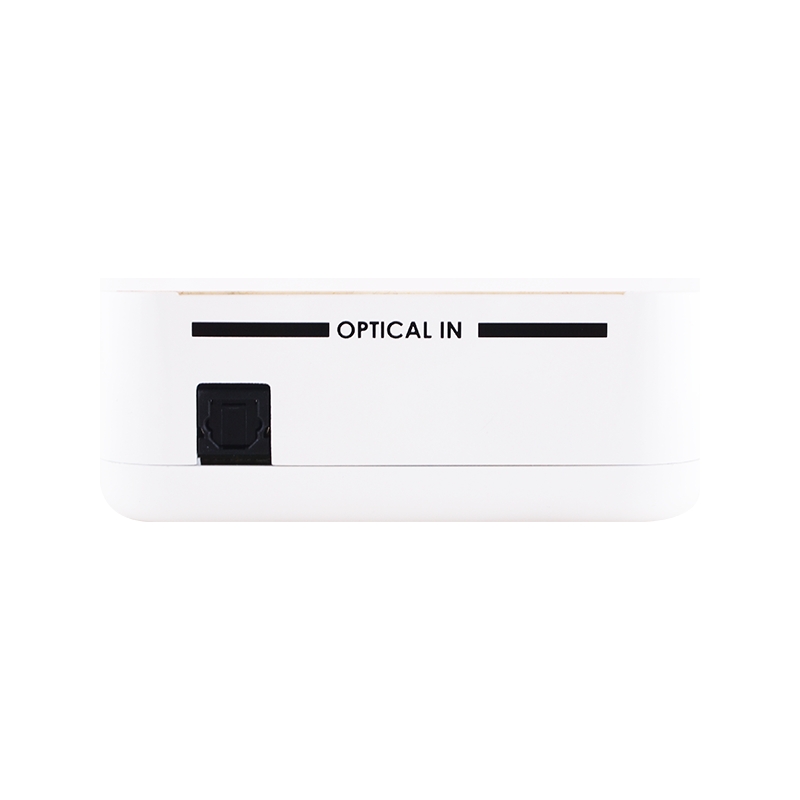

| Inputs | 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital / DTS] |

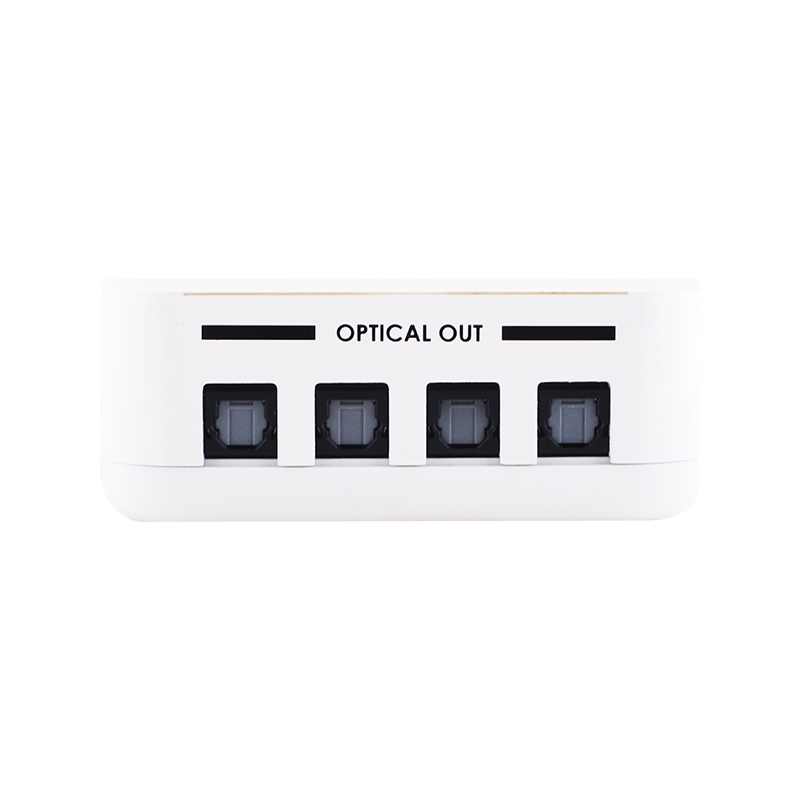

| Outputs | 4x TOSLINK [4x OPTICAL 2 Channel LPCM / Dolby Digital / DTS] |
| PSU: | 5V/1A |
| Dimensions | 34mm [W] x 85mm [D] x 85mm [H] |
| Net Weight | 90g |
Diagram
