UE3410F
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ

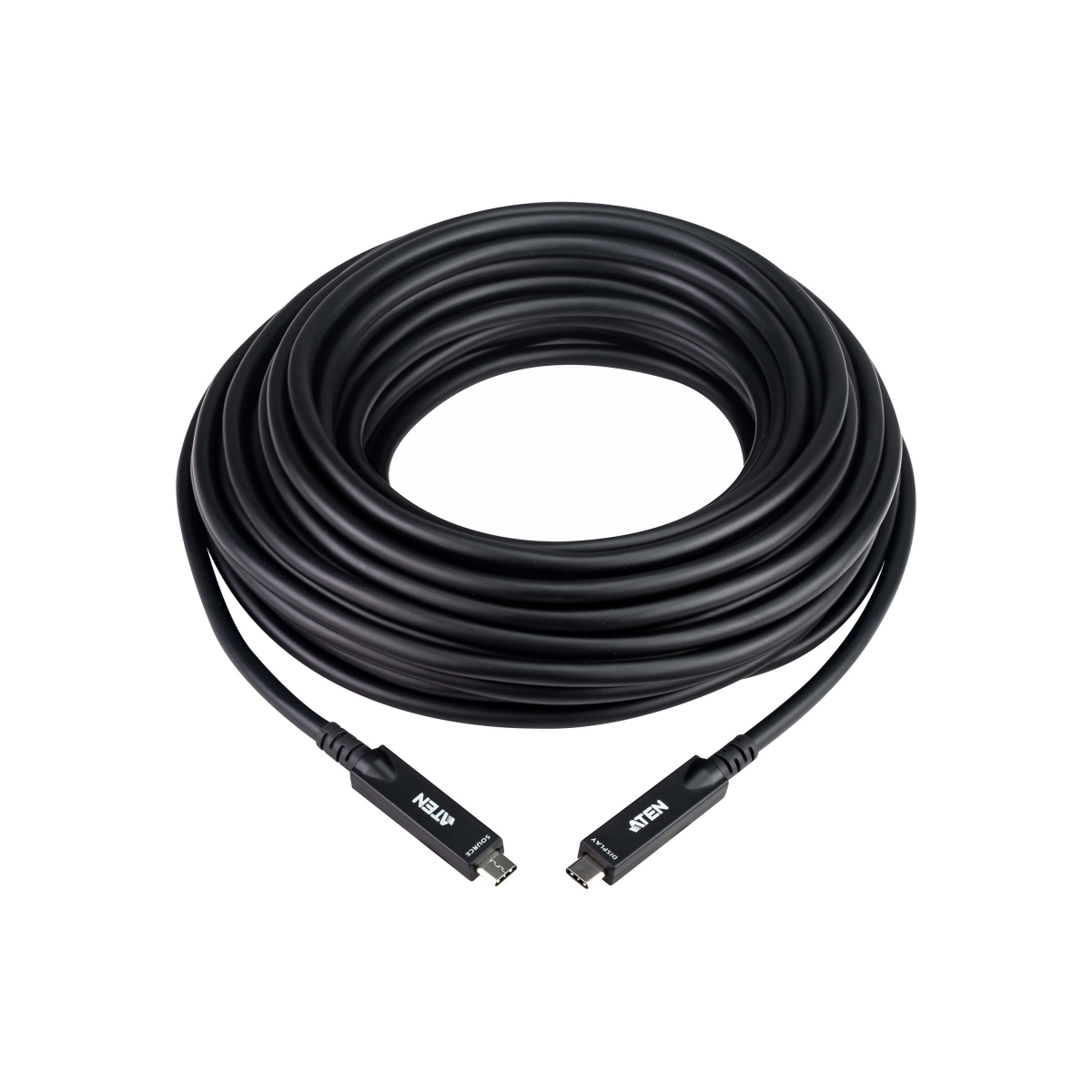

สายเคเบิล Active Optical USB-C DisplayPort 2.1 Ultra HD รุ่น UE3410F (10 ม.) ถูกออกแบบมาเพื่อรองรับการประชุมทางวิดีโอที่มีประสิทธิภาพสูง การนำเสนอระดับมืออาชีพ และการเชื่อมต่อกับอุปกรณ์ต่อพ่วง USB-C ต่าง ๆ เช่น แท็บเล็ต, จอภาพ, และอุปกรณ์กล้อง ด้วยการรองรับ DisplayPort 2.1 ผ่าน USB-C จึงรับประกันการส่งสัญญาณวิดีโอที่เสถียรและอัตราการถ่ายโอนข้อมูล USB ที่สูงเป็นพิเศษ (สูงสุด 10 Gbps) ซึ่งสามารถปรับให้เข้ากับคุณสมบัติเฉพาะของอุปกรณ์ที่เชื่อมต่อได้ ด้วยความสามารถในการต้านทานสัญญาณรบกวนทางแม่เหล็กไฟฟ้า (EMI/RFI) ที่แข็งแกร่งและการออกแบบแบบ Active Optical จึงรับประกันการส่งสัญญาณที่รวดเร็วในระยะทางไกลโดยไม่มีสัญญาณเสื่อมสภาพ
สายเคเบิลนี้เหมาะอย่างยิ่งสำหรับแอปพลิเคชันในเชิงพาณิชย์, การศึกษา, และการดูแลสุขภาพ โดยให้ประสิทธิภาพที่เชื่อถือได้บนอุปกรณ์ที่หลากหลาย ทำให้มั่นใจได้ถึงภาพที่คมชัดและการเชื่อมต่อแบบ Plug-and-Play ที่ราบรื่น
![]()

สายเคเบิล Active Optical USB-C แบบครบทุกคุณสมบัตินี้รองรับการถ่ายโอนข้อมูล USB-C 3.2 Gen 2 ที่ใช้แบนด์วิดท์สูง, การสตรีมวิดีโอ DisplayPort 2.1, และการจ่ายไฟ (Power Delivery).


ไม่ว่าจะเป็นการทำงานแบบ 4 เลน DP 2.1 UHBR10 (Ultra High Bit Rate 10) ควบคู่กับ USB 2.0 หรือ 2 เลน DP 1.4 ควบคู่กับ USB 3.2 Gen 2 ที่ความเร็ว 10 Gbps อุปกรณ์ที่เชื่อมต่อจะทำการ เลือกโหมด DisplayPort ที่เหมาะสมที่สุดอย่างชาญฉลาด เพื่อรับประกันการส่งข้อมูลที่ราบรื่น, ความเร็วสูง, และความเข้ากันได้สูงสุดสำหรับแอปพลิเคชันที่ต้องการใช้งาน

ความสามารถในการจ่ายไฟสูงสุดถึง 60W ให้กับอุปกรณ์และอุปกรณ์ต่อพ่วงสมัยใหม่ ช่วยให้มั่นใจได้ถึงการทำงานที่ครอบคลุมและไร้ปัญหา

สายเคเบิล USB-C Active Optical นี้ให้การเชื่อมต่อที่ราบรื่นระหว่างแหล่งสัญญาณและจอแสดงผล จึงมั่นใจได้ถึงการแสดงผลที่ยอดเยี่ยมของอุปกรณ์ที่รองรับ USB-C เหล่านี้



| Connectors | |
| USB Port | 1 x USB-C Male |
| Downstream | 1 x USB-C Male |
| Cable Type | Hybrid type with optical fiber and copper wire |
| Cable Length | 10 m |
| Data Rate | Up to 10 Gbps |
| Power Consumption | DC5V:2WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 10-80% RH |
| Jacketed | |
| Material | PVC |
| Color | Black |
| Physical Properties | |
| Housing | Connector Case: Zinc-Alloy |
| Weight | 0.77 kg ( 1.7 lb ) |

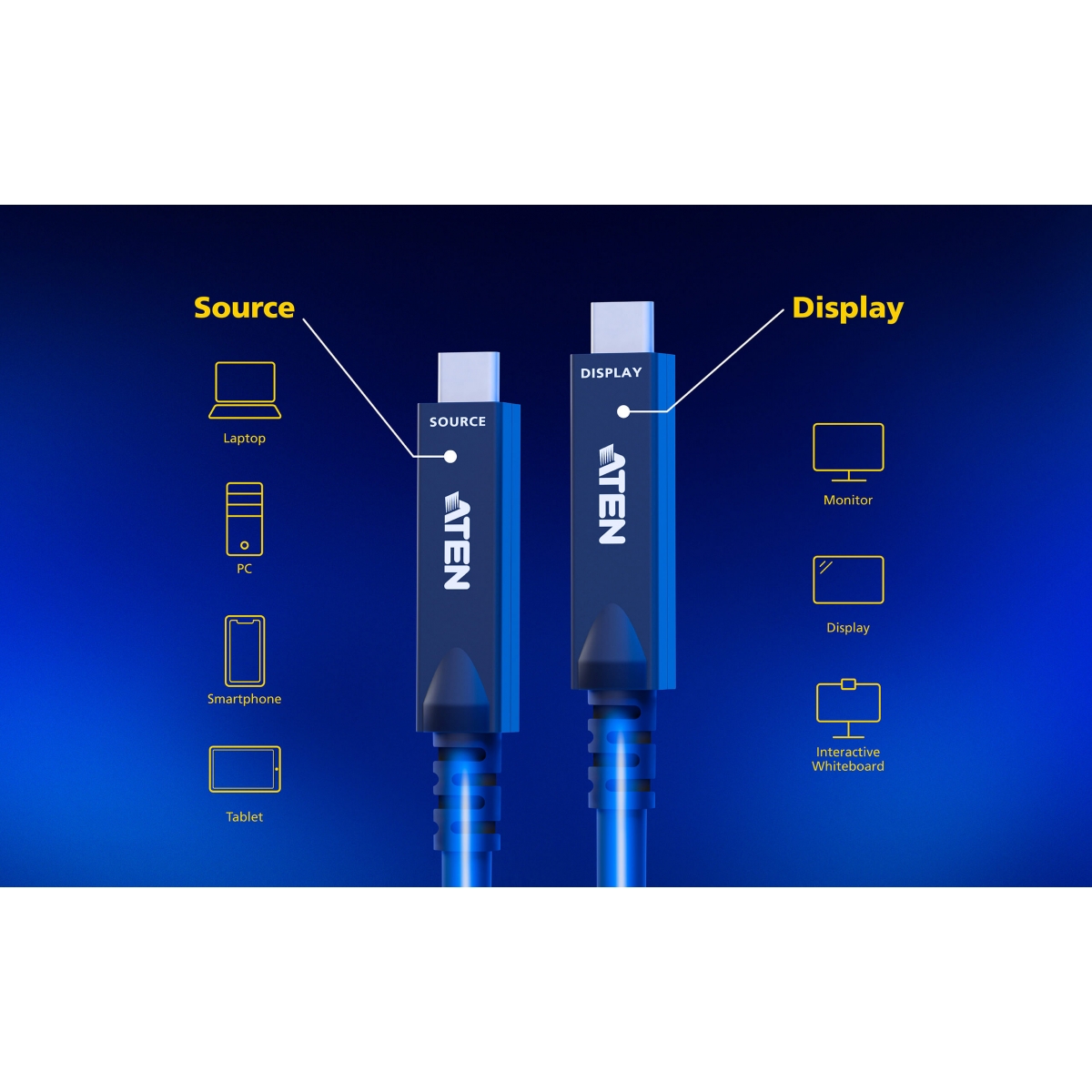

| Note | 1. Make sure to plug the SOURCE connector to the output port of a source device and the DISPLAY connector to the input port of a display device. 2. Bending radius of optical cable must exceed 65 mm when the conduit turns direction. Bending or intermediate splicing is absolutely not allowed. 3. Make sure that the two connectors on the cable are not heavily pressed or pressured. They are very fragile. Please handle with care. 4. When laying optical cables, special caution must be taken that the pulling force is within the tolerance range (<50kg). Lay the cable in even speeds to avoid any impact or sudden stop. 5. When laying optical cables, make sure the speed is controlled not to exceed 20m/minute. |
