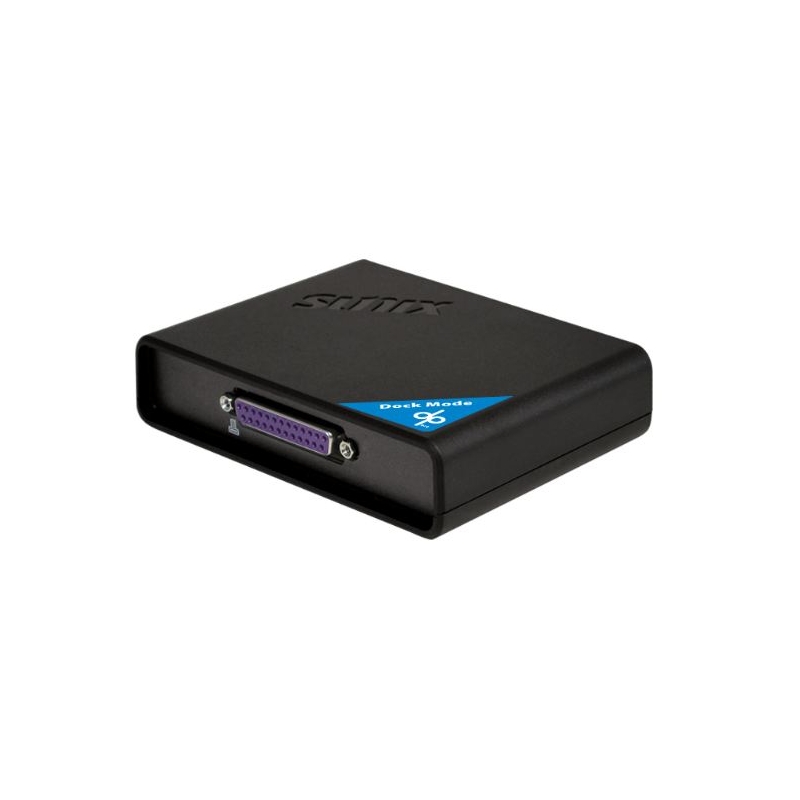

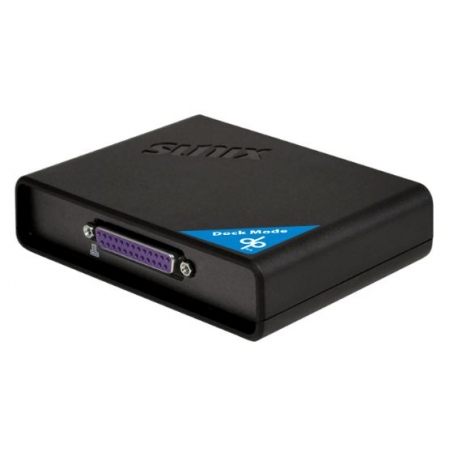

DevicePort Dock Mode Ethernet enabled Printer Port Replicator
DPKP01H00

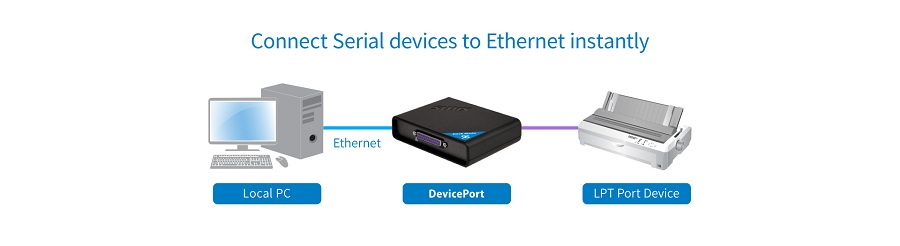

DPKP01H00 allows users to expand printer port over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system.
รับประกัน 3 ปีเต็ม
Spec sheet

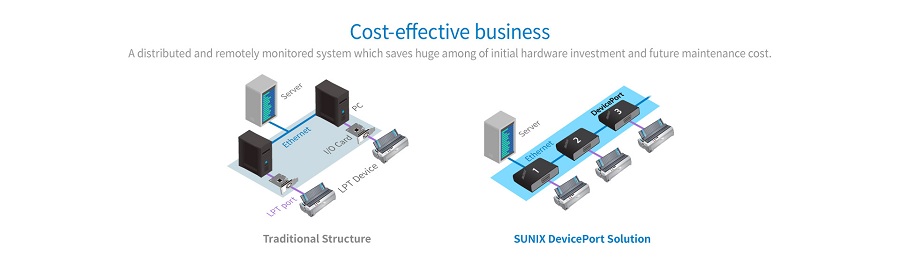

SUNIX DevicePort is the ideal choice to enable your current Legacy I/O devices networking. DPKP01H00 allows users to expand printer port over Ethernet connection, and it works as a PCIe add-on card operation on any windows based tiny desktop, laptop, or All-in-one system. It is provided with SUNIX DPL2000Q High-Performance Ethernet-Printer controller and exclusive I/O redirection technology. DevicePort DPKP01H00 creates real time communication physical LPT port and Ethernet-LPT port hot-plug capability; user can expand legacy port easily without complex software configuration that improves deployment efficiency to achieve greater convenience for commercial automation applications.
Features
- Expands one additional Printer LPT ports over Ethernet networking.

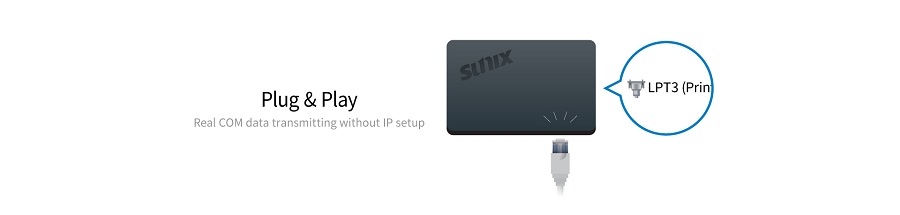

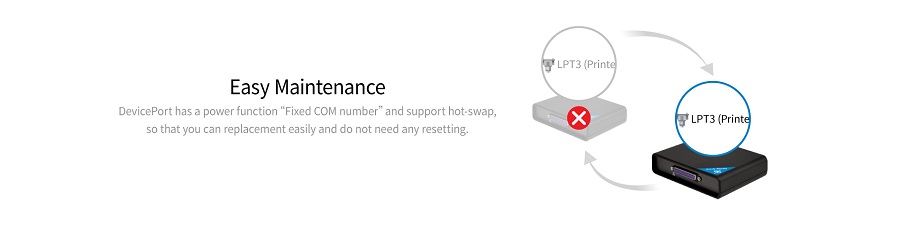

- Works as a PCIe add-on card operating experience with Ethernet Hot-Plug capability.
- DevicePort® Dock mode supports secured connection between PC host and DevicePort®.(*Note 1)
- Built-in SUNIX DevicePort® DPL2000Q High-Performance Ethernet-UART/Printer controller.
- Accesses tradition LPT port by using existing software and AP.(*Note 2)
- Low power consumption design for Green Environment.
- Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.
Specification
| Parallel Communication | |
| Interface | IEEE1284 Printer Support(*Note 3) |
| Controller | SUNIX DPL2000Q |
| No. of Port | 1-port |
| FIFO | 1Kbyte Hardware / per port |
| Speed | Maximum 2.7MBps |

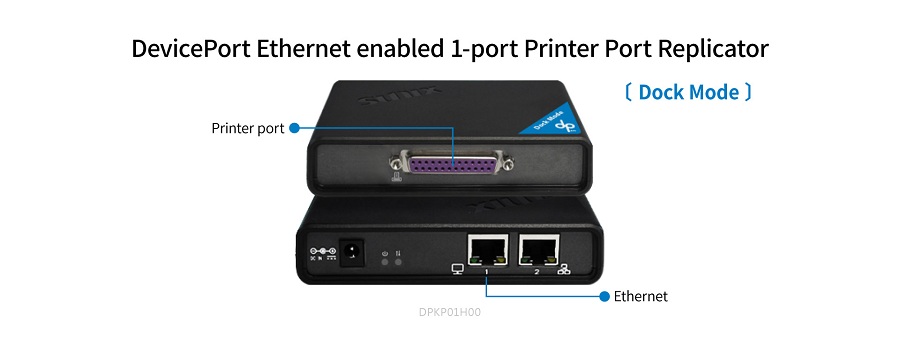

| PCB Connector | DB25 Female |
| Protection | ±15KV ESD IEC-61000-4-2 Air Discharge |
| ±8KV ESD IEC61000-4-2 Contact Discharge | |
| Ethernet Communication | |

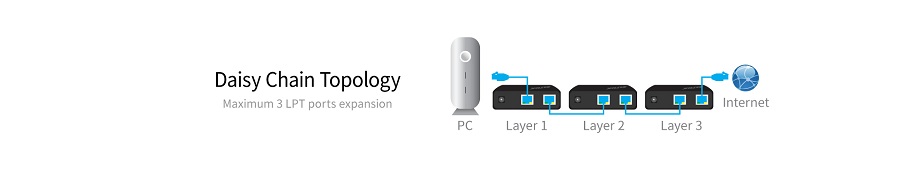

| Number of Ports | 2-port (*Note 1) |
| Upstream to Ethernet Switch | |
| Downstream to PC Host | |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | RJ45 |
| Magnetic Isolation Protection | 1.0K Built-in |
| Power Requirements | |
| Input Voltage | 5 to 12VDC |
| Power Consumption | 2.5W @ 5VDC |
| Connector | DC-Jack |
| Driver Support | |
| Windows Client | XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012R2 (X64) |
| Regulatory Approvals | |
| Hardware | • EUR: CE EN55022 Class B, EN55024 |
| • US: FCC Part 15 Class B | |
| • TAIWAN: BSMI: CNS13438 | |
| • JAPAN: VCCI | |
| Software | Microsoft WHQL Windows |
| • Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64) | |
| • Microsoft Server: 2003/2008/2012R2 (X64) | |
| Environment | |
| Operation Temperature | 0 to 45°C (32 to 113°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Physical Characteristics | |
| Housing | ABS, PC, Metal |
| Weight | 146.3g |
| Dimensions | 121x81.93x27(mm) , 4.7x3.2x1.0(inch) |
| Note: | |
| 1. To prevent on-line spy recording, DevicePort Dock Mode limits specific Ethernet port connection, and it does not works on router or switch operation. | |
| 2. LPT port does not support LPT Key Locker and other Parallel devices, but Printer only. It does not support legacy 278/378/3BC ISA address either. | |
Download Driver
| Driver | DevicePortDock Driver V1.0.4.0 (WHQL) |  |
| Version | Ver 1.0.4.0 | |
| Update | 2019-07-16 13:33:21 | |
| Size | 4.5MB | |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
|
