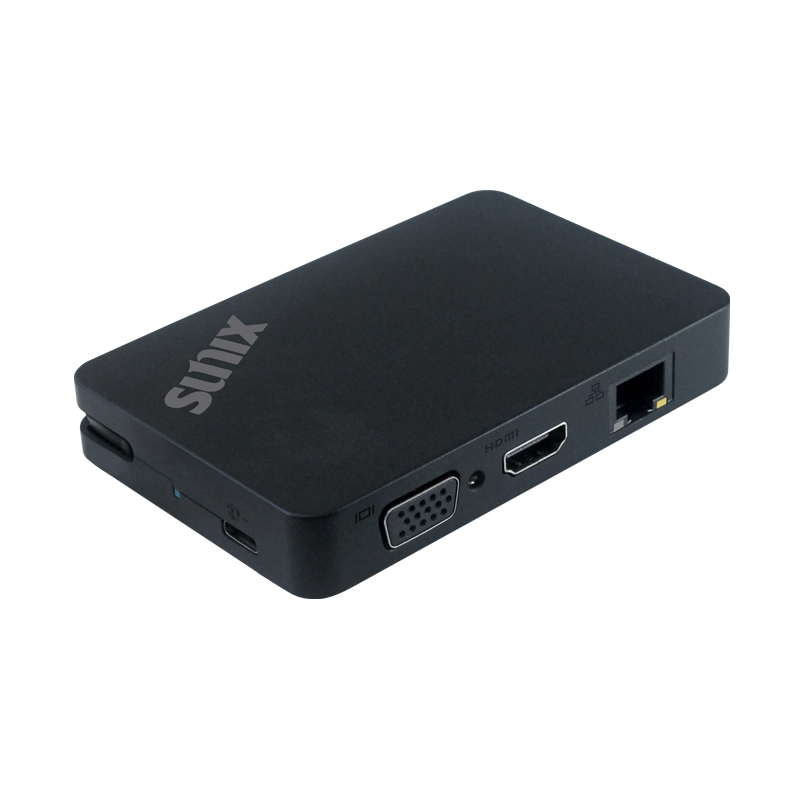

USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Delivery2.0
CCV51PB
SUNIX portable Mini Dock (CCV51PB) เป็น 4-in-1 USB3.0 device docking station ที่แปลงจาก USB-C port เป็นพอร์ตต่าง ๆ ทั้ง HDMI UHD (video & audio), VGA, Gigabit Ethernet network, และ USB 3.0
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
รับประกัน 3 ปีเต็ม
SUNIX portable Mini Dock (CCV51PB) offers the combined functionality of a 4-in-1 USB3.0 device docking station, converting a single USB-C port into multiple connection ports, including a HDMI UHD (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type-C equipped laptop to a complete workstation.
HDMI2.0/VGA/Ethernet/USB3.0 connects your USB-C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type-C tethered cable. This small, multiple-interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®-based PC, Apple® MAC®-OS, and Google® Chrome operation system.

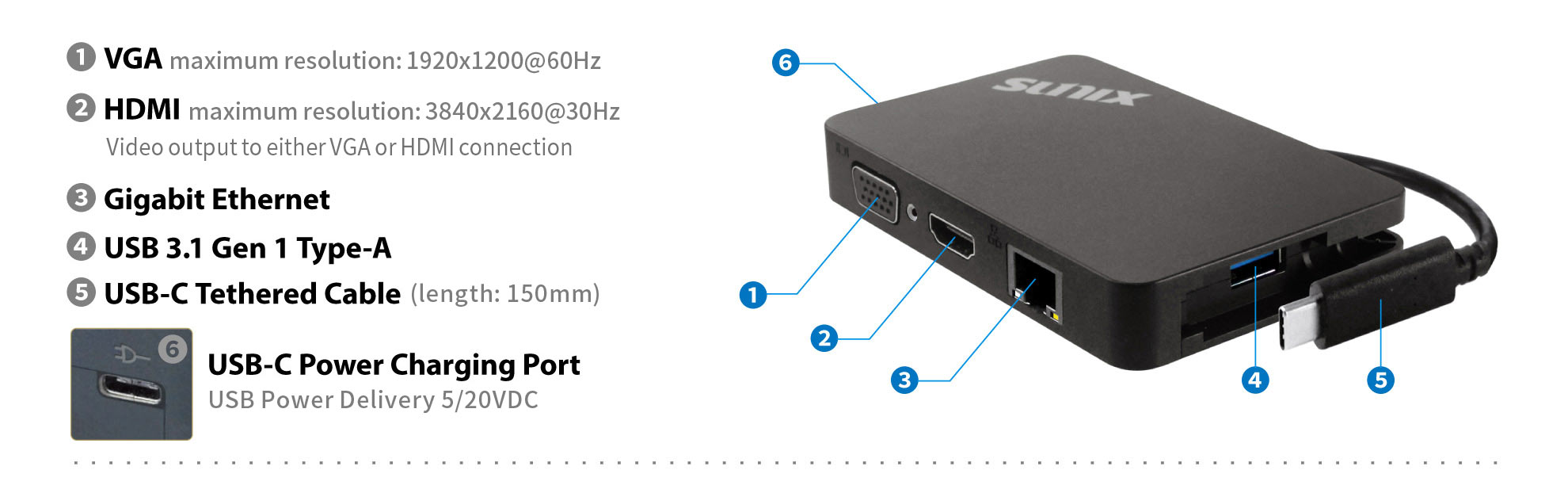

Interface

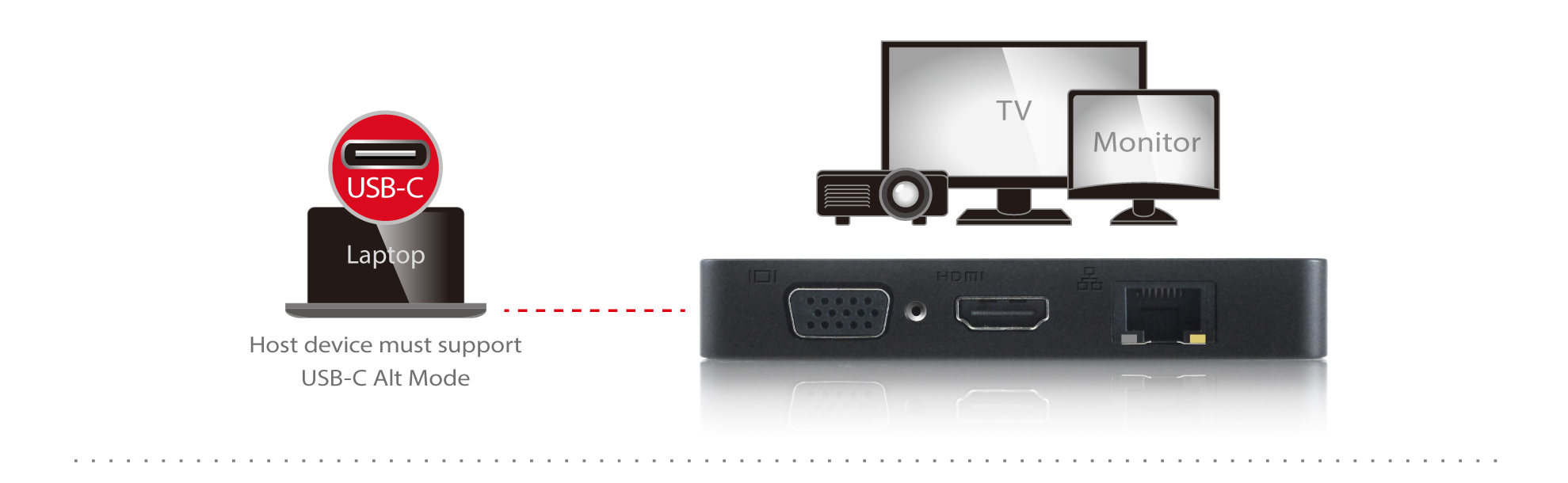

HDMI or VGA Video Output
Use either the HDMI port or VGA port for video output & office presentation.

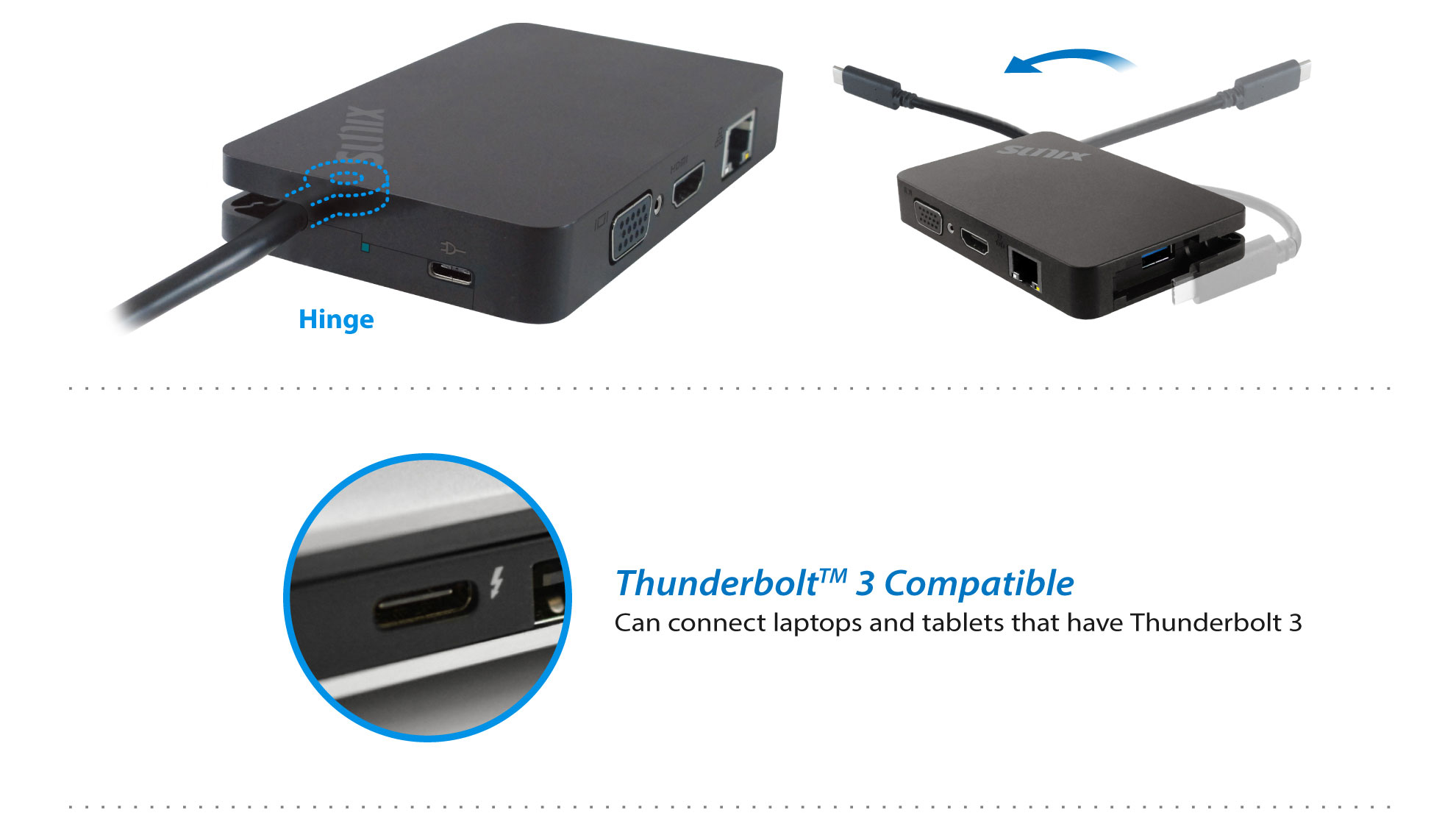

Hideaway USB-C Cable with Patented 180° Hinge Design
Compact size and light weight

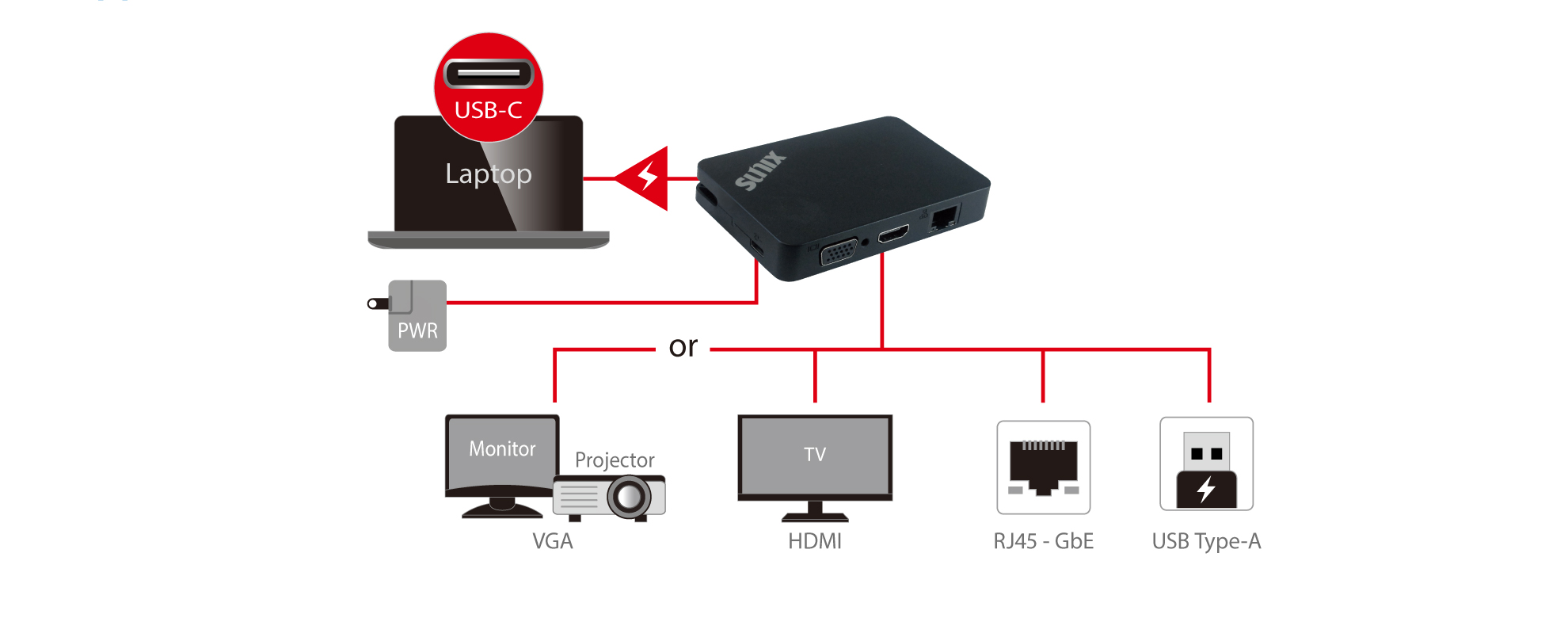

Application
Hardware
| Model | CCV51PB |
| Description | USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Delivery2.0 |
| USB Standard | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Input Interface | USB TypeC USB Type-C Displayport Alternate Mode |
| Output Interface | USB Power Delivery Type-C x 1-port USB 3.0 TypeA x 1-port Gigabit Ethernet x 1-port VGA(RGB) x 1-port HDMI Ver1.4 x 1-port |
| LED indicator | Green for USB Link Ready with USB Bus Power Mode Blue for USB Power Charging Mode |
| Power Consumption | USB Bus Power 2.5W @ 5VDC (board only without power output to device) |
USB Communication
| Interface | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Output USB Port | USB Type-A Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) |
| No. of Port | 1-port |
| Power source | USB Bus-Power 5V@1.5A from USB Type-C USB Power Delivery 2.0 : 5/20VDC |
| Power output | USB port supports BC charging v1.2 +5VDC / Maximum 1.5A |
| Over Current Protection | USB TypeA Port: +5VDC |
Note: Total power output capacity will be limited by system power supply.
Ethernet Communication
| Standard | IEEE 802.3/ 802.3u/ 802.3ab |
| Interface | Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX |
| No. of Port | 1port |
| PCB Connector | RJ45 with LED Indication |
Video and Audio Communication
| Mode | Extend mode, Mirror mode, Screen Rotation mode | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard | HDMI Ver1.4 VGA RGB | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | HDMI1.4 resolution up to 3840x2160@30Hz* VGA resolution up to 1920x1200 @ 60Hz Note: HDMI and VGA video output will NOT work synchronously. | |||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI1.4 Resolution support |
|
VGA Resolution Support
| Resolution | Name | Refresh Rate |
| 640x480 | VGA | 60 |
| 800x600 | SVGA | 60 |
| 1024x768 | XGA | 60 |
| 1280x720 | 720p | 60 |
| 1280x768 | WXGA+ | 60 |
| 1280x800 | WXGA | 60 |
| 1280x1024 | SXGA | 60 |
| 1366x768 | WXGA+ | 60 |
| 1400x1050 | SXGA+ | 60 |
| 1600x900 | - | 60 |
| 1600x1200 | UXGA | 60 |
| 1680x1050 | WSXGA+ | 60 |
| 1920x1080 | 1080p | 60 |
| 1920x1200 | WUXGA | 60 |
AudioDigital Audio output over HDMI connectivity
Note: VGA does not support audio outputPCB ConnectorStandard HDMI Female x 1-port
VGA D-Sub 15pin Female x 1-port
Driver Support (Driver Free)
| Windows | Windows 10 (32/64bit) or above |
| APPLE MAC | MAC OS X 10.10 (Yosemite) or above |
| Google Chrome | Chrome OS Version 42.x or above |
Environment
| Operation temp. | 0 °C ～ 60 °C (32140°F) |
| Operation humidity | 5 to 95% RH |
| Storage temp | 20 °C ～ 70 °C (4~158°F) |
Standards and Certifications
| EMC | EUR: CE, EN55022 Class B, EN55024, EN6100032, EN6100033 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 JAPAN: VCCI |
| Green | RoHS, CRoHS, WEEE |
Physical Characteristics
| Weight | 68g (2.4oz) |
| Case Material | ABS (plastic) |

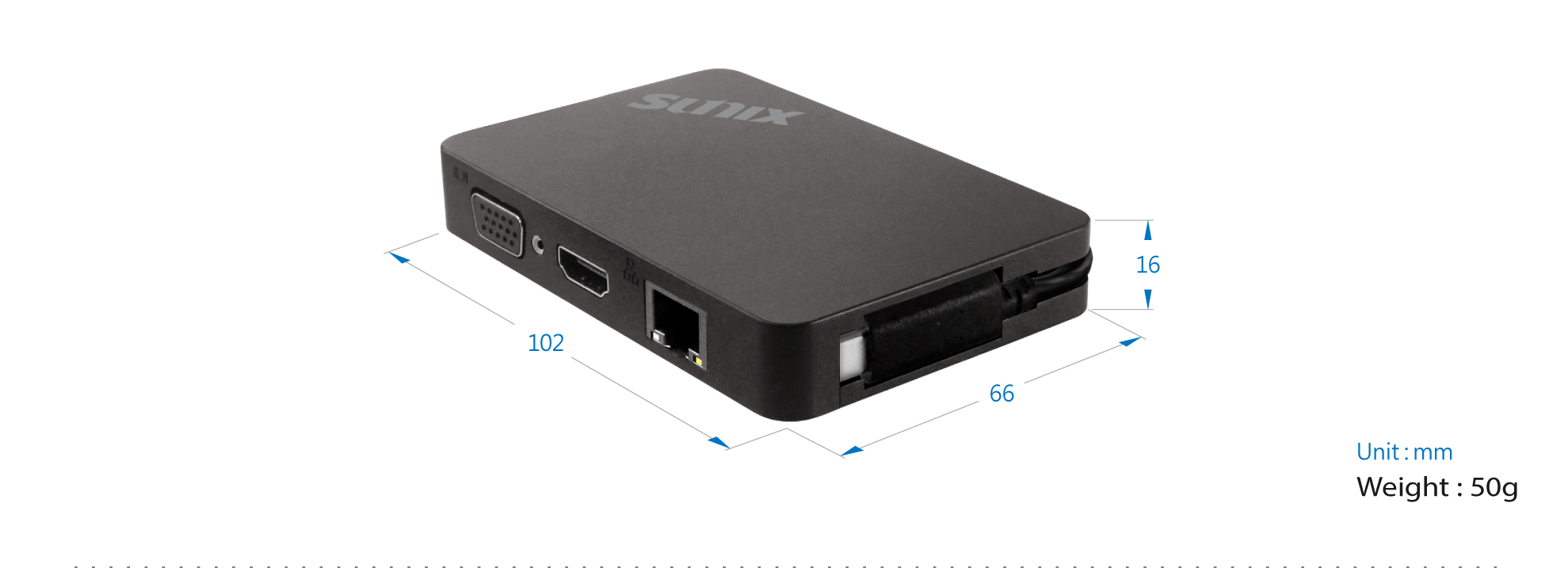

Dimension | 102(L)x66(W)x16(H) mm Tethered Cable length: 146mm |
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS | Windows 10 20H2 (20H2) 32/64 bit Windows 10 20H1 (2004) 32/64 bit Windows 10 19H2 (1909) 32/64 bit Windows 10 19H1 (1903) 32/64 bit Windows 10 RS5 (1809) 32/64 bit Windows 10 RS4 (1803) 32/64 bit Windows 10 RS3 (1709) 32/64 bit Windows 10 RS2 (1703) 32/64 bit Windows 10 RS1 (1607) 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows 10 Enterprise 2019 LTSC 32/64 bit Windows 10 Enterprise 2016 LTSB 32/64 bit Windows 10 S 32/64 bit |
