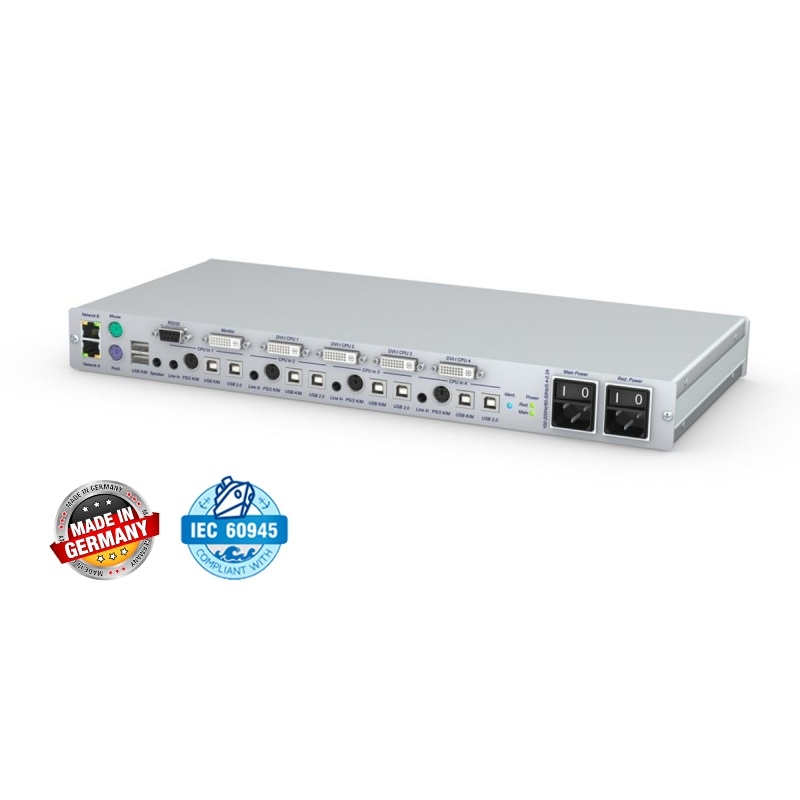

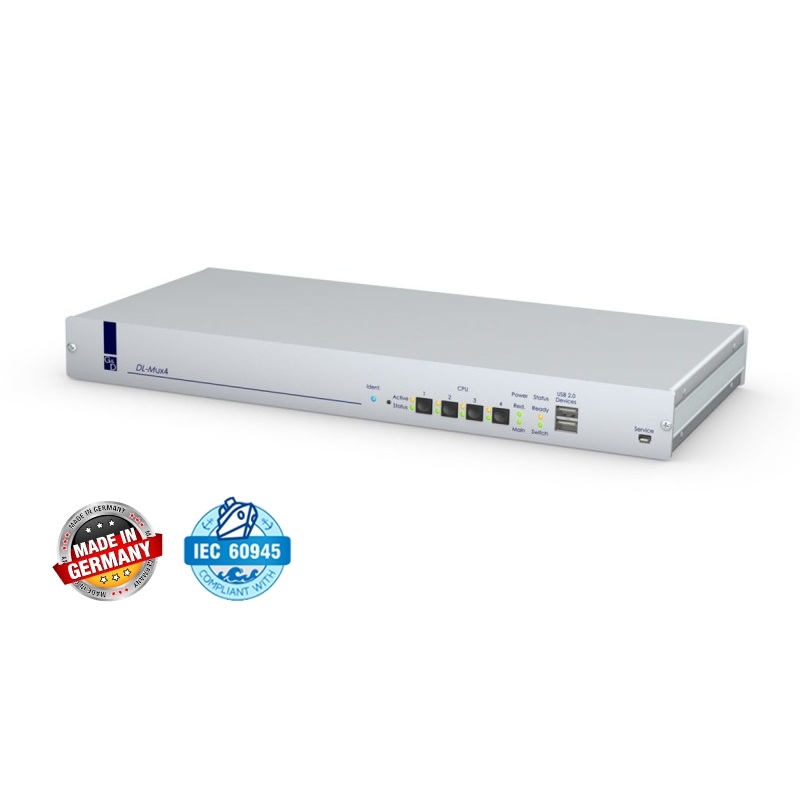

4 Port 4K DVI KVM Switch in mission-critical applications
DL-MUX4
สลับใช้คอมฯ 4 เครื่อง ด้วยจอ 4K แบบ DVI Dual-Link และ คีย์บอร์ดเมาส์ แบบ USB หรือ PS/2, อุปกรณ์ USB2.0, ลำโพง, ไมค์ ชุดเดียวกัน พร้อมช่องต่อ Dual LAN และ Dual Power
รับประกัน 3 ปีเต็ม
รับประกัน 3 ปี
4 Port 4K DVI KVM Switch in mission-critical applications
With DL-MUX KVM switches, you can operate 4 computers over 1 user console.
The DL-MUX switches the following signals:
- Keyboard/mouse
- Dual-link DVI and VGA
- Audio
- USB 2.0
The device is available in variants transmitting 1, 2, 3, or 4 video channels.
With its network connection, the web interface and DLM monitoring, the DL-MUX4 provides numerous features for mission-critical applications.
DLM monitoring function
The integrated DLM-Monitoring auto-transmits device status messages to syslog servers or sends them as SNMP. Manual monitoring is carried out over the web interface.
The DL-MUX monitoring function queries the following values:
- Power supplies (on/off)
- Temperature limit (above/below average)
- Connection cable (interrupted/uninterrupted)
- Computer (on/off)
- DVI video input (available/not available)
- Access settings (set preferences)
The DLM-Monitoring enables proactive monitoring instead of reactive maintenance.
Get detailed information about Monitoring & SNMP here
Easier access with SNMP tool Zabbix
For customers who are not yet using extensive SNMP tools, G&D offer a simple way to use the functions included in the devices. Templates for the open source tool Zabbix are provided here. The program lets users monitor SNMP-capable devices in a network and, among other things, issues warning notifications about critical device states, which have been received via SNMP trap.
Download the free G&D Zabbix templates here
Tempest certification
The DL-MUX4 MC2 is qualified for the Tempest certification (Zone 1 / SDIP 27 Level B (ER))
Video
- DVI resolution per channel up to:
- 2560 x 1600 @ 60Hz or 2k x 2k @ 60Hz
- 4096 × 2160 @ 30 Hz (UHD-4K)
- when using two DVI video channels:
- 3840 × 2160 @ 60 Hz (Ultra HD)
- 4096 × 2160 @ 60 Hz (UHD-4K)
- VGA resolution up to 1920 × 1440 @ 75Hz or 2k × 2k @ 60Hz per channel
- Video bandwidth:
- DVI dual-link: 330 MPixel/s
- VGA up to 400 MHz
- Mixed DVI/VGA operation on input and output side
- E-DDC support
- Single- and multi-channel variants
- Supports Barco PVS graphics cards
- Digital colour mode 24 bits or analog
- Backward-compatible to single-link
Network / Communication / Safety
- Two network ports
- Configuration over web interface
- Monitoring over SNMP and web interface
- Reports device conditions (temperature, voltage, computer status etc.)
- Identification LED for locating the device in complex installations
- Redundant power supply
- Logbook: electronic notes regarding the device; can be exported as .csv file
- Also avaiable as variant with 12V power supply
Signals
- Supports PS/2 and USB keyboard/mouse
- Switches audio and transparent USB 2.0 signals
Device
- Accesses only the standard computer interfaces
- Dual network connectivity
- Configuration over web interface
- Redundant power supply
- Requires no software installation
- Available as desktop and rack mount variant
- Shipped in an aluminium casing for best interference resistance
- Hot-pluggable
System upgrade
- Updates through the Config Panel
Video signals
- available with Dual-Link DVI-I interfaces which also allow transmission of VGA signals
Computer quantity
- DL-MUX2: connect two computers
- DL-MUX4: connect up to four computers
Design
- The device is shipped as Desktop variant with a mounting set for rackmount solutions
Video channels
- Single-Channel, MC2 (2CH), MC3 (3CH), MC4 (4CH)
KVM-NetworkCenter Support
The DL-MUX supports network based communication with the appliance KVM-NetworkCenter. With the KVM-NetworkCenter, you can monitor and configure multiple DL-MUX devices centrally.
IP-Control-API
With the IP-Control-API, it is possible to control the switch with an own user interface. So you can use your tailored interface to operate the switch.
