The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for anyvideo installation.
กรุณาสอบถามทาง Line @macrocare

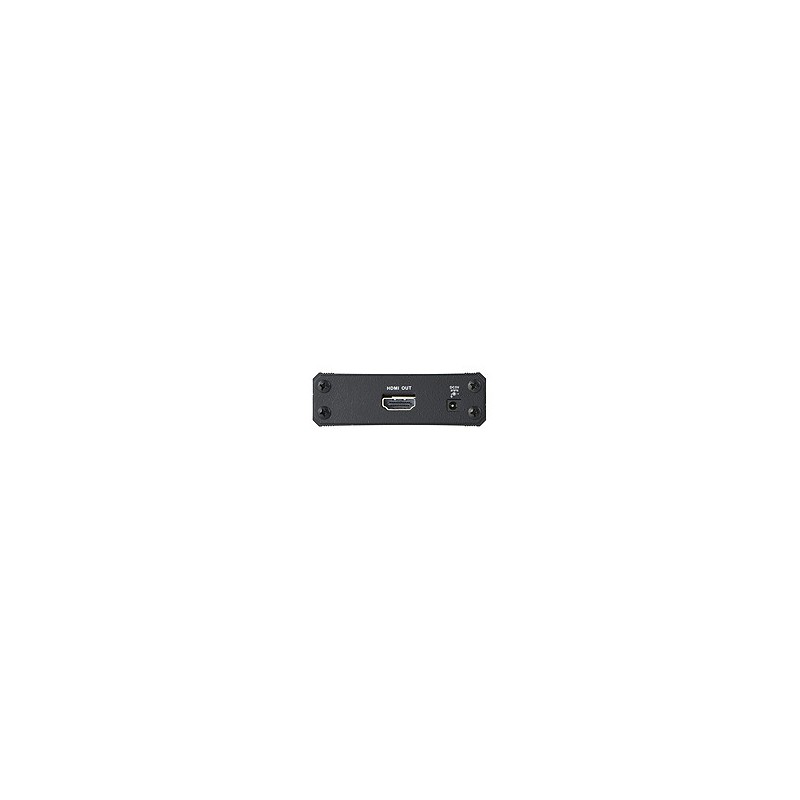

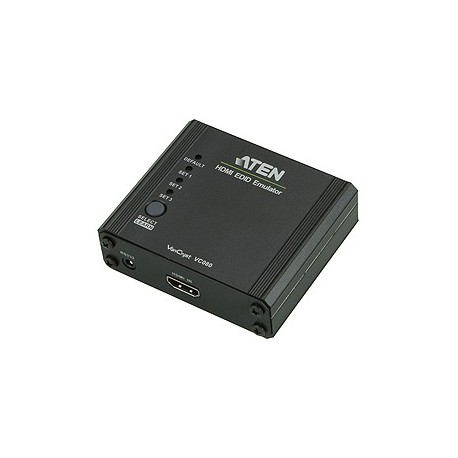

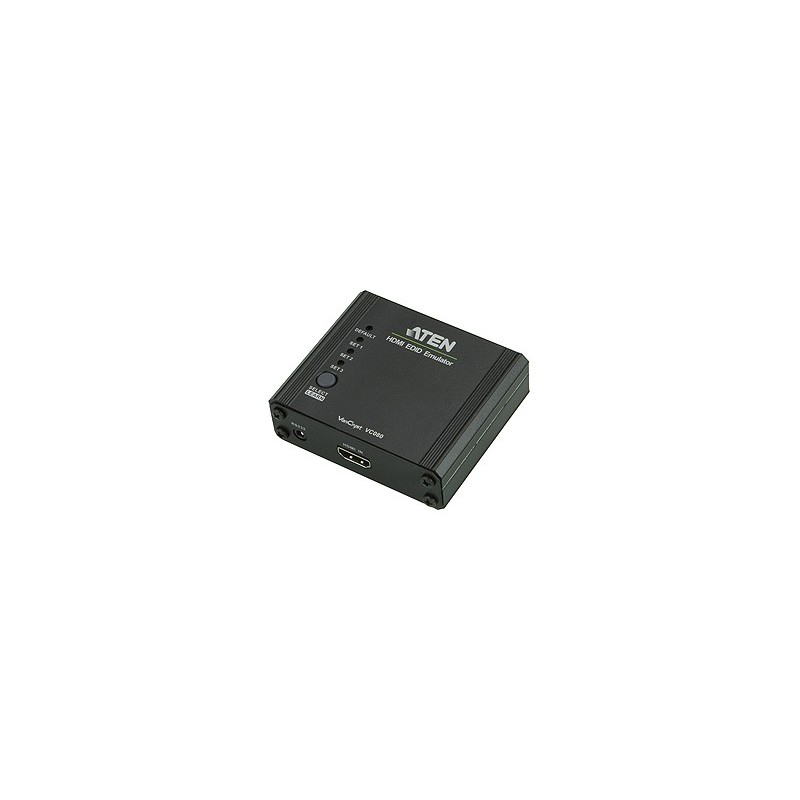

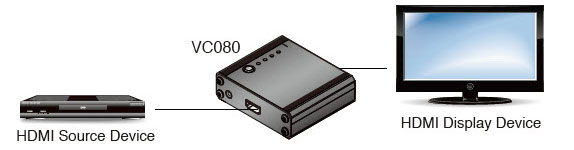

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for anyvideo installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
|Intelligent DDC Channel Switch||The previous Emulator only supports EDID signal bi-directional communication –it cannot transmit HDCP over a single channel. With the Intelligent DDC Channel Switch feature, the HDCP bypass or EDID mode can be selected automatically (VC080).|
|EDID Wizard||The EDID Wizard application can be downloaded from the ATEN website. The user-friendly GUI can be used to view, configure and store EDID settings.|
|Connectors||Video In||1 x HDMI Type A Female(Black)|
|Video Out||1 x HDMI Type A Female(Black)|
|RS-232 Port||1 x mini jack (Black)|
|Power||1 x DC Jack|
|Switches||Leam/Select||1 x Pushbutton|
|LED||EDID Set||4 (Green)|
|Video||1920 x 1200; 1080p|
|Power Consumption||DC5V, 0.15W|
|Environment||Operating Temp.||0°C - 50°C|
|Storage Temp||-20°C - 60°C|
|Humidity||0 – 80% RH, Non-condensing|
|Dimensions (L x W x H)||7.90 x 7.16 x 2.55 cm|
