CS1798
สลับควบคุม PC, Server, DVR, NVR, ระบบควบคุมกล้องวงจรปิด (CCTV) แบบ USB+HDMI 8 เครื่อง ด้วยจอ, คีย์บอร์ด, เมาส์ ชุดเดียวกัน เมื่อต่อ Stack กัน หลายตัวสามารถรองรับการแสดงผลแบบ dual display/triple display/quad display/multi-display ได้ (สูงสุด 8 units)
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

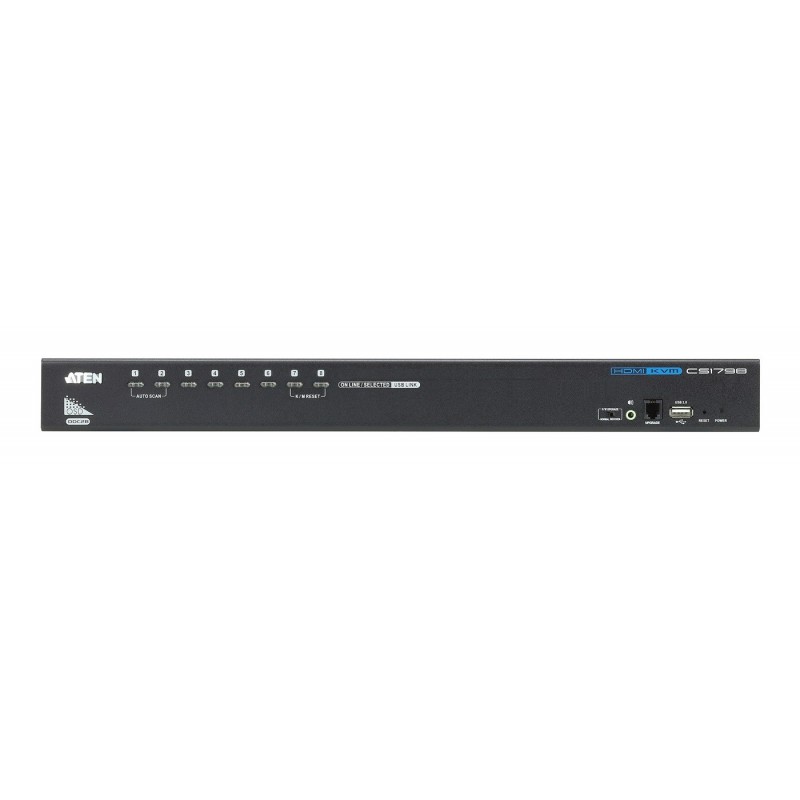

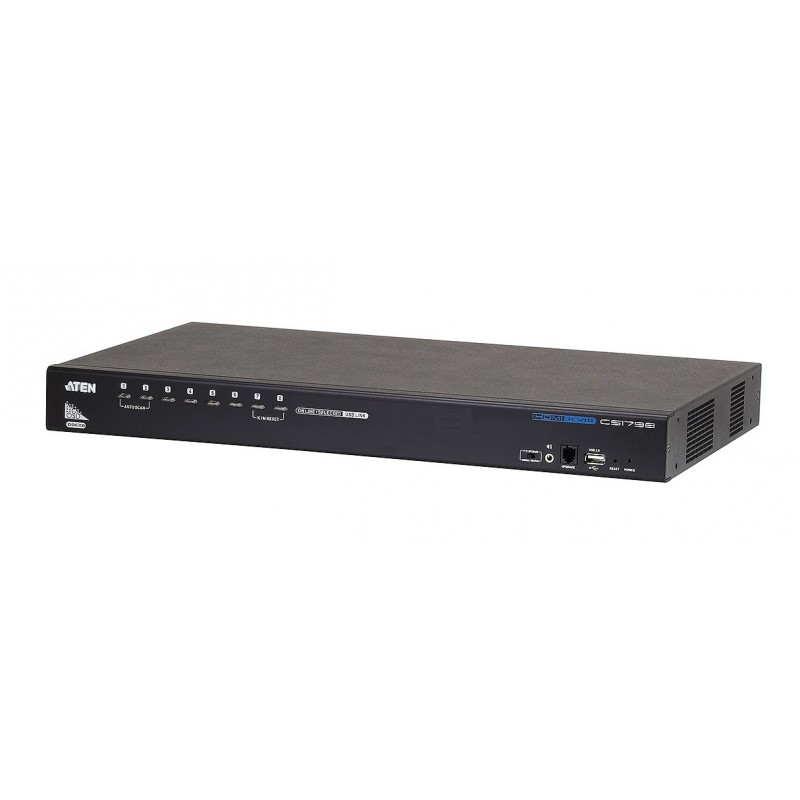

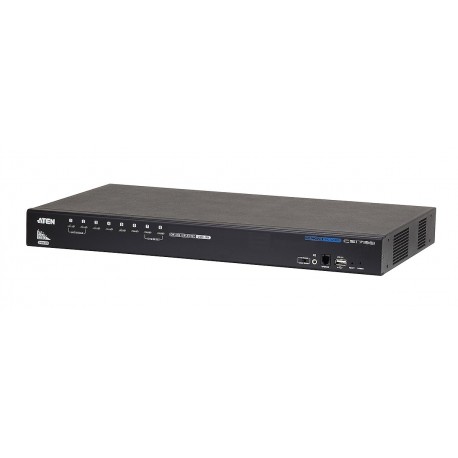

8-Port USB HDMI KVM Switch
สลับควบคุม PC, Server, DVR, NVR, ระบบควบคุมกล้องวงจรปิด (CCTV) แบบ USB+HDMI 8 เครื่อง ด้วยจอ, คีย์บอร์ด, เมาส์ ชุดเดียวกัน เมื่อต่อ Stack กัน หลายตัวสามารถรองรับการแสดงผลแบบ dual display/triple display/quad display/multi-display ได้ (สูงสุด 8 units)
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

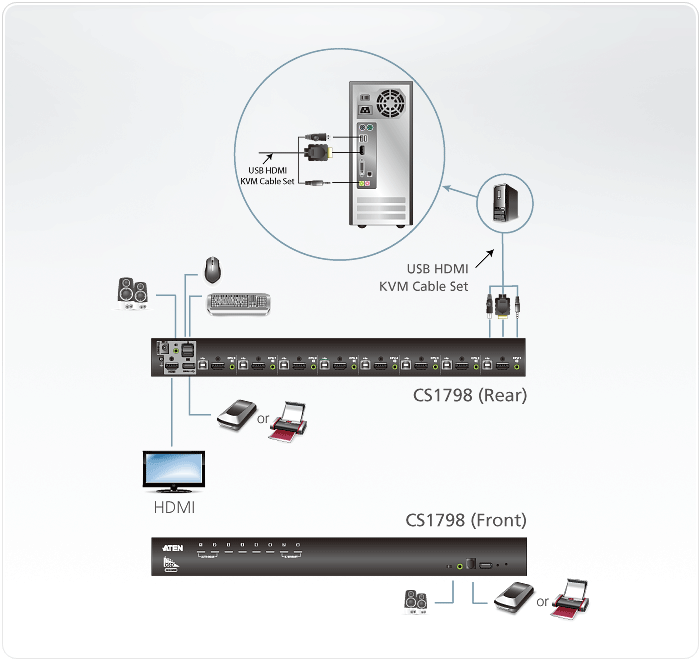

CS1798 อุปกรณ์สลับควบคุม PC, Server, DVR, NVR, ระบบควบคุมกล้องวงจรปิด (CCTV) , เครื่องบันทึกภาพกล้องวงจรปิด รองรับ การสลับใช้งาน Computer/Server 8 เครื่อง ด้วยจอ, คีย์บอร์ด, เม้าส์ ชุดเดียวกัน ซึ่งรองรับการต่อพ่วงกันแบบ Cascade ช่วยให้เพิ่ม server ในระบบได้สูงสุดถึง 512 เครื่อง เหมาะสำหรับใช้ใน ห้องควบคุมกล้องวงจรปิด

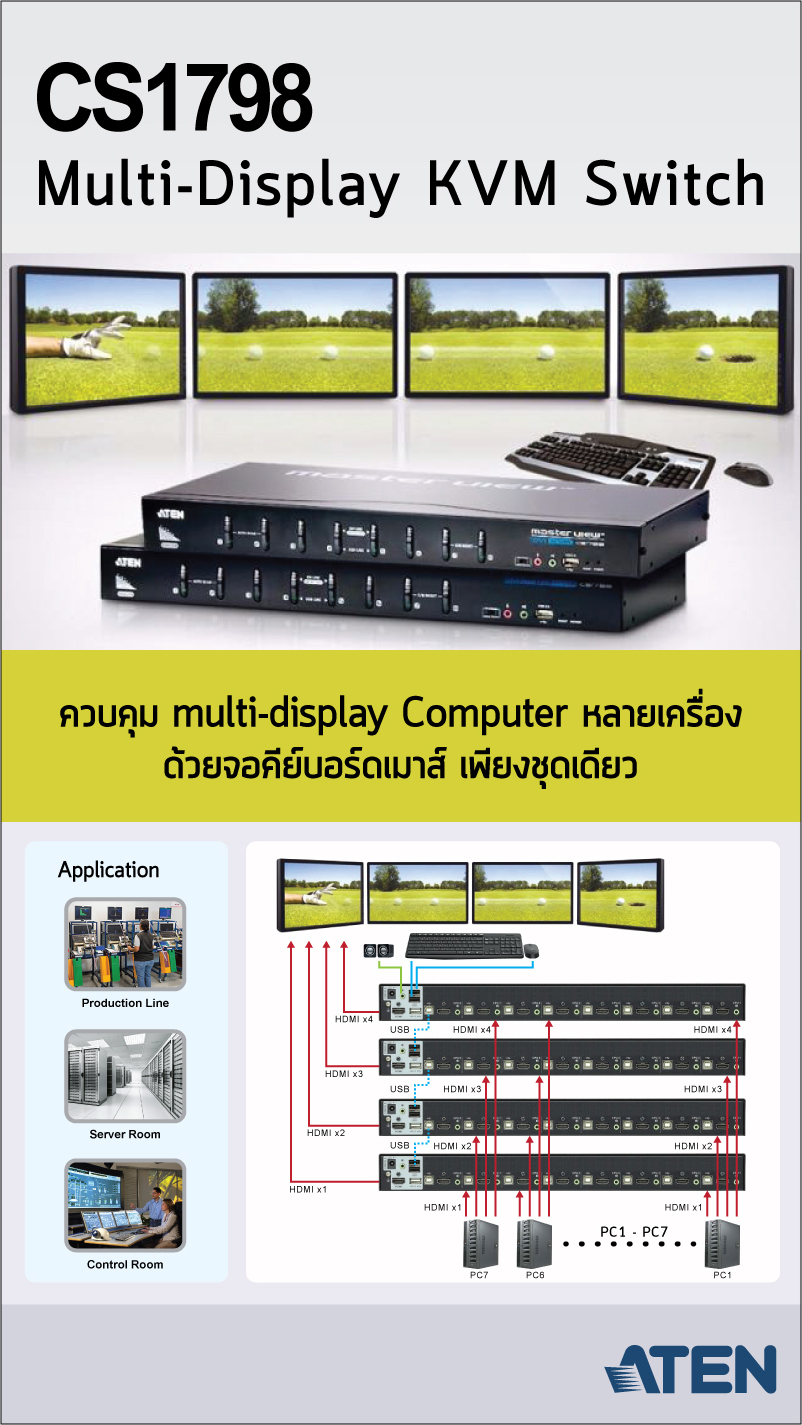

นอกจากนี้ CS1798 ยังรองรับ การควบคุม multi-display Computer หลายเครื่อง ด้วยจอ, คีย์บอร์ด, เมาส์ เพียงชุดเดียว อีกด้วย
Note : Enable mouse emulation for independent switching
1. CS1798 cascade to CS1798 only.
2. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
3. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
Computer Connections |
Direct | 8 | |
Max. | 512 (via Cascade) | ||
Port Selection | OSD, Hotkey, Pushbutton | ||
Connectors | Console Ports |
Keyboard | 1 x USB Type A Female (Black) |
Video | 1 x HDMI Female | ||
Mouse | 1 x USB Type A Female (Black) | ||
Speakers | 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel) |
||

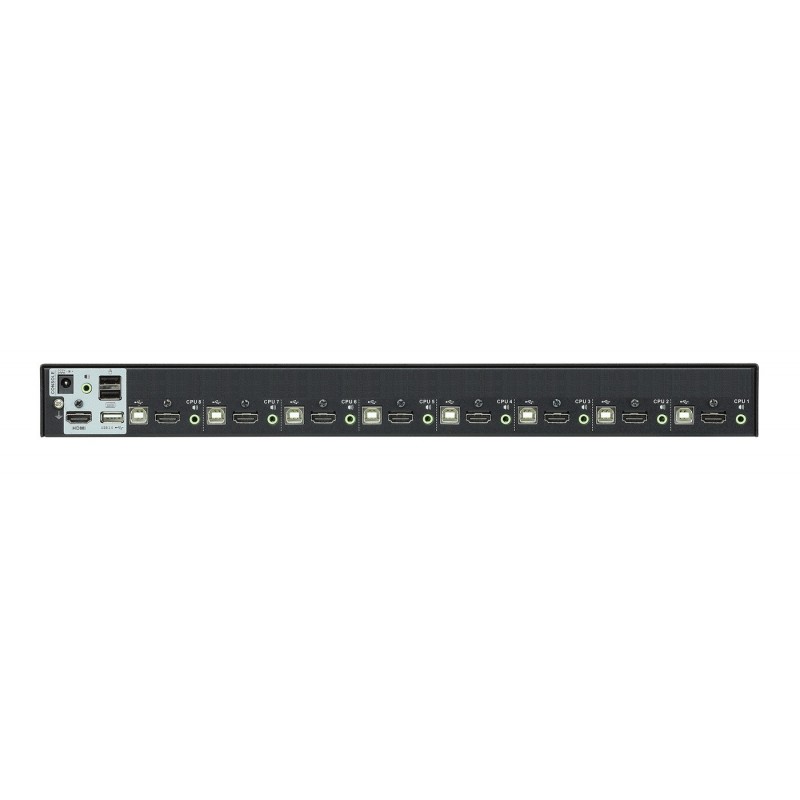

KVM Ports | Keyboard / Mouse | 8 x USB Type B Female (White) | |
Video | 8 x HDMI Female (White) | ||
Speakers | 8 x Mini Stereo Jack Female (Green) | ||
F/W Upgrade | 1 x RJ11 Female (Black) | ||
Power | 1 x DC Jack | ||
USB 2.0 Hub | 2 x USB Type A Female (White) (1 x front panel, 1 x rear panel) |
||
Switches | Port Selection | 8 x Pushbutton | |
Reset | 1 x Semi-recessed Pushbutton | ||
F/W Upgrade | 1 x Slide Switch | ||
LEDs | USB Link | 8 (Green) | |
On Line / Selected | 8 (Orange) | ||
Power | 1 (Dark Green) | ||
Emulation | Keyboard / Mouse | USB | |
Video | up to 1080p / 1920 x 1200@60Hz | ||
Scan Interval | 1 – 255 Seconds (Default: 5 secs) | ||
Power Consumption | DC 5.0V; 12.0W | ||
Environment | Operating Temp. |
0 – 50°C |
|
Storage Temp. | -20 – 60°C | ||
Humidity | 0 – 80% RH, Non-condensing | ||
Physical Properties |
Housing | Metal | |
Weight | 3.49 kg | ||
Dimensions ( L x W x H ) |
43.72 x 25.66 x 4.40 cm |
