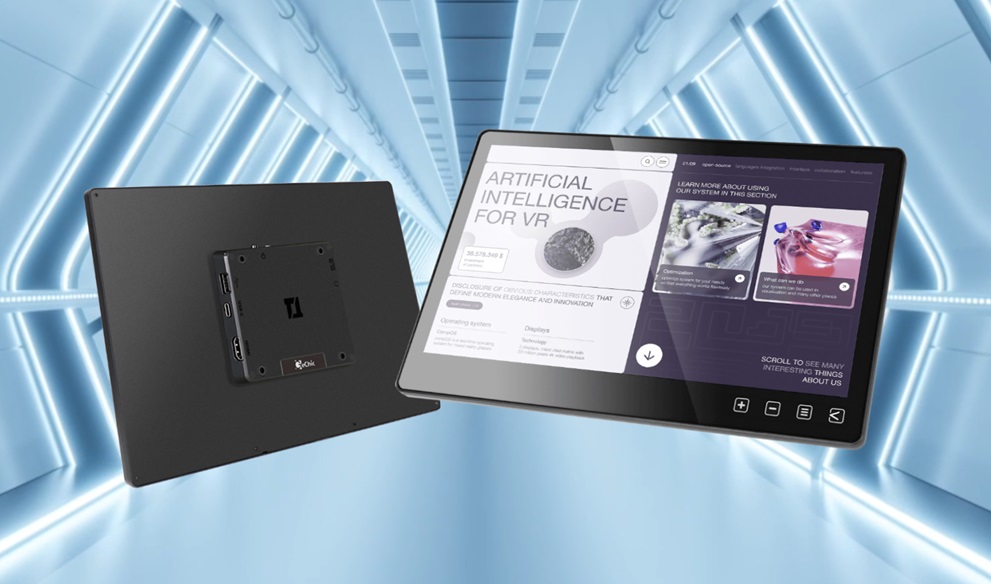

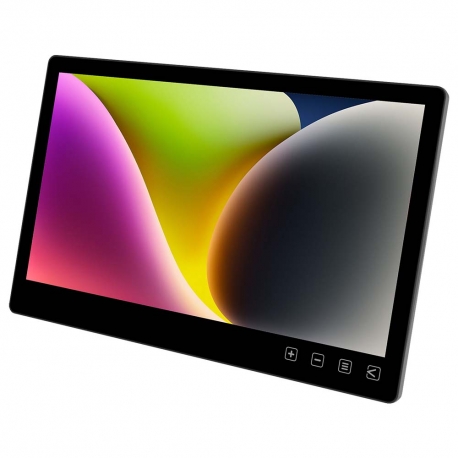

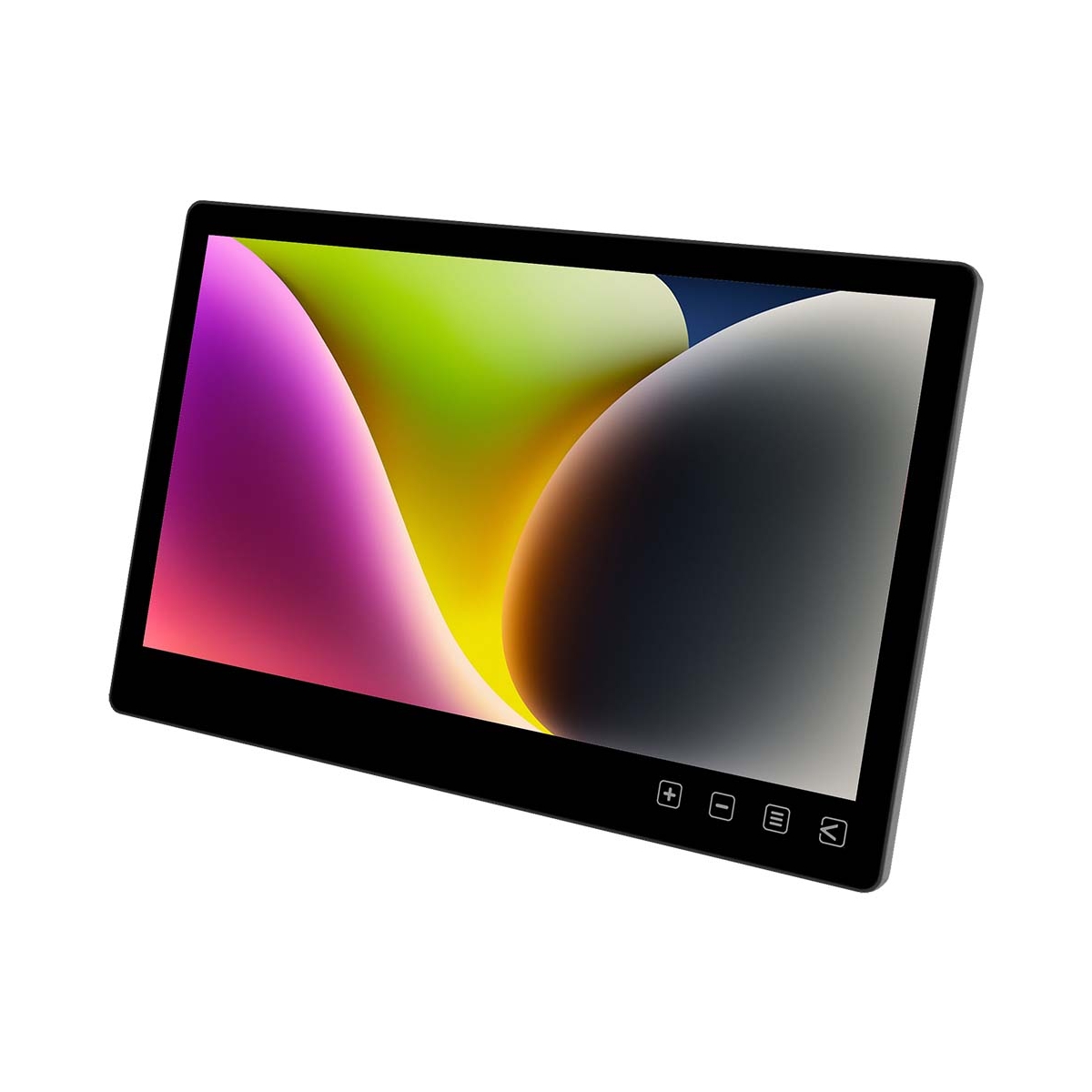

11.6 inch. Anti-Fouling Touch Monitor
T111B

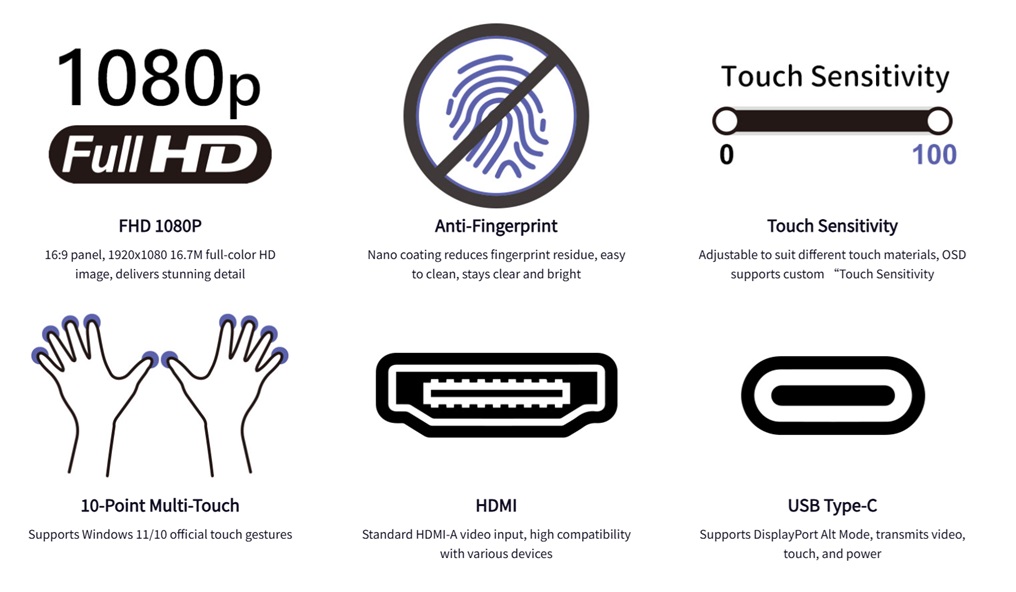

- 11.6" 16:9 Wide-Viewing-Angle Panel
- Clear and A.F. (anti-fingerprint)
- 10-point Capacitive Touch Glass
- Two Sets of USB+HDMI Inputs
- VESA 75 supported
Manual11.6 inch. T111B Anti-Fouling Touch Monitor
FHD Quality - Ideal for Small Touch Machines

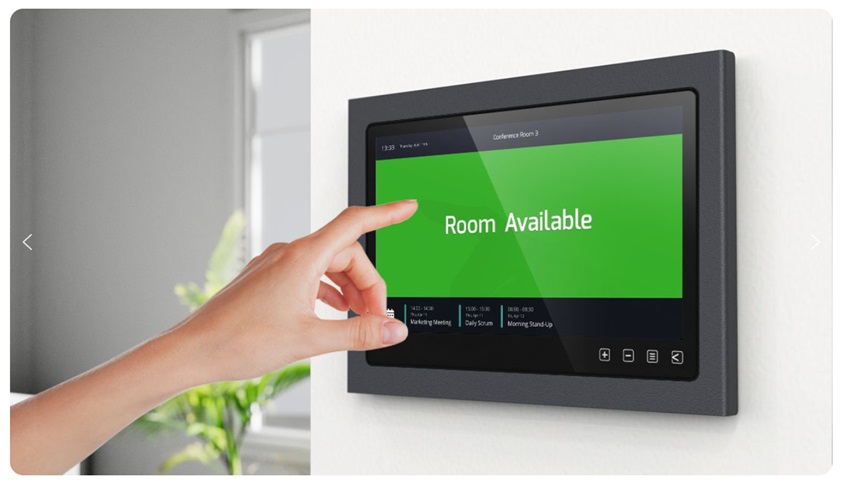

Embedded｜Wall-Mounted｜Desktop, Versatile Mounting Solutions
The T111B touchscreen monitor combines a slim profile with smudge-resistant performance. It features 1080P resolution, an IPS-level wide viewing angle, and supports 16.7M colors for vivid image quality. Designed as a durable and responsive HMI solution for industrial, commercial, and embedded systems, it offers reliable operation and excellent touch feedback. The front glass uses nano-coating with anti-fingerprint treatment to reduce smudges and simplify cleaning. With its sleek design and seamless touch performance, it ensures a smooth and satisfying user experience.
Full HD Resolution × High Contrast
Vivid Visuals for an Immersive Experience
The T111B touch monitor features a 170° wide viewing angle, 1920×1080 resolution, and 72% NTSC color gamut, delivering sharp and detailed images. With a high native contrast ratio of 1000:1, it renders natural highlights and shadows with depth and clarity. Combined with 300 nits of brightness, it ensures vibrant and comfortable visuals—whether you're displaying text, graphics, or videos.
Projected Capacitive Touch Panel
Smooth and Responsive, Supporting Windows 11/Linux/Ubuntu Systems
Equipped with a highly responsive capacitive touch panel, the monitor delivers touch accuracy and precision. Touch signals are transmitted via the USB port, enabling plug-and-play functionality and 10-point multi-touch support on Windows 11/10– no drivers required. It is also compatible with Linux, Ubuntu, Raspberry Pi OS, and Chrome OS, offering an intuitive interface for a wide range of development environments. With broad compatibility across various computers and industrial control systems, it is perfect for diverse applications such as interactive digital signage, educational tools, and human-machine interfaces (HMIs).
AF Anti-Fingerprint and Anti-Fouling Coating
Smooth and Durable, Greatly Reducing Fingerprint Residue
Say goodbye to the glass surfaces covered in fingerprints and oil stains! The T111B touchscreen monitor adopts AF Anti-Fingerprint, Anti-Fouling coating technology, which allows the screen to maintain a smooth and translucent glass surface with "oleophobic and hydrophobic" properties, effectively preventing the adhesion of fingerprints, oil stains, and water marks. The coating layer provides a smooth feel and clean screen surface and makes touch operations not affected due to dust and dirt.
Oleophobic and Hydrophobic
Utilize the lotus leaf effect (lotus effect) to increase the contact angle between water molecules and glass, making water vapor less likely to remain.
Smooth and Easy to Clean
The coating can fill the pores on the glass surface and restore it to cleanliness with a gentle wipe.
Gloves/Wet Fingers/Stylus
Touch Like No Boundaries with Various Materials
Even with slightly wet and sweaty fingers, the screen can be directly operated. For more precise input or handwriting, it can be used smoothly with a stylus with a front conductive rubber or plastic disc larger than 6mm. Users wearing gloves can operate directly without taking off their gloves, which is particularly convenient.

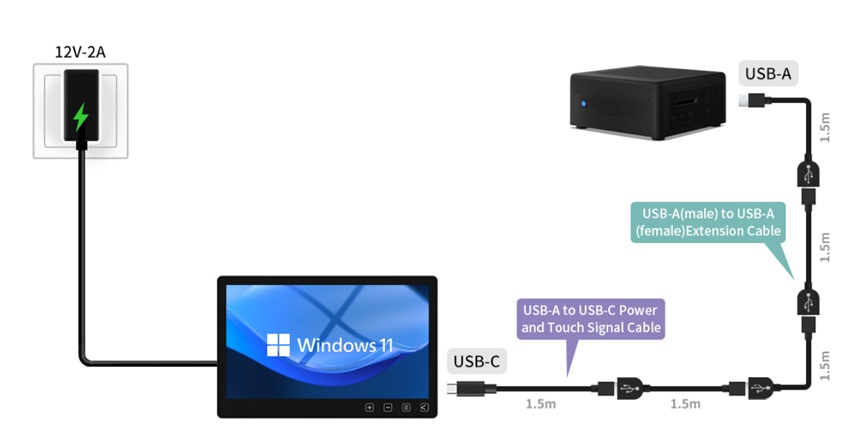

7.5M Remote Touch Transmission
Optimized Touch Signal for Reliable Performance Over Distance
With the built-in USB gain and anti-jamming technology, the monitor enhances the transmission capability of touch signals, ensuring optimal performance in various operating environments and distance setups. When the touch monitor is positioned far from the host, it can be powered independently using a 12V power adapter. By connecting a USB-A to USB-C power and touch signal cable, along with several 1.5-meter USB-A (male) to USB-A (female) extension cables, the system can support a total transmission distance of up to 7.5 meters, easily solving the challenge of long-distance touch control wiring.
Applicable to 12V & 5V
Support 5V 1.6A voltage input. When extending USB power and touch cable for a long distance, use the 12V adapter to improve voltage attenuation!
Built-in USB Gain IC
The T1 series adopts USB gain IC to strengthen the touch signal transmitted via USB, and effectively remedies the signal attenuation due to the extension of the cable length, enabling the USB cable to be extended up to 7.5 meters.
Anti-Jamming Technology
Adopt the new version of IC with high noise immunity to prevent the touch signal from being interrupted by power noise, maintaining the touch accuracy and stability.

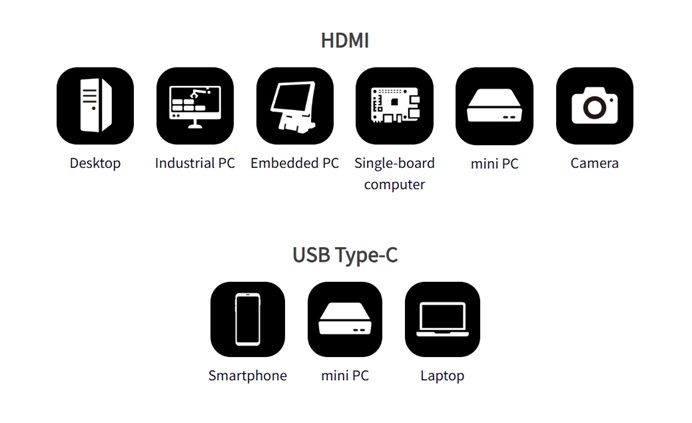

Industry-Leading Dual Inputs
Build a Powerful Touchscreen Machine by –HDMI & USB Type-C

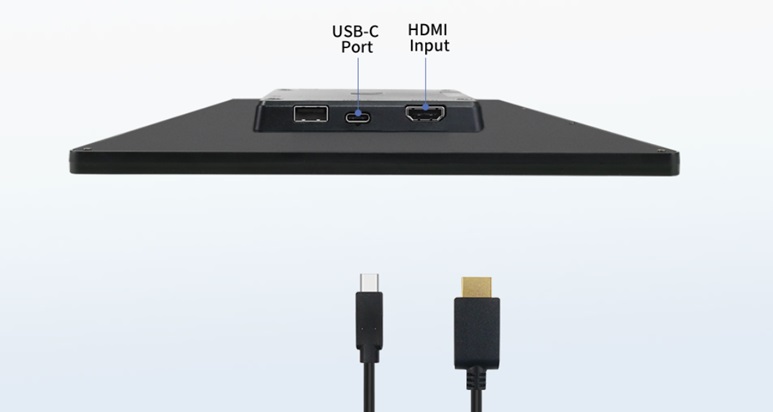

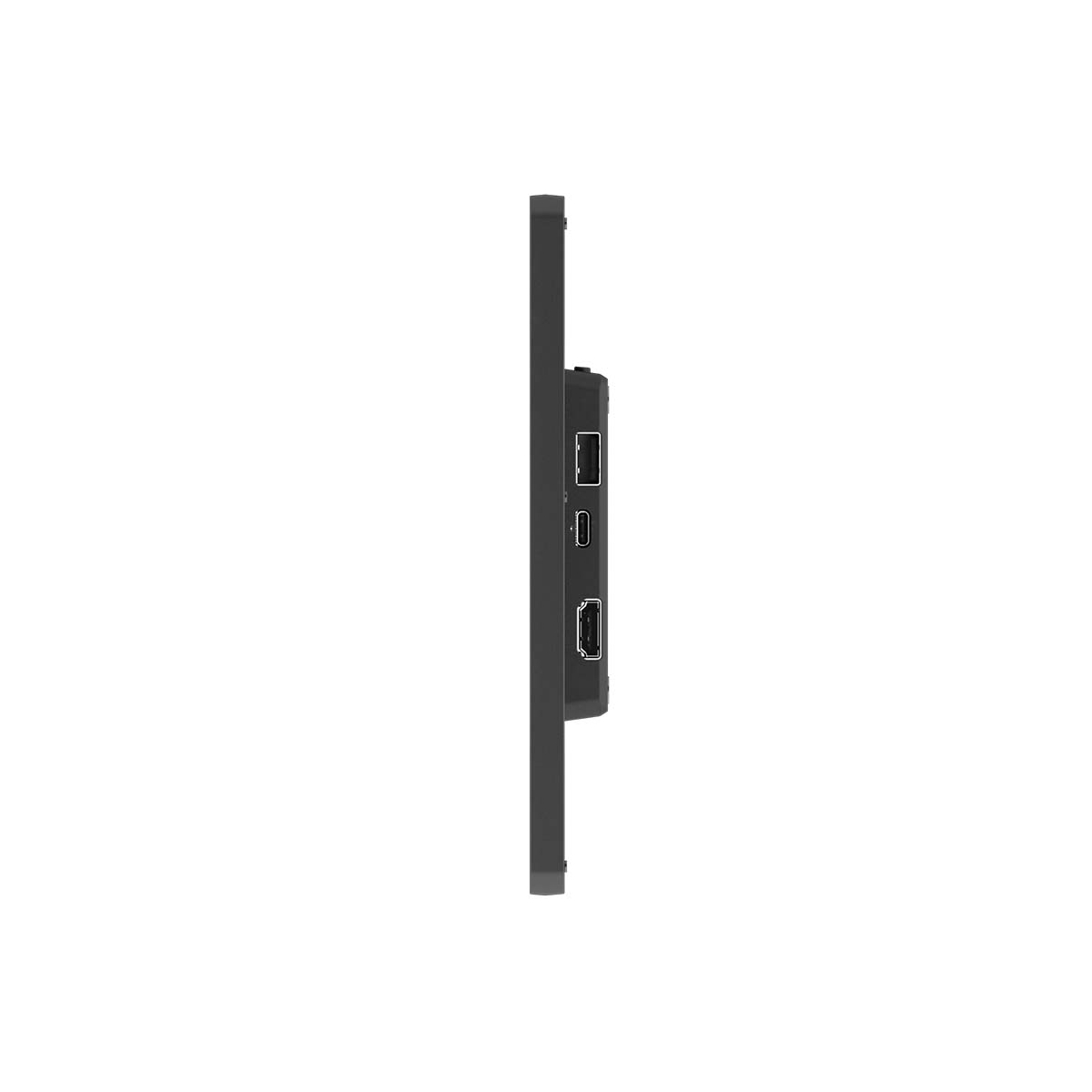

The ports are converged on the I/O block at the back of the monitor, including a standard HDMI-A port, which is suitable for universal commercial, industrial computers and laptops, etc. In view of the new generation computers keeping rolling out, the T111B monitor adopts an USB-C interface, which support both Thunderbolt 3, Thunderbolt 4 video signal input. The industry-leading interface can perfectly adapt to multiple devices.

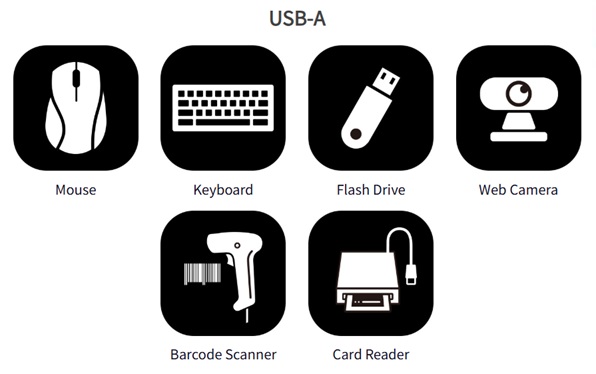

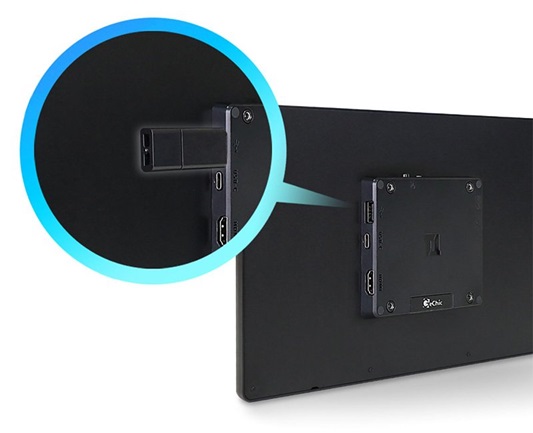

USB-A Port for Expandability & Quick Installation
When using the USB-C port of the T1 monitor to connect to the computer, the USB-A port on the monitor can be used as the USB port of the computer for connecting to a mouse, keyboard, USB flash drive, microphone or web camera, etc. When the monitor is far from the host, the USB external device can be connected to T1 monitor without having to go far!

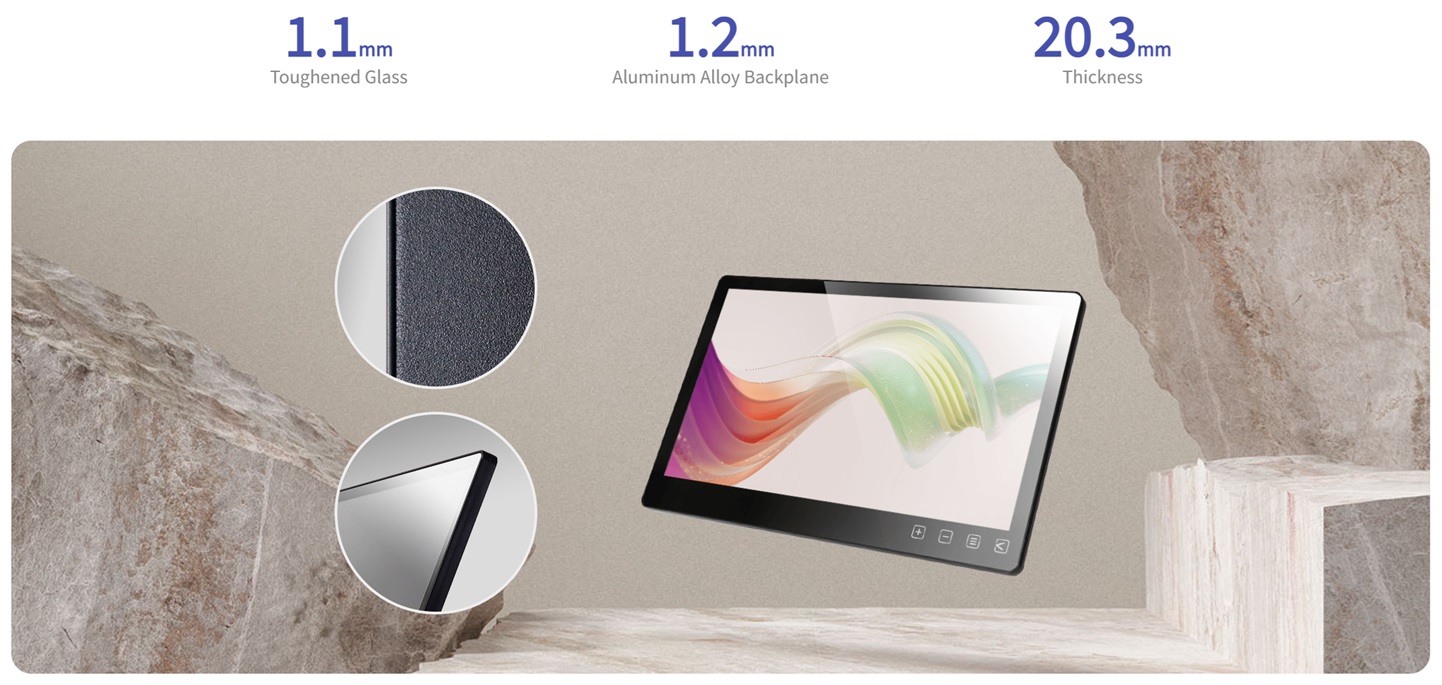

High-Strength Body Design & High Durability

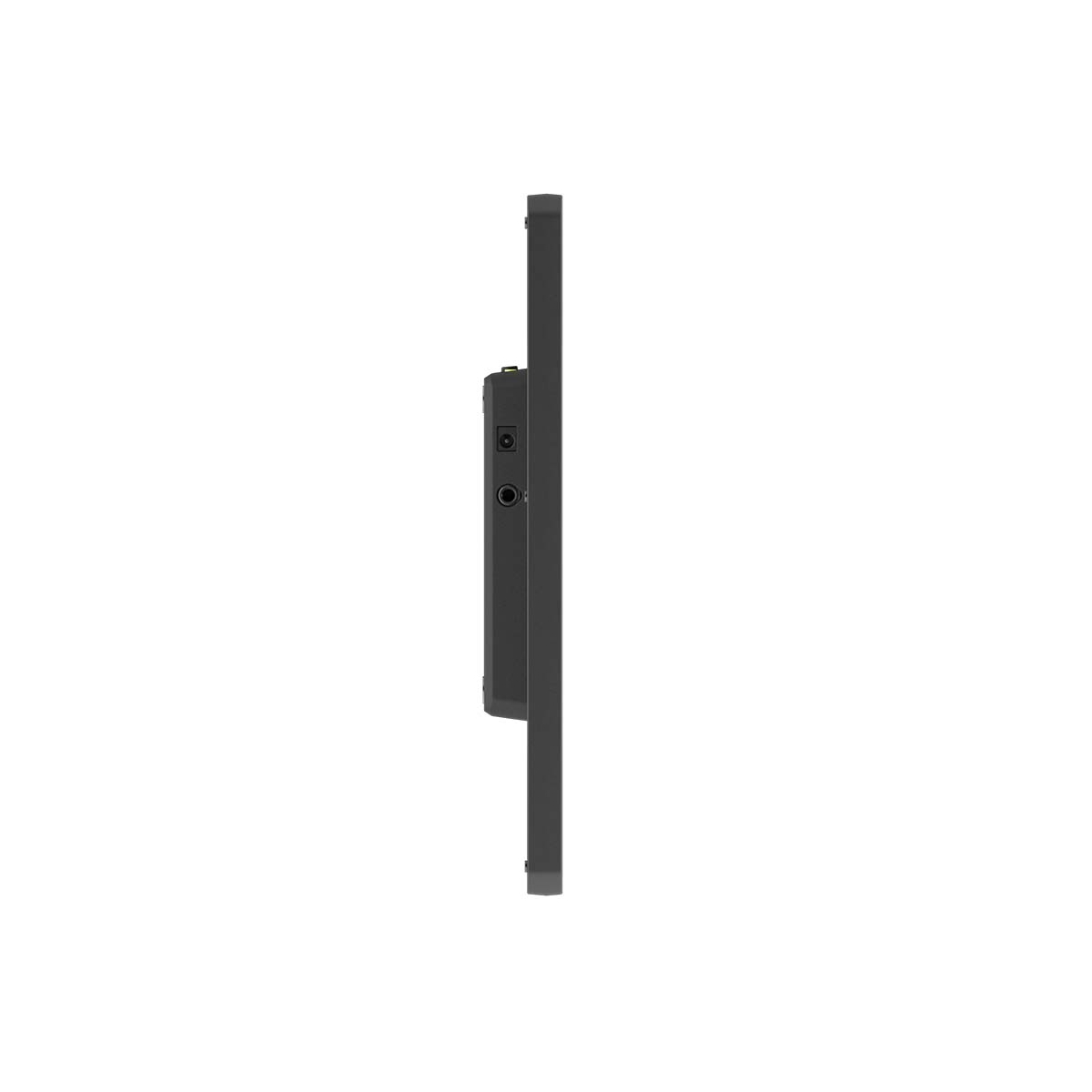

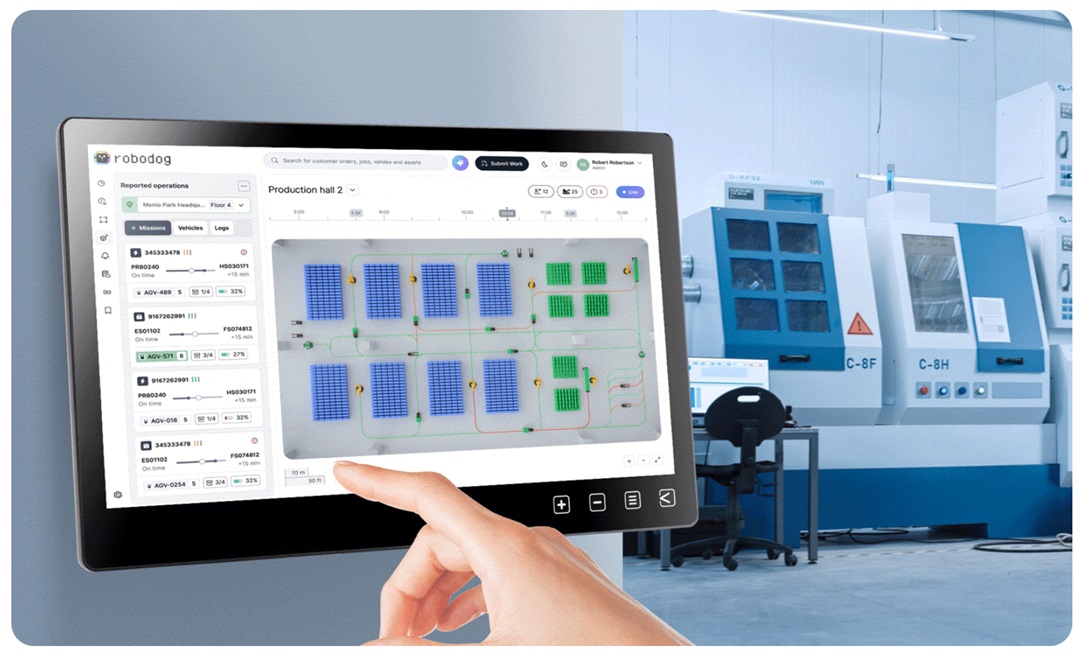

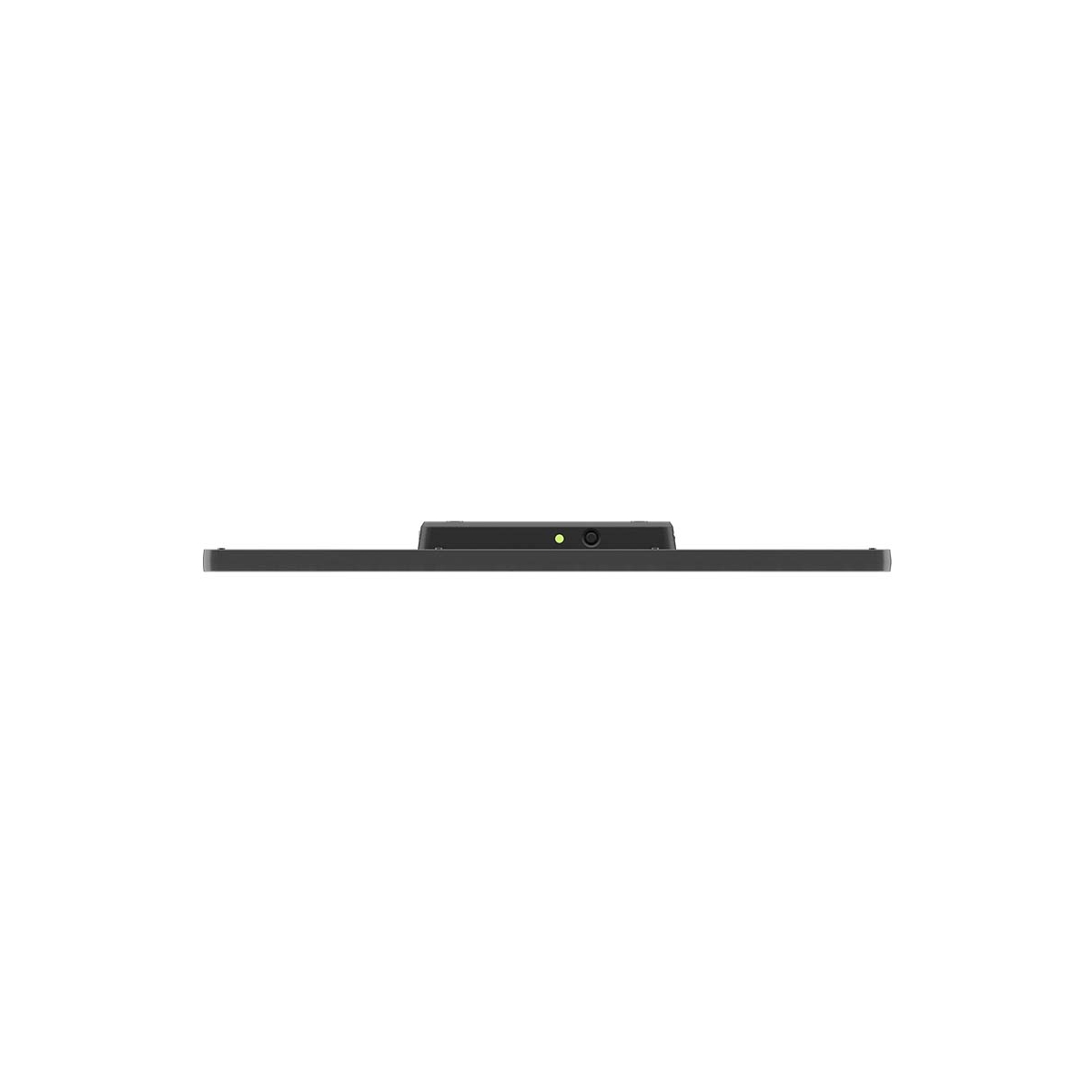

The monitor is designed by solid and reliable structure. The front touch panel is covered with 7H high-hardness glass featuring the advantage of scratch resistance, dirt resistance and easy cleaning; the back is made of light and high-strength aluminum alloy backplane. The monitor integrates the ports and VESA screw mounting holes on the rear I/O block within only 11mm thickness. The monitor is not only with slim and high-tech appearance meeting commercial needs, but also with strong durability in line with industrial requirements, which makes the monitor well-suited for production line, machine room and commercial space.

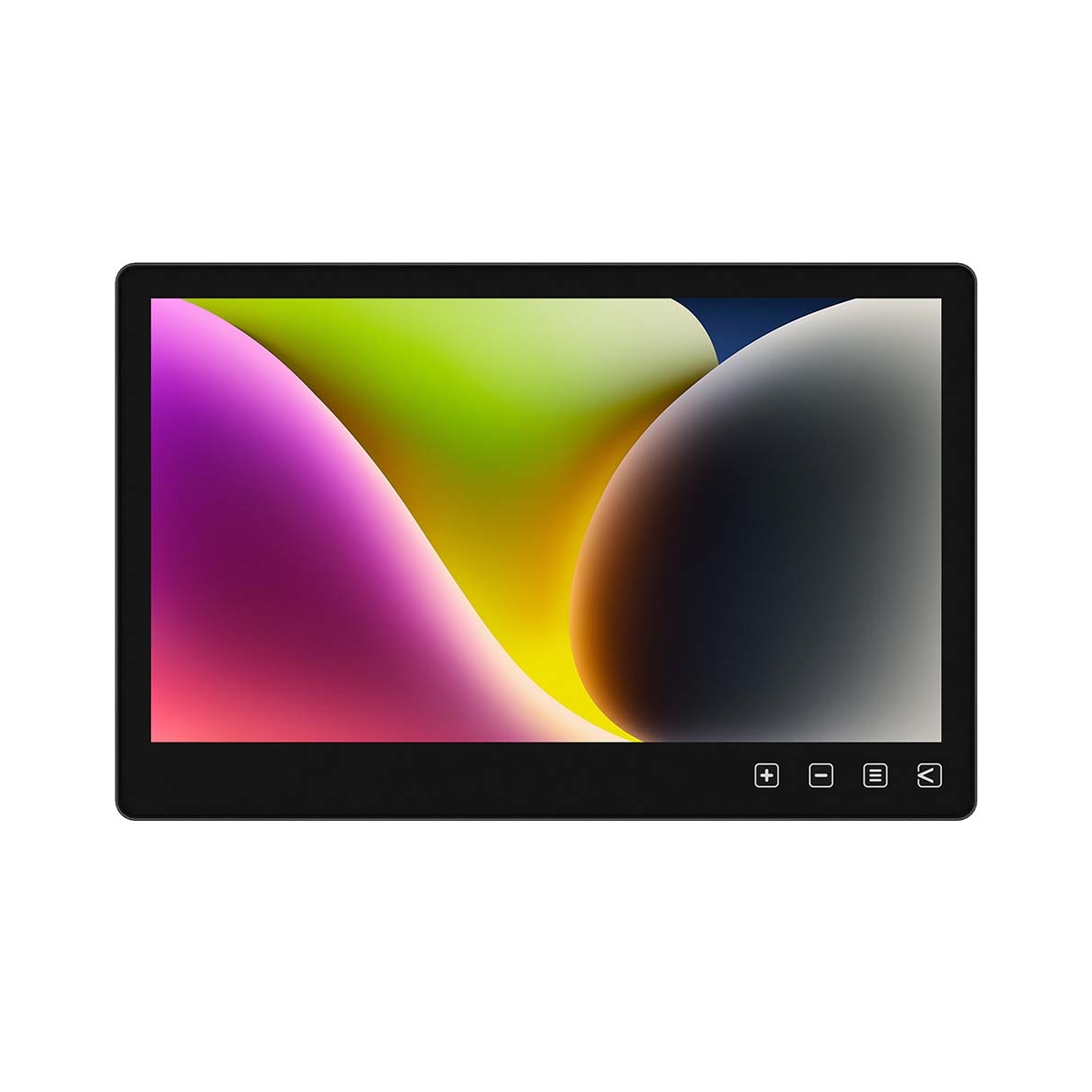

True-Flat Touchscreen Glass
Perfectly for Embedded Device

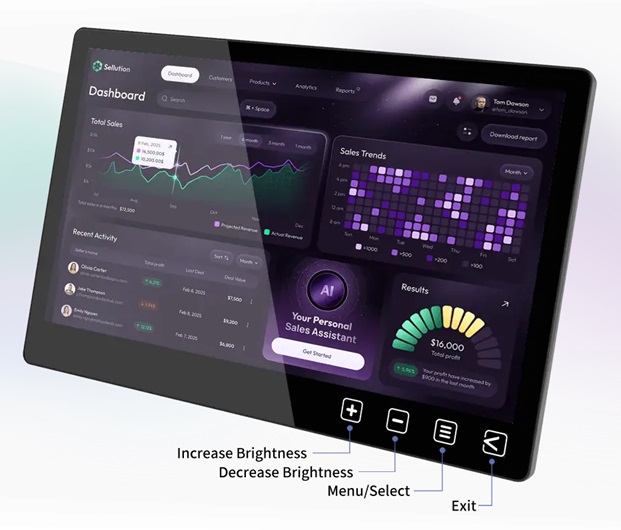

The front of T111B monitor is fully plat glass, incorporating touch sensitive OSD buttons for easy access to OSD menu configuration. In addition, the rear I/O ports simplify wiring issues. When building a touchscreen machine or equipment, the monitor can be perfectly integrated into the hardware design to build a one-body formed appearance.

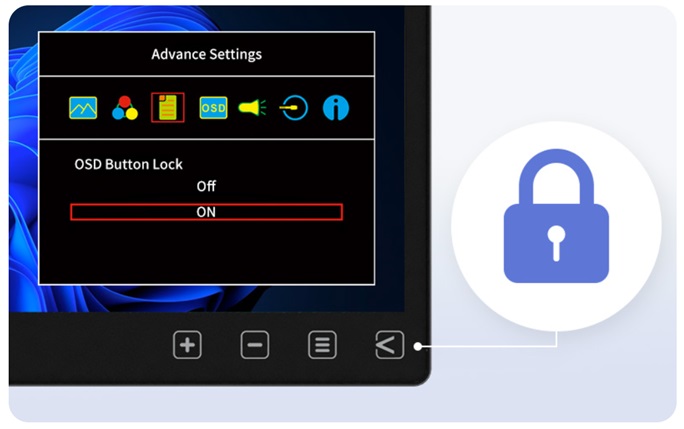

OSD Button Lock to Prevent Accidental Touch
You can select "OSD Button Lock" in the OSD menu to avoid accidental touch.

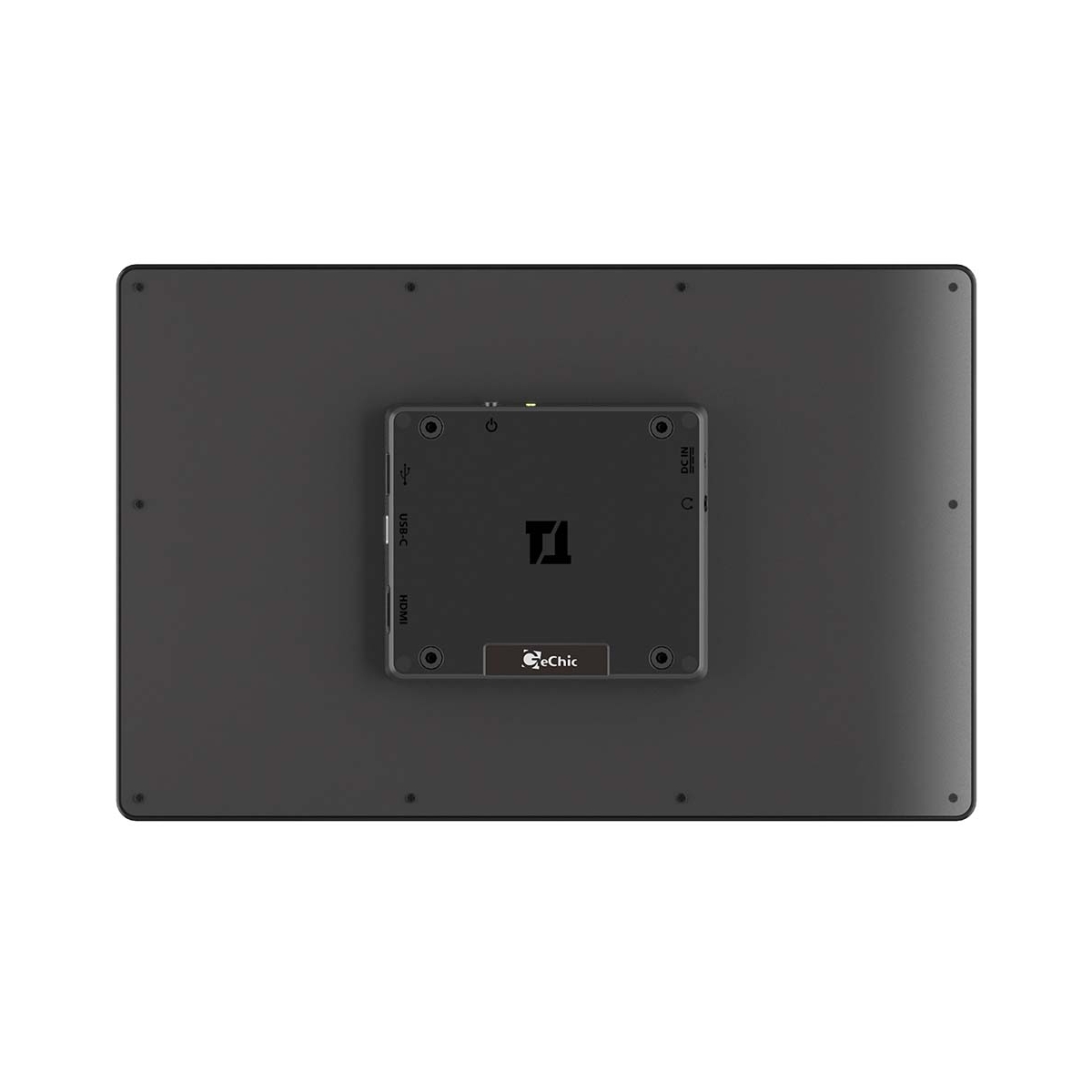

Flexible & Stable VESA 75 Mount
To maximize mounting strength with minimal body thickness, the T1 monitor features VESA 75 screw holes on the back, which allows the monitor to fit any space and meet the requirements of installing to machine and mount securely to any kinds of stands.

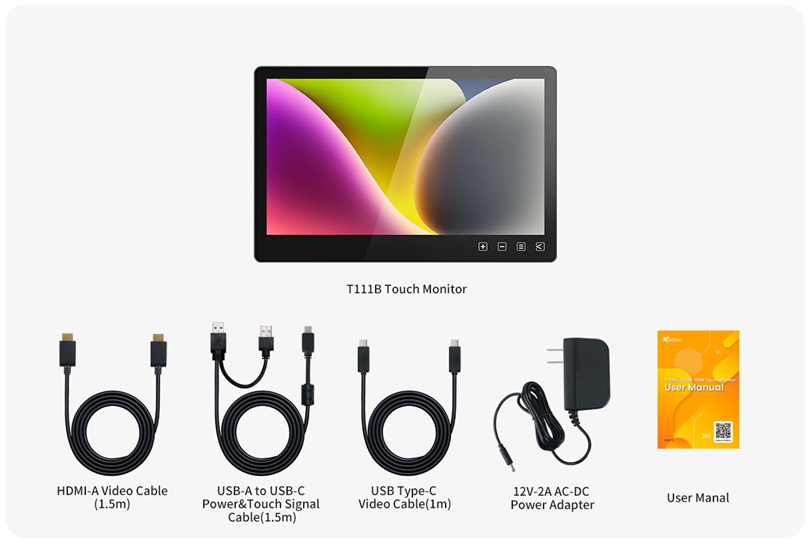

What in the Product Pack
Specifications
