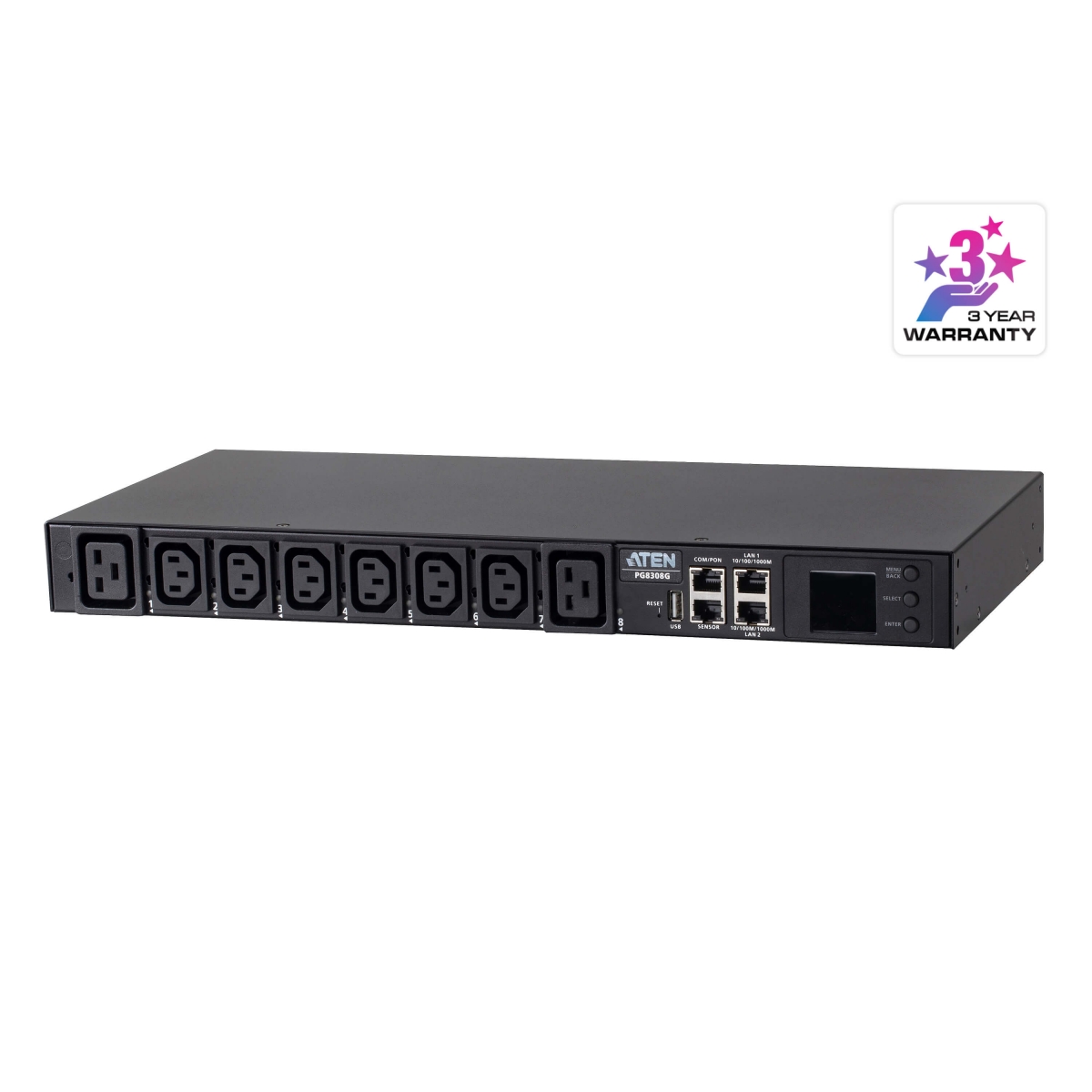

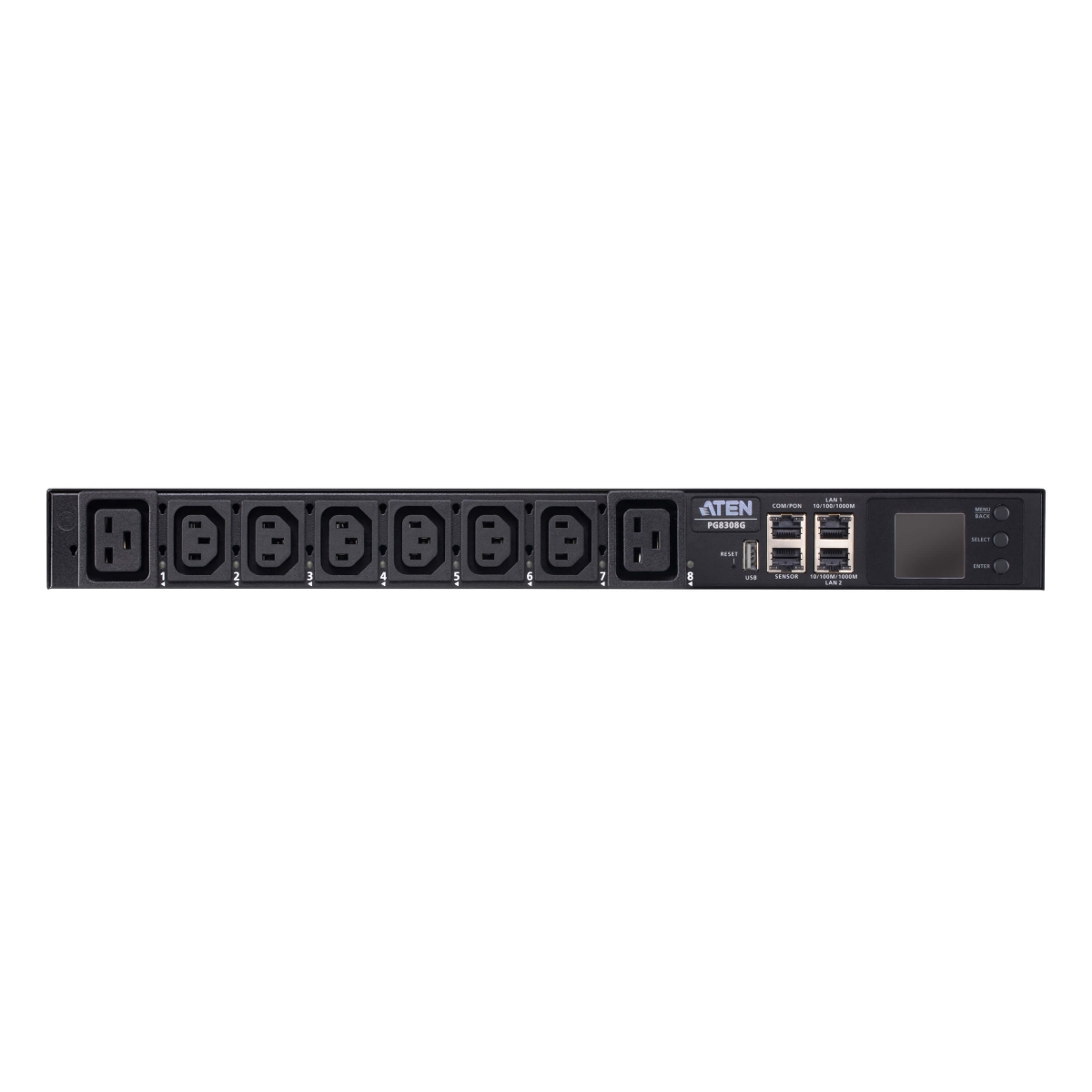

32A 8-Outlet 1U Outlet-Metered & Switched eco PDU
PG8308G
- Supports 1Gbps Ethernet Interface
- Environment sensor port enables RJ-45 connectivity to connect environment sensors
- Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
- Dual Ethernet ports support cascading up to 64 PDUs
รับประกัน 3 ปีเต็ม
Manual
When maintaining operating uptime in a data center or server room, sustainable energy efficiency can make all the difference. The implementation of effective power management often involves improvements at both the hardware and software level. ATEN is introducing its latest PG series of PDUs, available in IEC socket configuration, that are designed with 1U rack housing to accommodate the increasing demand for power to high-density IT equipment in server rooms and data centers. Each PG8308 PDU, utilizing an ARM-Cortex A8 processor, is equipped with 8 port outlets that can power up all connected equipment in less than 10 seconds once plugged in, and delivers the most accurate kWh energy usage data (+/-1%) for better power consumption habits, baselines, and initiative tracking. With energy saving in mind, the PG8308 is purposed to enable lower energy consumption for best practice in a network infrastructure, while promoting up to 35.04 kw equivalent of power consumption of reduced CO2 emission, reduced electricity expenses, and lower carbon taxes to pay each year.

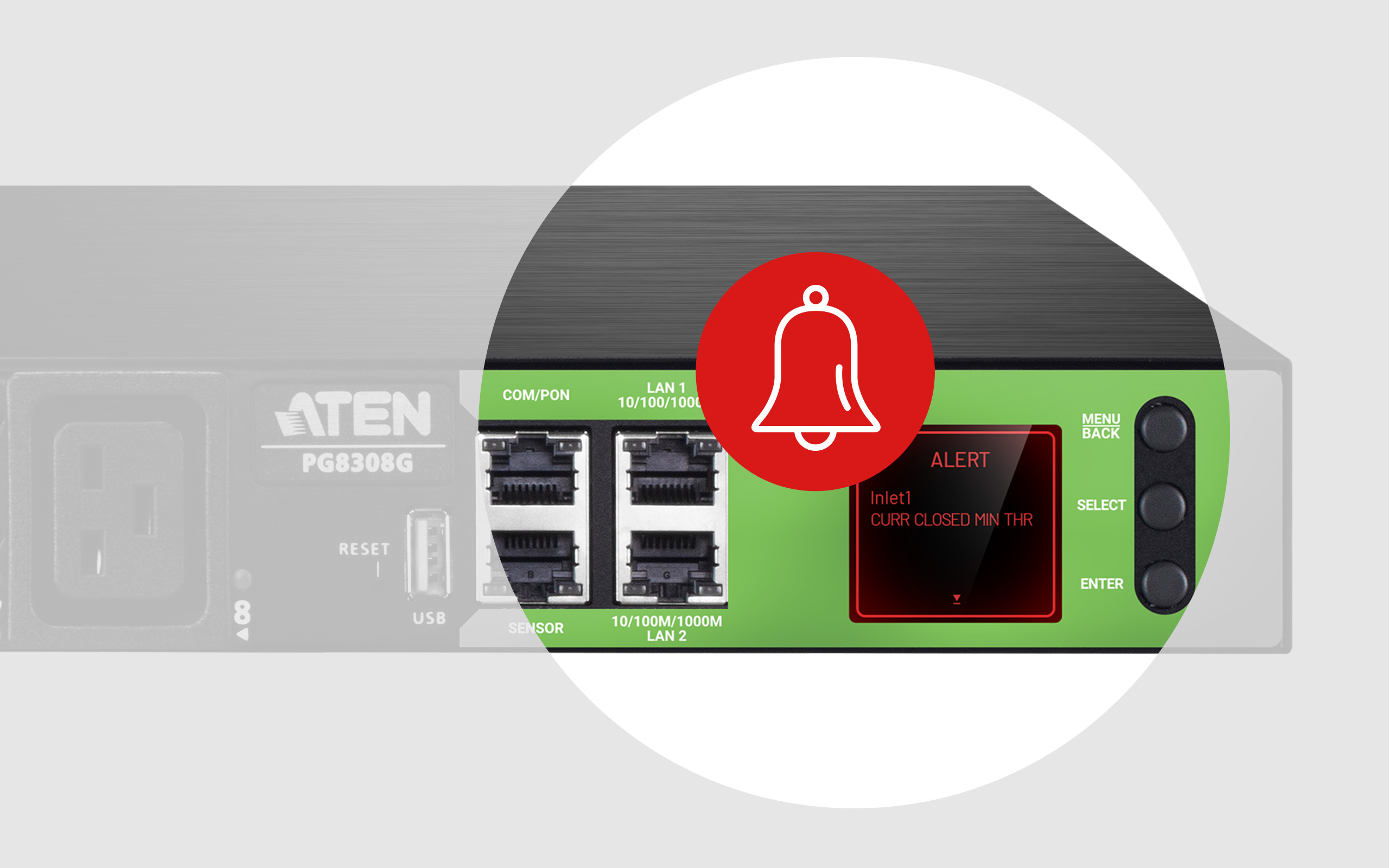

Real-time Alerts via LCD Display
The illuminated LCD display can display warnings to alert users of anomalous power states.

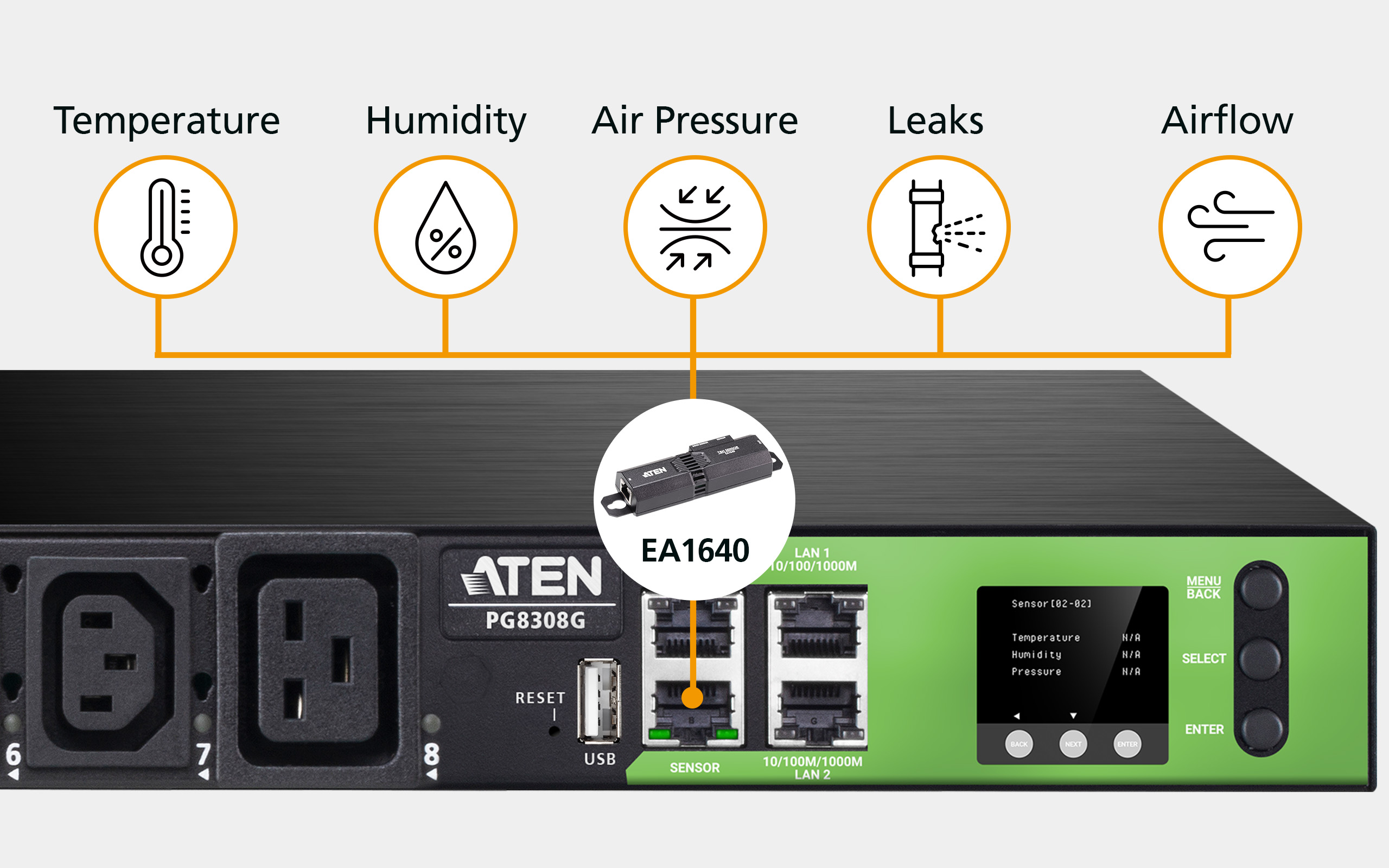

Environment Sensors
The EA1640 enables RJ-45 connectivity to connect or daisy-chain up to 8 environment sensors for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks, featuring alerts for potential threats. (sold separately)
Dual LAN Ports for Scalable Network Setup
The PG8308 is equipped with dual LAN ports (Internet and Intranet) supporting up to 1G Ethernet connection, and can be cascaded to connect up to 64 PDUs, saving expense on installing extra network switches to incorporate network connections while sparing more rack space to accommodate more IT equipment in an expandable network.
Networkable via WiFi
The PG8308 can be networked via connection to a USB WiFi dongle to perform DCIM, firmware upgrade, log export, quick configuration, and more.

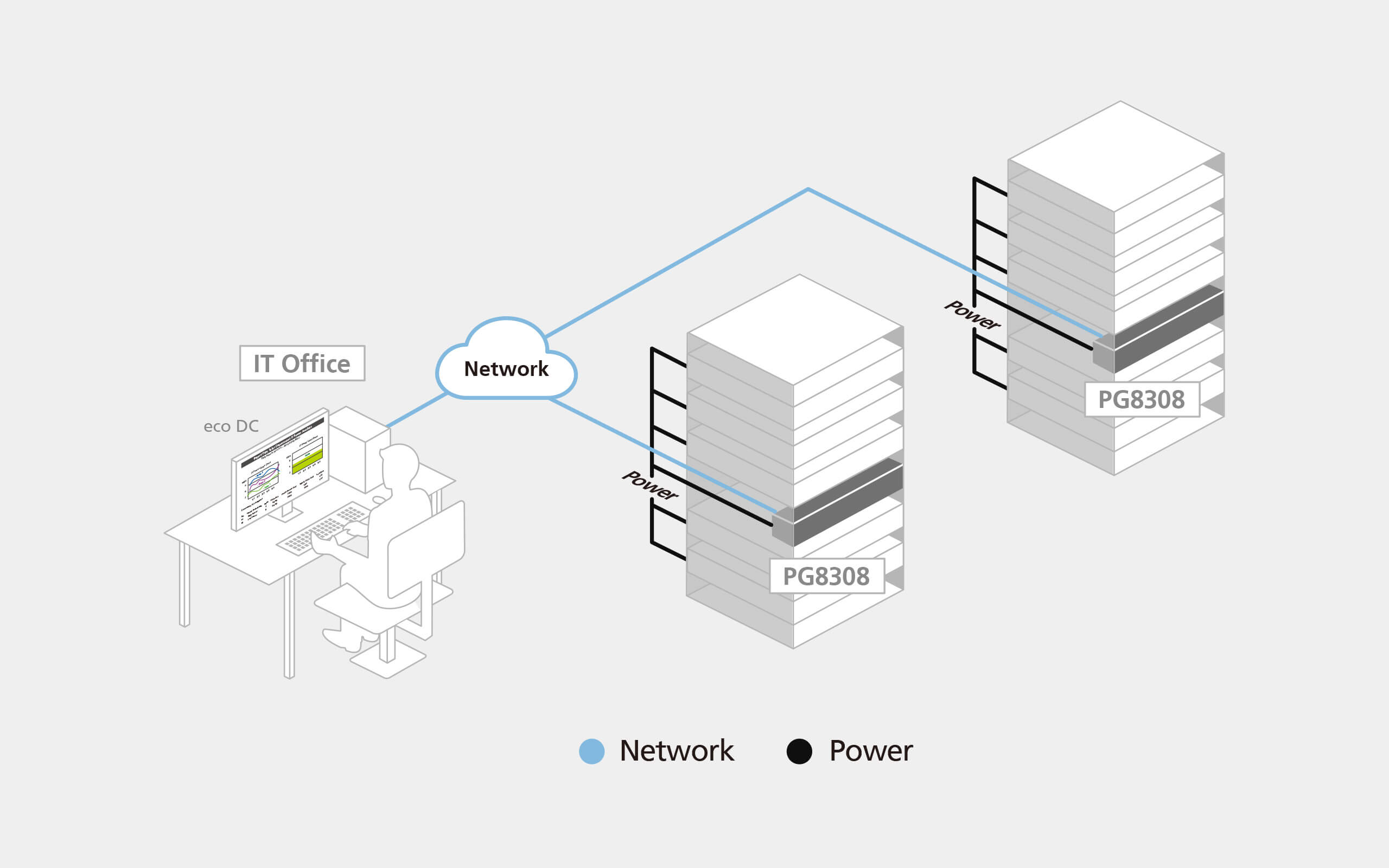

DCIM Monitoring
Integrated with ATEN’s eco DC – a PC- and web-based tool for optimized Data Center Infrastructure Management (DCIM) – power distribution, energy, and environmental data from PDUs and connected devices can be monitored via a friendly web GUI for smart power management.

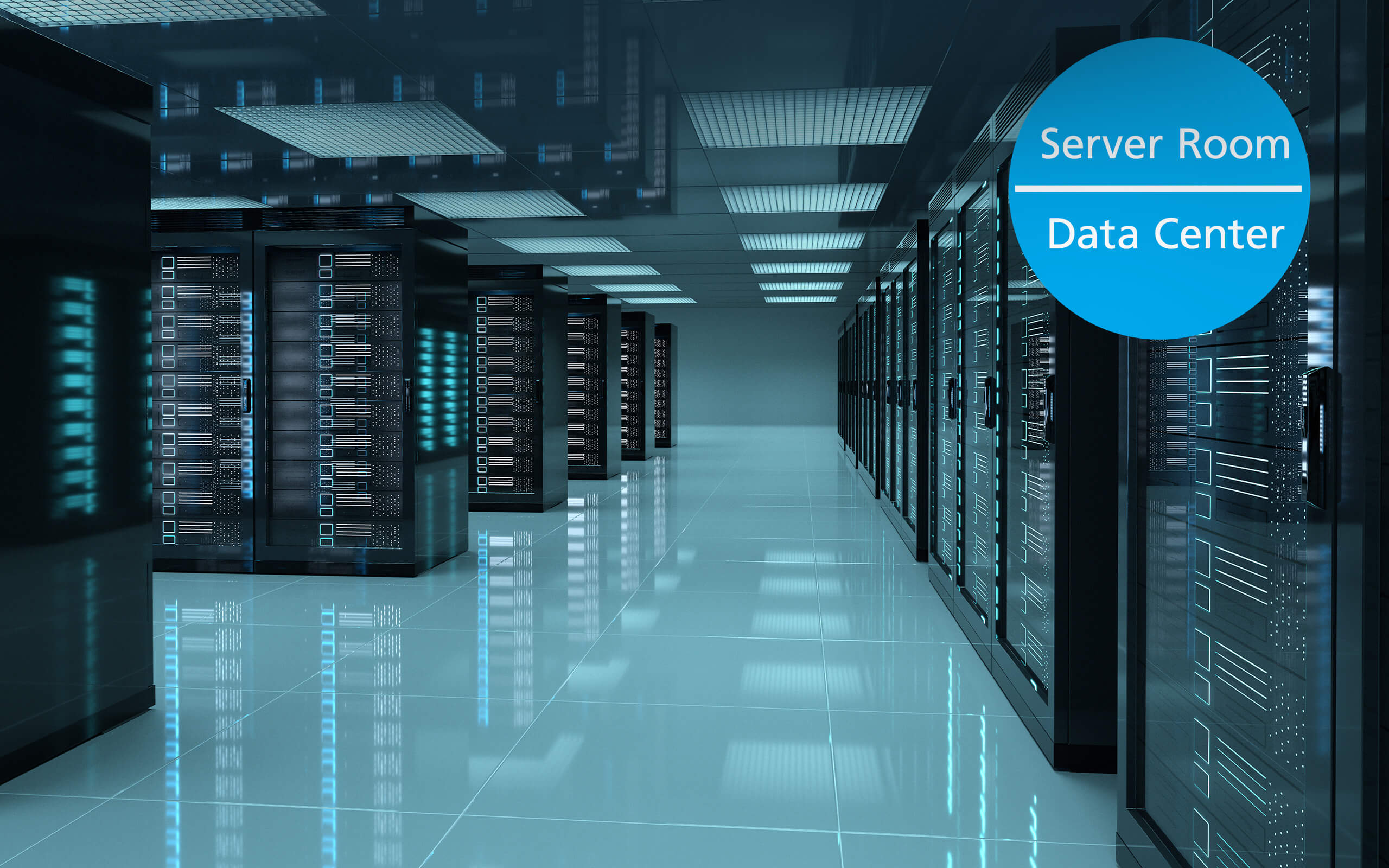

Applications
The PG series intelligent PDUs are perfectly suited to server rack installation requiring energy-efficient power distribution to high-density IT equipment in server rooms or data centers.
Features
- Connections
- Supports 1Gbps Ethernet Interface
- Remote Management Protocols – TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP (TLS 1.2), ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, and V3, Telnet, Modbus (over TCP/IP), Wi-Fi, and IPv6
- Scripting – JSON-RPC (Remote Procedure Call) protocol and Python scripting to control specified PDU units
- Security – 2-level account/password login access, and IP/MAC filter, 128 bit SSL
- Authentication – RADIUS, LDAP, TACACS
- Supports eco DC and multiple browsers (IE, Firefox, Chrome, and Safari)

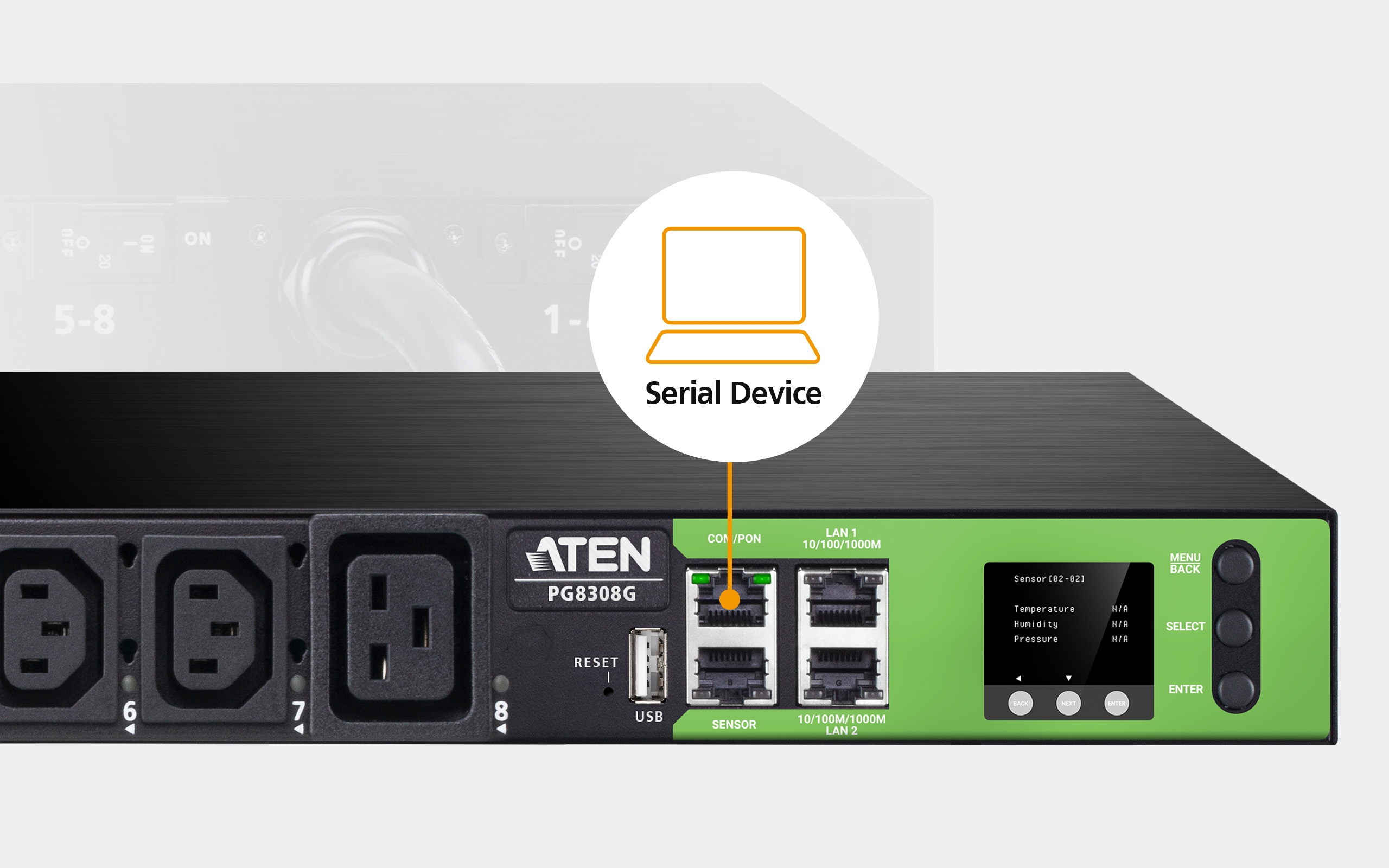

- Supports RS-232 and RS-485 communication ports
- Auto Ping & Reboot
- Environment sensor port enables RJ-45 connectivity to connect or daisy-chain up to 8 environment sensors such as ATEN EA1640 for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks, featuring alerts for potential threats (sold separately)
- Rotatable LCD Screen – capable of 180-degree rotation, delivering flexible in-rack installation
- Metering
- Secure locking enhancement prevents power cords from becoming unplugged due to vibration or human error
- Metering and monitoring of power at the PDU and outlet levels
- Measuring and establishing threshold levels for current, voltage, power, power dissipation, temperature, and humidity
- Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
- Real-time LCD alert sends warnings to alert users of unusual power state
- Network
- Dual Ethernet ports support cascading up to 64 PDUs
- Daisy chaining functions support SNMP & Modbus protocols and TC / IP protocols (web page)
- PON port can be connected to the KN series (up to 16 KN devices) and be secondary*
- Supports ATEN’s eco DC (Energy & DCIM Management Web GUI) for monitoring power distribution, energy, and environmental data from PDUs and connected devices
- Outlet Switch Control
- Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
- Outlet group support at the PDU level
- Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
- Power-On/Off sequencing – users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
- Proactive overload protection (POP) – automatically powers off the last outlet, causing the current overload, while allowing users to set shutdown priority
- Schedule Control
- When the temperature or humidity sensor value reaches the predetermined threshold, the PDU can turn on, off, or reboot a particular outlet
- Energy-efficient relays allow operators to control large amounts of current flow for lower energy consumption
Note: To be included in a future firmware release.
Diagram
Specifications
| Function | PG8308G | |
| Electrical | ||
| Nominal Input Voltage | 100 – 240 VAC | |
| Maximum Input Current | 32A Max | |
| Input Frequency | 50-60 Hz | |
| Input Connection | IEC 60309 32A | |
| Input Power | 7680VA(Max) | |
| Outlet Type | (6) IEC320 C13+(2) IEC320 C19 | |
| Nominal Output Voltage | 100 – 240 VAC | |
| Maximum Output Current (Outlet) | C13:10A(Max) C19:16A(Max) |
|

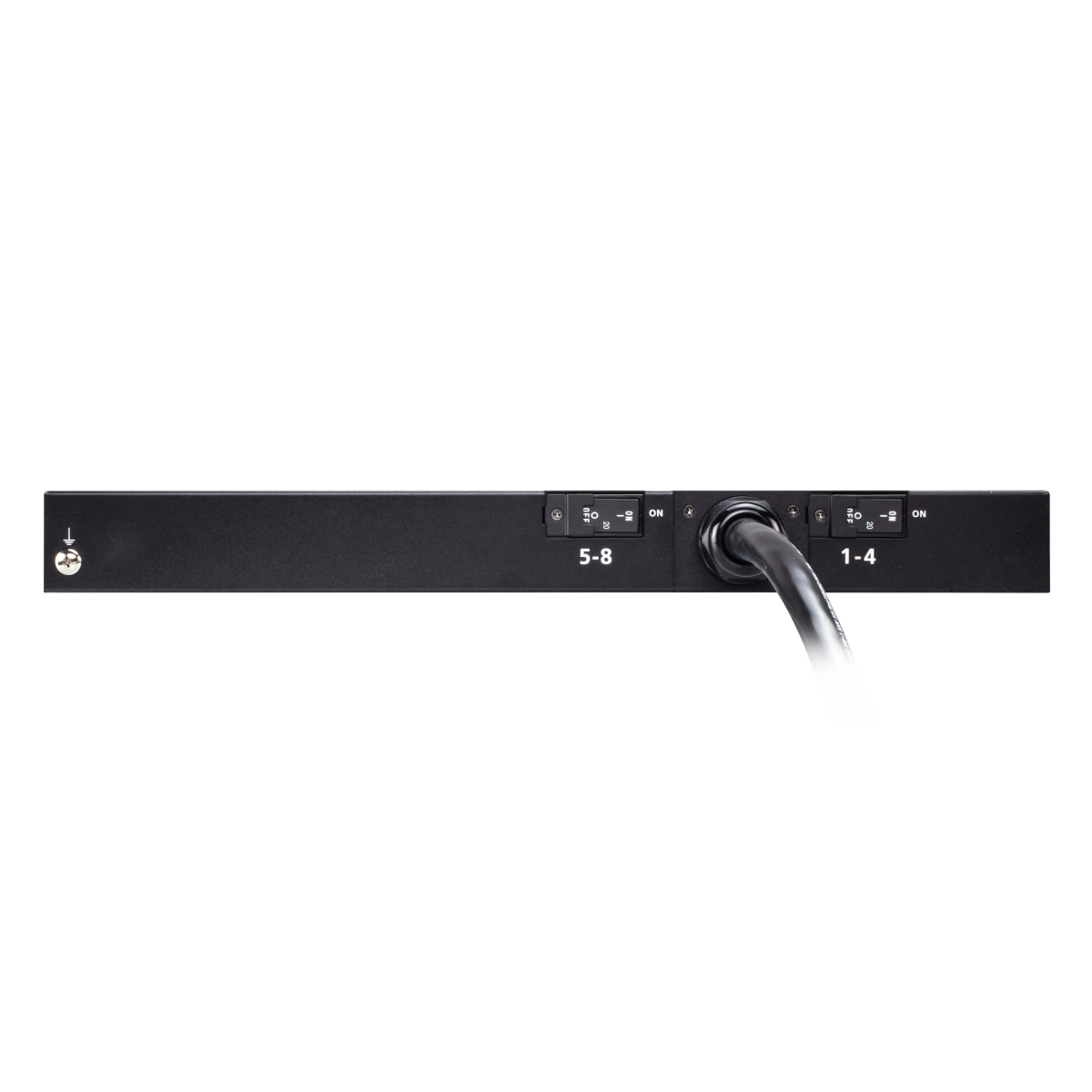

| Breakers | UL489x2 | |
| Metering | Per Outlet level Current, Voltage , PF and KWh Monitoring | |
| Outlet Switching | Yes | |
| Environment Sensor Ports | 1xRJ45 | |
| Metering Accuracy | 1% | |
| Power Consumption | AC110V:6.7W:42BTU/h AC220V:6.8W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
|
| Physical Properties | ||
| Dimensions (L x W x H) | 43.24 x 21.00 x 4.40 cm (17.02 x 8.27 x 1.73 in.) | |
| Weight | 4.65 kg ( 10.24 lb ) | |
| Power Cord Length | 3M(SR+IEC60309 32A) | |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 60℃ / -20 – 60℃ | |
| Humidity (Operating & Storage) | 0 – 80% RH, Non-Condensing | |
| Compliance | ||
| EMC Verification | CE | |
| Safety Verification | CE,UKCA | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
Package content
- 1x 8-Outlet 1U eco PDU
- 1x rack mount kit
- 1x foot pad set (4 pcs)
- 1x RJ-45 to DB-9 cable
- 1x full-panel colored sticker
- 1x user instructions
