IPC-P2104SI

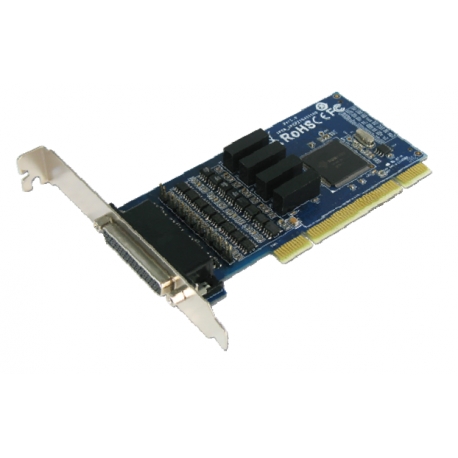

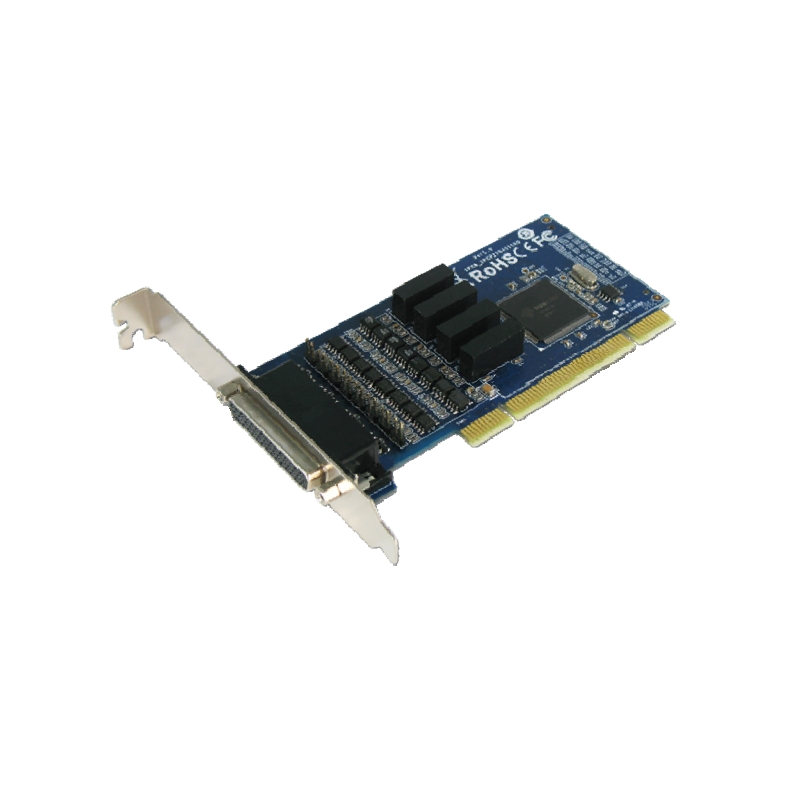

SUNIX IPC-P2104SI, industrial standard universal PCI serial communication card, allows users to expand four RS-422/485 ports on PC-based system.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด


 Spec sheet

 Manual

Introduction

SUNIX IPC-P2104SI, industrial standard universal PCI serial communication card, allows users to expand four RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km.

SUNIX IPC-P2104SI uses on-board 2500V optical isolators which achieve on power and serial signal lines to protect your PC and equipment against damages from ground loops, increasing system reliability in harsh environments. To further increase reliability, this board offers 500W surge protection technology, protecting your system from abrupt high voltage surges, such as those caused by lightning. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.

Features

  • Expands 4 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps
  • High reliability SUN1999 16C950 compatible UART controller on-board
  • Compliance with PCI 33MHz Ver 3.0, 2.3, 2.2 & 2.1 specifications
  • Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power
  • RS-422/485 auto detect and switching technology – jumper and software free
  • AHDC/CS™ technology for collision free communication
  • 2.5 KV Isolation Protection for all signal and power
  • Circuit Damage Protection of 500W Peak Per IEC 61000-4-5
  • Ultra low power consumption design for Green Environment
  • Built-in ±15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval. ( ข้อมูลเพิ่มเติม)
  • Support Microsoft Windows, Linux, and DOS

Specifications

Serial Communication
Interface RS-422/485 Baud rate 50bps ~921.6Kbps
Controller SUNIX SUN1999 Stop bit 1, 1.5, 2
(16C950 UART Compatible)
BUS Universal PCI 64/32bit 3.3V/5V Parity even, odd, none, mark, space
PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 4-port Flow Control Xon/Xoff (software)
IRQ & IO Assigned by System FIFO 128byte Hardware
Signal RS-422: TxD+, TxD-, RxD+, RxD-, GND, RI
4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
2-wire RS-485: Data+, Data-, GND
ESD Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
Surge Protection 500W peak surge protection for all signal lines meet IEC 61000-4-5
Isolation 2.5 KV Isolation Protection for all signal and power
PCB Connector DB44 Female
Driver Support
Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux Linux 2.x / 3.x / 4.x
DOS DOS
Regulatory Approvals
Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B, BSMI: CNS13438, RoHS
Software Microsoft WHQL Windows
• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
Environment
Operation Temperature 0 to 70°C (32 to 158°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension 125 x 63 mm
Bracket Standard 121 mm
Accessory: Low Profile 80 mm
Bracket Space 1

Accessories

Including Accessories


DB44 to 4-port DB9 Male Connection Cable

  • 40 cm
  • Part No.: 1WDB-44M04009D4001
  • 1 pcs.



Download Driver

Driver SUN1999Driver V9.2.2.0(WHQL) icon_download.jpg
Version V9.2.2.0
Update 2021-01-05 09:27:46
Size 9.4MB
OS
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
