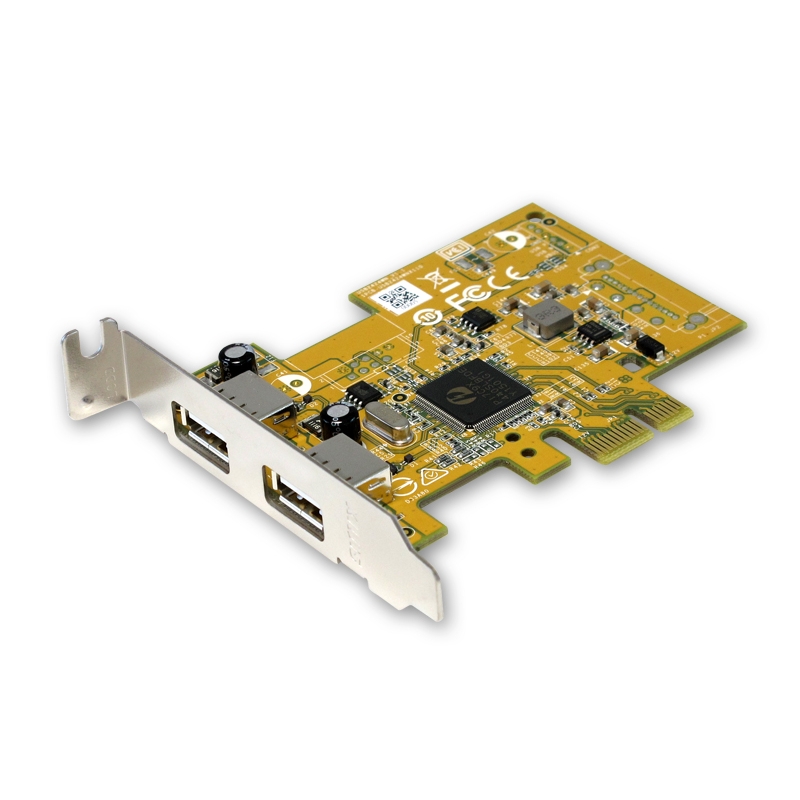

2-port USB 2.0 PCI Express Low Profile Add-On Card
USB2400L
SUNIX USB2400L is a dual-port High-Speed USB 2.0 PCI Express card and the interface has a potential transfer rates of 2.5Gbps using a single-lane (or x1) PCI Express link.
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX USB2400L is a dual-port High-Speed USB 2.0 PCI Express card and the interface has a potential transfer rates of 2.5Gbps using a single-lane (or x1) PCI Express link. With native PCI Express EHCI/OHCI USB 2.0 host controller, this board is driver free under Windows, MAC and Linux operation system and best compatible with existing USB peripheral to your desktop computer. Each USB port supplies maximum +5VDC / 1000mA power output to USB device with over current protection.
The USB 2.0 High-Speed implementation of the Universal Serial Bus standard supports transfer speeds up to 480 Mbps. With USB USB 2.0 High-Speed ports, its make you connect kinds of USB devices and peripheral to your desktop computer instantly and conveniently, such as hubs, data storage devices, PC video cameras, digital cameras, CD-R/RWs, DVD-ROMs, scanners, printers, memory card readers, and more.
Features
- Compliance with PCI Express Base Specification Reversion 1.1.
- Compliant with the Universal Serial Bus (USB) Specification Revision 2.0
- High performance native USB 2.0 PCI Express EHCI/OHCI host controller on board.
- Expands two external USB 2.0 High-Speed Type-A ports on the system.
- Each USB port supports +5VDC power output up to maximum 1000mA.
- Each USB port built-in over current protection fuse
- for safety USB connection.
- Plug-n-Play, I/O address and IRQ assigned by operating system.
- Support USB device Hot-Swapping and Plug-n-Play function.
- n Low profile bracket design idea for slim or portable PC.
- Drivers free under Linux, Apple MAC, Microsoft operation systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval. (
ข้อมูลเพิ่มเติม)
Specifications
Hardware
| BUS | PCI Express Spec 1.1, Single-Lane (x1) |
| Controller | PCI Express USB 2.0 Host controller |
| USB Standard | Enhanced Host Controller Interface (EHCI) and Open Host Controller Interface (OHCI) |
| IRQ & IO | Assigned by System |
Serial Communication
| Interface | Universal Serial Bus 2.0 / 1.1 |
| Speed | High-Speed (HS), Full-Speed(FS) and Low-Speed(LS) Data Transfer rate of 1.5, 12, and 480Mbps |
| No. of Port | 2-port |
| PCB Receptacle | USB 2.0 Type-A Female |
| Protection | ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge |
Power
| Source | PCI Express Bus Power |
| Output Capacity |
+5VDC / Maximum 1.0A / each port
|
| Over Current Protection | Standard USB 2.0 Port: +5VDC / 1.1A@5V PTC fuse / each port |
| Power Consumption | 1.1W @ 3.3V (board only without power output to device) |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POS Ready 2009 / Embedded System |
| Linux | Linux 2.x / 3.x / 4.x |
| Apple MAC | MAC OS X 10.4 or later |
Standards and Certifications
| EMC | CE, FCC, VCCI, BSMI, Class B Standard |
| Green | RoHS, CRoHS, WEEE |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Physical Characteristics
| PCB Dimension | 90 x 68.5 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
Download Driver
| Driver | USB2.0 Windows Inbox Driver |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 64-bit
|
