VGA/Audio Cat 5 Extender with MK Wall Plate (1280 x 1024 @150 m)
VE157

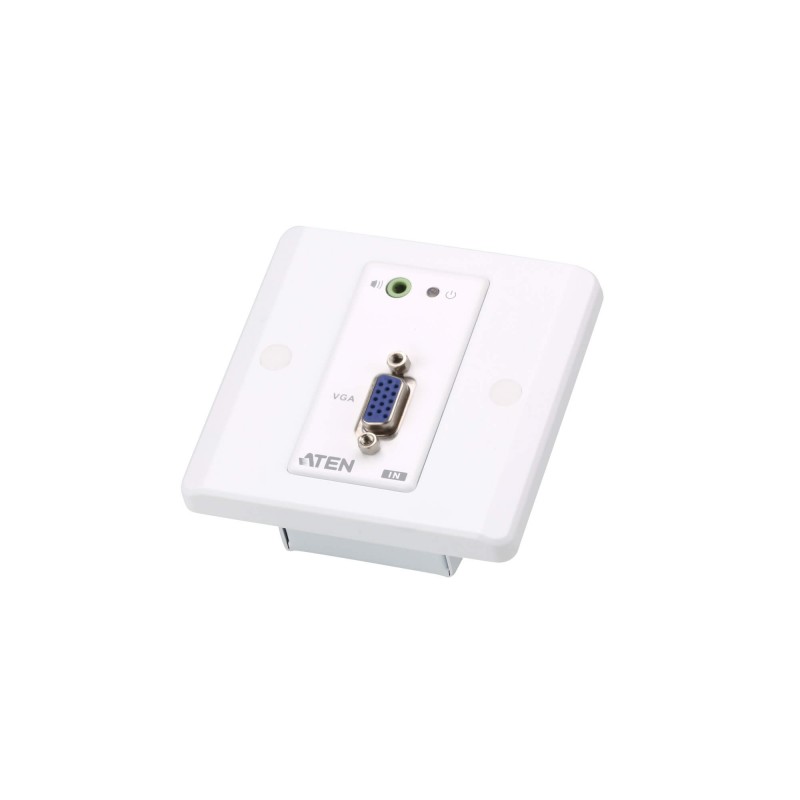

The VE157 VGA/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends VGA and audio signals up to 150 meters over a Cat 5e/6 cable and supports wide screen formats while ensuring excellent video quality.
รับประกัน 3 ปีเต็ม
Features

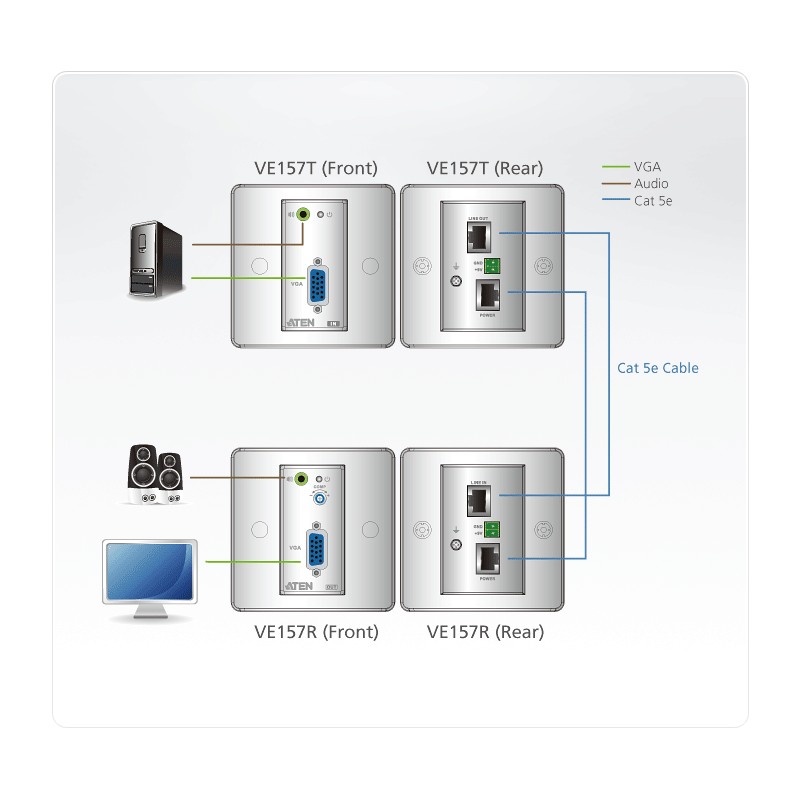

- Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
- Remotely powered from either the Transmitter or Receiver side**
- Extends the distance between VGA source and VGA display
- Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of 30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m

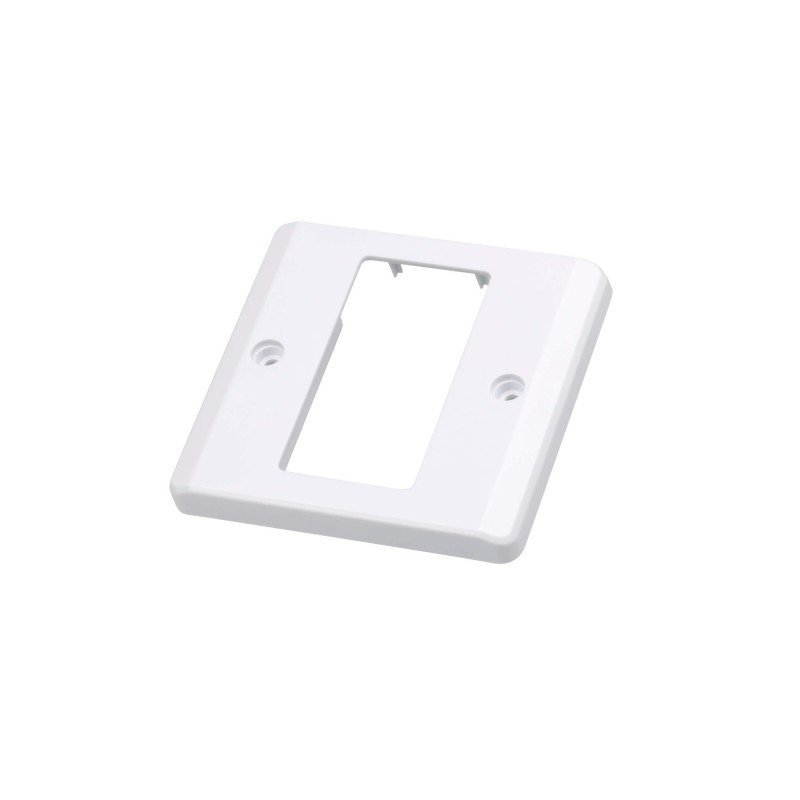

- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
- Adjustable Gain Control – manually adjusts signal strength to compensate for distance
- Supports wide screen formats
- Supports hot- plugging
- Supports stereo audio
- Built- in 8KV/ 15 KV ESD protection
- Plug- and- play with no software installation required
- LED indication of power sources / connection status
* A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
**A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit
