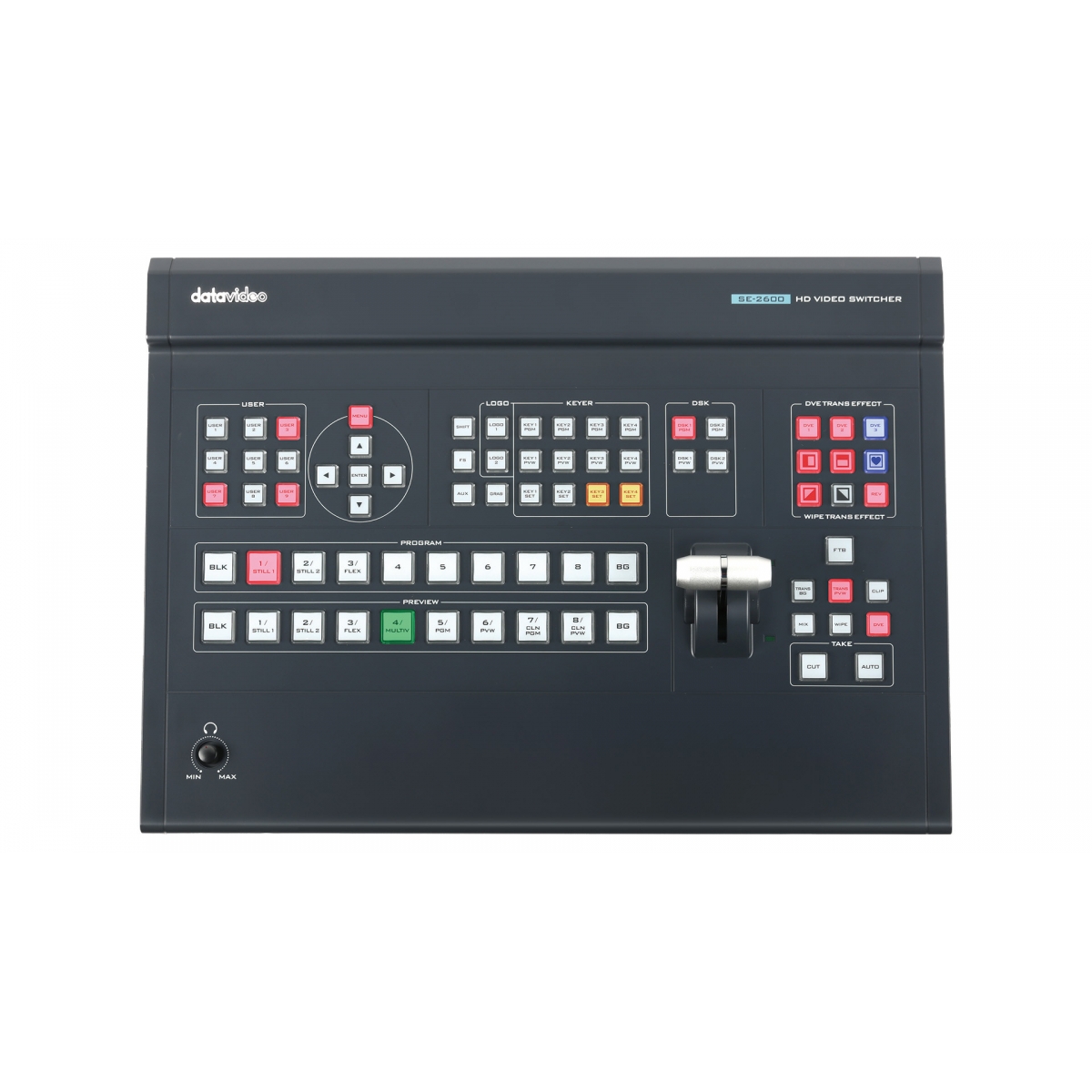

HD 8-Channel Digital Video Switcher
SE-2600
- 8 CH (4 HDMI + 4 SDI input) digital video switcher
- รองรับ 720p / 1080i / 1080p
- 6 Output (3 SDI + 3 HDMI) รองรับ Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source
- รองรับ 4 Upstream key, 2 Downstream key, 4 PIP, 2 Logo
- มาพร้อม Virtual set และ Stinger transition
Manual
All the Essentials for Pro-Quality Production
The SE-2600 series HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional broadcasting. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. Designed for dynamic live events such as e-sports, sports competitions, and concerts, it features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE.
Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.

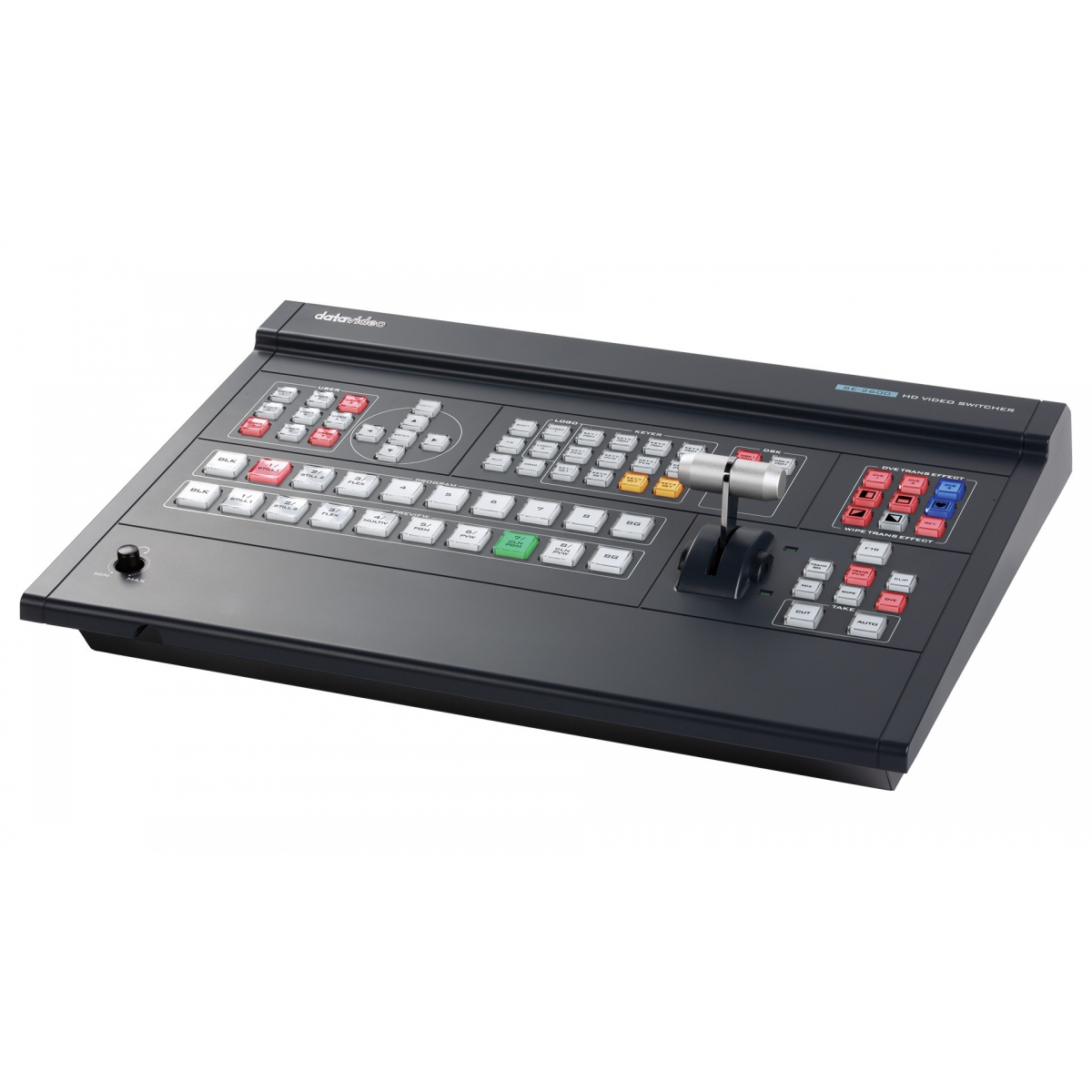

Designed for Easy Installation
SE-2600's base unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher.
Professional Switcher for Studio and Outdoor Broadcast Van
Datavideo 2600 HD 8-Channel Digital Video Switcher designed for various applications from OB vans to standalone switchers, allows broadcasters to rapidly initiate live productions on-site with its quick setup and user-friendly interface.
The SE-2600 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.

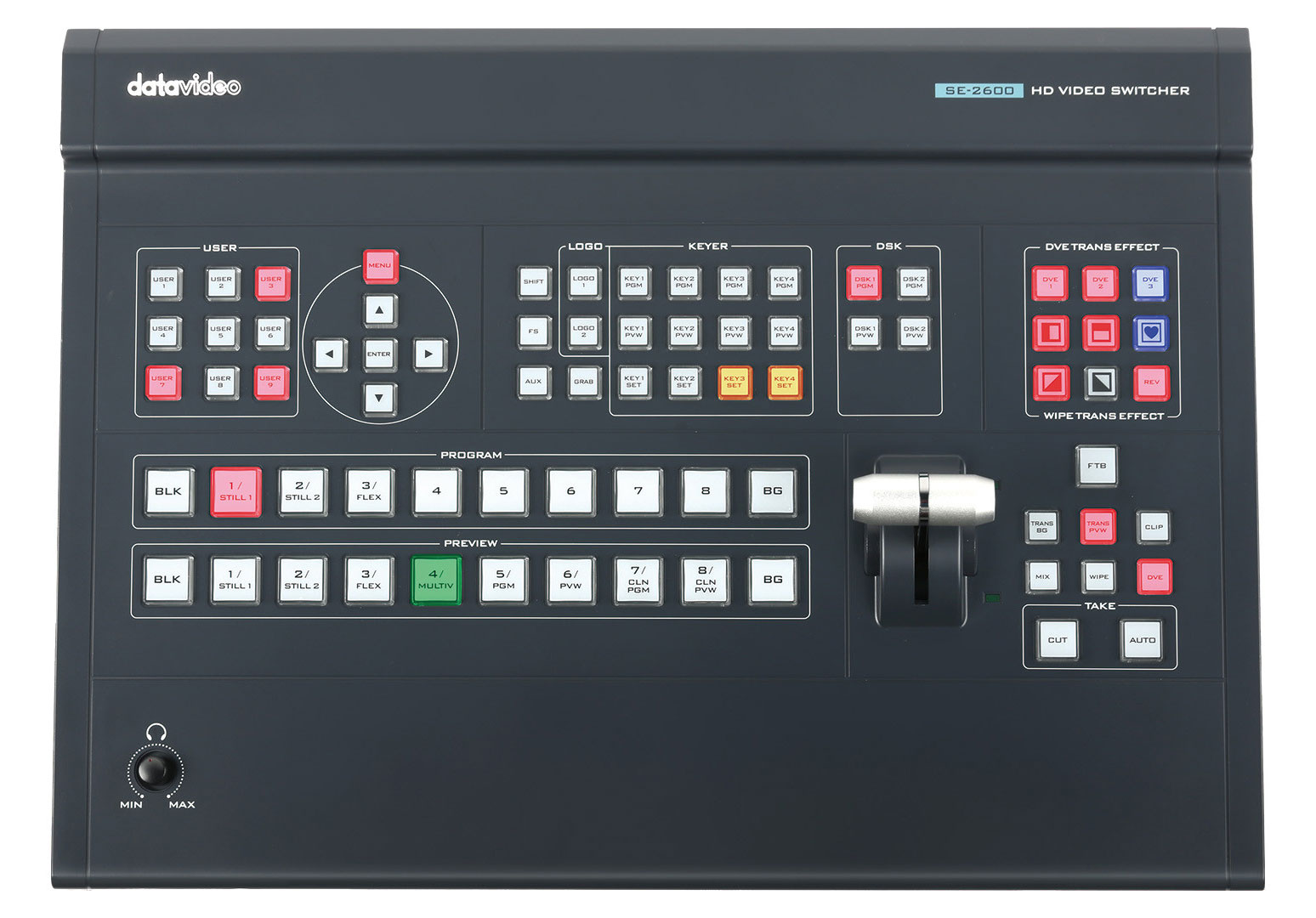

The SE-2600 is designed for medium scale event production. The switcher equips with intuitive and reliable physical buttons.
Supports Full HD 1080P with Scaling on Each Available Input
The SE-2600 switcher is equipped with 8 inputs (4x X SDI+4 X HDMI) and 6 outputs (3 X SDI + 3 X HDMI) to help you produce a sophisticated and professional live event.

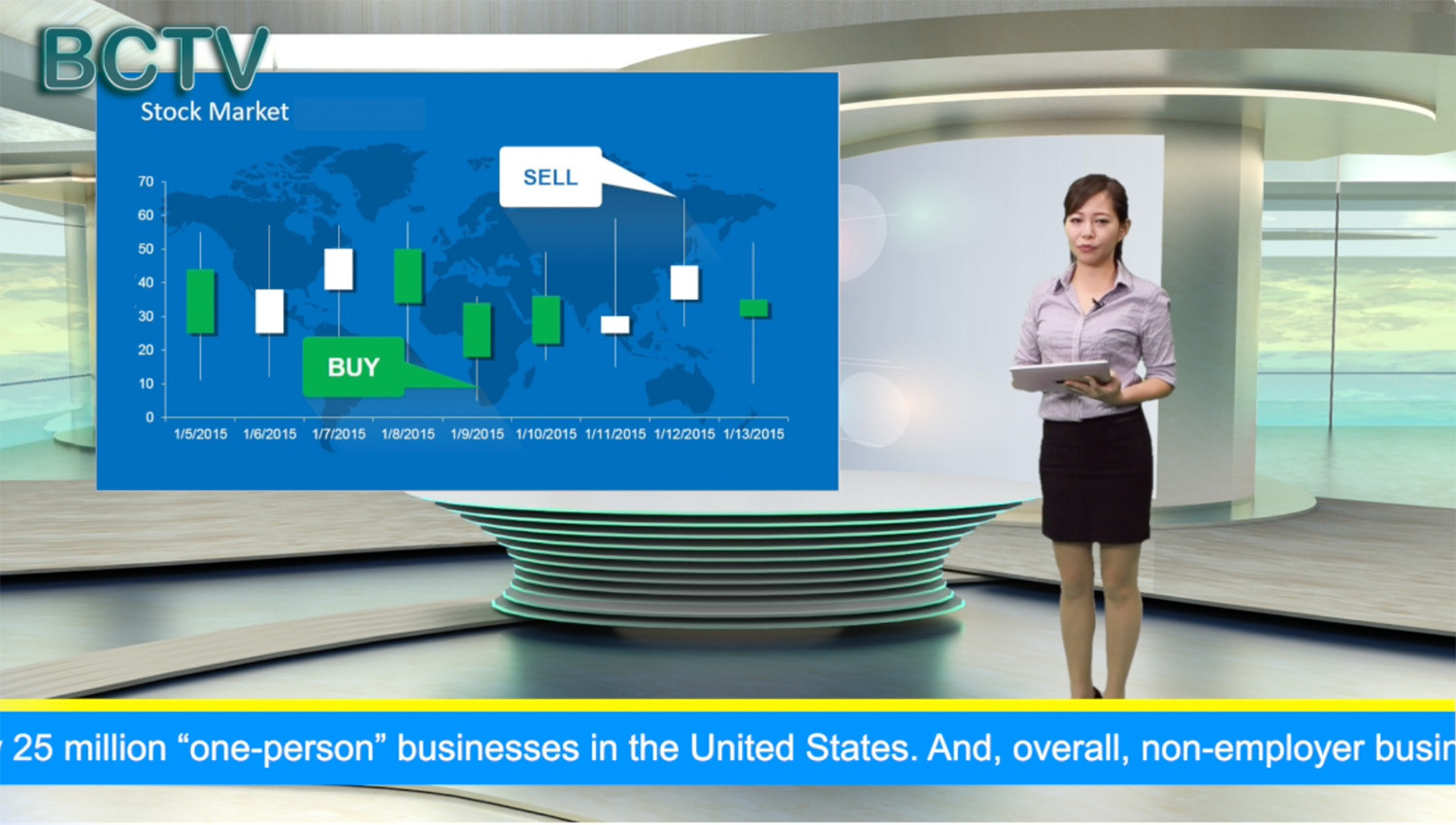

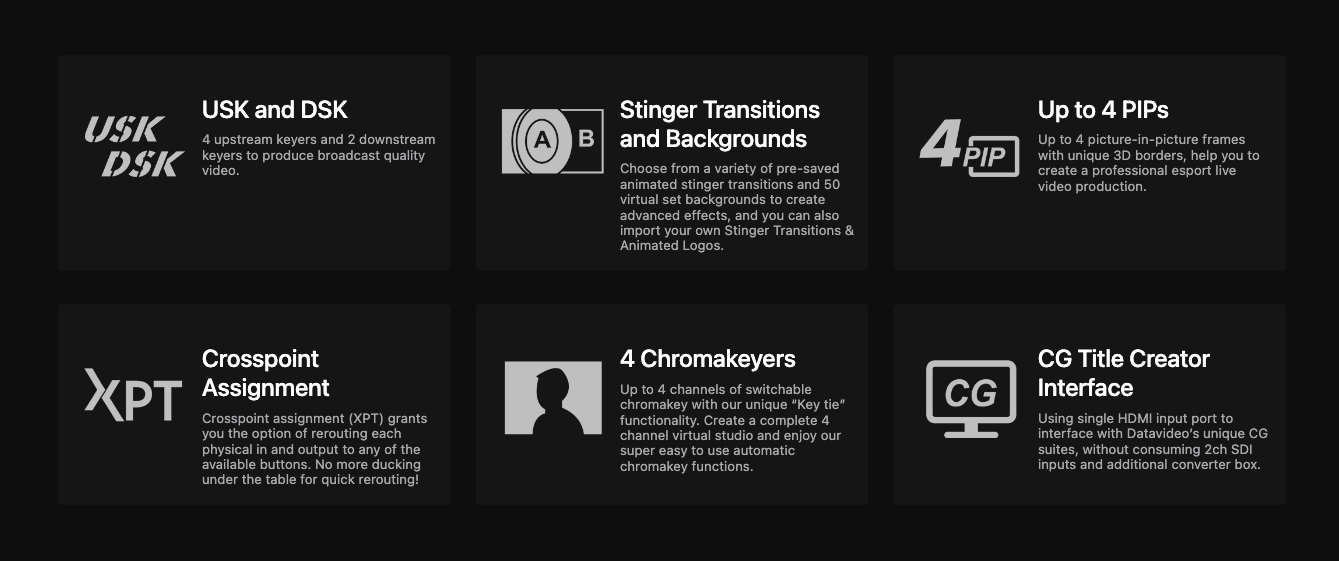

Create Stunning Video Effects with Advanced Features in SE-2600 Switcher
SE-2600 switcher advanced features include 4 PIPs, 4 upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2 X DSKs, and 2 X independent Animated logos, Stinger Transitions and a 2D Transition DVE.

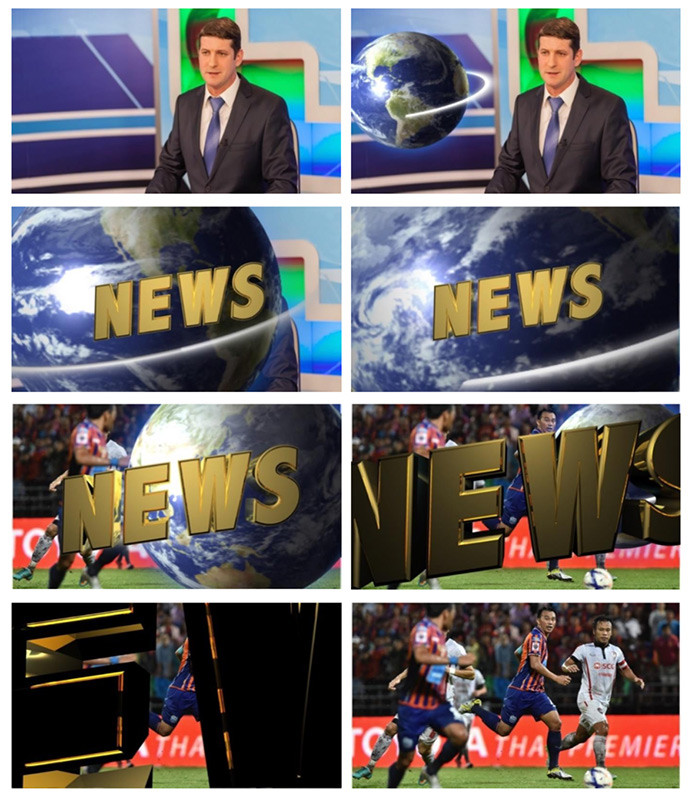

Built-in Stinger Transitions and Backgrounds
Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

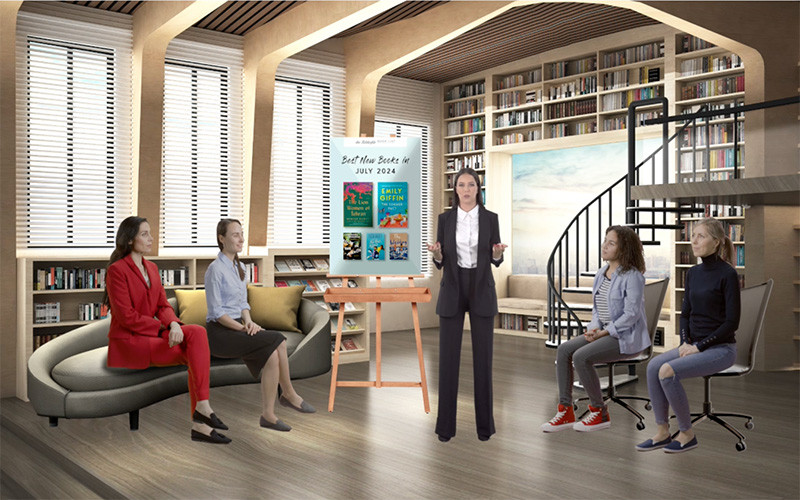

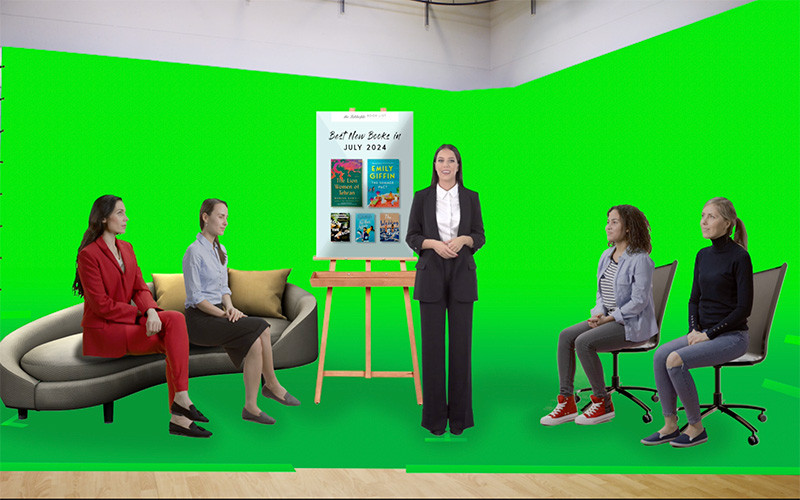

SE-2600 Switcher has 4 Chromakeyers for a Complete Virtual Studio Experience
Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.
Up to 4 Picture-in-Picture Frames with Unique 3D Borders
Create up to 4 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders.

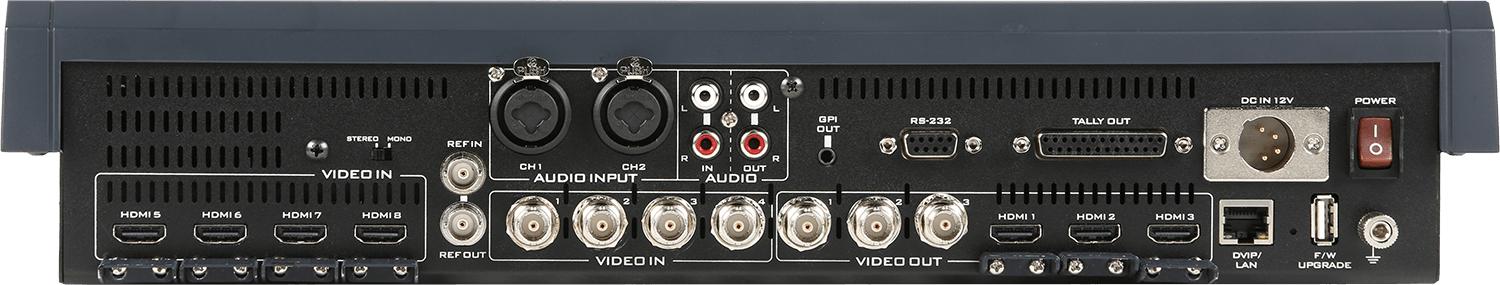

Variety of Video and Audio Input/Output
Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!
Plug-and-Play
There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Professional 10-bit Processing Switcher
The Datavideo SE-2600 excels in video processing with its high-quality capabilities. It supports SDI at 4:2:2, ensuring professional-grade color accuracy and detail. Additionally, the HDMI input supports YUV 4:2:2 and RGB 4:4:4, offering superior color representation and clarity. This makes the SE-2600 an excellent choice for applications requiring meticulous video quality, such as live production and broadcasting. Its ability to process video in these high standards ensures vibrant, lifelike images and seamless integration into professional workflows.

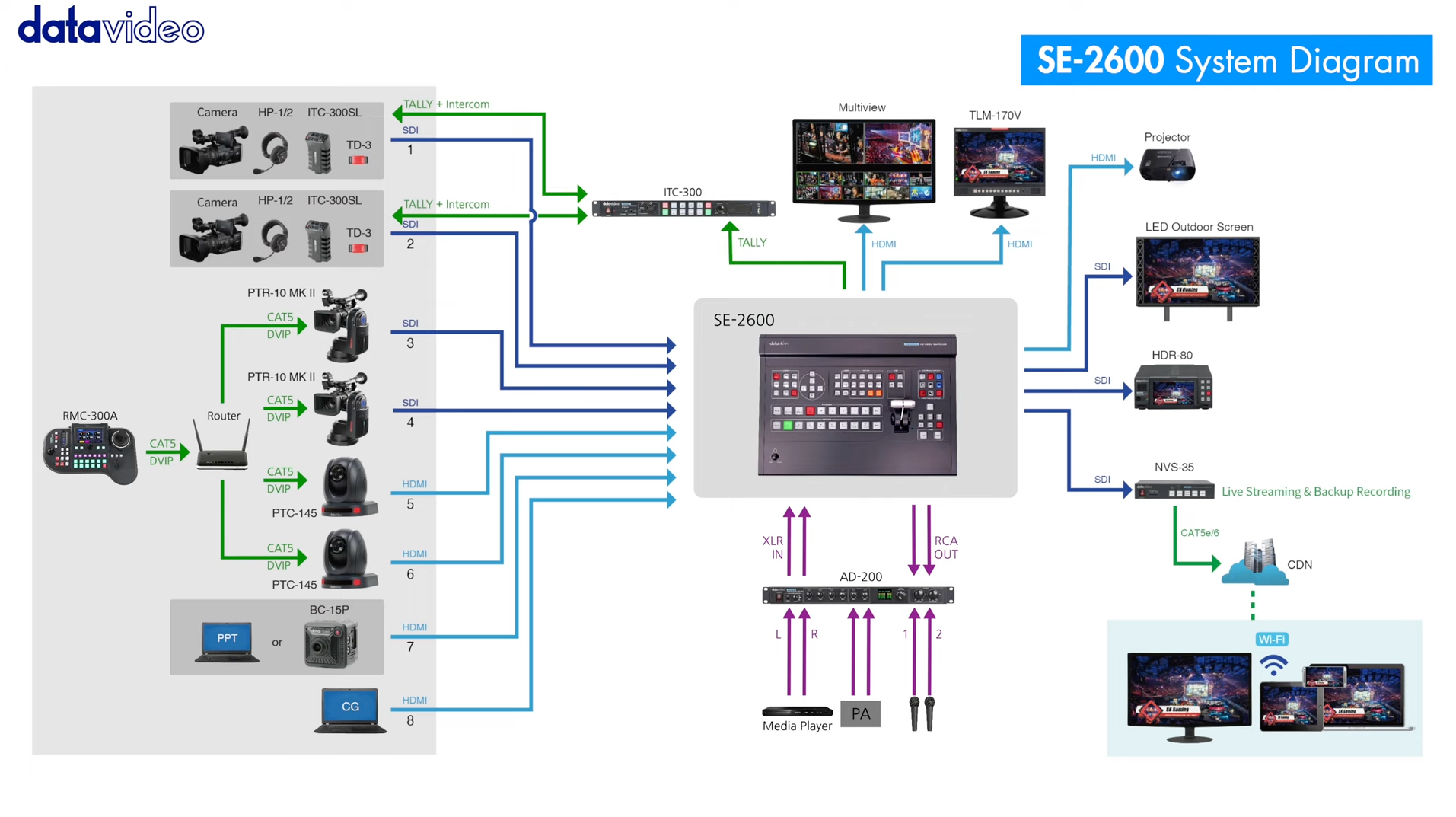

Diagram
Specifications
| Video Standard | Full HD |
| Video Format | Input: 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz Output: 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4 |
| Input Routable / Crosspoint | YES |
| Video Input | Total 8 live inputs 4 x SDI 4 x HDMI |
| Computer Graphic Interface | 4 via HDMI |
| Video Output | 3 x SDI 3 x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source |
| Down-Converted Output | 1x SDI |
| Built-in Multi-view Monitoring Out |
HDMI & SDI assignable |
| Analogue Audio Input | 2 x XLR/MIC (6.3mm) Combo Socket 1 x Stereo RCA set (L/R) |
| Analogue Audio Output | 1 x Stereo RCA set (L/R) |
| Digital Embedded Audio Support |
SDI Input/Output 4 channels, HDMI Input/Output 2 channels |
| Audio Delay Calibration | Up to 16 fields or 8 frames per channel |
| A+V Switching | Yes |
| Chromakey | 4 |
| Title Creator | Yes |
| USK | 4x Keyer support Chromakey/ Linear/ Luma Key |
| DSK | 2x DSK support Lumakey & Linear key (Key / Fill) |
| Picture in Picture | 4 |
| Logo Insertion | 2 |
| Still Store | 999+ (1080p) |
| Effects | Cut, Auto, WIPE, Mix, DVE, Stinger |
| Transition Preview | Full transitions preview |
| Sync / Reference In/Out | 1 x BNC Ref in 1 x BNC Ref out (loop-through) |
| Tally Output | 1x D-sub 25pin, dual color |
| PC Remote Control | RS-232 / DVIP (Ethernet) |
| Firmware Update | USB |
| Special Features | User Memory Preset Free Virtual Set and Stinger transition included |
| Chassis | Unibody |
| Dimension (LxWxH) | 431*313.2*84 mm |
| Weight | 3.8 kg |
| Power | DC 12V, 82W |
| Operating Temp. Range | 0~40 °C |
| What's in the Box | 1 x SE-2600 product 1 x AD Switch DC 12V 1 x AC Cord |
