VW-PWR01
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

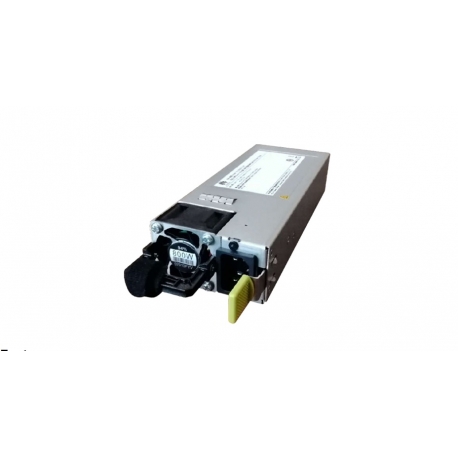

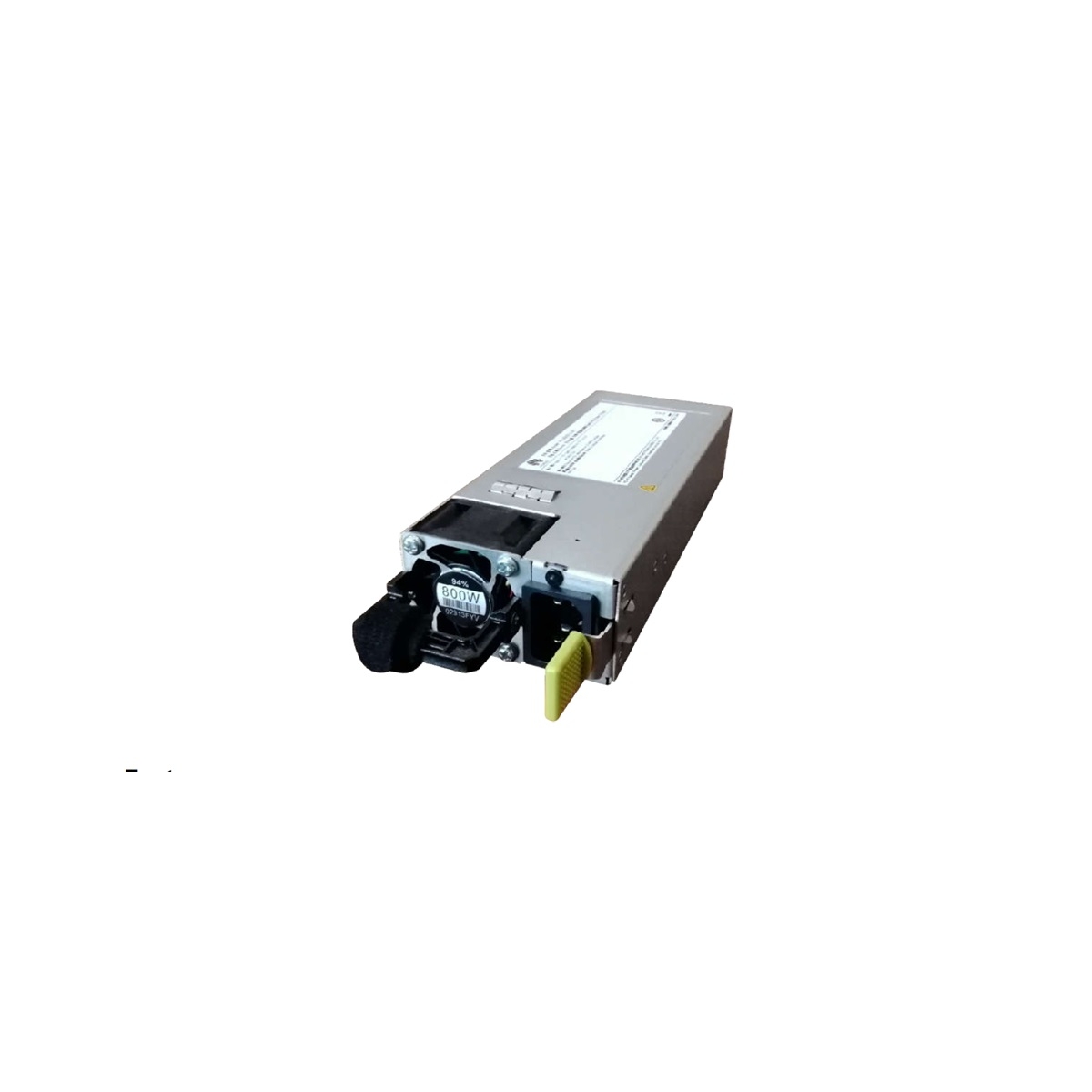

Backup Power Supply for Video Wall Controller
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
1. Power & Redundancy Features
The redundant power supply will automatically take over without interrupting the operation of the controller.
Redundancy Support: N+1 ($N le 3$) redundancy is supported
Hot-Plug Capability: Hot-plug capable
2. Electrical Specifications
Input Voltage Range: 90 – 264 V AC
Power Grid: 220 V AC single-phase / Supports 240HVDC
Output Power: 800 W
Efficiency: 80 PLUS certified “Platinum” efficiency: 94%
(Conditions: Vin = 230 V AC; 12 V / 31.25 A, 12 VsB / 1 A; without fan)
3. Control & Thermal Management
Communication Interface: PSMI communication interface for controlling, programming, and monitoring
Cooling System: With speed-controllable fan
4. Protection Features
Input Protections: Input undervoltage, overvoltage, overcurrent, and short circuit protection
Output Protections: Output overcurrent, overvoltage, and short circuit protection
Thermal Protection: Overtemperature protection
5. Physical Specifications
Dimensions (Depth x Width x Height): 185 mm x 73.5 mm x 40–40.5 mm (7.28 in. x 2.89 in. x 1.57 in.)
Weight: About 1 kg
AC-DC PSU 90-264 V AC Input12 V DC/12 VSB DC Output800 W Power
