KVM extender system for 4K-UltraHD resolution

DL-Vision

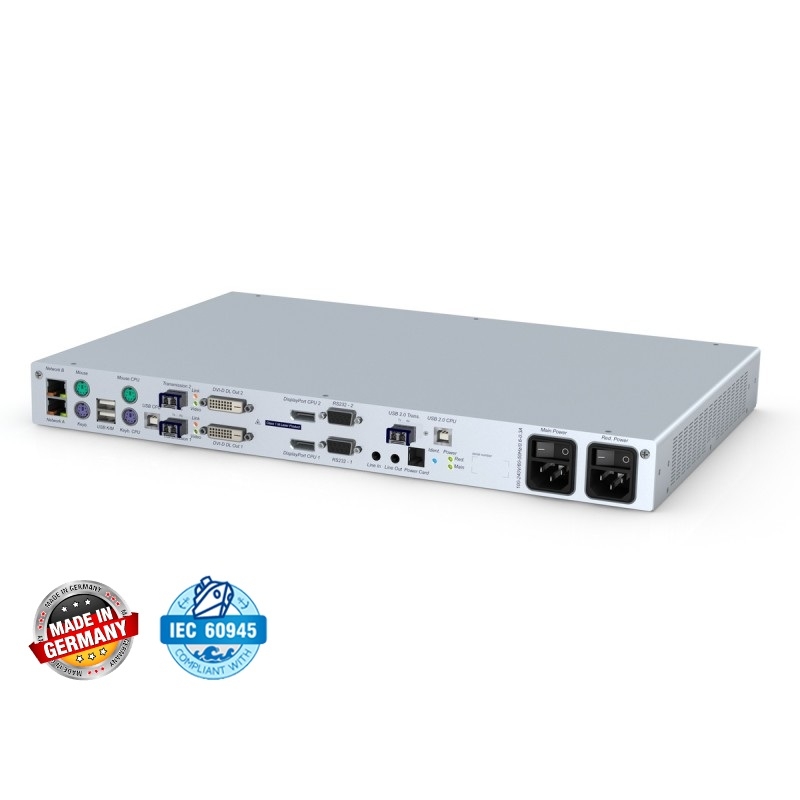

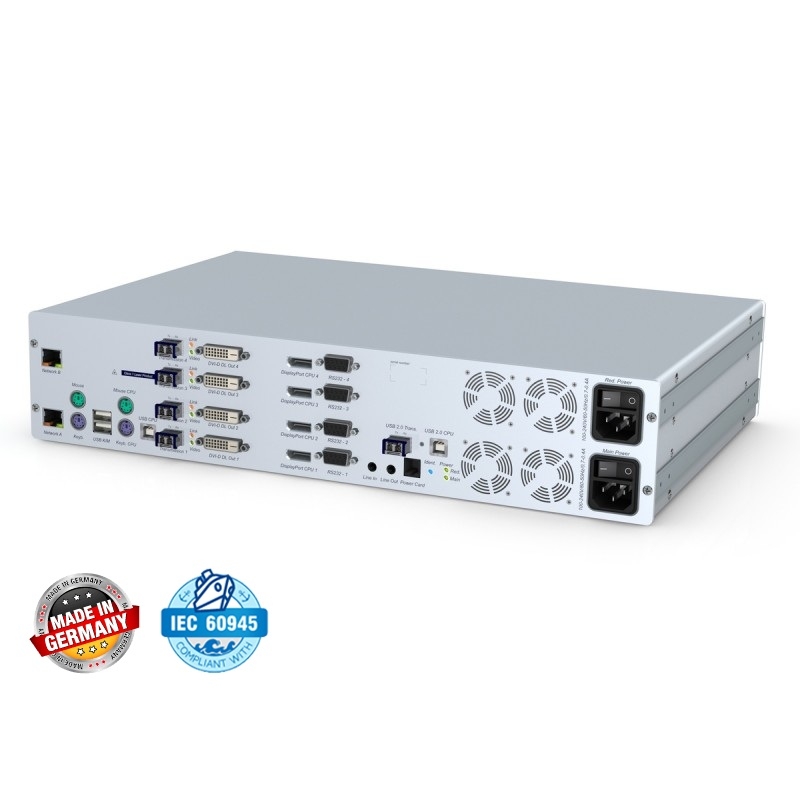

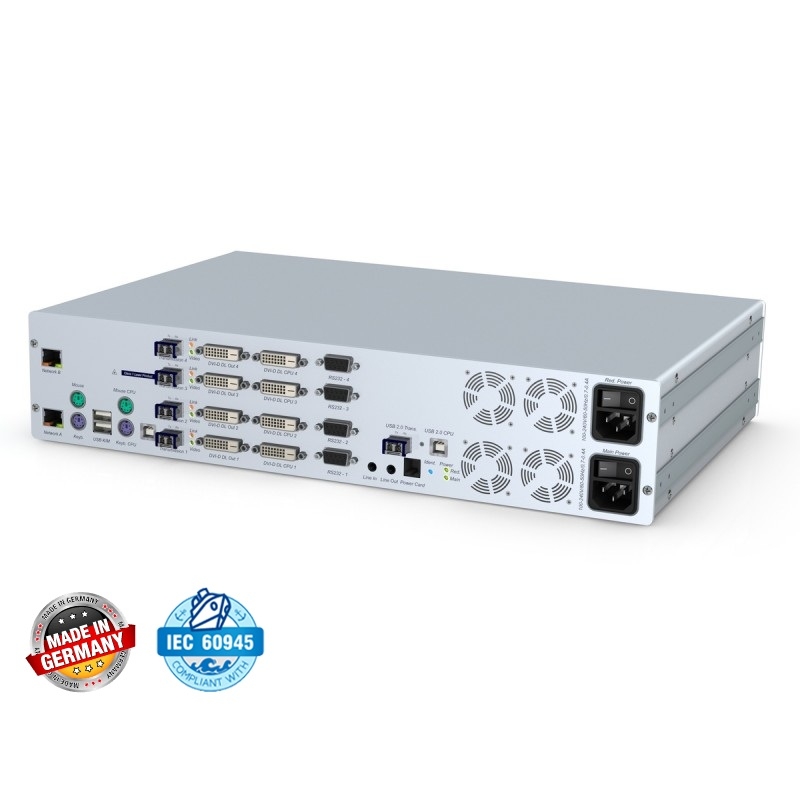

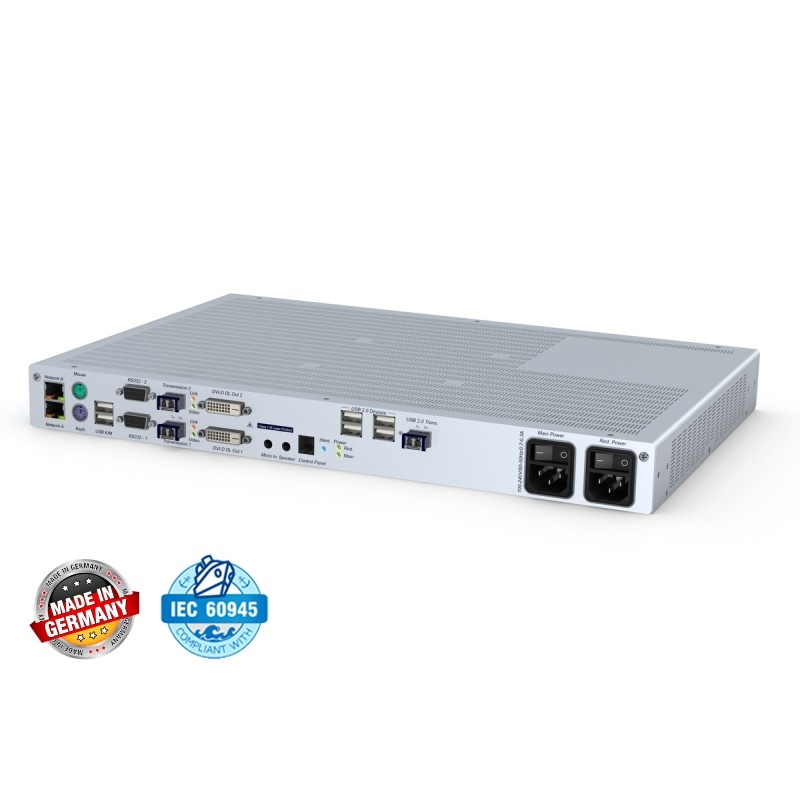

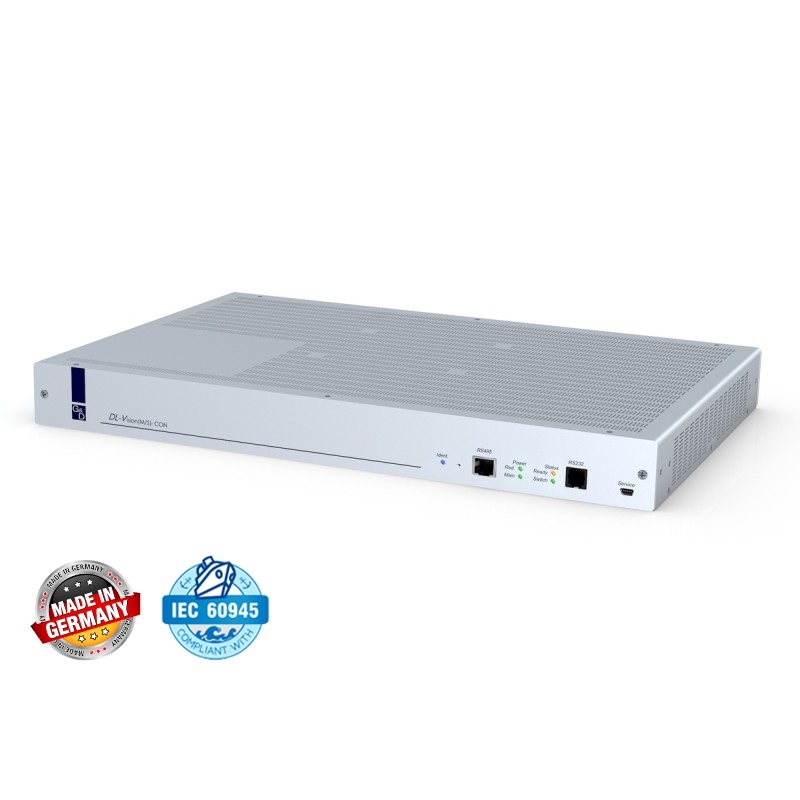

The system consists of a computer module (transmitter) and a user module (receiver) and facilitates the remote operation of one computer. At each module, a console can be connected.

รายละเอียดเพิ่มเติม


Spec


รับประกัน 3 ปี

The system consists of a computer module (transmitter) and a user module (receiver) and facilitates the remote operation of one computer. At each module, a console can be connected.

DL-Vision(M/S) uses optical fibres (two fibres) to transmit uncompressed and lossless signals up to 400 or 10,000 m. The devices are available as variants displaying one, two or four video channels.

With its network port, the web interface and monitoring functions, the DL-Vision(M/S) system offers important features for mission-critical applications.

DL-Vision with DisplayPort: DL-Vision-DP

G&D has expanded their extender portfolio with a new variant including DisplayPort. The extender DL-Vision-DP uses optical fibers to transmit signals and is compatible with DL-Vision (M/S).

Thus, both systems can be combined. The versatile portfolio offers variants with up to four video channels and supports resolutions up to 4K.

Features

4K-UltraHD resolution for DisplayPort and Dual-Link-DVI

Resolutions up to 4K (at 30 Hz) are transmittable per channel.

Supports DDC/CI protocol

The DL-Vision extender systems now offer support for the DDC/CI protocol. Thus, the screens in the control room can be automatically configured and the brightness of the screens, for example, is simply adjusted to the external light conditions

DLV-Monitoring

With the DLV-Monitoring function, you can auto-output device status messages to Syslog servers or SNMP. The web interface lets you monitor the device manually. The Monitoring function of the DL-Vision(M/S) queries the following values:

  • Proactive monitoring of device states
  • Event reporting function (Syslog or SNMP traps)
  • Status power supply unit (on/off)
  • Status temperature threshold device (in/over limit)
  • Status connection cable (ok/nok)
  • Status computer (on/off)
  • Status image signal graphics card computer (available/not available)
  • Status of access settings (what rights are assigned to the user?)

Easier access with SNMP tool Zabbix

For customers who are not yet using extensive SNMP tools, G&D offer a simple way to use the functions included in the devices. Templates for the open source tool Zabbix are provided here. The program lets users monitor SNMP-capable devices in a network and, among other things, issues warning notifications about critical device states, which have been received via SNMP trap.

Network / Communication / Safety

  • Two network interfaces
  • Link aggregation increases reliability of network ports
  • Configuration over web interface
  • Monitoring and reporting of operating status over web interface
  • Report and request of system status via SNMP trap and agent
  • Logbook: electronic notes about the device; can be exported as .csv file
  • Ident-LED facilitate locating of devices in complex installations
  • Redundant power supply

Screen-Freeze Function

If the display loses the video signal due to a broken connection or a problem with the computer's graphics card, the Screen-Freeze function "freezes" the image last displayed on the monitor. This state is highlighted by a red semi-transparent frame. Meanwhile, the current time and the downtime of the video signal is displayed. The function is automatically cancelled when the display receives an active video signal.

Details

Video

  • Single- and dual-link DVI
  • Resolution per channel up to 2560 x 1600 @ 60 Hz or 2048 x 2048 @ 60 Hz or 4K (4096 x 2160) @ 30 Hz
  • 2k resolution (2048 x 2048 @ 60 Hz)
  • The MC channels of the DL-Vision are working source synchronously. Therefore 4K content, for example, can be splitted in 2 x 2K@60 Hz or 4K@120Hz via 4 x Full-HD@120Hz
  • Uncompressed, lossless transmission in 1:1 performance
  • Support of Barco PVS graphics card
  • Single- and multi-channel variants
  • Backwards compatibility to single link DVI
  • Video bandwidth up to 330 Mp/s
  • 24 bit colour mode
  • Transparent forwarding of E-DDC information
  • Generic implementation of DDC/CI information possible

Operation

  • Console with all video channels at both modules

Signals

  • PS/2 and USB keyboard/mouse support
  • Audio and RS232 transmission included in standard

Transmission

  • 10,000 m over a pair of fibers (9/125 µm, 2,000 MHz*km, OS1)
  • 400 m over a pair of multimode fibers (50/125 µm, 4.700 MHz*km, OM4)
  • 300 m over a pair of multimode fibers (50/125 µm, 2,000 MHz*km, OM3)
  • 82 m over a pair of multimode fibers (50/125 µm, 500 MHz*km, OM2)
  • 66 m over a pair of multimode fibers (50/125µm, 400 MHz*km)
  • 33 m over a pair of multimode fibers (62.5/125 µm, 200 MHz*km, OM1)
  • 26 m over a pair of multimode fibers (62,5/125 µm, 160 MHz*km, FDDI-grade)
  • Uncompressed, lossless transmission with 1:1 performance
  • Connection over 2 × LC single plugs
  • Bidirectional transmission of audio and RS232 as default
  • Screen Freeze function as default
  • Transparent transmission of USB 2.0

Device

  • Galvanic separation of transmitter and receiver
  • Insensitive to interference radiation
  • Two integrated network ports
  • Configuration via web interface
  • Redundant power supply
  • PS/2 and USB keyboard/mouse supported - even mixed operation
  • Permanent keyboard/mouse emulation
  • Available as desktop and rack mount version

System update

  • Over the config panel

Variant

DisplayPort variant

Also available as DisplayPort variant - DL-Vision-DP

Design

  • Units are supplied as desktop variants
  • 19" rackmount kit included

Video channels

  • Single-channel, multi-channel 2 or 4 variant

Expansion

KVM-NetworkCenter-Support

DL-Vision(M/S) uses the network to communicate with the appliance KVM-NetworkCenter. When employing more than one DL-Vision(M/S), you can query and configure the devices by using the KVM-NetworkCenter.

DLV-Power

DLV-Power enables you to power on or power off a computer remotely (reset and ATX power switching) over an implemented slot card, which is connected to the computer module. The customer provides the required operating hardware at the remote side (e.g. a button), which is connected to the user module.

The function is available for all DL-Vision(M/S) variants. For further details, please contact our sales team.

Single-Channel variants

Multi-Channel variants
