KVM Extender transmission of DVI and VGA over fibre optics
KVM Extender transmission of DVI and VGA over fibre optics KVM Extender transmission of DVI and VGA over fibre optics KVM Extender transmission of DVI and VGA over fibre optics KVM Extender transmission of DVI and VGA over fibre optics KVM Extender transmission of DVI and VGA over fibre optics

KVM Extender transmission of DVI and VGA over fibre optics

LwLVision

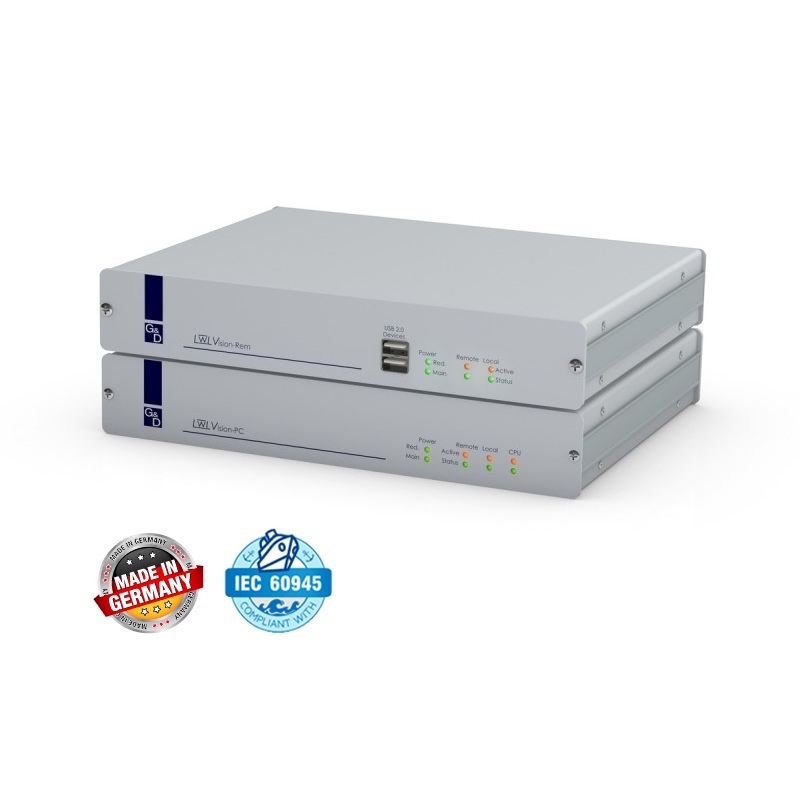

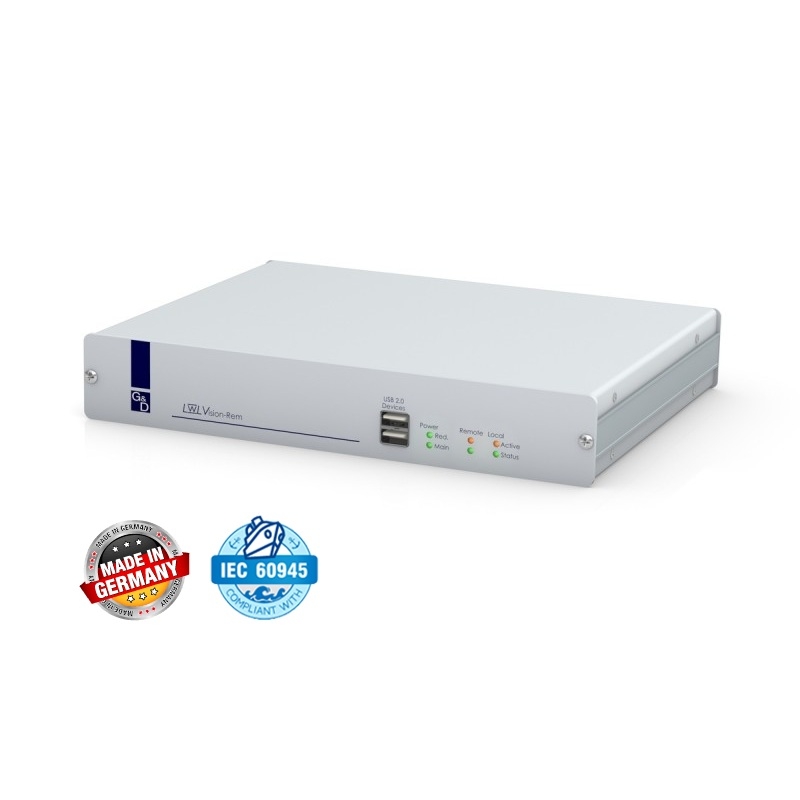

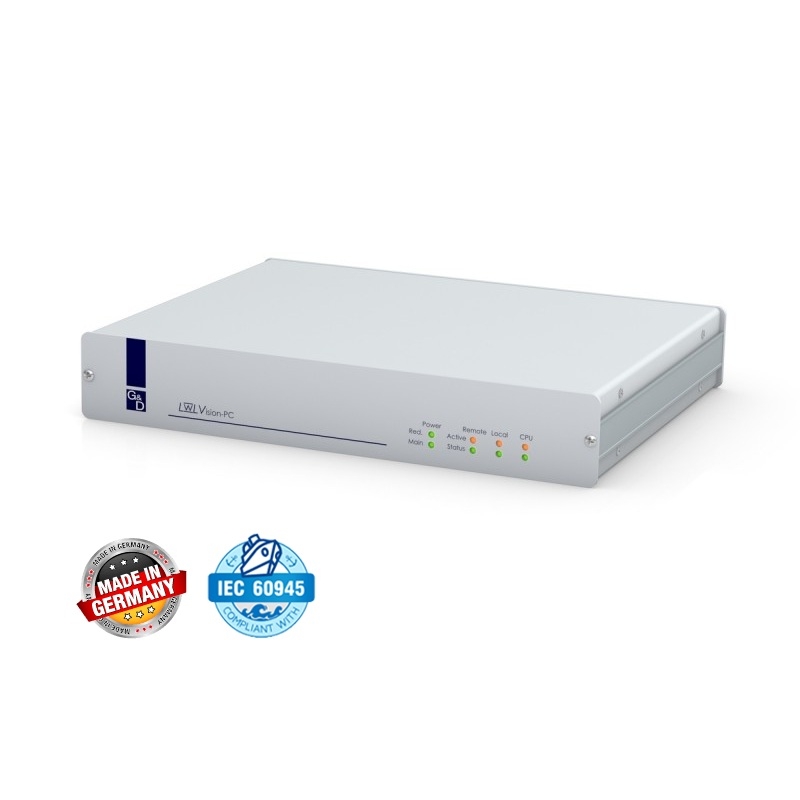

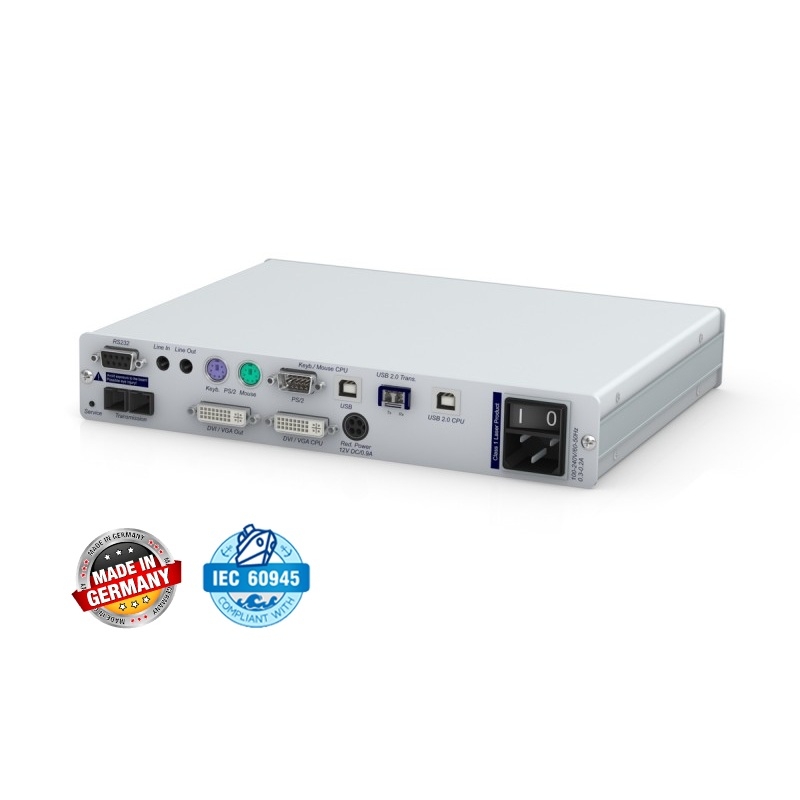

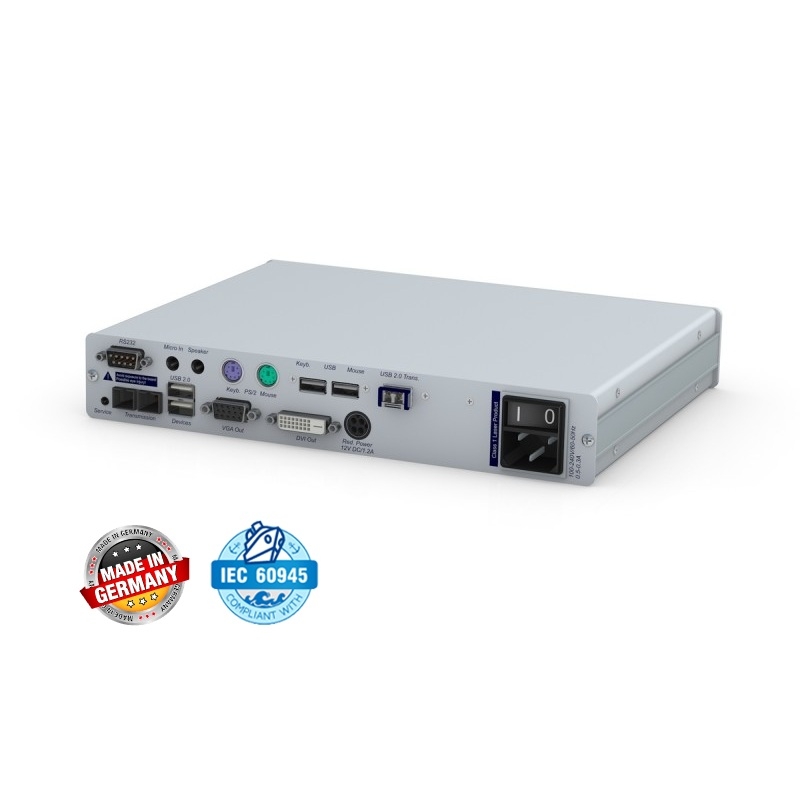

The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer remotely. You can connect a console to each module.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


Spec


รับประกัน 3 ปี

The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer remotely. You can connect a console to each module.

LwLVision transmits uncompressed signals over fibre optics (2 fibres) up to 10,000 m. The devices are available as variants displaying one or two video channels.

Features

Video

  • Single-link DVI + VGA at output

Communication / Safety

  • Redundant power supply
  • Access protection and user management can be switched off

Details

Video

  • Single-link DVI and VGA at input and output side
  • Single- and multi-channel variants
  • Resolutions per channel up to 1920 × 1200 @ 60 Hz
  • Video bandwidth up to 165 MPixel/s
  • 24 bit colour mode
  • Supports digital and analog monitors

Operation

  • Console with all video channels at both modules

Signals

  • PS/2 and USB keyboard/mouse support
  • Audio and RS232 transmission included in standard

Transmission

  • Distances up to 10,000 m (2 × Singlemode 9/125µm fiber optics)
  • at maximum resolution
  • Distances up to 550 m (2 × Multimode 50/125µm fiber optics)
  • at maximum resolution
  • Distances up to 260 m (2 × Multimode 62.5/125µm fiber optics)
  • at maximum resolution
  • Bidirectional transmission of audio and RS232 integrated in standard
  • Transparent USB up to 2,000 m (optional)

Device

  • Galvanic separation of transmitter and receiver
  • Insensitive to interference radiation
  • PS/2 and USB keyboard/mouse supported; allows mixed operation
  • 100 % permanent keyboard/mouse emulation
  • Redundant power supply (optional)
  • Available as desktop, rack mount, and twin version

System upgrade

  • At service socket

Variants

Design

  • Available as desktop (DT) or rack mount (RM) variant
  • Twin variant combines two identical LwLVision modules behind one panel

Video channels

  • Single-channel and multi-channel 2 variant

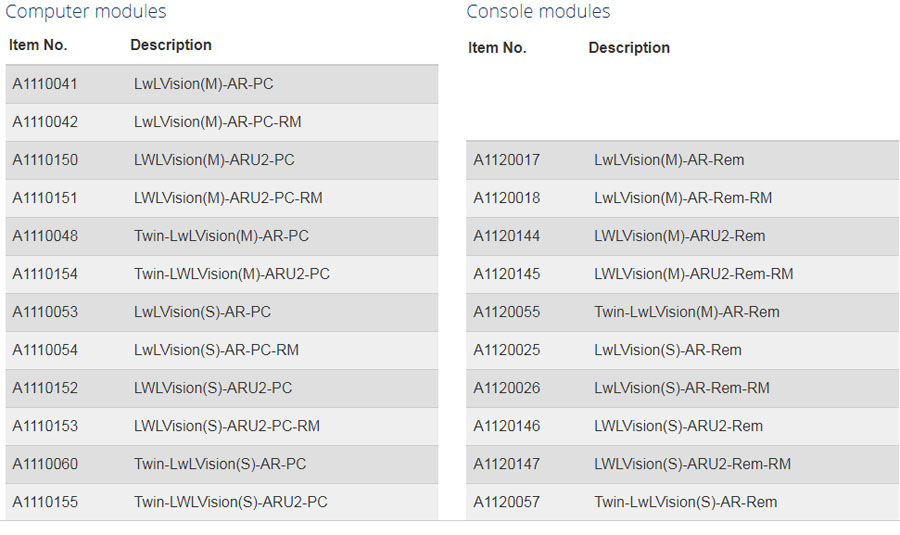

Lists of Item Numbers

Single-Channel variants

Multi-Channel variants
