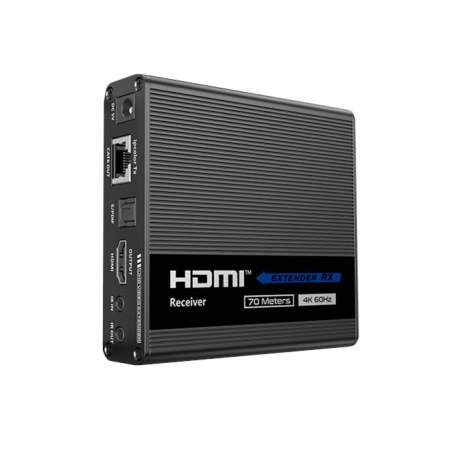

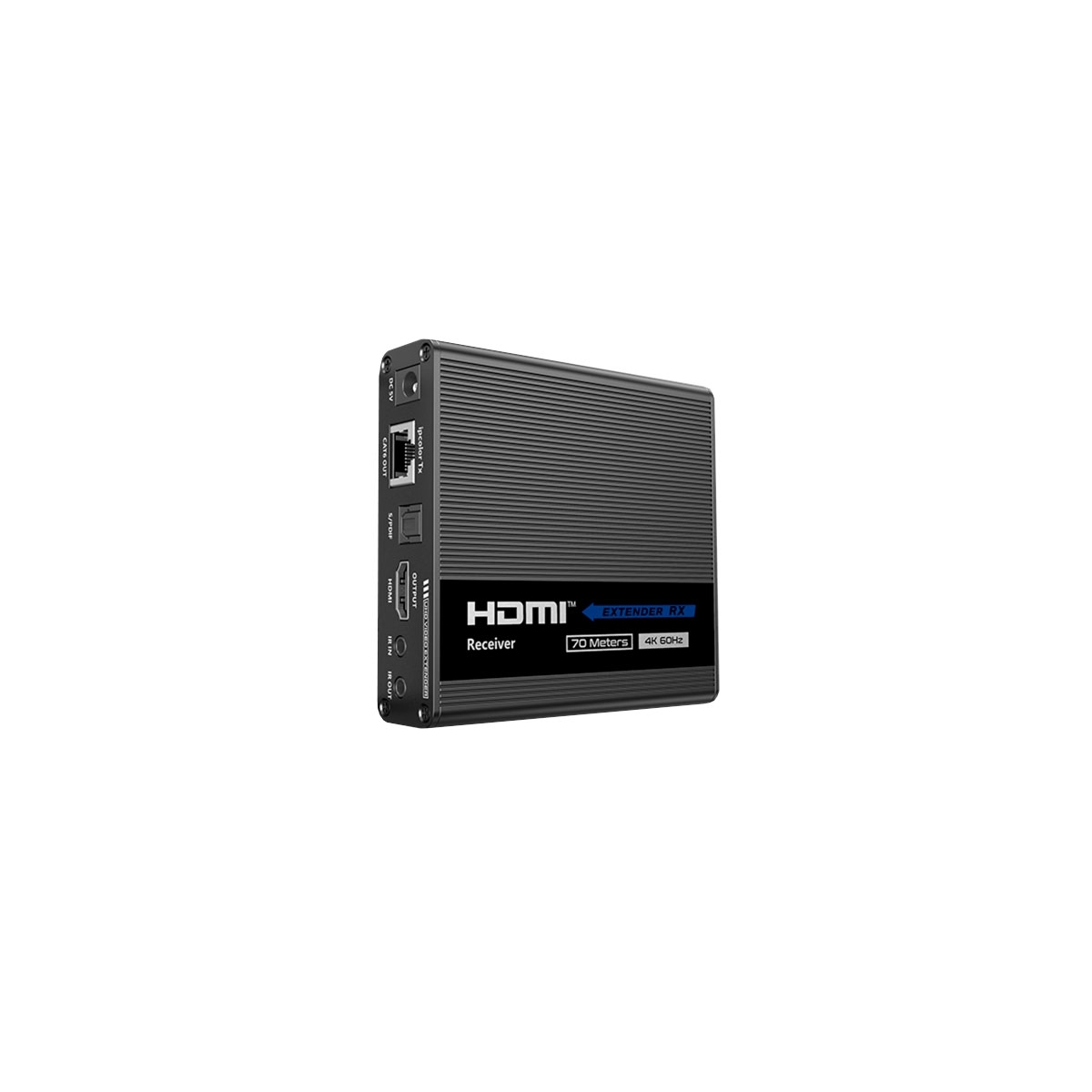

LE-UH70CR
อุปกรณ์ตัวรับขยายสัญญาณ HDMI 70 เมตร ความละเอียดสูงสุด 4K ผ่านสาย CAT6/6A/7 เชื่อมกันแบบ Cascade ได้ (ต้องใช้คู่กับตัวส่ง LE-UH70C)
ควรใช้สาย CAT6 600MHz ขึ้นไป ไม่รองรับการใช้ร่วมกับสาย CAT5/CAT5e

รองรับการต่อพ่วงแบบ cascade สูงสุด 10 ตัวรับ และในแต่ละตัวรับก็แสดงภาพออกที่หน้าจอได้ด้วย
* ต้องใช้คู่กับ LE-UH70C (ไม่รวมใน package)



รองรับความละเอียด 4K@60Hz HDR10 widerdynamic range และ color gamut

กระบวนการผลิตภัณฑ์มีความน่าเชื่อถือและส่งสัญญาณได้เสถียรยิ่งขึ้นด้วยชิปดิจิตอลประสิทธิภาพสูง



| Model | LE-UH70CR |
|
Voltage/Current
|
DC5V/2A |
| Power consumption | RX<4W |
|
HDCP compliance
|
HDMI2.0 HDCP 2.2
|
|
HDMI resolution
|
3840x2160@24/25/30/50/60Hz
|
|
Supports audio formats
|
LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1CH/Dolby Digital 5.1CH |
|
Input and output DDC signal
|
0.7~ 1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL |
| Input cable length | ≤8m(AWG24) |
| CAT6/6A/7 | ≤70m |
| Electrostatic protection of the whole machine | 1a Contact discharge level 3 1 b Air discharge level 3 Implementation of the standard: IEC61000-4-2 |
| Working temperature | -20~60℃ |
| Storage temperature | -30~ 70℃ |
| Humidity (no condensation) | 0~ 90% RH |
| Dimension | 106.0(L)x99.0(W)x26.2(H)mm |
| Material | Aluminium alloy material+crystal panel |
| Treatment process | Grit blast |
| Color | Black |
| Weight | RX: 210g |
