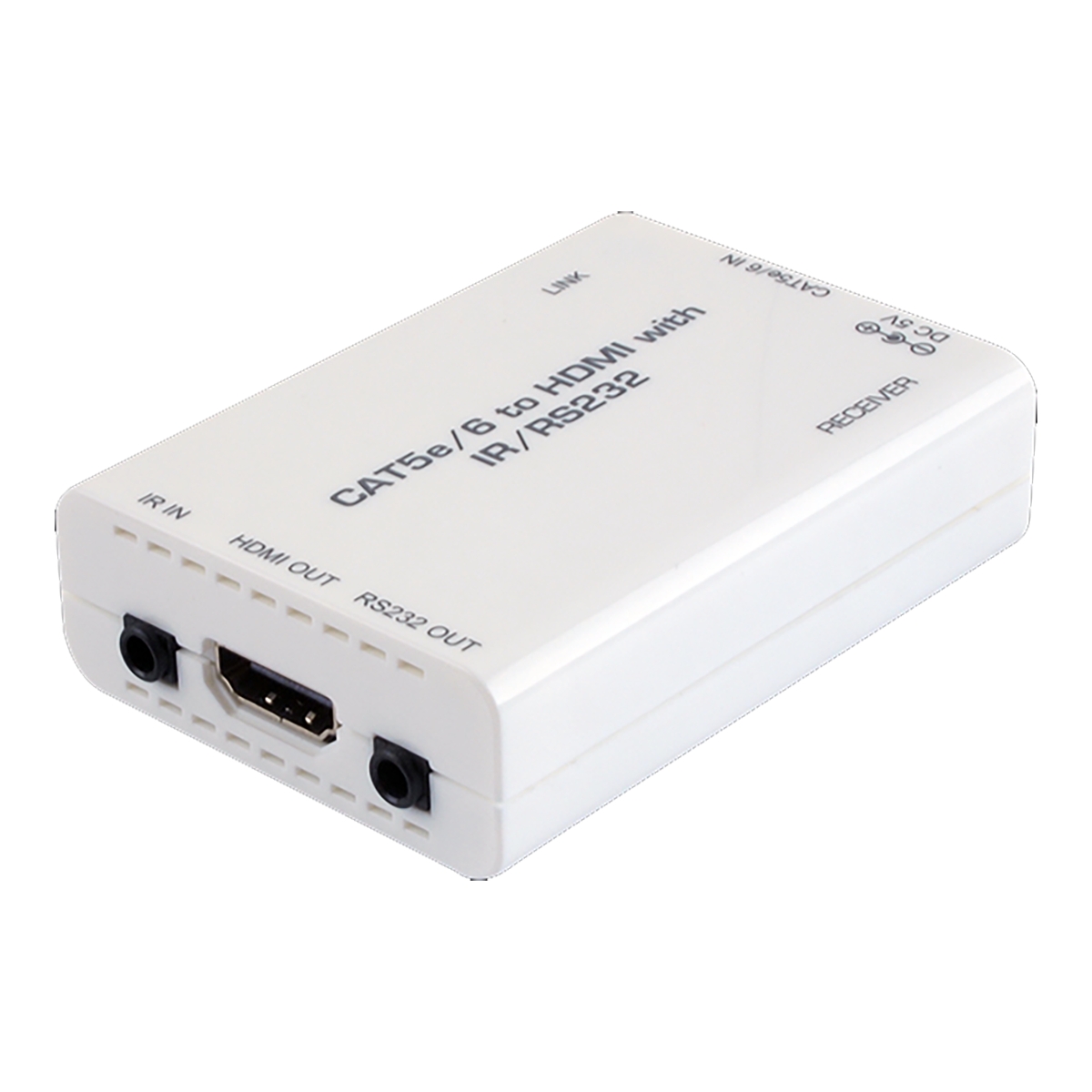

HDMI to CAT5e/6 with IR/RS232 (4K@60 4:2:0 up to 40M) Receiver
CH-513RXL
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K
- HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through
- Supports HDCP repeater and CEC bypass
- Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
Spec sheetThe HDMI Extender over single CAT5e/6/7 incorporating IR and RS-232 signal transfer allows for a more efficient system setup and is easy to install.
Uncompressed video and audio can be transmitted to distances of up to 70 meters (1080p) and supports High Definition Audio and 3D signals.
Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6/7 cable.
Features
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K
- HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through
- Supports HDCP repeater and CEC bypass
- Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
- HDMI with 3D, 4K2K support, HDCP and DVI compliant
- Multiple control interfaces such as RS-232 with baud rate up to 115200/sec and IR
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Diagram
Specifications
|
Interfaces |
|
|
Input Port |

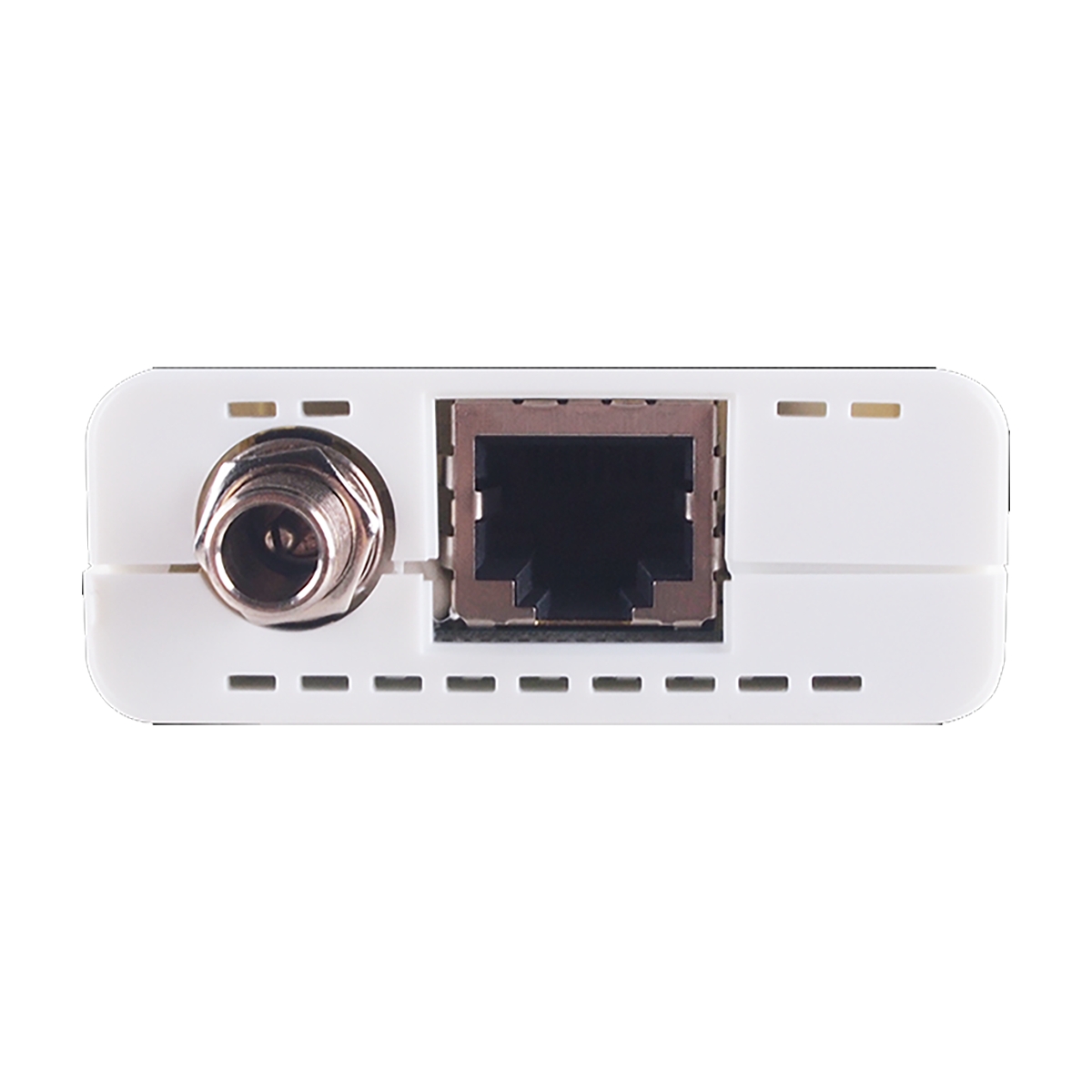

HDBaseT (RJ-45) IR Extender(3.5mm) |
|
Output Port |

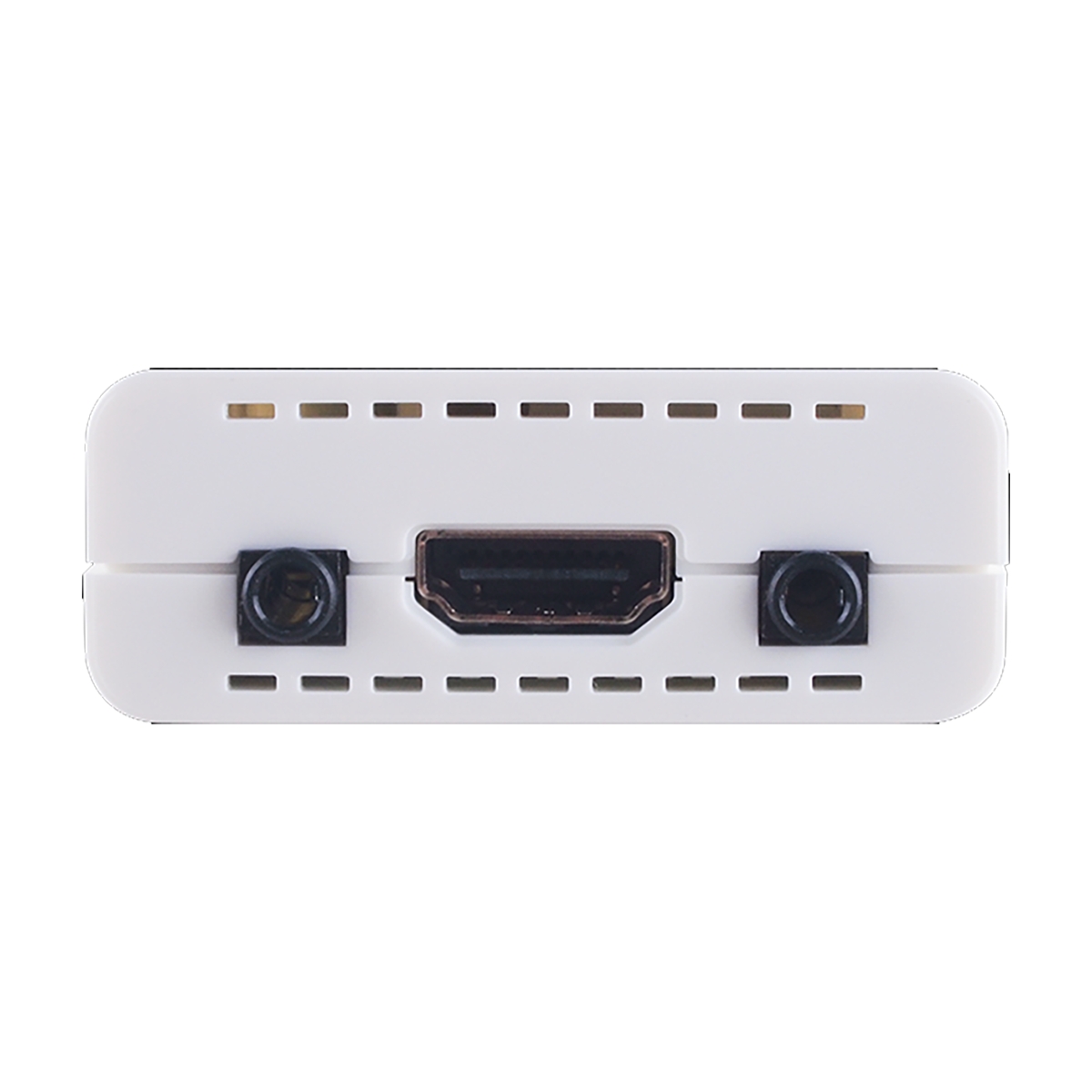

HDMI(Type-A) RS-232(3.5mm) |
|
Video |
||
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
HDCP Compliance |
HDCP2.x |
|
|
Input Signal Type |
4K@60 YUV 4:2:0 |
|
|
Output Signal Type |
4K@60 YUV 4:2:0 |
|
|
Resolutions |
||
|
Maximum Input |
HDBaseT |
4096×2160p@60 YUV 4:2:0 |
|
Maximum Output |
HDMI |
4096×2160p@60 YUV 4:2:0 |
|
Power |
|
|
Power Supply |
5 V/2.6 A DC (US/EU standards, CE/ FCC/UL certified) |
|
Power Consumption |
5.5 W |
|
Enclosure |
|
|
Chassis Material |
Plastic |
|
Chassis Color |
White |
|
Dimensions (W×H×D) |
55 mm × 22.5 mm × 82 mm |
|
Weight |
64g |
|
Field Firmware Update |
|
PCB on board, uses RS232 |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
CH-513RXL |
CAT5e/6/7 to HDMI with IR/RS232 |
|
CH-513TXL |
HDMI to CAT5e/6/7 with IR/RS232 |
