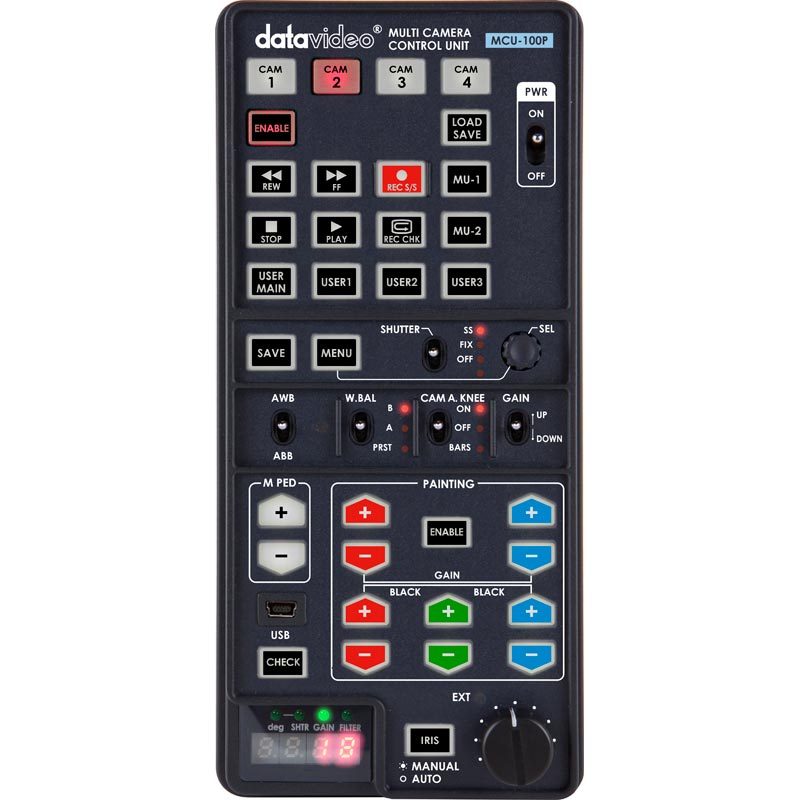

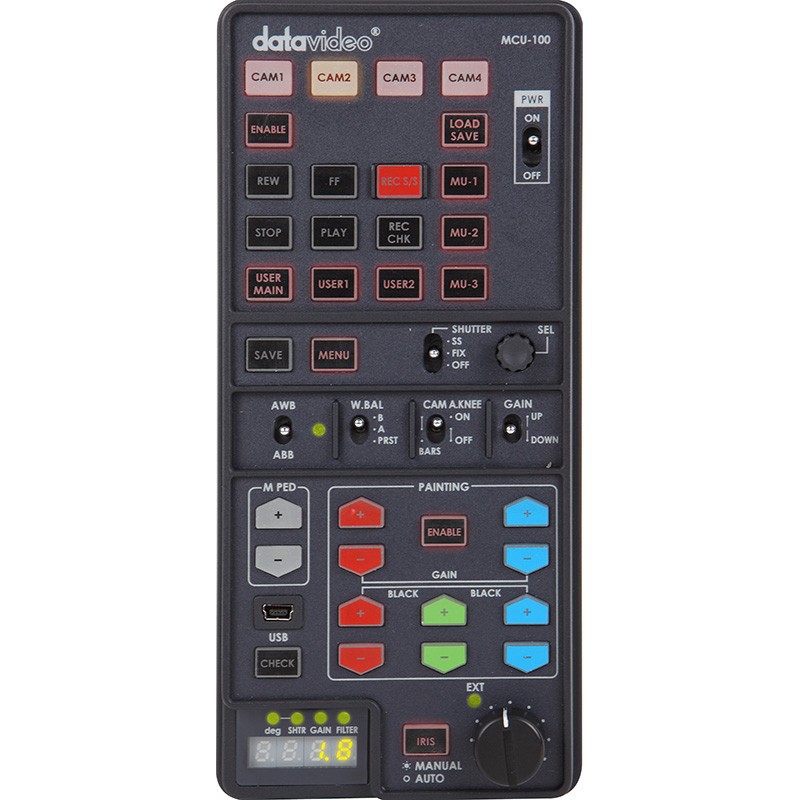

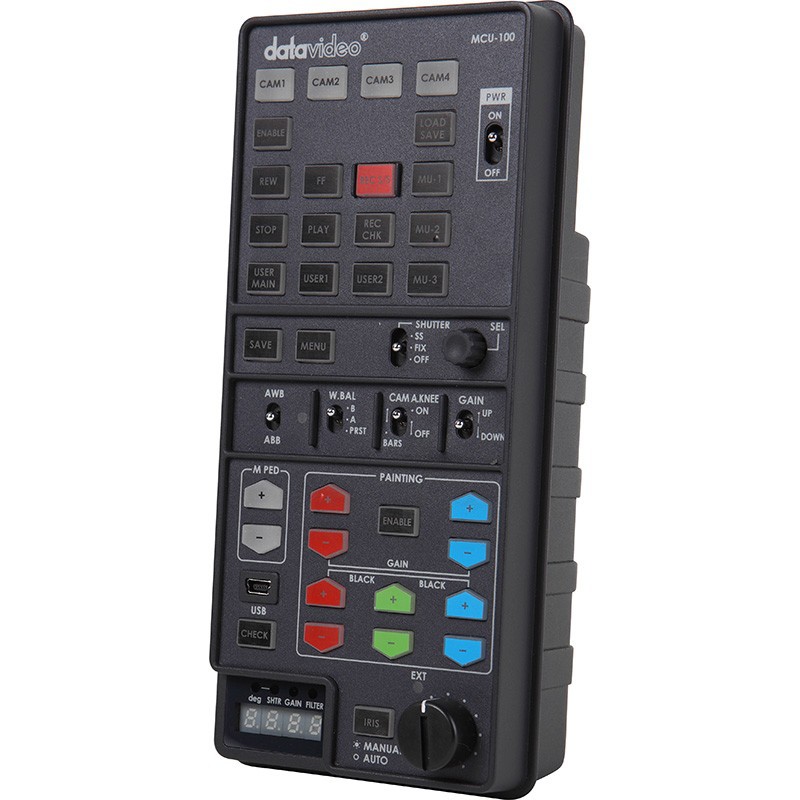

Multiple Camera Controller for Panasonic Camera
MCU-100P
MCU-100 Multiple Camera Controller ใช้สำหรับควบคุมกล้อง Panasonic ที่ใช้ในงาน video production ได้ถึง 4 ตัว ผ่านสาย LAN ไกลถึง 400 เมตร
Clearance Sale
ราคา 29,900 บาท ประกัน 6 เดือน
"จำนวนจำกัด"
Spec Sheet
Manual
Control and configure up to 4 cameras

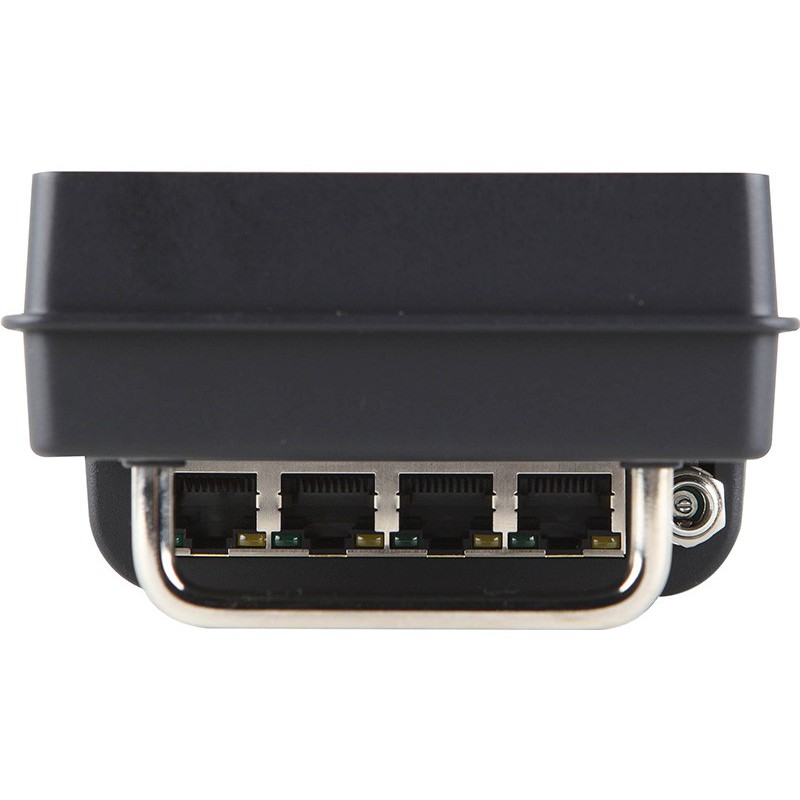

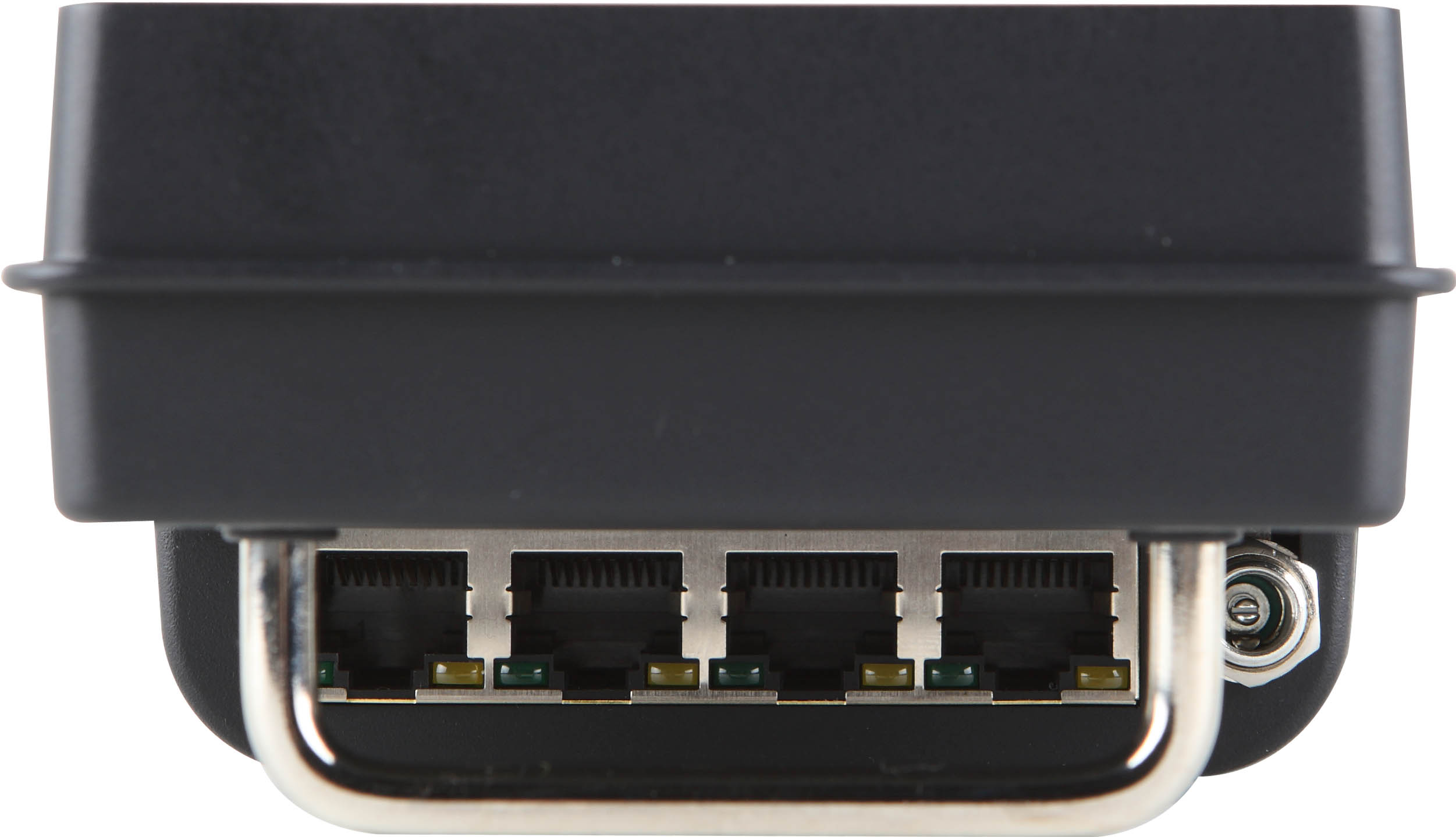

Using the included four AD-1 adapters, the MCU-100 can connect up to fourcameras via individual RJ-45 connection.
Transmission up to 300m
As a great tool to have for outdoor production, RJ-45 cabling allows the MCU-100 to be placed up to 300m away from the cameras.
Mutiple camera functions control
The MCU-100 provides major camcorder control functions and operations such as recording, Iris, Shutter, Gain, Black/white balance, Pedestals.
Specifications
Model Number |
MCU-100P |
Camera Input |
- |
Camera Side Adapter |
AD-1P |
Camera Controlled Qty |
4 |
CAM Remote Interface |
10 Pin remote connector |
Video Input |
- |
Video Output |
- |
Composition Monitoring to View the Camera's own LCD/OSD menus |
Yes |
Support Functions |
-Record and Playback -Camera User memory functions -Camera OSD Menu Navigation -Shutter speed and degree functions -Iris adjustment -AWB & ABB functions -White Balance A, B and Preset functions -Camera Knee & Bars functions -Camera Gain adjustment -RGB / R & B gain and Master Pedestal controls |
Compatible Camera Models |
AG-HPX255, AG-HPX300, AG-HPX301, AG-HPX302, AG-HPX304, AG-HPX370, AG-HPX370P, AG-HPX371, AG-HPX372, AG-HPX500, AG-HPX502, AG-HPX600, AG-HPX600P, AJ-HDX900, AJ-HPX2700, AJ-HPX2700G, AJ-HPX3000, AJ-HPX2000, AJ-HPX3100, AJ-PX800G, AJ-PX500, AG-HPX393 |
Connection Distance |
300m |
Dimension (LxWxH) |
95 x 208 x 66 mm / 440 x 125 x49 mm |
Weight |
0.5 kg / 1.8 kg |
Power |
DC 12V, 1A |
Operating Temp. Range |
0~40 °C |
What's in the Box |
1 x MCU-100P Product 4 x Adapter Box AD-1P 1 x AD Switch DC 12V 1 x Ethernet Cable |
