CS1924
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

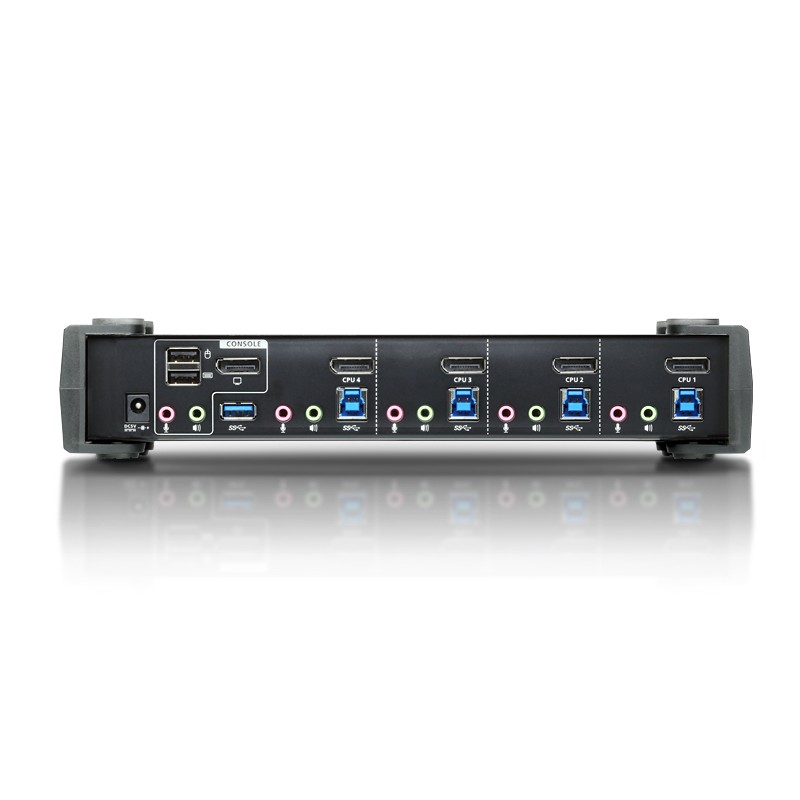

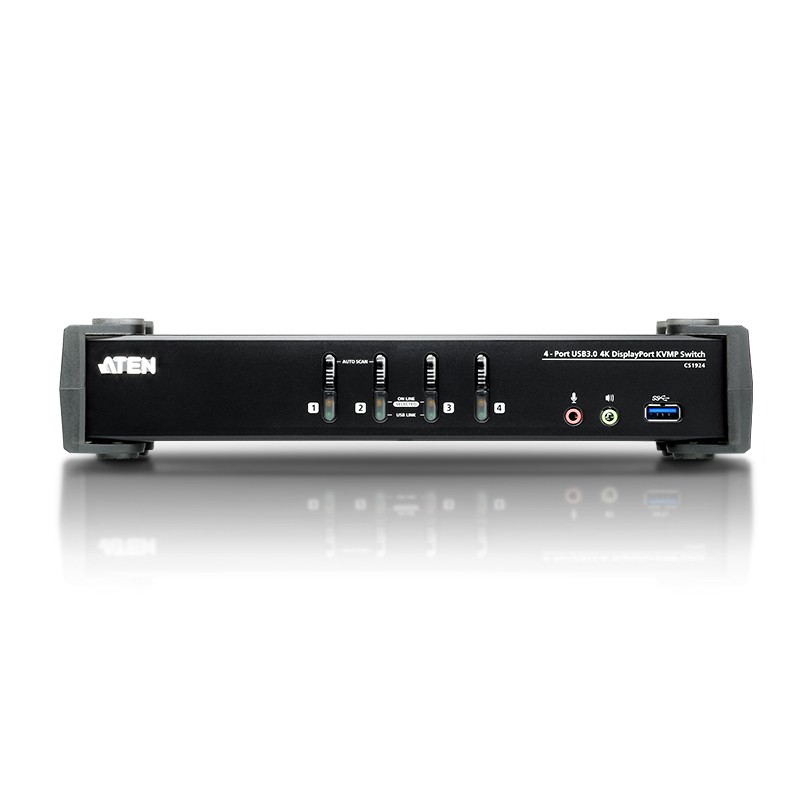

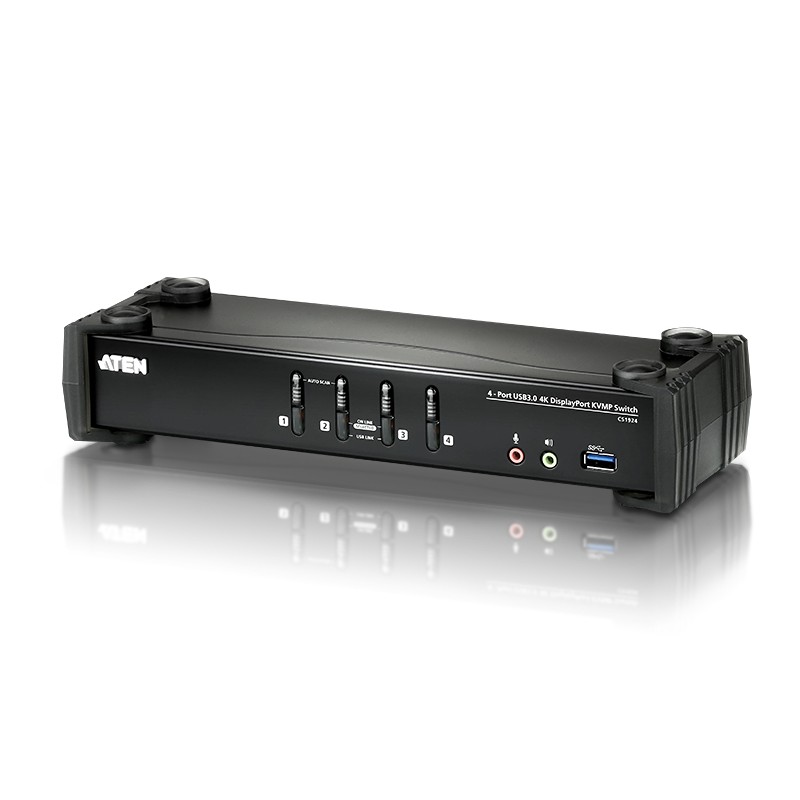

4-Port USB 3.0 4K DisplayPort KVMP™ Switch
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
ATEN CS1924 เป็น KVMP™ แบบ 4-Port สนับสนุนการแสดงผลแบบ 4K ผ่าน DisplayPort มีฟังค์ชั่น USB peripheral ที่รองรับการแชร์อุปกรณ์ USB 3.1 ในตัว
หมายเหตุ:
1. การสลับคอมพิวเตอร์ด้วยเมาส์ สนับสนุนภายใต้การใช้งาน mouse emulation mode ด้วยการใช้ปุ่มที่ 3 ของ mouse wheel.
2. ระบบเสียงแบบ HD audio through DisplayPort ไม่สามารถสลับแบบอิสระได้
3. MST requires two monitors capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. The PC source must be DisplayPort 1.2 compliant. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain.
4. Dual-Mode DisplayPort technology (DP++) ไม่จำเป็นต้องใช้ active adapter สำหรับการติดตั้ง single display. Active DisplayPort adapters แนะนำต่อเมื่อ คุณไม่มั่นใจว่าสัญญาณวิดีโอแหล่งที่มา รองรับ DP++ หรือไม่

| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| KVM (Computer) Ports | 4 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel) |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| On Line /Selected | 4 (Orange) |
| USB Link | 4 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 4096 x 2160 @ 60Hz |
| Scan Interval | 1-99 Seconds (Default: 5 sec.) |
| Power Consumption | DC5V:2.99W:57BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.91 kg ( 2 lb ) |
| Dimensions (L x W x H) | 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
