PE4102G
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

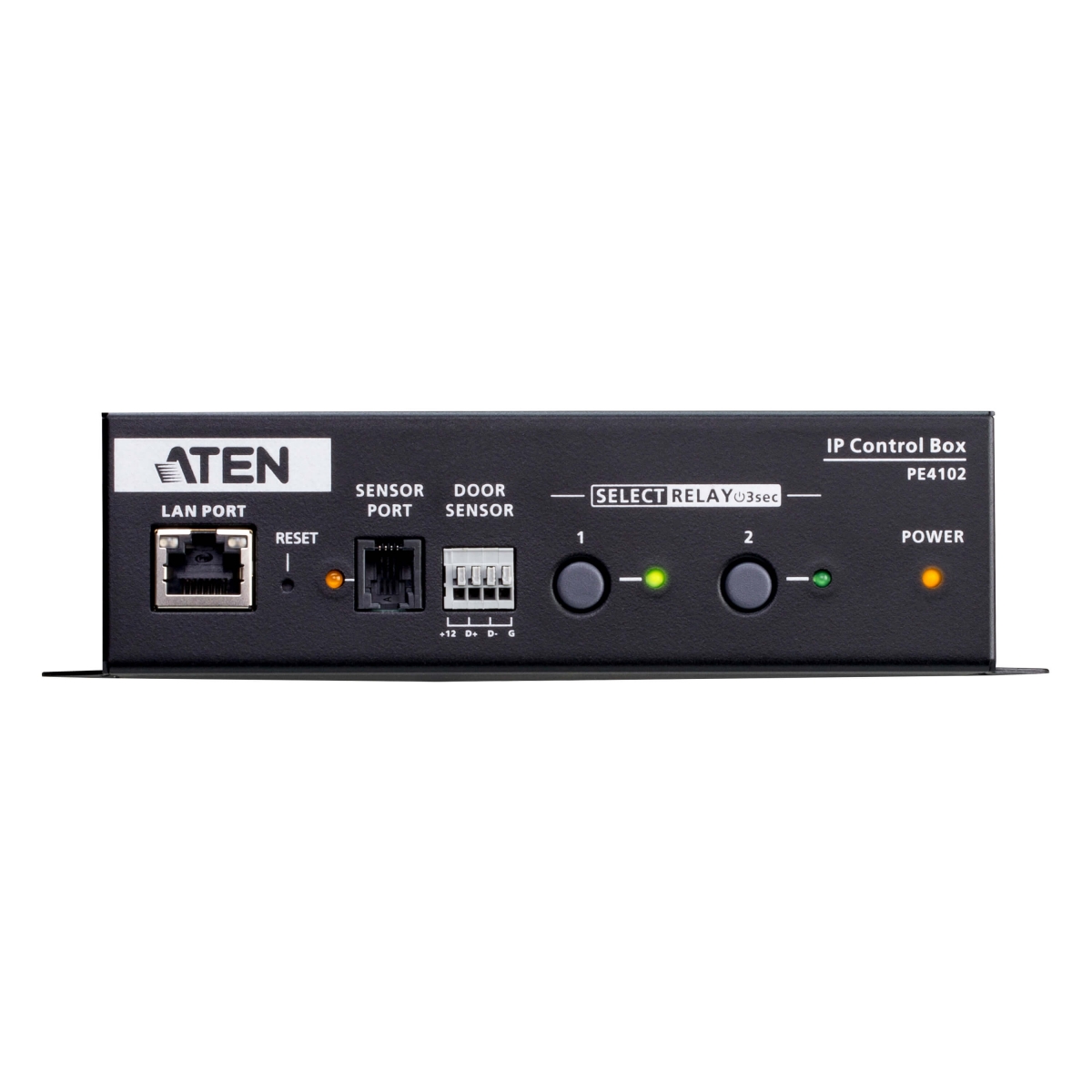

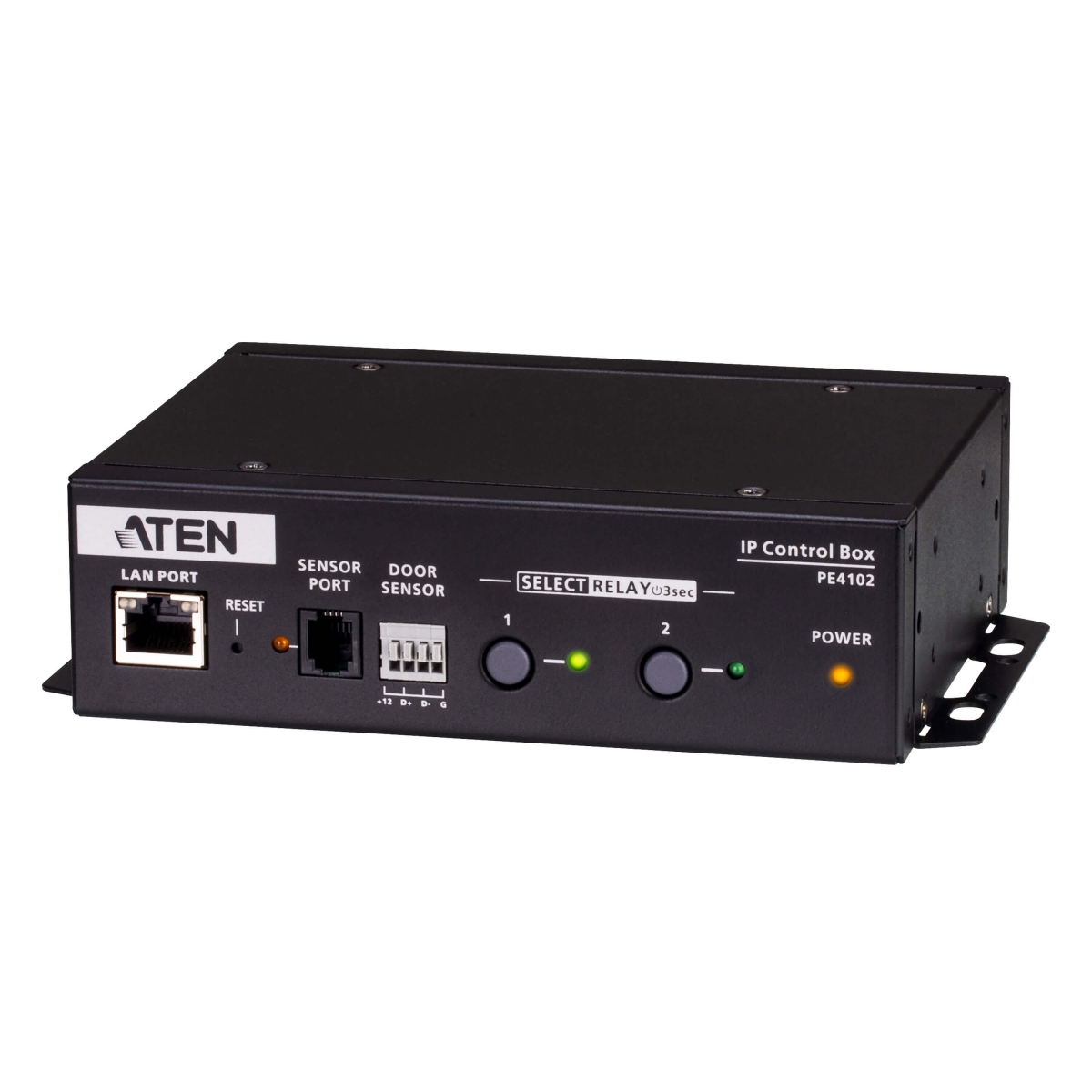

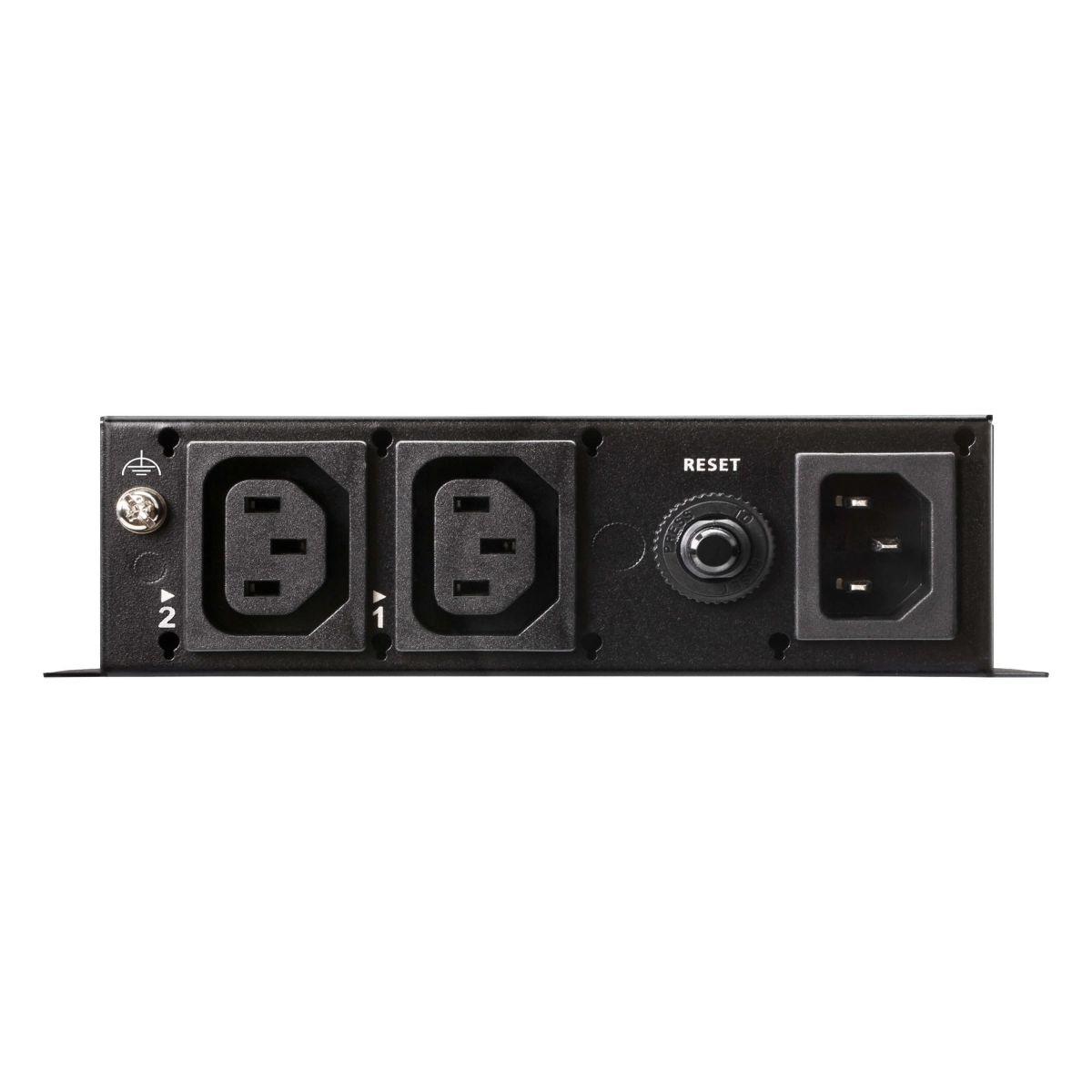

2-Outlet Eco PDU Power Controller
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก


| Electrical | |
| Nominal Input Voltage | 100-240V |
| Maximum Input Current | 10A Max |
| Input Frequency | 50-60 Hz |
| Input Connection | IEC C14 |
| Input Power | 2400VA(Max) |
| Outlet Type | (2) IEC C13 |
| Nominal Output Voltage | 100-240 VAC |
| Maximum Output Current (Outlet) | 10A(Max) |
| Maximum Output Current (Bank) | 10A(Max) |
| Maximum Output Current (Total) | 10A(Max) |
| Breakers | Yes(UL1077) |
| Metering | No |
| Outlet Switching | Yes |
| Physical Properties | |
| Dimensions (L x W x H) | 17.0 x 12.78 x 4.40 cm (with wall mount ear) 15.0 x 12.78 x 4.40 cm (without wall mount ear) |
| Weight | 0.70 kg |
| Power Cord Length | 3M |
| Environmental | |
| Temperature (Operating / Storage) | 0 – 50℃ / -20 – 60℃ |
| Humidity (Operating & Storage) | 0 – 80% RH, Non-Condensing |
| Compliance | |
| EMC Verification | CE-EMC |
| Safety Verification | CE-LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
