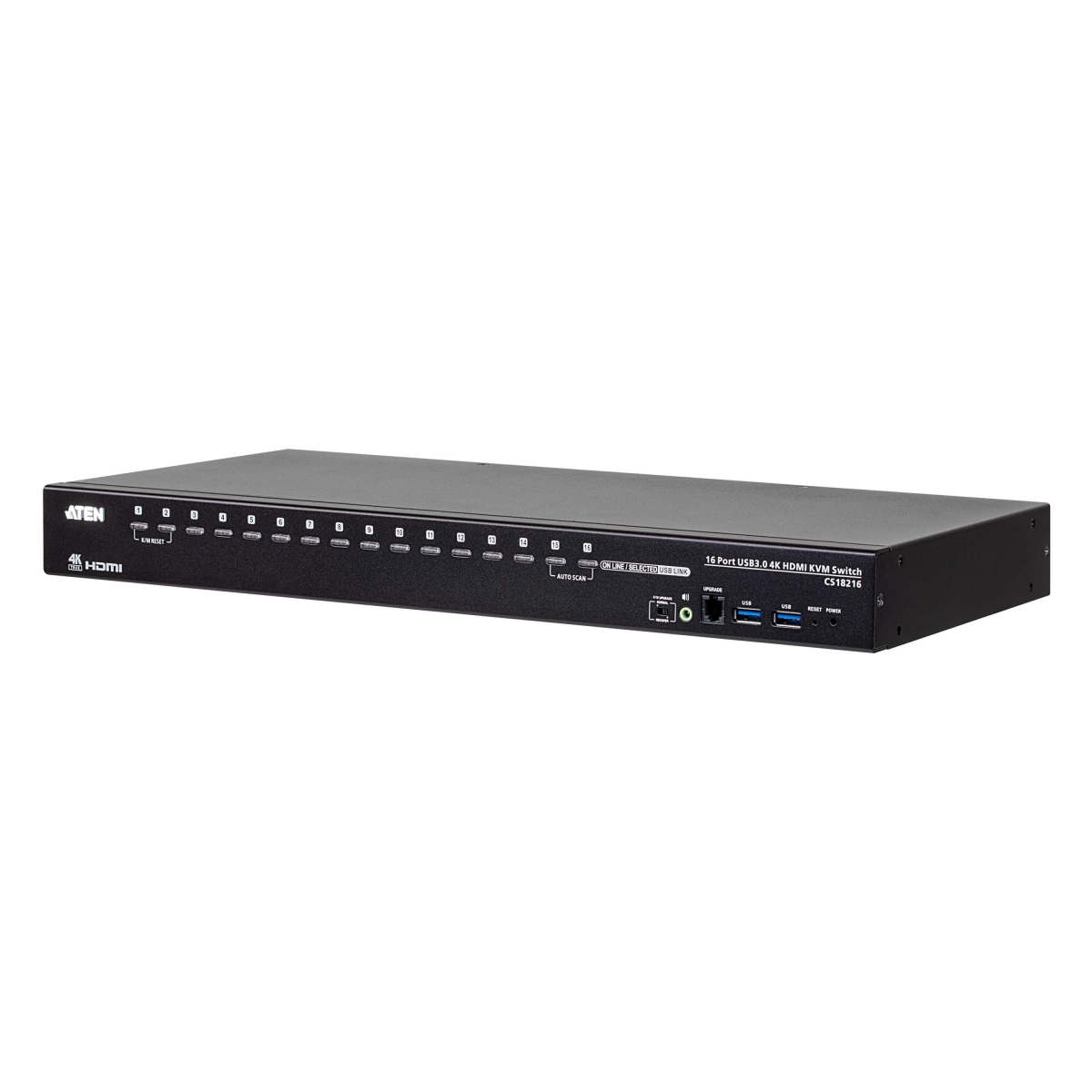

CS18216
CS18216 16-Port USB 3.0 4K HDMI KVM Switch สามารถเข้าถึงและควบคุมคอมพิวเตอร์ HDMI ได้มากถึง 16 เครื่องจากคีย์บอร์ด USB เมาส์ USB และคอนโซลมอนิเตอร์ HDMI CS18216 รองรับคุณภาพวิดีโอสูงถึง 4K DCI (4096 x 2160 @ 60Hz) ให้ภาพที่คมชัด รองรับ EDID
หมายเหตุ:
1. CS18216 cascades กับ CS18216 เท่านั้น
2. เสียง HD ผ่านช่องสัญญาณ HDMI ไม่สามารถสลับได้อย่างอิสระ
3.รองรับการสลับอิสระภายใต้โหมดการจำลองเมาส์เท่านั้น.
4. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.

| Computer Connections | |
| Direct | 16 |
| Maximum | 256 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton, RS-232 Commands |
| Connectors | |

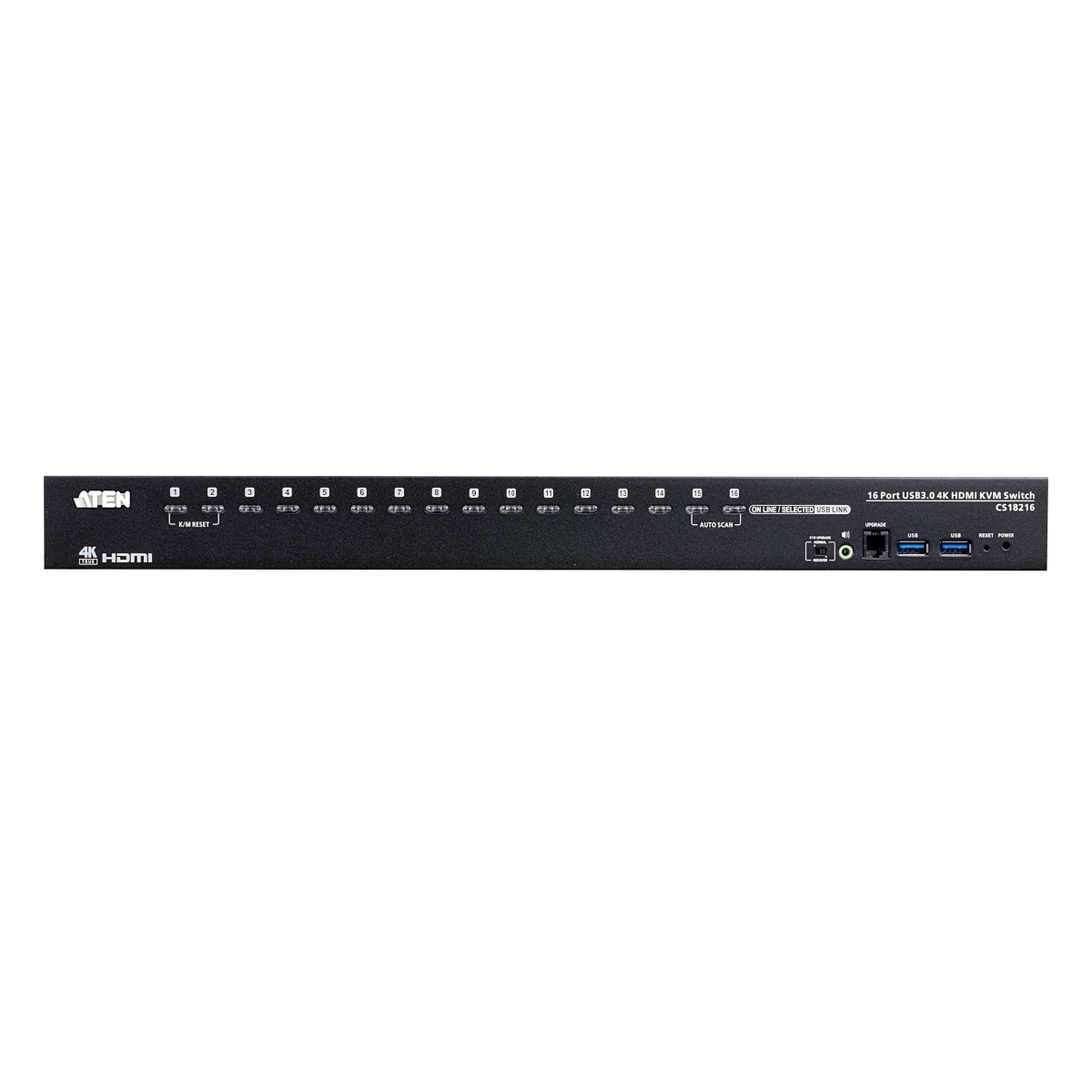

| Console Ports | 1 x HDMI Female (Black) 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |

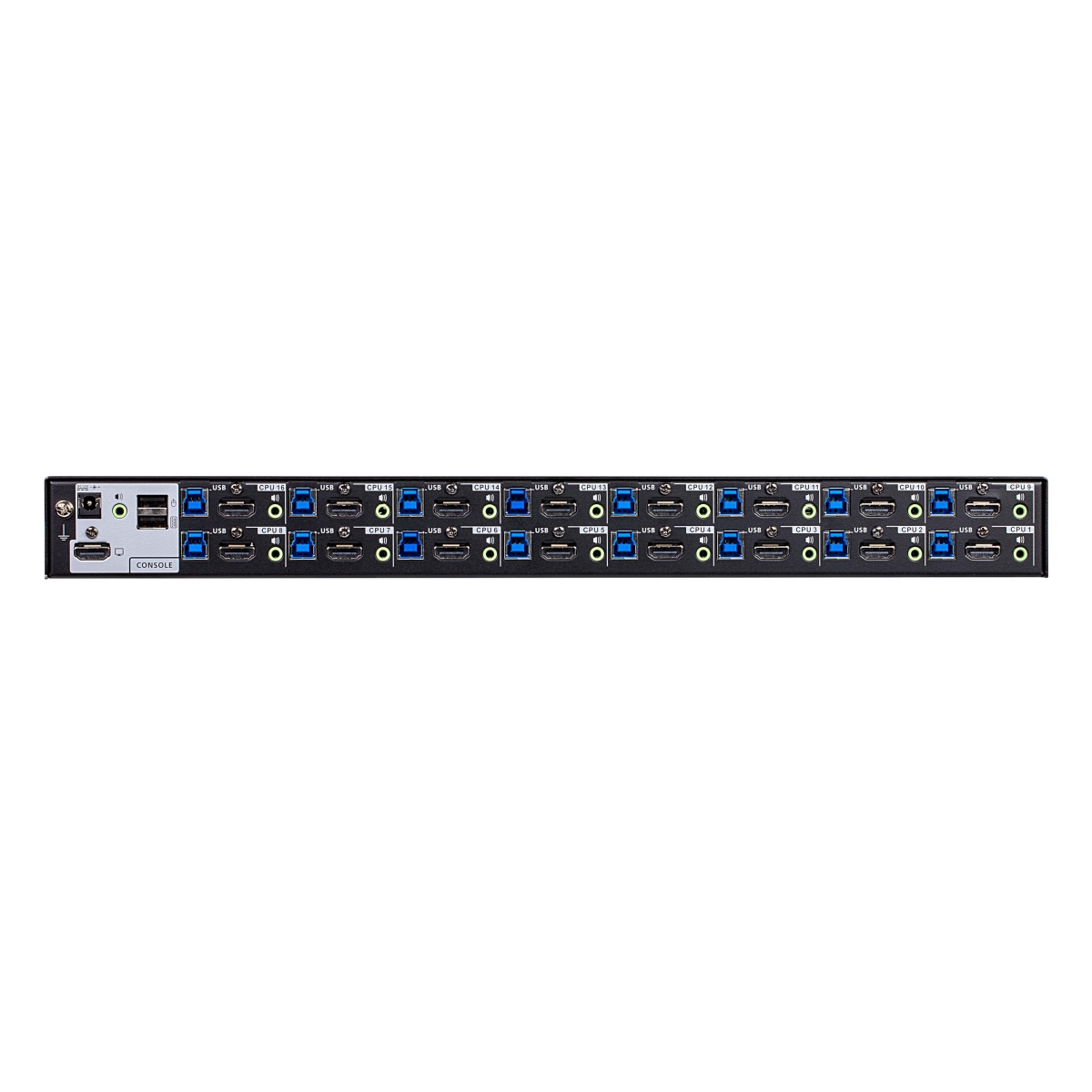

| KVM Ports | 16 x HDMI Female 16 x USB3.1 Gen1 Type B Female (Blue) 16 x 3.5mm Audio Jack Female (Green) |
| Firmware Upgrade | 1 x RJ11 Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
| Switches | |
| Port Selection | 16 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade Recovery | 1 x Slide Switch |
| LEDs | |
| On Line /Selected | 16 (Orange) |
| Power | 1 (Green) |
| USB Link | 16 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | HDMI: 4096 x 2160 @ 60Hz |
| Scan Interval | 0 – 255 seconds (default: 5 secs.) |
| Power Consumption | DC12V:13.12W:104BTU |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 3.54 kg ( 7.8 lb ) |
| Dimensions (L x W x H) | 43.24 x 21.43 x 4.40 cm (17.02 x 8.44 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
